Haibike AllMtn 3 Electric Mountain Bike 2022

★★★★★ ★★★★★
MSP £4,199.00 Save 10%

Select a colour and size to view stock availability

AllMtn 3 Electric Mountain Bike 2022
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1408247

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

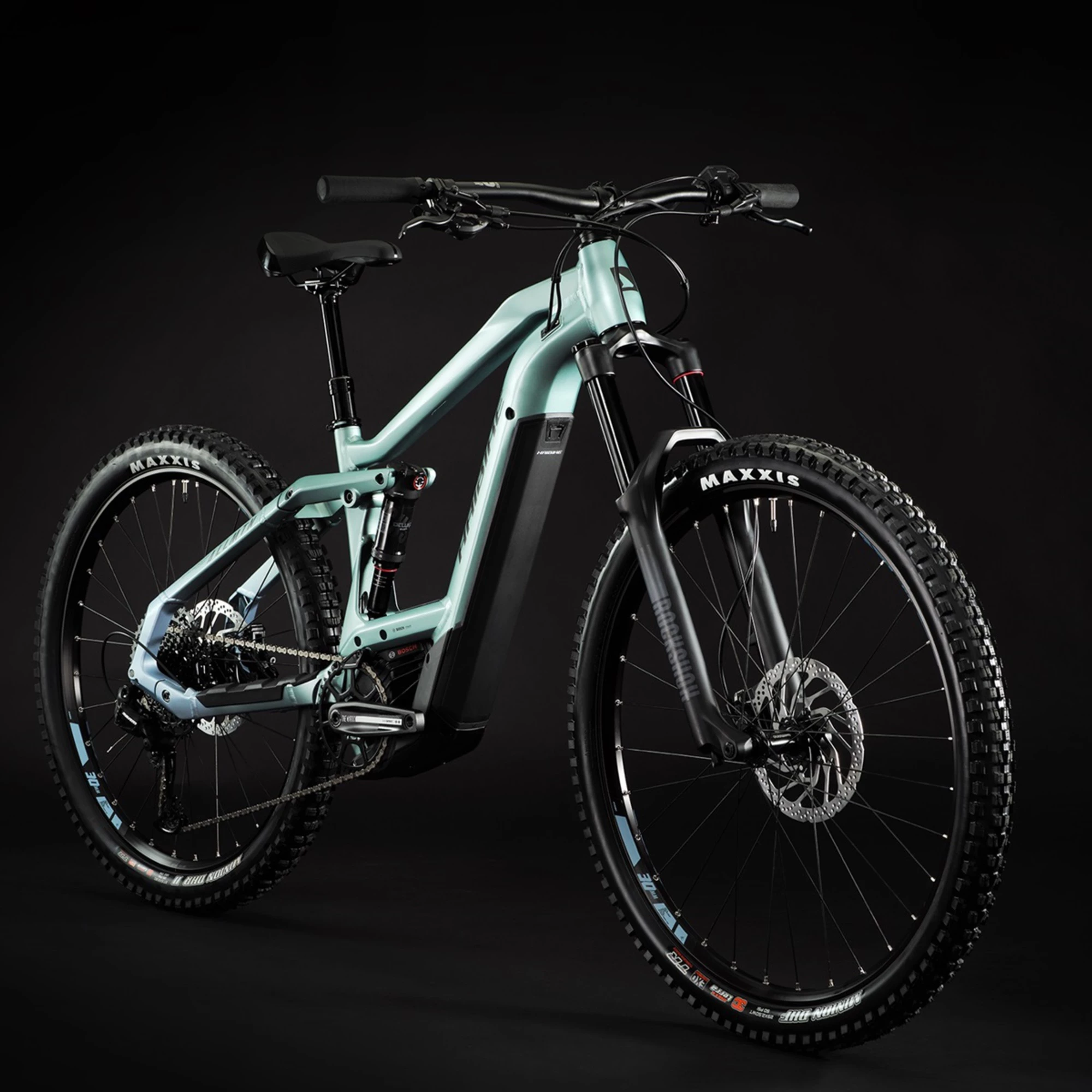

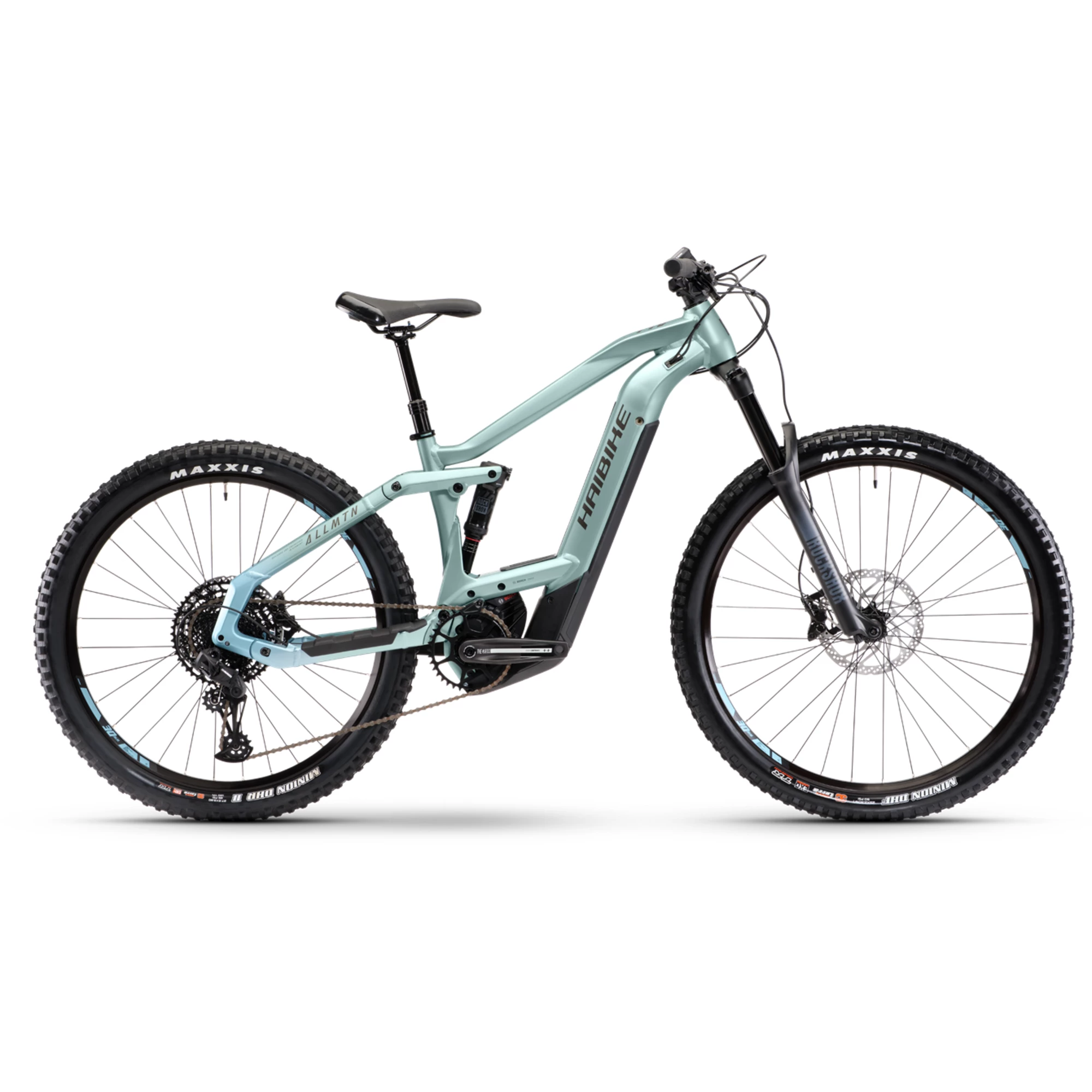

Haibike AllMtn 3 Electric Mountain Bike 2022

A perfect all-rounder for crushing singletrack, the Haibike AllMtn 3 Electric Mountain Bike features 160mm of plush suspension and a powerful fourth-generation Bosch Performance CX motor. Fast and fun, this bike features a mixed wheel 29” front and 27.5” rear wheel combination, which encourages a playful ride style and rapid cornering. Comfortable on even demanding trails, the four-piston Shimano disc brakes and RockShox 35 Silver fork instil complete confidence when descending, while the SRAM drivetrain provides a wide range of gears to blaze up steep climbs.

Sporting 85Nm of torque and 250w of power, the motor is a high-end choice for performance use and enables an electric-assisted speed limit of 15.5 mph / 25 km/h. A Bosch 625Wh PowerTube battery sees an extended range over many other models in this price bracket, and the tacky Maxxis tyre combination delivers unrivalled traction through flat corners and steep chutes.

Browse our range of Haibike electric mountain bikes today.

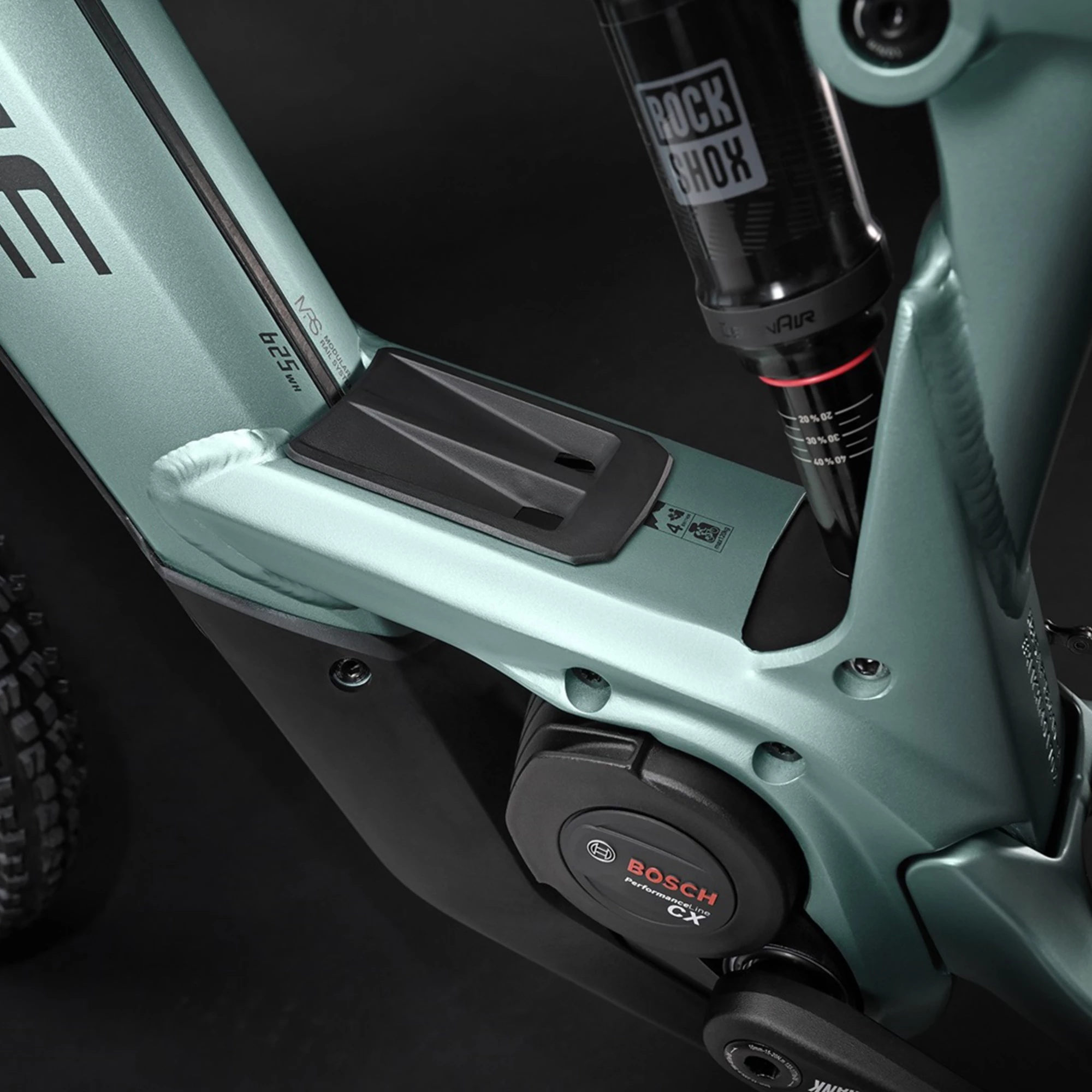

  • Flagship Bosch Gen 4 Performance CX motor system with 250w of power and 85Nm of torque, 25km/h maximum assistance
  • Mixed wheel 29" front, 27.5" rear provides a playful ride character
  • The lightweight 6061 aluminium frame features 160mm of bump-eating suspension travel
  • 12-speed SRAM SX Eagle drivetrain features a wide 11-50t cassette
  • 625Wh Bosch PowerTube battery delivers superior range
  • 160mm RockShox 35 Silver suspension fork
  • Shimano four-piston hydraulic disc brakes offer epic control when descending

Battery Specifications

  • Maximum Assist: 250w / 85Nm torque
  • Motor Weight: 2.9kg
  • Battery Power: 625Wh

Technical Specification

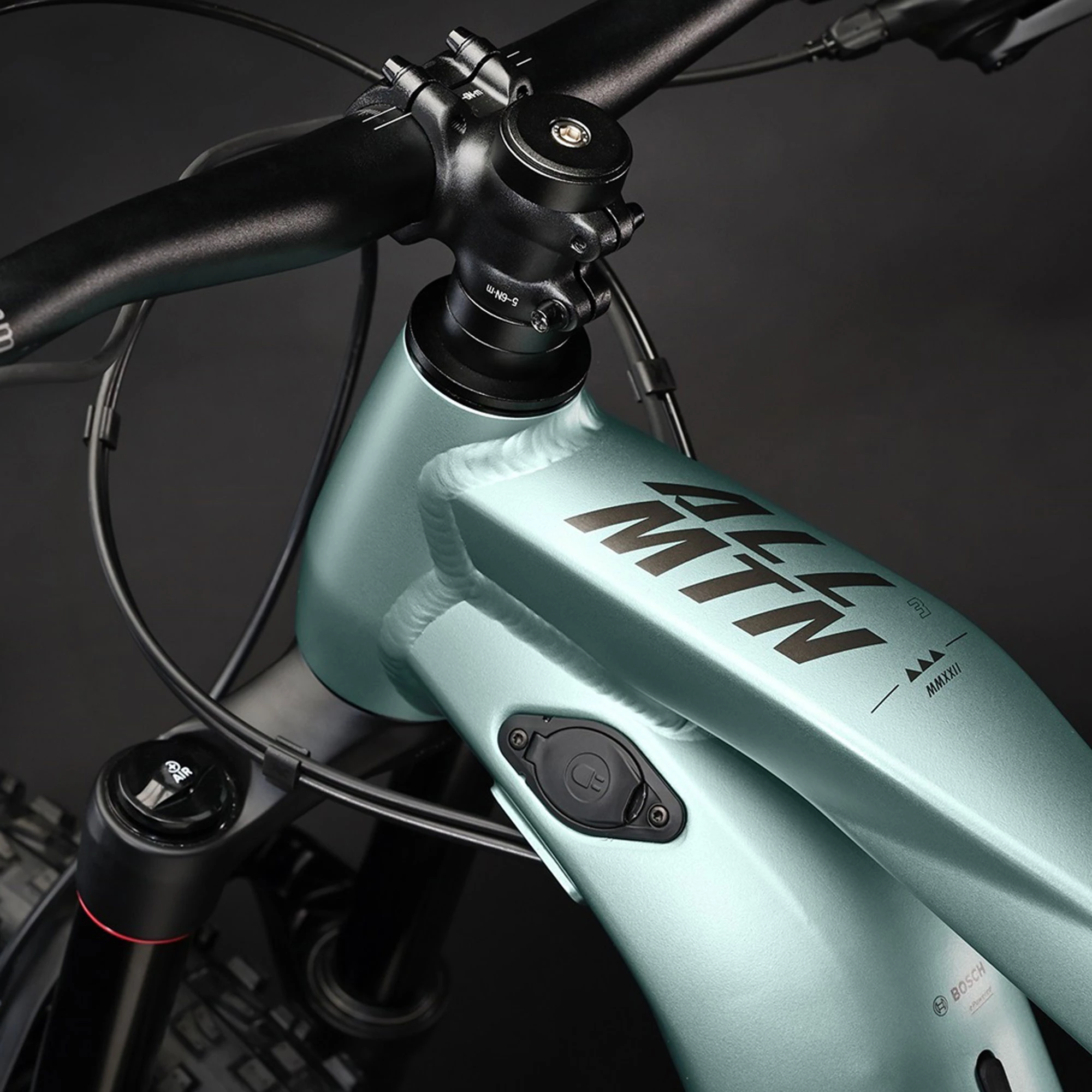

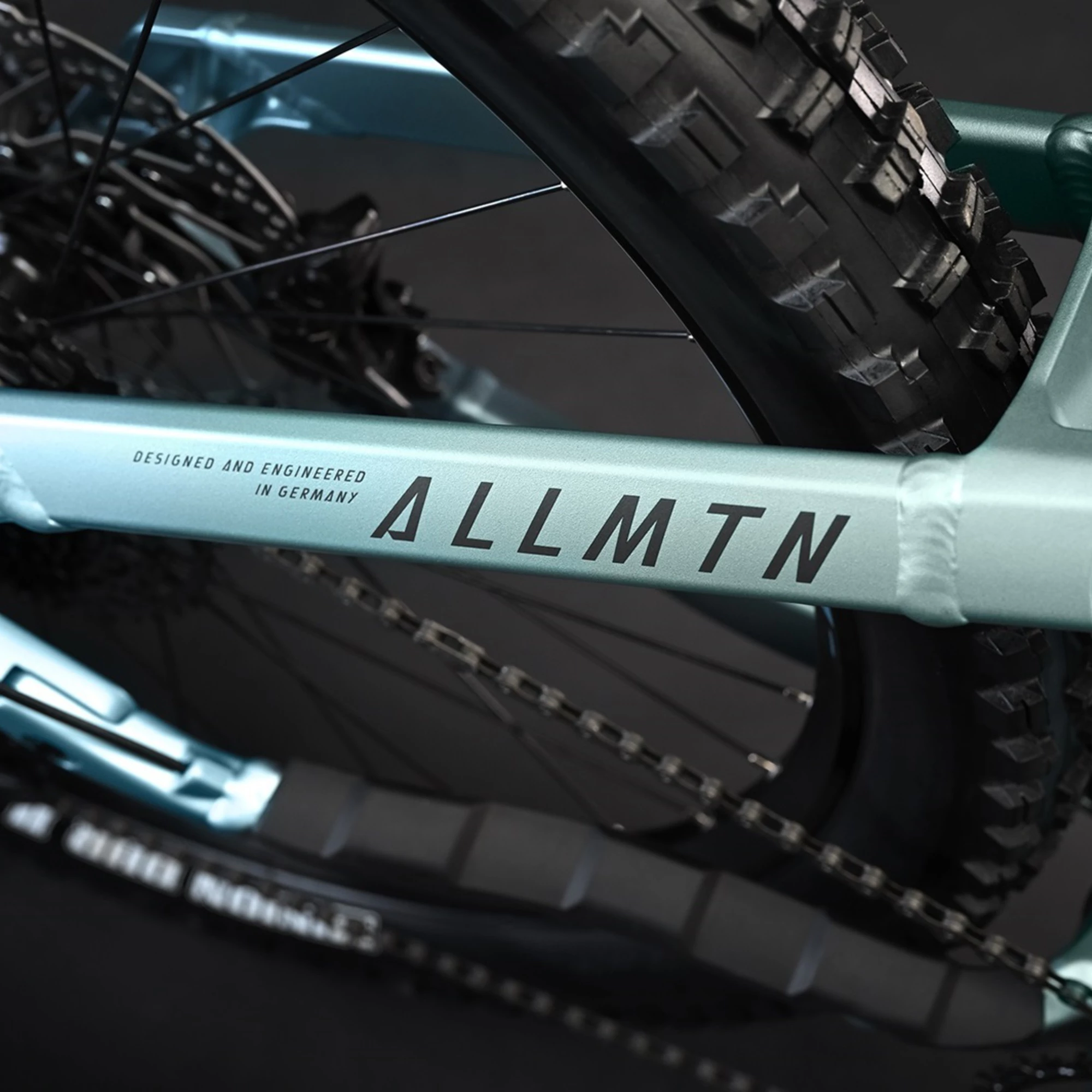

Frame Haibike FullSeven Bosch i625, aluminium 6061
Fork RockShox, 35 Silver, steel spring, 160mm, 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock RockShox Deluxe Select, air, Trunnion mount
Stem Haibike Components The Stem, alu, A-head, 31.8mm
Grips Haibike, MTB grips
Handlebar Haibike Components The Bar, 780mm
Front Brake Shimano MT420, hydraulic disc brake, four-piston
Rear Brake Shimano MT420, hydraulic disc brake, four-piston
Brake Levers Shimano MT401
Rear Derailleur SRAM SX Eagle, 12-speed
Shifter SRAM SX Eagle, 12-speed
Chain SRAM SX Eagle
Cassette SRAM Eagle PG1210, 11-50t
Crankset Haibike Components The Crank, aluminium
Front Wheel Rim - Rodi Tryp 30, With Eyelets, double wall, aluminium / Hub - Shimano MT400-B, Center Lock
Rear Wheel Rim -Rodi Tryp 30, With Eyelets, double wall, aluminium / Hub - Shimano MT400-B, Center Lock
Front Tyre Maxxis, Minion DHF II, 63-622, 29 x 2.5”, clincher
Rear Tyre Maxxis, Minion DHR II, 63-622, 27.5 x 2.8, clincher

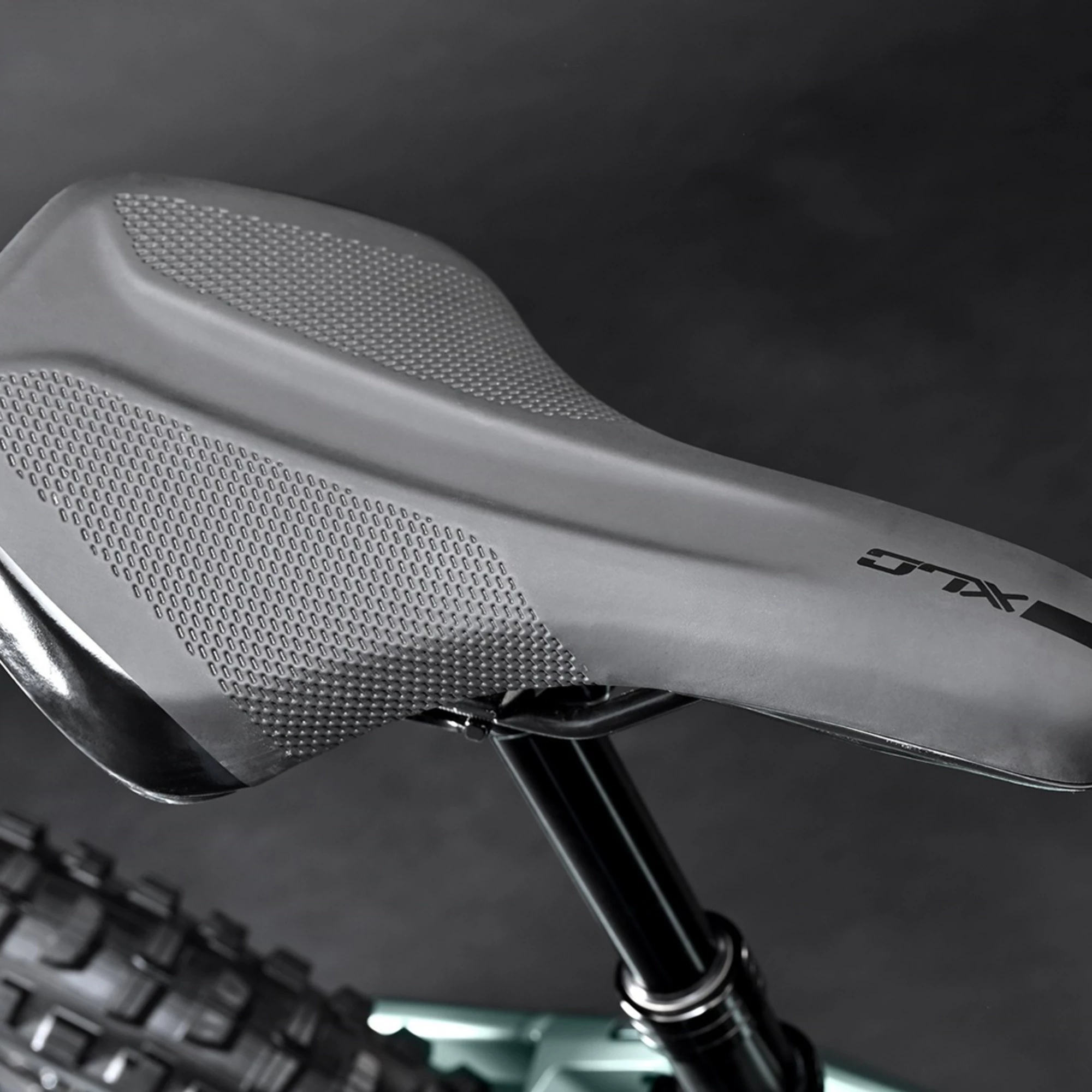

Saddle XLC, MTB
Seatpost Haibike Components Dropper-Post, aluminium, 34.9 mm
Pedals Freeridepedal, aluminium
Motor Bosch Performance CX GEN4, 250 Wh, 85 Nm, 25 km/h

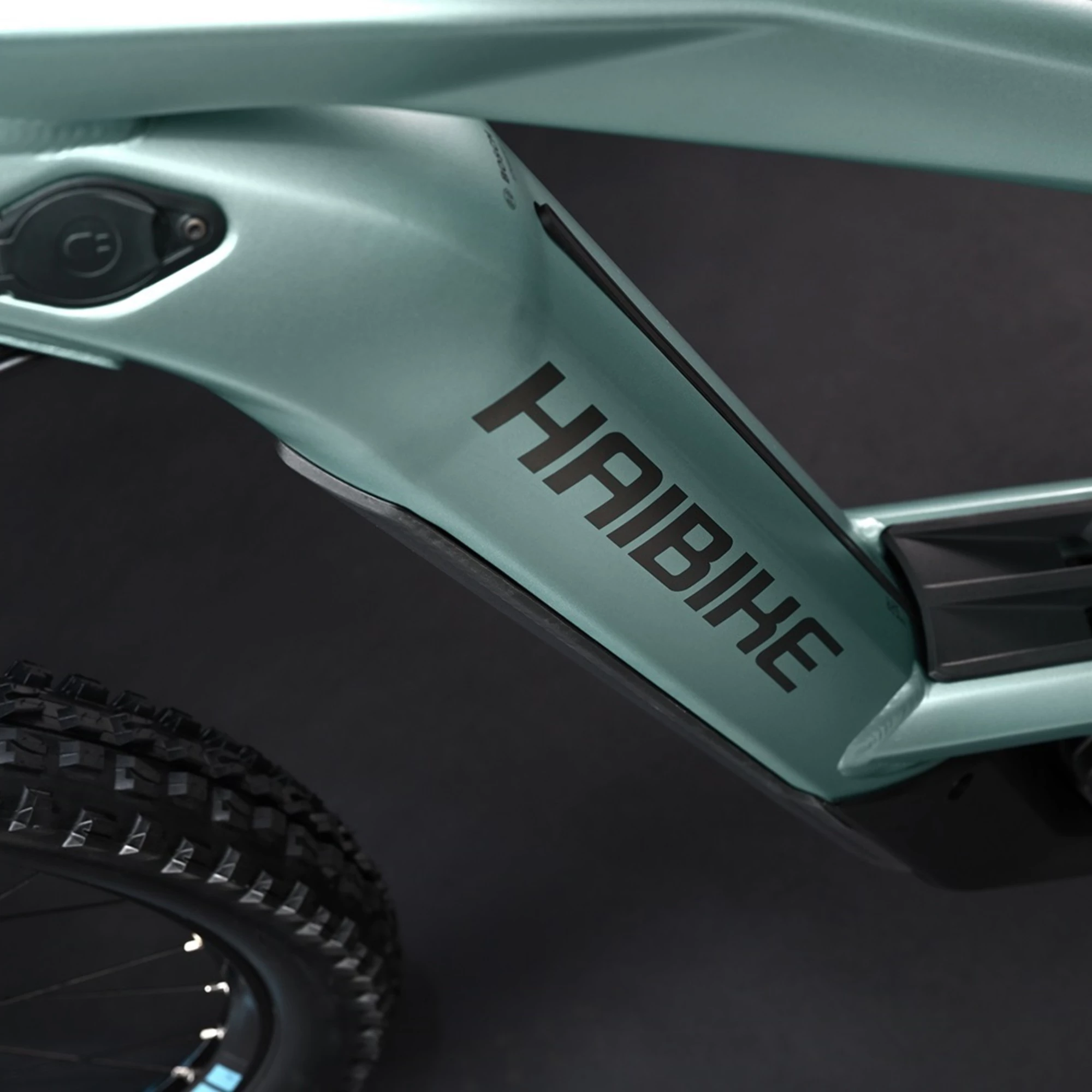

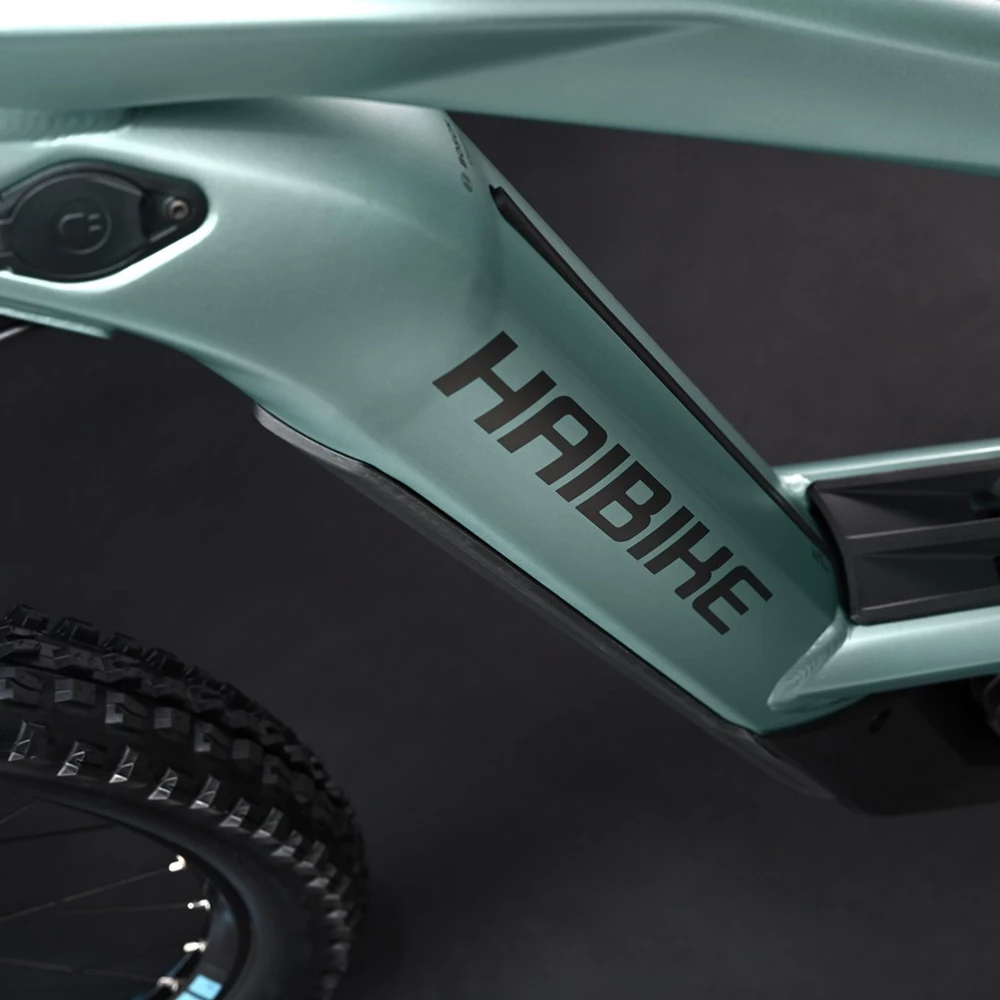

Battery Bosch PowerTube, 625Wh

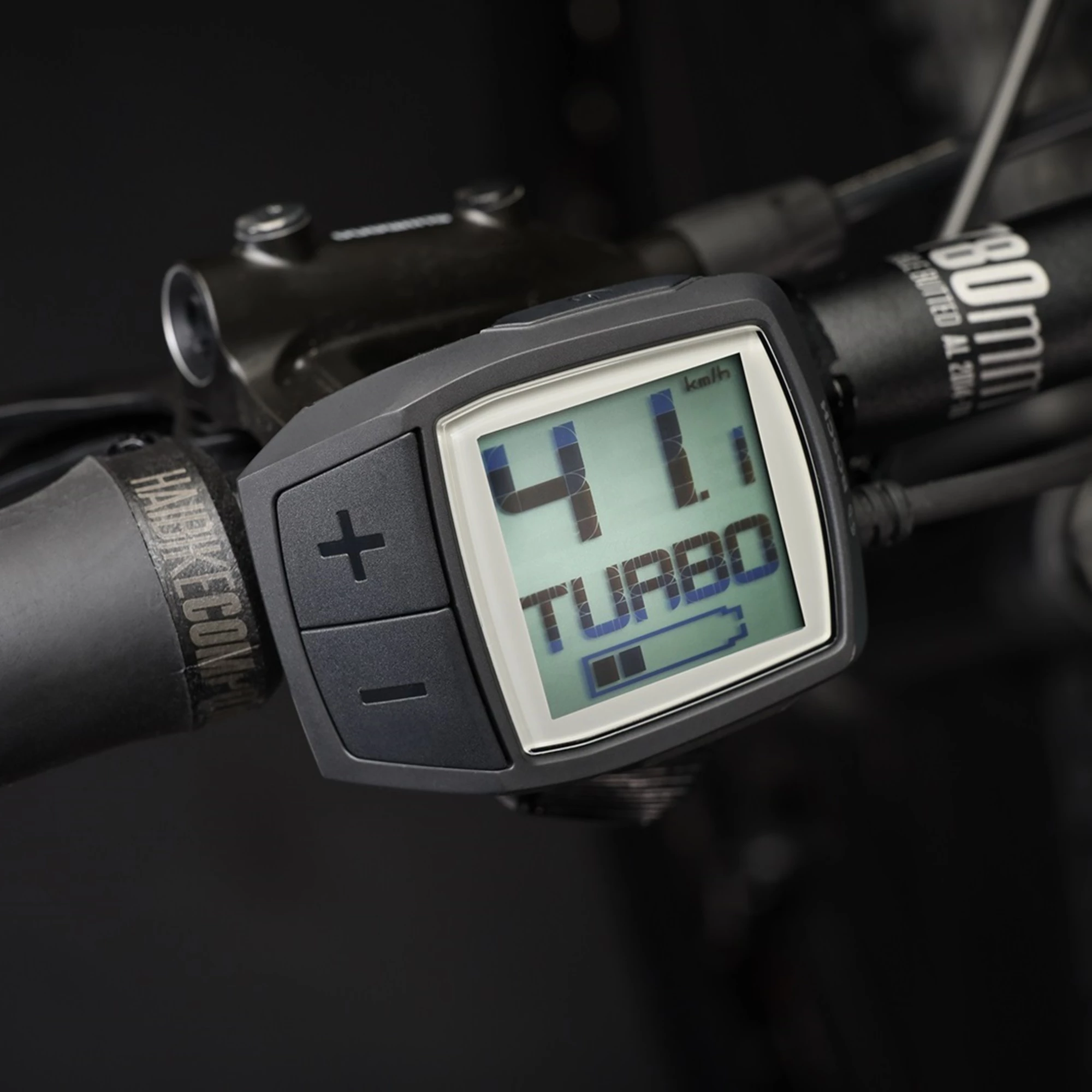

Ui/Remote Bosch Purion
Electric assisted speed limit 15.5 mph / 25 km/h

Haibike AllMtn 3 Electric Mountain Bike 2022 Sizing
