Haibike AllMtn CF 11 Electric Mountain Bike 2022

This item is no longer available to buy. View similar products.

Product ID: 1408123

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

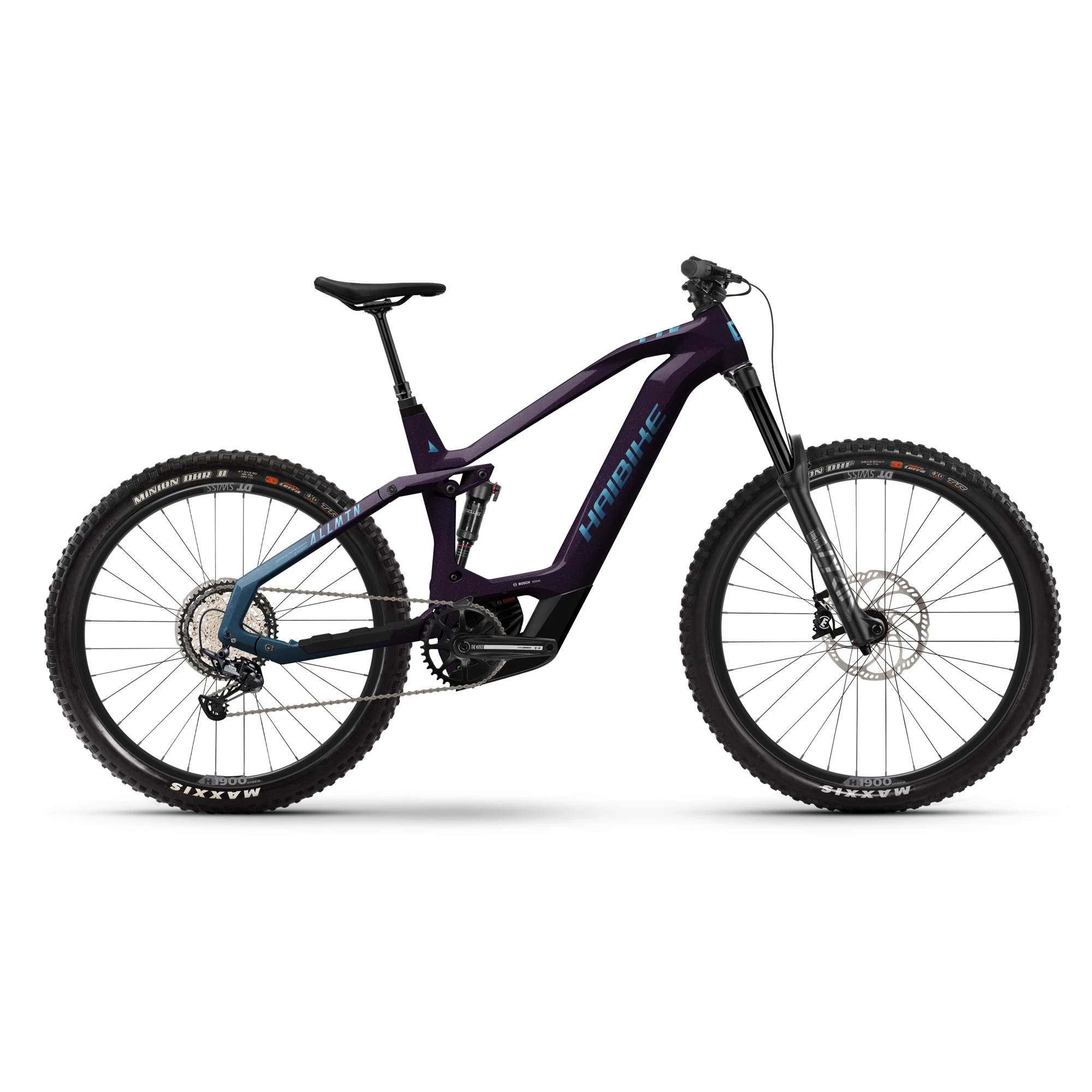

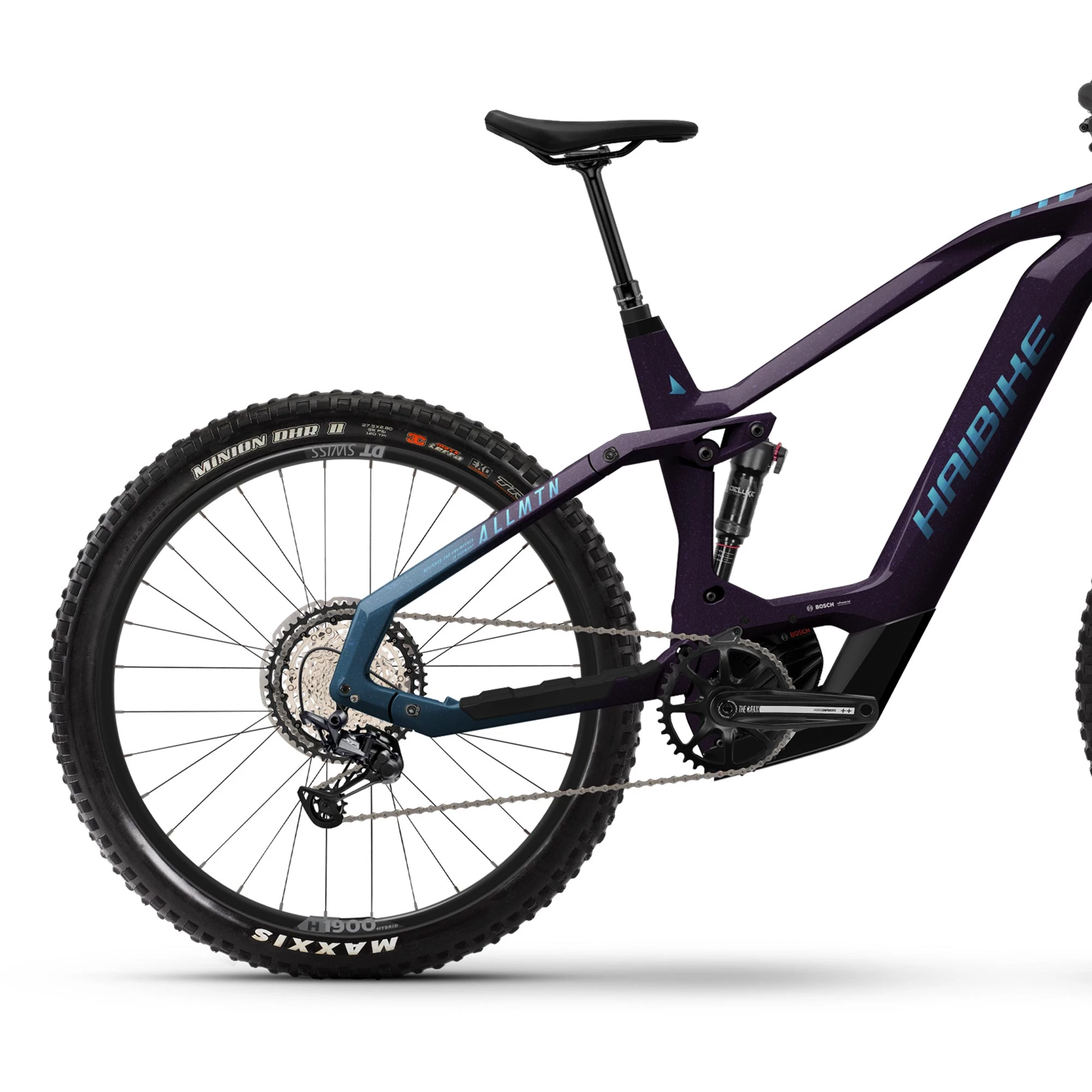

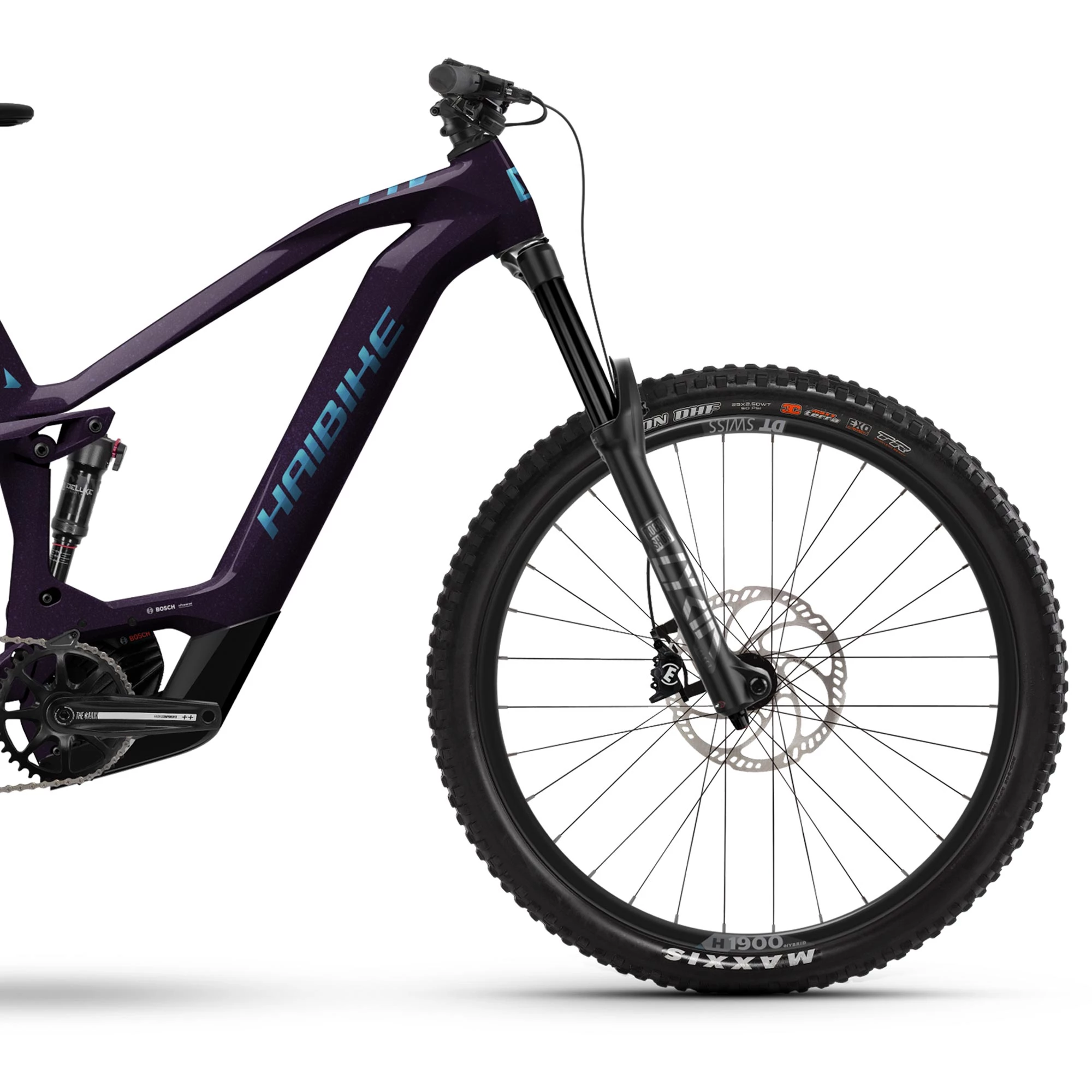

Haibike AllMtn CF 11 Electric Mountain Bike 2022

A true all-rounder, the Haibike AllMtn CF 11 Electric Mountain Bike is designed to dominate singletrack, both up and downhill. Featuring a brand-new Bosch Performance CX Smart System and lightweight carbon front triangle, this model offers a premium ride experience, with its 85Nm of torque providing explosive acceleration. The motor is nestled low in the frame and works in tandem with the contemporary geometry to deliver a low centre of gravity, issuing confidence on loose, technical terrain. The mixed-wheel platform sees a 29” front wheel paired with a 27.5” rear for a lively, playful ride character.

A 750Wh Bosch PowerTube battery is a highlight of the specification, with its high capacity allowing for long rides free from range anxiety. This bike has an electric-assisted speed limit of 15.5 mph / 25 km/h. The Shimano drivetrain features a blend of SLX and Deore XT 12-speed components and is complete with a 10-51t cassette to provide an expansive range of gears. Magura MT5 disc brakes deliver superior power, with their four-piston design delivering confident braking in all weather conditions. The RockShox Lyrik Select RC fork is smooth and composed through rough terrain and is paired with the RockShox Deluxe Select Plus rear shock.

Browse our range of Haibike electric mountain bikes today.


  • Bosch Performance CX Smart System provides 85Nm of torque and 250w of power
  • The lightweight carbon frame is both durable and reactive on the trail
  • Mixed wheel 29" front, 27.5" rear provides a playful ride character
  • 12-speed Shimano SLX/Deore XT drivetrain features a wide 11-51t cassette
  • 750Wh Bosch battery delivers superior range for all-day performance
  • 160mm RockShox Lyrik suspension fork is a robust choice for aggressive riding
  • Magura four-piston hydraulic disc brakes offer superior control when descending

Battery Specifications

  • Maximum Assist: 250w / 85Nm torque
  • Motor Weight: 2.9kg
  • Battery Power: 750Wh

Technical Specification

Frame Haibike AllMtn Bosch CF Smart System, carbon/aluminium
Fork RockShox, Lyrik Select RC, Air/oil, 160mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15x110mm thru-axle, boost
Rear Shock RockShox, Deluxe Select Plus, Air, Trunnion Mount
Stem Haibike, alu, A-head, 31.8mm
Grips Haibike, MTB grips
Handlebar Haibike Components The Bar, 780mm
Front Brake Magura MT5, hydraulic disc brake, four-piston
Rear Brake Magura MT5 hydraulic disc brake, four-piston
Brake Levers Magura MT5
Rear Derailleur Shimano Deore XT, 12-speed
Shifter Shimano SLX, 12-speed
Chain Shimano CN-M6100
Cassette Shimano M6100, 10-51t
Crankset Haibike Components The Crank, aluminium
Front Wheel DT Swiss H1900, 29”
Rear Wheel DT Swiss H1900, 27.5”
Front Tyre Maxxis, Minion DHF II, 63-622, 29 x 2.5”, clincher
Rear Tyre Maxxis, Minion DHR II, 66-584, 27.5 x 2.8”, clincher
Saddle Fizik Terra Aidon X5-160
Seatpost Haibike Components Dropper-Post, aluminium, 34.9 mm
Pedals Freeridepedal, aluminium
Motor Bosch Performance CX Smart System, 250w, 85Nm
Battery Bosch PowerTube 750Wh
Ui/Remote Bosch Kiox 300 + LED Remote
Electric assisted speed limit 15.5 mph / 25 km/h
