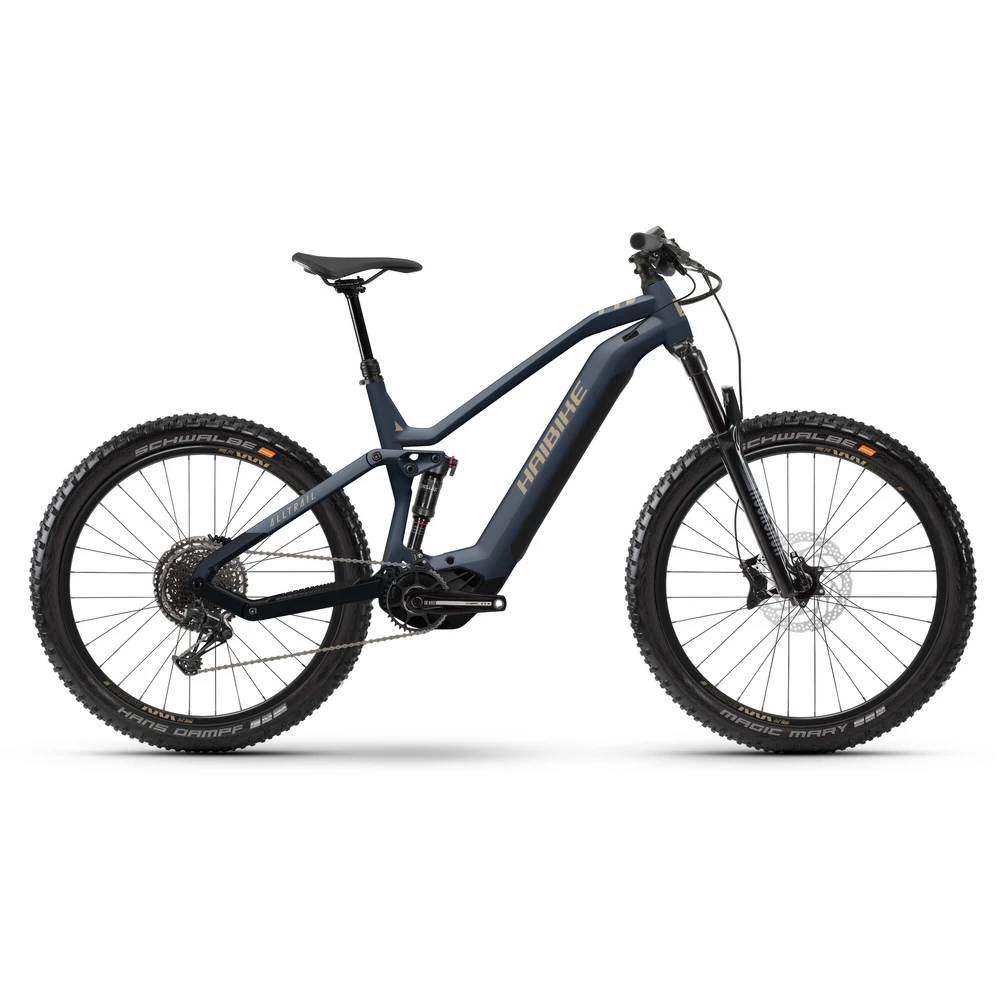

Haibike AllTrack 6 27.5 Electric Mountain Bike 2023

£2,999.00

Check to see if we have it in stock - just select your colour and size.

Haibike
AllTrack 6 27.5 Electric Mountain Bike 2023
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1651693

Haibike AllTrack 6 27.5 Electric Mountain Bike 2023

A great all-round trail bike for big rides, the Haibike AllTrack 6 27.5 Electric Mountain Bike brings together a strong aluminium 120mm travel frame with a bump-absorbing SR Suntour, XCM34 NLO DS, steel spring/oil, 120mm, creating a smooth, controlled and fast ride. A Yamaha PW-S2 250W motor pairs with an InTube 720Wh battery for assistance that's quiet and smooth with a good range for big days out, getting you up the climbs faster with less effort. The Yamaha display is simple to use and easy to read, allows viewing of battery capacity, speed and mode, and can be customised to show other information. It allows mode changes at the touch of a button. The system has a maximum electric-assisted speed limit of 15.5mph / 25kph.

Shimano Deore 11-speed components in a 1x configuration bring precise, smooth shifting across the wide-ranging cassette. Hydraulic disc brakes instil confidence at speed, being powerful and reliable in all conditions. The 27.5" wheels accelerate fast and have a responsive feel, and are fitted with Schwalbe Nobby Nic Performance tyres for traction, low rolling resistance and puncture protection.

Browse our range of Haibike electric bikes today.

Highlights

  • The aluminium frame is lightweight and durable
  • SR Suntour XCM34 NLO DS, steel spring/oil, Travel: 120mm
  • Yamaha PW-S2 motor delivers 250w of power and 75Nm of torque
  • Shimano Deore 1x11-speed drivetrain
  • Shimano MT410 hydraulic disc brakes provide all-weather stopping power
  • Schwalbe Nobby Nic Performance, 65-584
  • InTube 720Wh battery provides a good range

Battery Specifications

  • Maximum Assist: 250w / 75Nm torque
  • Motor Weight: 2.85kg
  • Battery Power: 720Wh
  • Battery Weight: 3.7kg

Technical Specification

Frame Haibike AllTrack, Aluminium 6061
Fork SR Suntour, XCM34 NLO DS, steel spring/oil, 120mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Headset Feimin, A-Head tapered, aluminium, cartridge
Bottom Bracket Integrated in the motor
Stem XLC, aluminium, A-head
Handlebar Handlebar
Front Brake Shimano MT410, 4-piston hydraulic disc brake / Shimano RT30, 180mm rotor
Rear Brake Shimano MT410, 4-piston hydraulic disc brake / Shimano RT30, 180mm rotor
Brake Levers Shimano MT401, aluminium
Rear Derailleur Shimano Deore M5100, Shadow, 11-speed
Shift Levers Shimano Deore M5100, 11-speed, Trigger Switch
Chain Shimano HG601, 11-speed
Cassette Shimano M5100, 11-51t, 11-speed
Crankset Miranda Kies, steel 38t chainring
Front Wheel Rim - Rodi Tryp 30 with eyelets, hollow rim, aluminium / hub - Shimano MT400, Center Lock / spokes - Sapim Leader, black
Rear Wheel Rim - Rodi Tryp 30 with eyelets, hollow rim, aluminium / hub - Shimano MT400, Center Lock / spokes - Sapim Race, black
Front Tyre Schwalbe Nobby Nic Performance
Rear Tyre Schwalbe Nobby Nic Performance
Saddle Selle Royal Vivo
Seatpost Haibike Components, TheSeatpost ++, aluminium, patent, 34.9mm
Pedals Freeridepedal, aluminium with reflector
Motor Yamaha PW-S2, 250W, 75Nm
Ui/Remote Yamaha Side Switch, 1.7" LCD, 7 functions
Battery InTube 720Wh
Electric assisted speed limit 15.5mph / 25kph
Maximum system weight 150kg (including bike, rider and cargo)

Haibike AllTrack 6 27.5 Electric Mountain Bike 2023 Sizing
