Description

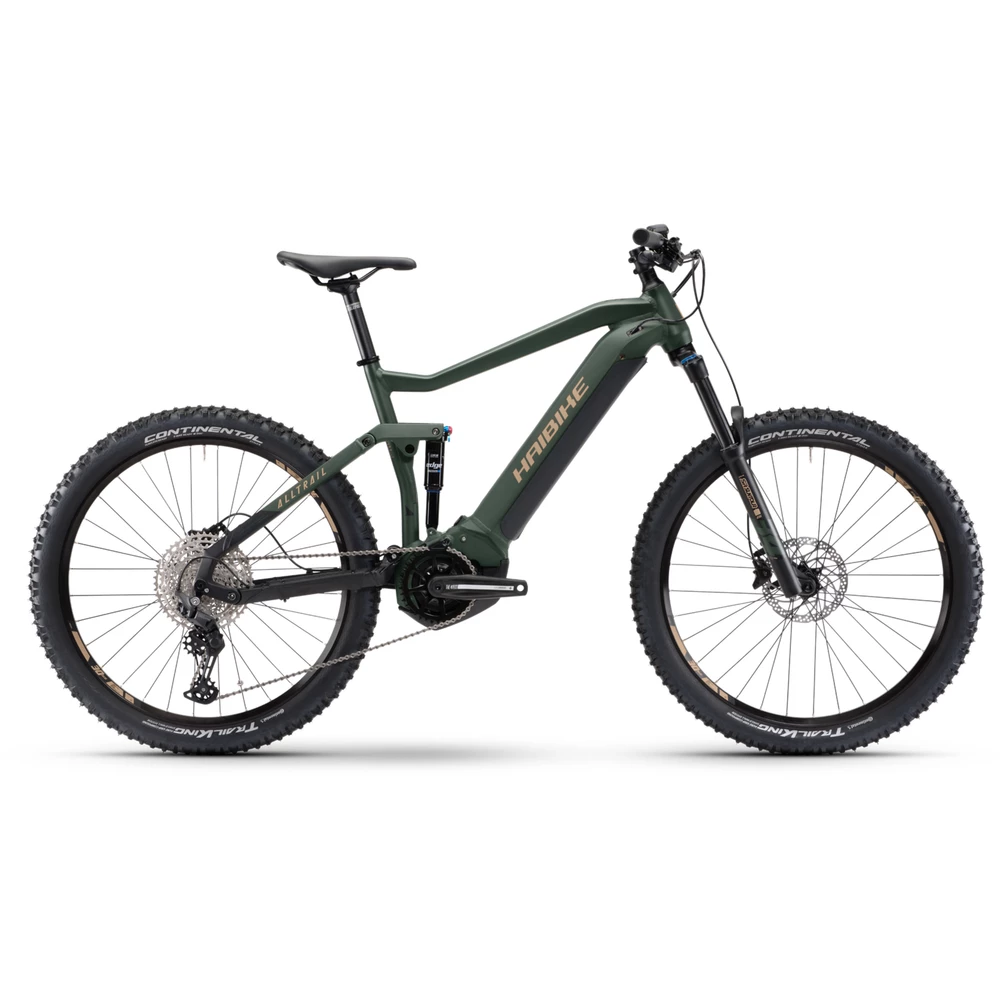

Haibike AllTrail 27.5 4 Electric Mountain Bike 2023
Engineered to tackle demanding terrain, the Haibike AllTrail 27.5 4 Electric Mountain Bike is the go-to choice for technical singletrack cycling. Within its unique frame hides a long-lasting Yamaha InTube 630Wh battery and 250w/70Nm PW-ST motor system, ensuring ample power for intense climbs. The Yamaha Side-Switch display features seven functions and a 1.7” display, and an 11-speed Shimano Deore drivetrain promises crisp shifts and lasting reliability. This bike has an electric assisted speed limit of 15.5 mph / 25 km/h.
The 6061 aluminium frame features 150mm of rear suspension travel, making it ideal for fast-paced trail centre style rides, and is paired with a 140mm Suntour XCR34 suspension fork. The 27.5” wheels encourage a playful ride style, increasing manoeuvrability and acceleration. Shimano MT410 hydraulic disc brakes deliver excellent stopping power, and Continental Trail King tyres boost traction on muddy or loose trails.
Browse our range of Haibike electric mountain bikes today.
Highlights
- Powerful Yamaha motor system with 250w of power and 70Nm of torque, 25km/h maximum assistance
- The lightweight 6061 aluminium frame features 150mm of supple suspension travel
- 11-speed Shimano Deore drivetrain
- Long-lasting 630Wh Yamaha InTube battery provides excellent range
- Yamaha Side Switch display features seven functions and a 1.7” screen
- 140mm SR Suntour XCR34 COIL LO fork
- Powerful Shimano hydraulic disc brakes offer control when descending
Battery Specifications
- Maximum Assist: 250w / 70Nm torque
- Motor Weight: 3.4kg
- Battery Power: 630Wh
Technical Specification
| Frame | Haibike, AllTrail Yamaha i630, Aluminium |
| Fork | SR Suntour, XCR34 COIL LO, Steel spring, 140 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost |
| Rear Shock | SR Suntour, Edge LO-R8, Air, Trunnion Mount |
| Stem | Haibike Components The Stem, alu, A-head, 31.8mm |
| Grips | Haibike, MTB grips |
| Handlebar | Haibike Components The Bar, 780mm |
| Front Brake | Shimano MT410, hydraulic disc, 180mm |
| Rear Brake | Shimano MT410, hydraulic disc, 180mm |
| Brake Levers | Shimano MT401 |
| Rear Derailleur | Shimano Deore M5100, 11-speed |
| Shifter | Shimano Deore M5100, trigger switch, 11-speed |
| Chain | KMC, X11E |
| Cassette | Shimano M5100, 11-51t |
| Crankset | Haibike, forged, aluminium |
| Front Wheel | Rim - Rodi, Tryp 30, with eyelets, hollow rim, aluminium / Hub - Shimano, MT400-B, Center Lock |
| Rear Wheel | Rim - Rodi, Tryp 30, with eyelets, hollow rim, aluminium / Hub - Shimano, MT400-B, Center Lock |
| Front Tyre | Continental Trail King, 65-584, 27.5 x 2.6 inch, clincher |
| Rear Tyre | Continental Trail King, 65-584, 27.5 x 2.6 inch, clincher |
| Saddle | Selle Bassano, Reko R2 E-Sport |
| Seatpost | Haibike Components The Seatpost, aluminium, 31.6mm |
| Pedals | Freeridepedal, aluminium |
| Motor | Yamaha PW-ST System, 250w, 70 Nm, 25 km/h |
| Battery | Yamaha InTube, 630Wh |
| Ui/Remote | Yamaha Side Switch, 1.7" LCD, seven functions |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
