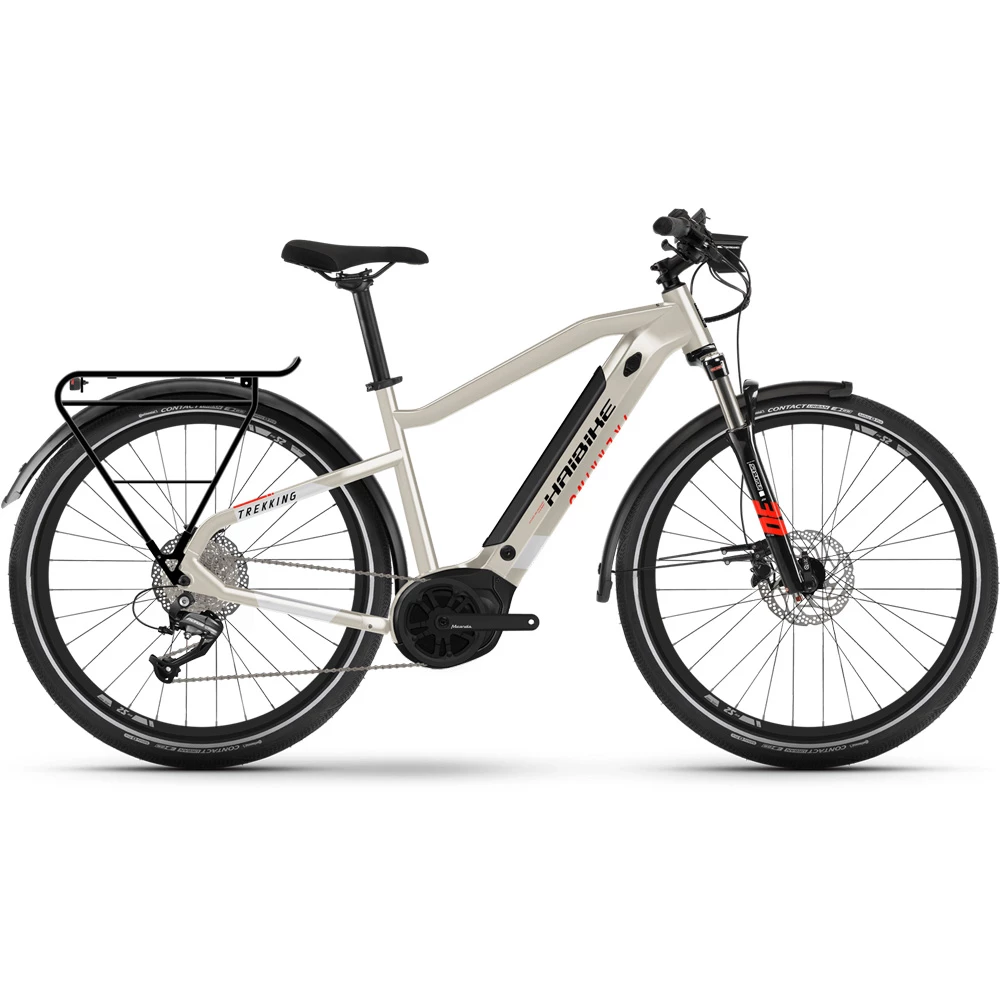

Haibike Trekking 4 High Electric Hybrid Bike 2022
Featuring a powerful Yamaha motor system and a high-capacity battery, the Haibike Trekking 4 High Electric Hybrid Bike delivers a fun, practical cycling experience for commuting, leisure and more. Integrated into the downtube, the 500Wh Yamaha InTube battery provides an excellent range for long assisted rides. 60Nm of torque is provided by the Yamaha PW-TE motor, making light work of even the steepest hills, ensuring you arrive at your destination sweat-free. This bike has an electric assisted speed limit of 15.5 mph / 25 km/h.
Integrated lights add a degree of visibility in low light conditions, and included are mudguards, a kickstand and a luggage rack for your convenience. The Yamaha display is clear and easy to read and features seven functions, offering key ride metrics to track range, speed and more. A high front-end provides a comfortable and upright ride experience, and for crisp shifting, a Shimano Altus drivetrain is featured. Hydraulic disc brakes provide powerful stopping power, even through wet weather, instilling confidence when descending on wet roads.
Browse our range of Haibike electric hybrid bikes today.
Highlights
- Yamaha PW-TE motor system delivers 250w of power and 60Nm of torque
- Hydraulic disc brakes provide all-weather stopping power
- The aluminium frame is lightweight and durable
- Yamaha display features seven functions and a 1.7” screen
- Yamaha InTube 500Wh battery provides a wide range
- SR Suntour NEX E25 suspension fork takes the sting out of potholes and curbs
- Integrated lights are powered by the main battery
- Pannier rack and mudguards are included, as well as a kickstand
Battery Specifications
- Maximum Assist: 250w / 60Nm torque
- Motor Weight: 3.4kg
- Battery Power: 500Wh
Technical Specification
| Frame | Haibike Trekking Yamaha i500/i400, Aluminium 6061 |
| Fork | SR Suntour, NEX E25, Steel spring, 63mm travel, Steel steerer tube 1 1/8" - 1 1/2" tapered, quick release 100mm |
| Headset | Feimin, A-Head Tapered, Ball bearingCane Creek, Viscoset, Aluminium |
| Stem | XLC, Alu, A-head |
| Handlebar | XLC, Topflat, 720mm |
| Front Brake | Alhonga HT474, hydraulic disc brake |
| Rear Brake | Alhonga HT474, hydraulic disc brake |
| Brake Levers | Alhonga HT474 |
| Rear Derailleur | Shimano, Altus M2000, 9-speed |
| Shift Levers | Shimano, Alivio M3100, trigger switch |
| Chain | KMC E9S |
| Cassette | Shimano, HG200, 11-36t, 9-speed |
| Crankset | Haibike, Forged, Aluminium |
| Front Wheel | Rim - Schürmann, Yak25, With Eyelets, Double Wall, Aluminium / Hub - Haibike, TheHub++, 6-bolt standard |
| Rear Wheel | Rim - Schürmann, Yak25, With Eyelets, Double Wall, Aluminium / Hub - Haibike, TheHub++, 6-bolt standard |
| Front Tyre | Continental Contact Urban, 55-584, 27.5 x 2.2”, clincher |
| Rear Tyre | Continental Contact Urban, 55-584, 27.5 x 2.2”, clincher |
| Saddle | Selle Royal, Wave |
| Seatpost | XLC, Aluminium, Patent, 31.6 mm |
| Pedals | VP, E461, Aluminium, with Reflector |
| Motor | Yamaha, PW-TE System, 250 Wh, 60 Nm, 25 km/h |
| Ui/Remote | Yamaha, Side Switch, 1.7" LCD, seven functions |
| Battery | Yamaha, InTube, 500Wh |
| Accessories | i Veo LS230, 20 lumen front light, AXA Juno Ebike rear light, Massload Systemgepäckträger pannier rack, Eurofender Tempo Chromoplastics mudguards, Ursus Mooi kickstand |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
