ELECTRIC BIKE

Haibike Trekking 4 Low Electric Hybrid Bike 2023

£2,999.00

Need help choosing an electric bike?

Our Kingston electric bike store team are here to help you. Email kingstonsales@sigmasports.com or call 0333 006 8833

Select a colour and size to view stock availability

Haibike
Trekking 4 Low Electric Hybrid Bike 2023
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1651782

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

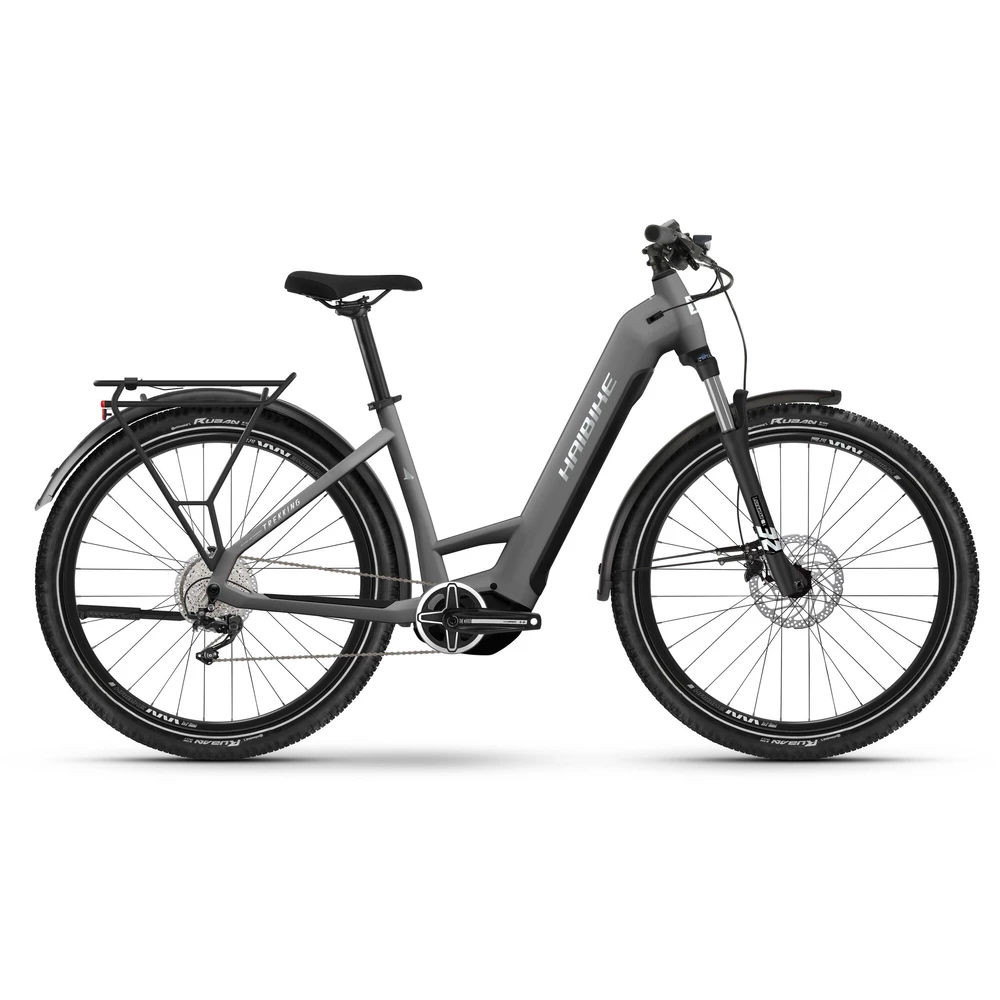

Haibike Trekking 4 Low Electric Hybrid Bike 2023

Featuring a powerful Yamaha motor and battery system, the Haibike Trekking 4 Low Electric Hybrid Bike delivers a fun, practical cycling experience for commuting, leisure and more. The 720Wh InTube battery provides a good range so you can ride further, faster. 75Nm of torque is provided by the 250W Yamaha PW-S2 motor, making light work of even the steepest hills, ensuring you arrive at your destination sweat free, and it integrates well within the bike frame. This bike has an electric assisted speed limit of 15.5 mph / 25kph.

Integrated lights add a degree of visibility in low light conditions, and included are mudguards, a kickstand and a luggage rack for your convenience. The Yamaha display is clear and easy to read and allows viewing of assistance levels, ride stats such as speed, and battery remaining. A high front end provides a comfortable and upright ride experience, the step-thru design makes mounting and dismounting easier, and there's 100mm of travel in the SR Suntour fork to take the sting out of rougher terrains. Shimano Deore components make up the 10-speed drivetrain for reliable shifting while hydraulic disc brakes take care of stopping, instilling confidence when descending on wet roads and trails, or riding on busy streets.

Browse our range of Haibike electric hybrid bikes today.

Highlights

  • The aluminium frame is lightweight and durable
  • SR Suntour, XCM32 ATB fork with 100mm travel takes the sting out of rough roads
  • Yamaha PW-S2 motor system delivers 250w of power and 75Nm of torque
  • Shimano Deore 1x10-speed drivetrain
  • Shimano hydraulic disc brakes provide all-weather stopping power
  • 27.5" wheels and Continental Contact Urban clincher tyres
  • InTube 720Wh battery provides a good range
  • Integrated lights powered by the main battery
  • Pannier rack and mudguards are included, as well as a kickstand

Battery Specifications

  • Maximum Assist: 250w / 75Nm torque
  • Motor Weight: 3.4kg
  • Battery Power: 720Wh

Technical Specification

Frame Haibike Trekking, Aluminium 6061, low
Fork SR Suntour, XCM32 ATB DS LO, steel spring, travel 100mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, quick release 100mm
Headset Feimin, A-Head tapered, ball bearing Cane Creek, Viscoset, aluminium
Bottom Bracket Integrated in the motor
Stem XLC, aluminium, A-head, 31.8mm
Handlebar Ergoriser, oversize, 720mm
Front Brake Shimano MT200, 2-piston hydraulic disc brake / Shimano RT30, 180mm rotor
Rear Brake Shimano MT200, 2-piston hydraulic disc brake / Shimano RT30, 180mm rotor
Brake Levers Shimano MT201, aluminium
Rear Derailleur Shimano Deore M4120, 10-speed
Shift Levers Shimano Deore M4100, Trigger switch
Chain KMC, e10S
Cassette Shimano HG41, 11-46t
Crankset Miranda Kies crank arm, 38t steel chainring
Front Wheel Rim - Schürmann Yak25, with eyelets, hollow rim, aluminium / hub - Shimano MT400 Center Lock / spokes - Sapim Leader, black
Rear Wheel Rim - Schürmann Yak25, with eyelets, hollow rim, aluminium / hub - Shimano MT400 Center Lock / spokes - Sapim Leader, black
Front Tyre Continental, Ruban Reflex, 27.5" x 2.3", clincher
Rear Tyre Continental, Ruban Reflex, 27.5" x 2.3", clincher
Saddle Selle Royal, Essenza
Seatpost Hai Bike approved aluminium, patent, 31.6mm
Pedals VP, E461, aluminium, with reflector
Motor Yamaha PW-S2 system, 250W, 75Nm, 25km/h
Ui/Remote Yamaha, Side Switch, 1.7" LCD, 7 functions
Battery InTube 720Wh
Accessories Herrmans, H-Black MR-GO front light / AXA Juno Ebike rear light / Systemgepäckträger MIK 25kg carrier / Curana Apollo 70 aluminium mudguards / Ursus Mooi rear stand
Electric assisted speed limit 15.5mph / 25kph
Maximum system weight 130kg (including bike, rider and cargo)

Haibike Trekking 4 Low Electric Hybrid Bike 2023 Sizing
