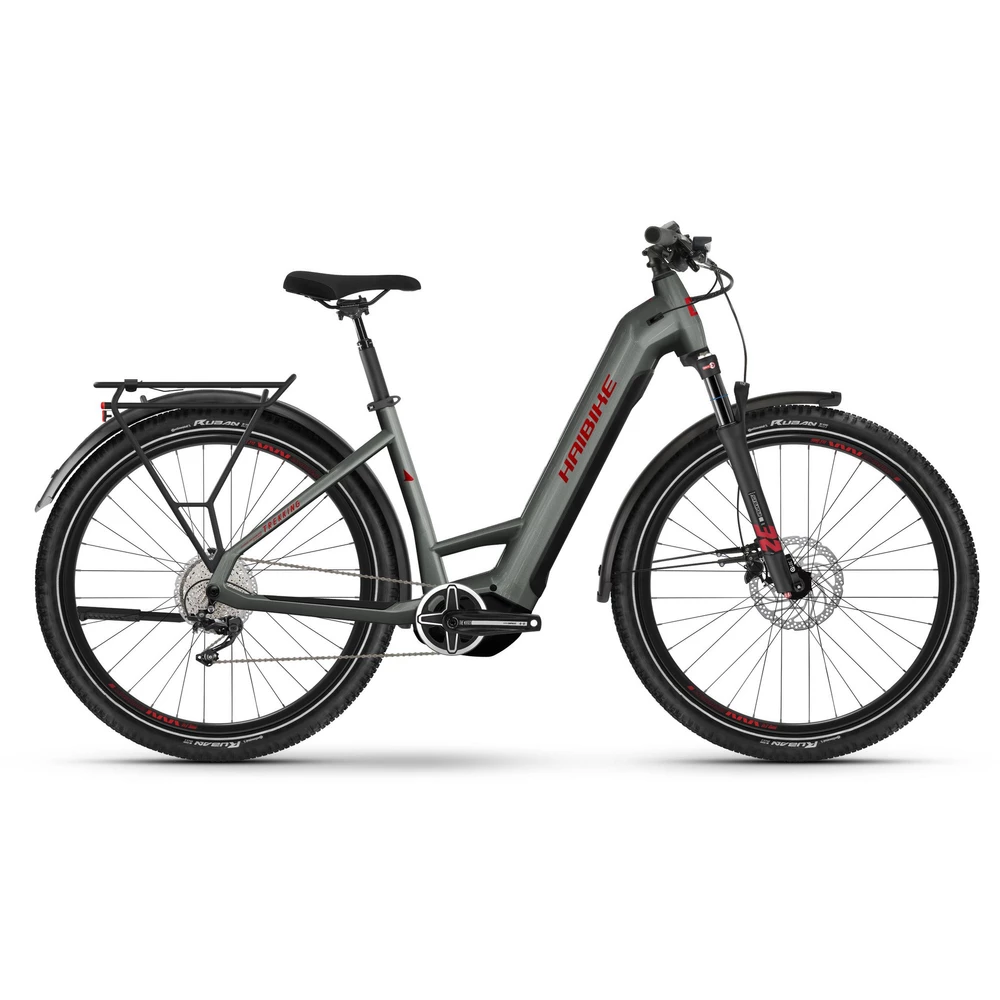

Haibike Trekking 5 Low Electric Hybrid Bike 2023

£2,199.00 - £3,249.00
RRP £3,249.00
Price £2,299.00 (Save 29%)
Price £2,199.00 - £3,249.00

Check to see if we have it in stock - just select your colour and size.

Haibike
Trekking 5 Low Electric Hybrid Bike 2023

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1651798

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports cycle schemes
Cycle to Work Schemes

Save up to 47% with any one of our 11 Cycle to Work partners, and get the health benefits of a new bike in exchange for tax free salary sacrifice. To find out more about our various partners and how to apply click here.

Bike Delivery Options

Choose between Free Bike Delivery - to your home or place of work - or our new Premier Bike Delivery Service £99.99 and have your bike delivered "ready to ride" and set up to your measurements with seatpost and pedals adjusted on arrival by a qualified bike mechanic. Either way, our Customer Care team will be in touch to arrange a delivery date to suit you.

laka insurance
Laka Insurance

We've partnered with Laka to offer you 30 days free bike Insurance on your new bike purchase over £400. Click here for more info and find out how to claim.

Haibike Trekking 5 Low Electric Hybrid Bike 2023

Featuring a powerful Yamaha motor system and a high-capacity battery, the Haibike Trekking 5 Low Electric Hybrid Bike delivers a fun, practical cycling experience for commuting, leisure and more. The 720Wh InTube battery creates enough range for assistance on long rides. 75Nm of torque is provided by the 250W Yamaha PW-S2 System motor, making light work of even the steepest hills, ensuring you arrive at your destination sweat-free, and it's light and small for sleek integration. This bike has an electric-assisted speed limit of 15.5 mph / 25kph.

Integrated lights add a degree of visibility in low light conditions, and included are mudguards, a kickstand and a luggage rack for your convenience. The Yamaha display is clear and easy to read and allows viewing of assistance levels, ride stats such as speed, and battery remaining. A high front-end provides a comfortable and upright ride experience, and for crisp shifting, a Shimano Deore 1x12-speed drivetrain features. Hydraulic disc brakes provide powerful braking, instilling confidence when descending on wet roads.

Browse our range of Haibike electric bikes today.

Highlights

  • The aluminium frame is lightweight and durable
  • SR Suntour, Mobie 25 LOR fork with 100mm travel takes the sting out of rough roads
  • Yamaha PW-S2 motor system delivers 250w of power and 75Nm of torque
  • Shimano Deore 1x12-speed drivetrain
  • Shimano hydraulic disc brakes provide all-weather stopping power
  • 27.5" wheels and Continental Ruban Reflex clincher tyres
  • InTube 720Wh battery provides a good range
  • Integrated lights powered by the main battery
  • Pannier rack and mudguards are included, as well as a kickstand

Battery Specifications

  • Maximum Assist: 250w / 75Nm torque
  • Motor Weight: 2.85kg
  • Battery Power: 720Wh

Technical Specification

Frame Haibike Trekking, Aluminium 6061, low
Fork SR Suntour, Mobie 25 LOR, Lockout, steel spring, travel 100mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Headset Feimin, A-Head tapered, ball bearing
Bottom Bracket Integrated in the motor
Stem XLC, A-Head verstellbar, A-head, 31.8mm
Handlebar Ergoriser, oversize, 720mm
Front Brake Shimano MT410, hydraulic disc brake / Shimano RT30, 180mm rotor
Rear Brake Shimano MT410, hydraulic disc brake / Shimano RT30, 180mm rotor
Brake Levers Shimano MT402, aluminium
Rear Derailleur Shimano, Deore M5100
Shift Levers Shimano, Deore M5100, Trigger switch
Chain Shimano, CN-M6100
Chain guide Nylon, direct mount
Cassette Shimano, M5100, 11-51t
Crankset Miranda, Kies crank arm, 38t chainring
Front Wheel Rim - Schürmann Yak25, with eyelets, hollow rim, aluminium / hub - Shimano, MT400, Center Lock / spokes - Sapim Leader, black
Rear Wheel Rim - Schürmann Yak25, with eyelets, hollow rim, aluminium / hub - Shimano, MT400, Center Lock / spokes - Sapim Leader, black
Front Tyre Continental Ruban Reflex, 27.5" x 2.3", clincher
Rear Tyre Continental, Ruban Reflex, 27.5" x 2.3", clincher
Saddle Selle Royal, Essenza
Seatpost Haibike Components, aluminium, patent, 34.9mm
Pedals VP, E461, aluminium, with reflector
Motor Yamaha PW-S2 System, 250W, 75Nm, 25km/h
Ui/Remote Yamaha, Side Switch, 1.7" LCD, 7 functions
Battery InTube 720Wh
Accessories Herrmans H-Black MR4, 40 lumen front light / Spanninga, Aerline 2 rear light /Systemgepäckträger MIK, 25kg carrier / Curana, Apollo 70, aluminium mudguards / Ursus Mooi rear stand
Electric assisted speed limit 15.5mph / 25kph
Maximum system weight 130kg (including bike, rider and cargo)
