Product Details

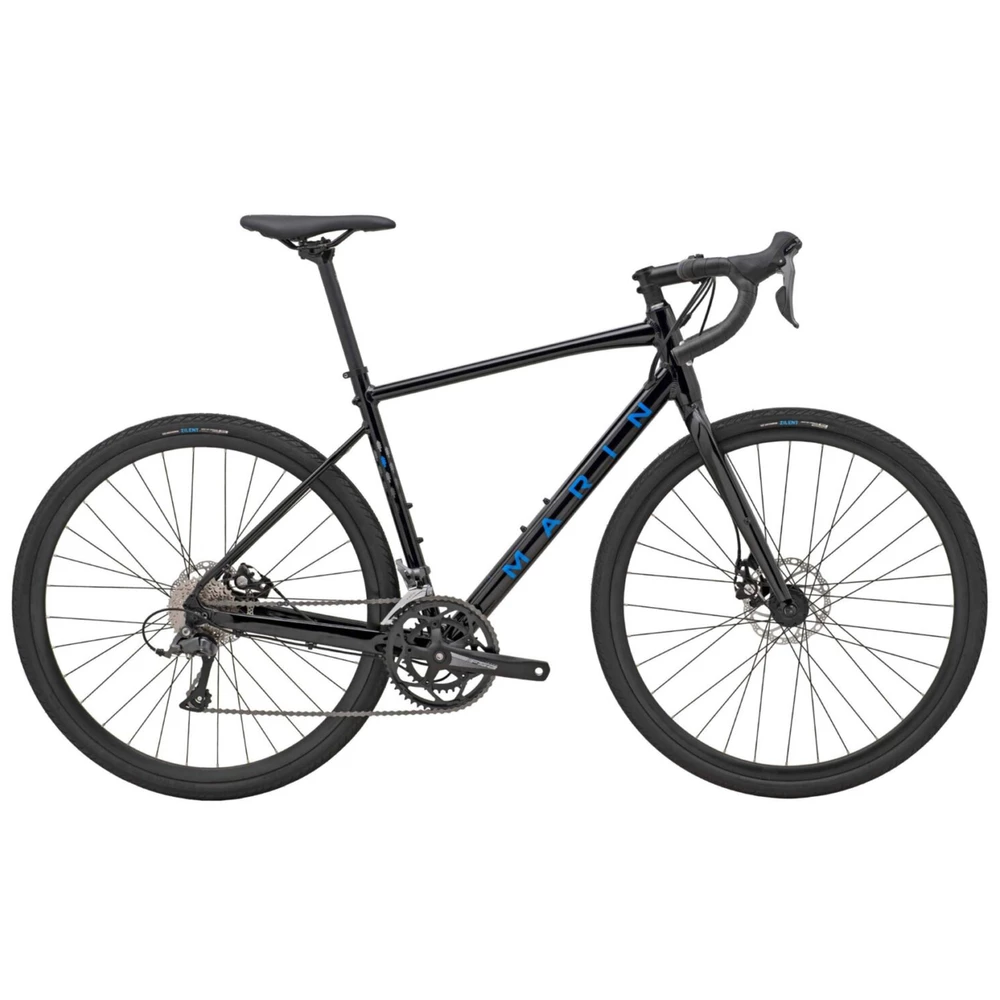

Marin Gestalt Gravel Bike
The Marin Gestalt Gravel Bike is designed to go Beyond Road, whether tackling tarmac or trail, rough roads, muddy commutes, bikepacking, touring or adventure. From everyday rides to weekend getaways, the Gestalt is ready for it all, continuing confidently when the road turns to dirt.
As the most affordable model in the Gestalt range, it features a Series 2 aluminium frame, offering excellent value for riders seeking an all-terrain explorer without breaking the budget. A straight-blade aluminium fork, 36 mm wide WTB Exposure tyres, Tektro mechanical disc brakes, a Shimano Claris 2x8 speed groupset and a solid line-up of Marin components all contribute to a capable and fun-packed ride.
Features
- Frame: Series 2 Beyond Road, 6061 Aluminium, 700C wheels, relieved head tube and bottom bracket, internal cable routing, disc-specific forged dropouts with mudguard and rack mounts
- Fork: 6061 Aluminium, straight-blade, post-mount disc
- Rims: Marin aluminium double wall, 19mm inner, 25mm tall, disc-specific
- Rear Hub: Forged aluminium alloy, 6-bolt disc, 32H
- Front Hub: Forged aluminium alloy, 6-bolt disc, 32H
- Spokes: 14g black stainless steel
- Tyres: WTB Exposure Comp, 700 x 36
- Rear Derailleur: Shimano Claris, 8 speed
- Front Derailleur: Shimano Claris
- Shifters: Shimano Claris, 2 x 8 speed
- Crankset: FSA Tempo Compact, 50/34T
- Bottom Bracket: Sealed bearing square taper
- Chain: KMC Z8
- Cassette: SunRace, 8 speed, 11-32T
- Front Brake: Tektro MD-C400 Road mechanical, 160mm rotor
- Rear Brake: Tektro MD-C400 Road mechanical, 160mm rotor
- Brake Levers: Shimano with integrated shifters
- Handlebar: Marin butted alloy, compact 12° flared drop
- Stem: Marin 3D forged alloy
- Grips: Marin perforated tape
- Headset: FSA No.8B
- Seatpost: Marin alloy, 27.2mm
- Saddle: Marin Beyond Road Concept
- Pedals: Marin Oso OEM nylon platform
Highlights
- Frame: Series 2 Beyond Road, 6061 Aluminium
- Shimano Claris 8 Speed Groupset
Specifications
- Model
- Gestalt
- Bottom Bracket Standard
- Square Taper
- Brakes [Kind]
- Mechanical Disc
- Brakes [Maker]
- Tektro
- Brakes [Model]
- MD-C400
- Cassette [Gearing]
- 11-32
- Cassette [Maker]
- Sunrace
- Chain [Maker]
- KMC
- Chain [Model]
- Z8
- Chainring [Gearing]
- 50/34
- Crank [Maker]
- FSA
- Crank [Model]
- Tempo Compact
- E-Bike
- No
- Family
- Gestalt
- FD [Maker]
- Shimano
- FD [Model]
- Claris
- Fenders Mounts
- Yes
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Marin
- Fork [Material]
- Aluminium
- Fork [Wheel Size]
- 700c
- Frame [Material]
- Aluminium
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Marin
- Handlebar [Material]
- Aluminium
- Handlebar [Shape]
- Compact Flared Drop
- Headset [Maker]
- FSA
- Rack Mounts
- Yes
- RD [Maker]
- Shimano
- RD [Model]
- Claris
- Saddle [Maker]
- Marin
- Seatpost [Diameter]
- 27.2
- Seatpost [Kind]
- Rigid
- Seatpost [Maker]
- Marin
- Seatpost [Material]
- Aluminium
- Shifters [Maker]
- Shimano
- Shifters [Model]
- Claris
- Shifting
- Mechanical
- Stem [Maker]
- Marin
- Stem [Material]
- Aluminium
- Suspension Configuration
- Rigid
- Tires [Maker]
- WTB
- Wheels [Configuration]
- Front+Rear
- Wheelset [Material]
- Aluminium
- Product code
- 1913080 / 54294003384666
Size Guide
| Size (CM) | 50 | 52 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|
| A - Stack | 546 | 564 | 578 | 592 | 606 | 620 |
| B - Reach | 375 | 375 | 380 | 390 | 402 | 415 |
| C - HT Angle | 70.5° | 71.5° | 71.5° | 71.5°° | 71.5° | 71.5° |
| D - HT Length | 105 | 120 | 135 | 150 | 165 | 180 |
| E - ST Angle | 74.5° | 74° | 74° | 74° | 74° | 73.5° |
| F - ST Length | 460 | 480 | 500 | 520 | 540 | 560 |
| G - TT | 526 | 537 | 546 | 560 | 575 | 599 |
| H - BB Height | 269 | 269 | 269 | 269 | 269 | 269 |
| I - BB Drop | 76 | 76 | 76 | 76 | 76 | 76 |
| J - CS Length | 430 | 430 | 430 | 430 | 430 | 430 |
| K - Wheelbase | 1014 | 1017 | 1024 | 1039 | 1055 | 1073 |
| L - Standover | 713 | 733 | 752 | 770 | 788 | 806 |
| M - Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
