Product Details

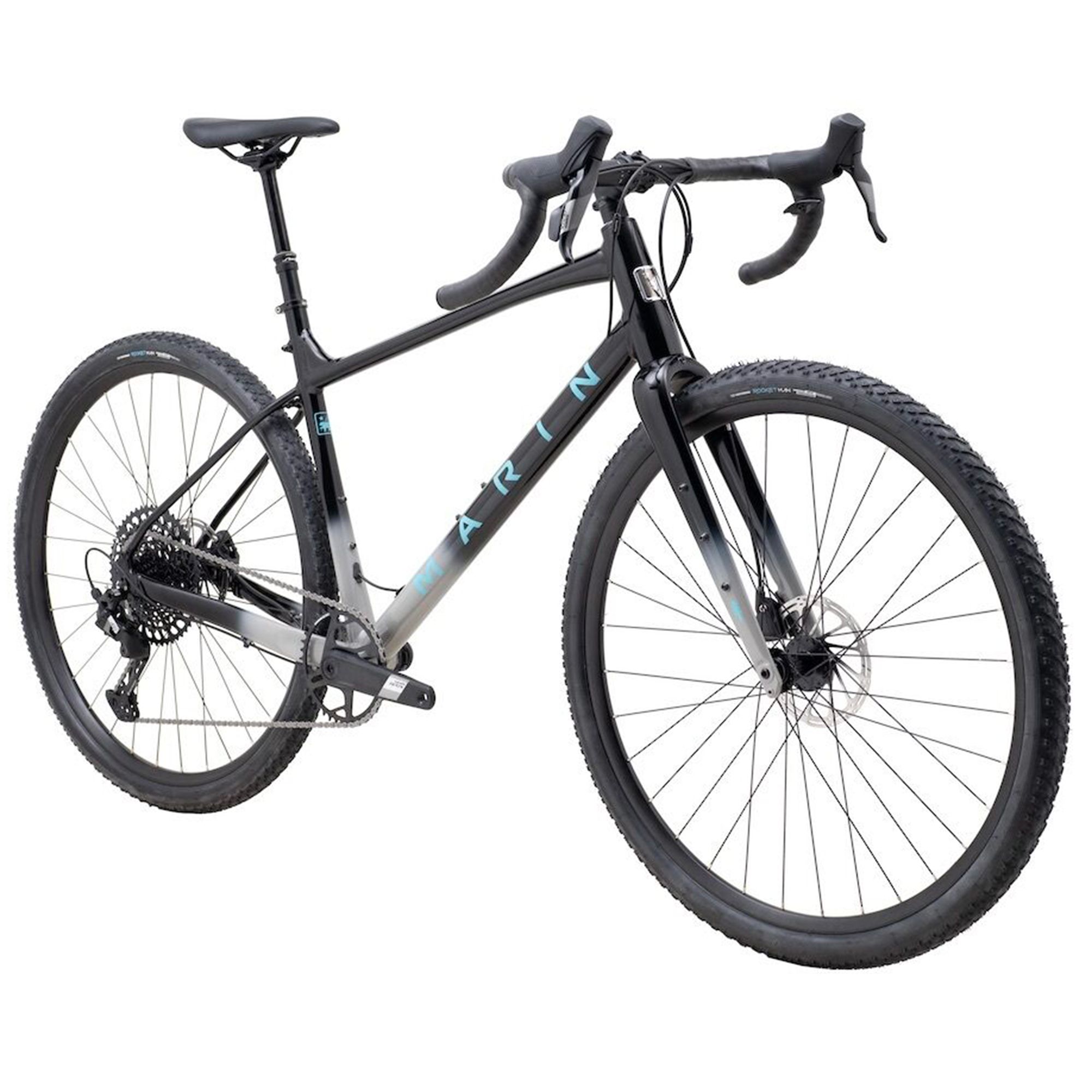

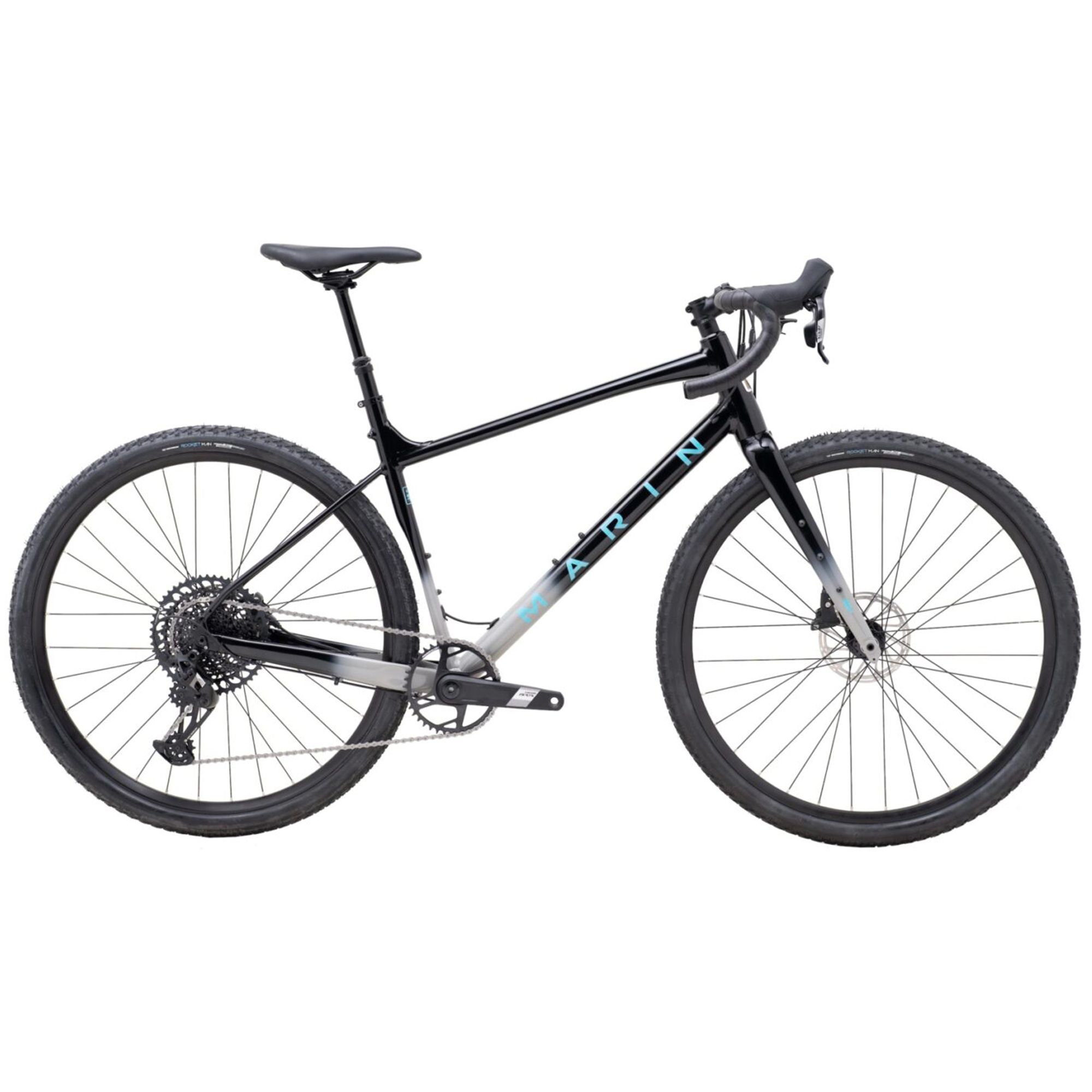

Marin Gestalt XR Gravel Bike

The Marin Gestalt XR Gravel Bike is the ultimate in gravel performance, taking the Gestalt X’s rough-and-rowdy approach and elevating it to the next level. It’s built for those who want to leave fire roads behind, race down singletrack, and push further and faster than ever—while still embracing the versatility, challenge, and fun of a drop-bar bike.

The Gestalt XR features a longer wheelbase, a slack, mountain bike-inspired head angle, a low-slung frame, wide handlebars, a short stem, and large, chunky tyres with clearance for up to 50 mm on 700C wheels or 54 mm with a 650B wheelset.

The XR upgrades the performance with a gravel-specific SRAM Apex 12-speed drivetrain, Apex hydraulic disc brakes for superior stopping power, a TranzX dropper post for added control, cushy and grippy 45 mm wide Vee Tire Co rubber, and an array of custom Marin components to ensure an exceptional gravel experience.

Features

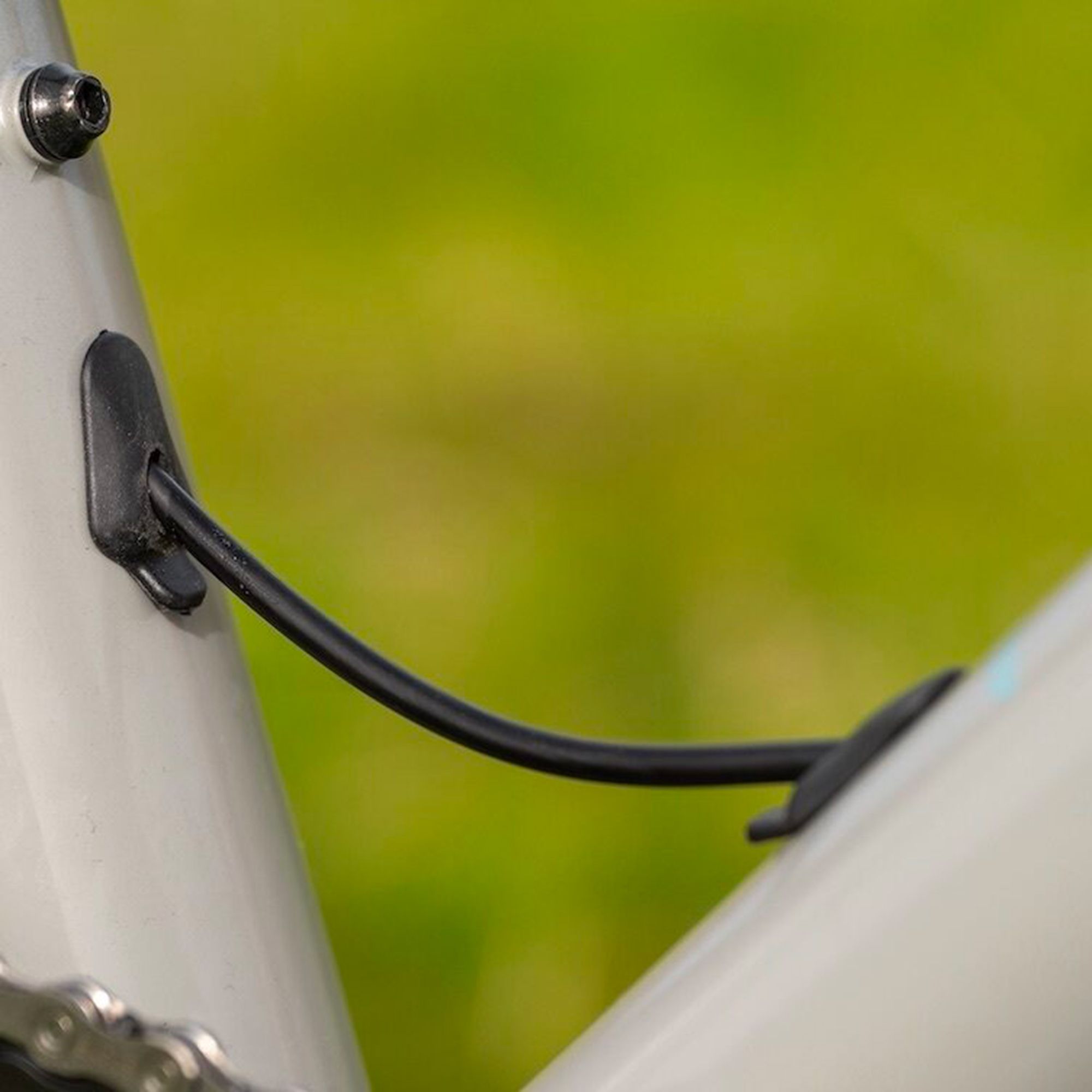

Frame: Series 3 Beyond Road, 6061 Aluminium, tapered head tube, relieved bottom bracket, internal cable routing, mudguard and rack mounts, flat mount disc, 142x12mm thru-axle
Fork: Marin full carbon with tapered steerer, 12mm thru-axle, flat mount disc, fender eyelets
Rims: Marin aluminium double wall, 25mm inner, 18mm tall, disc-specific, tubeless compatible
Rear Hub: Forged aluminium alloy, 142x12mm, disc, 32H
Front Hub: Forged aluminium alloy, 100x12mm, disc, 32H
Spokes: 14g black stainless steel
Tyres: Vee Tire Co. Quikstyk, 700 x 45, folding bead, tubeless compatible
Rear Derailleur: SRAM Apex 1, 12 speed
Shifters: SRAM Apex 1, 1 x 12 speed
Crankset: SRAM Apex 1, 40T
Bottom Bracket: SRAM DUB BSA
Chain: SRAM NX
Cassette: SRAM CS-XG-1275, 10-52T

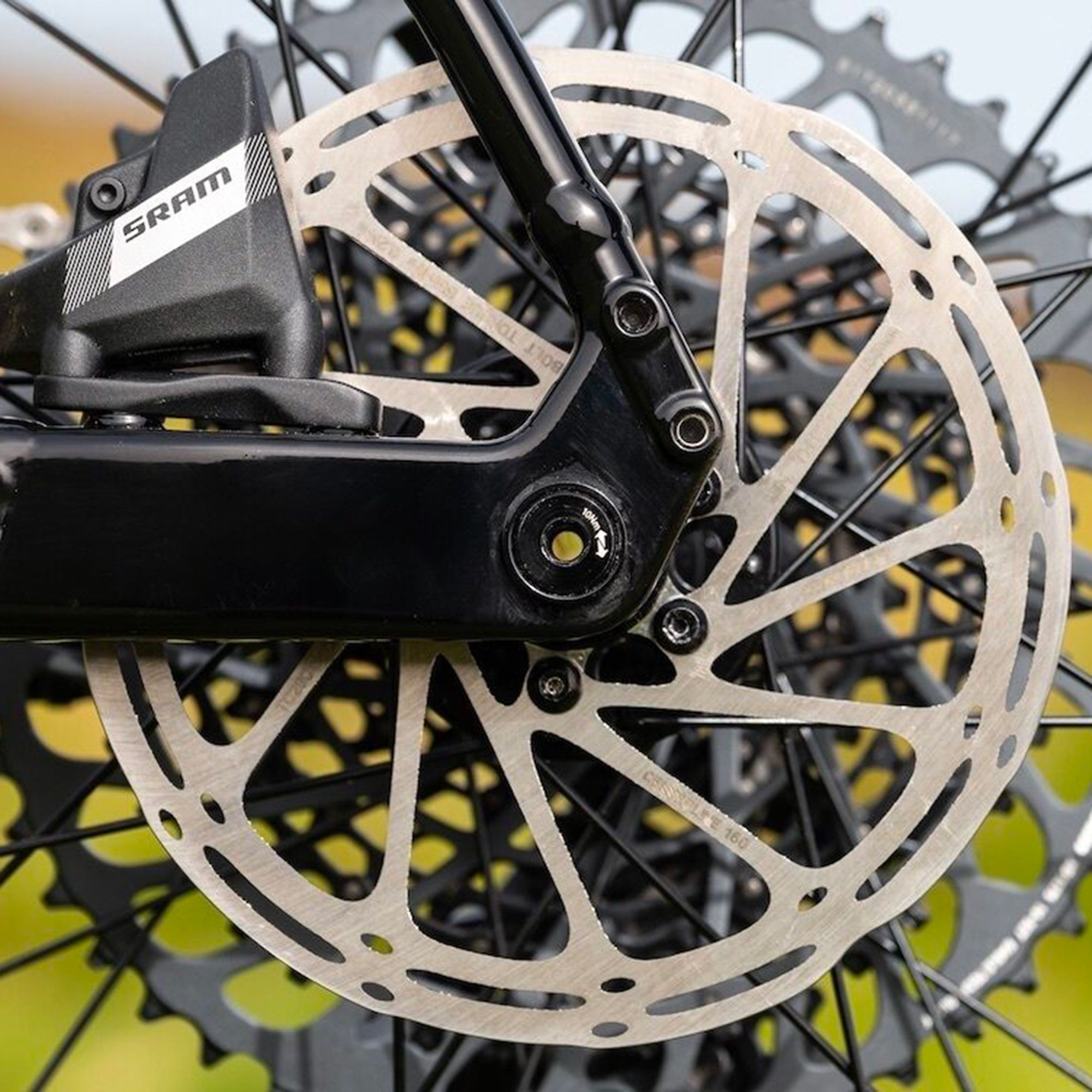

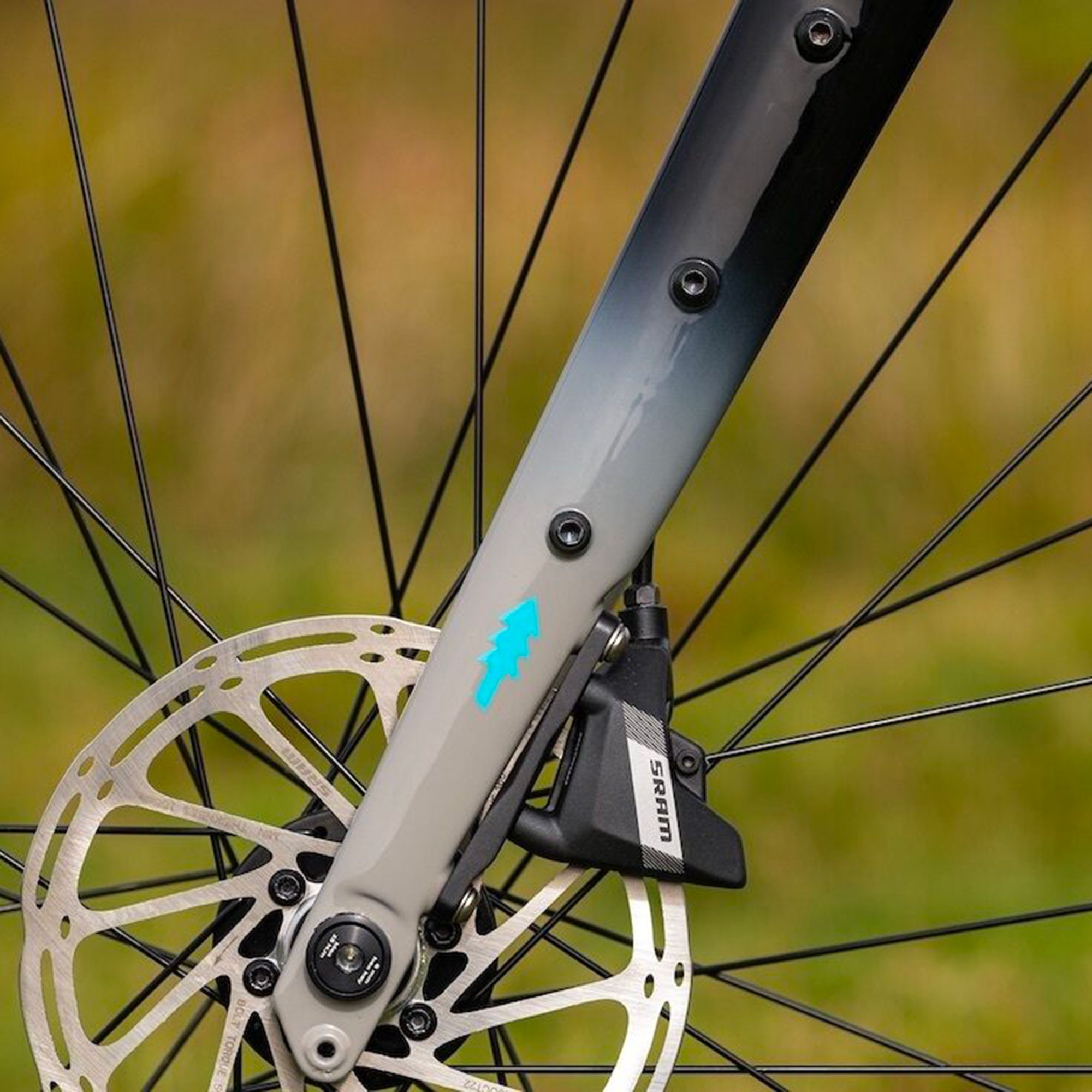

Front Brake: SRAM Apex 1 flat mount hydraulic disc, 160mm rotor
Rear Brake: SRAM Apex 1 flat mount hydraulic disc, 160mm rotor
Brake Levers: SRAM Apex 1 hydraulic disc
Handlebar: Marin butted alloy, compact 16° flared drop
Stem: Marin 3D forged alloy
Bar Tape: Marin shock absorbing perforated tape
Headset: FSA Orbit IS, sealed cartridge bearings, 1 1/8” x 1 1/2”
Seatpost: TranzX YSP38J dropper post, size S-M 70mm travel, size L-XL 110mm travel, 27.2mm
Saddle: Marin Beyond Road Concept Elite

Highlights

Frame: Series 3 Beyond Road, 6061 Aluminium
Fork: Marin full carbon
SRAM Apex x1, 12 Speed Groupset
TranzX YSP38J Dropper Post

Specifications

Model: Gestalt XR
Bottom Bracket [Maker]: SRAM
Bottom Bracket Standard: BSA
Brakes [Kind]: Hydraulic Disc
Brakes [Maker]: SRAM
Brakes [Model]: Apex
Cassette [Gearing]: 10-52
Cassette [Maker]: SRAM
Cassette [Model]: GX Eagle
Chain [Maker]: SRAM
Chain [Model]: NX
Chainring [Gearing]: 40
Crank [Maker]: SRAM
Crank [Model]: Apex
E-Bike: No
Family: Gestalt
Fenders Mounts: Yes
Fork [Axle Type]: 12mm Thru-Axle
Fork [Brake Type]: Disc
Fork [Maker]: Marin
Fork [Material]: Carbon
Fork [Wheel Size]: 700c
Frame [Hanger Standard]: Brand-Specific
Frame [Material]: Aluminium
Frameset: No
Gearing [Configuration]: 1x
Gearing [Kind]: Conventional
Gender: Unisex
Handlebar [Kind]: Drop
Handlebar [Maker]: Marin
Handlebar [Material]: Aluminium
Handlebar [Shape]: Compact Flared Drop
Headset [Maker]: FSA
Rack Mounts: Yes
RD [Maker]: SRAM
RD [Model]: Apex
Saddle [Maker]: Marin
Seatpost [Diameter]: 27.2
Seatpost [Kind]: Dropper
Seatpost [Maker]: tranzx
Shifters [Maker]: SRAM
Shifters [Model]: Apex
Shifting: Mechanical
Stem [Maker]: Marin
Stem [Material]: Aluminium
Suspension Configuration: Rigid
Tires [Maker]: vee
Wheels [Configuration]: Front+Rear
Wheels [Kinds]: Tubeless Ready
Wheelset [Maker]: Marin
Wheelset [Material]: Aluminium
Product code: 1913119 / 54294000730458

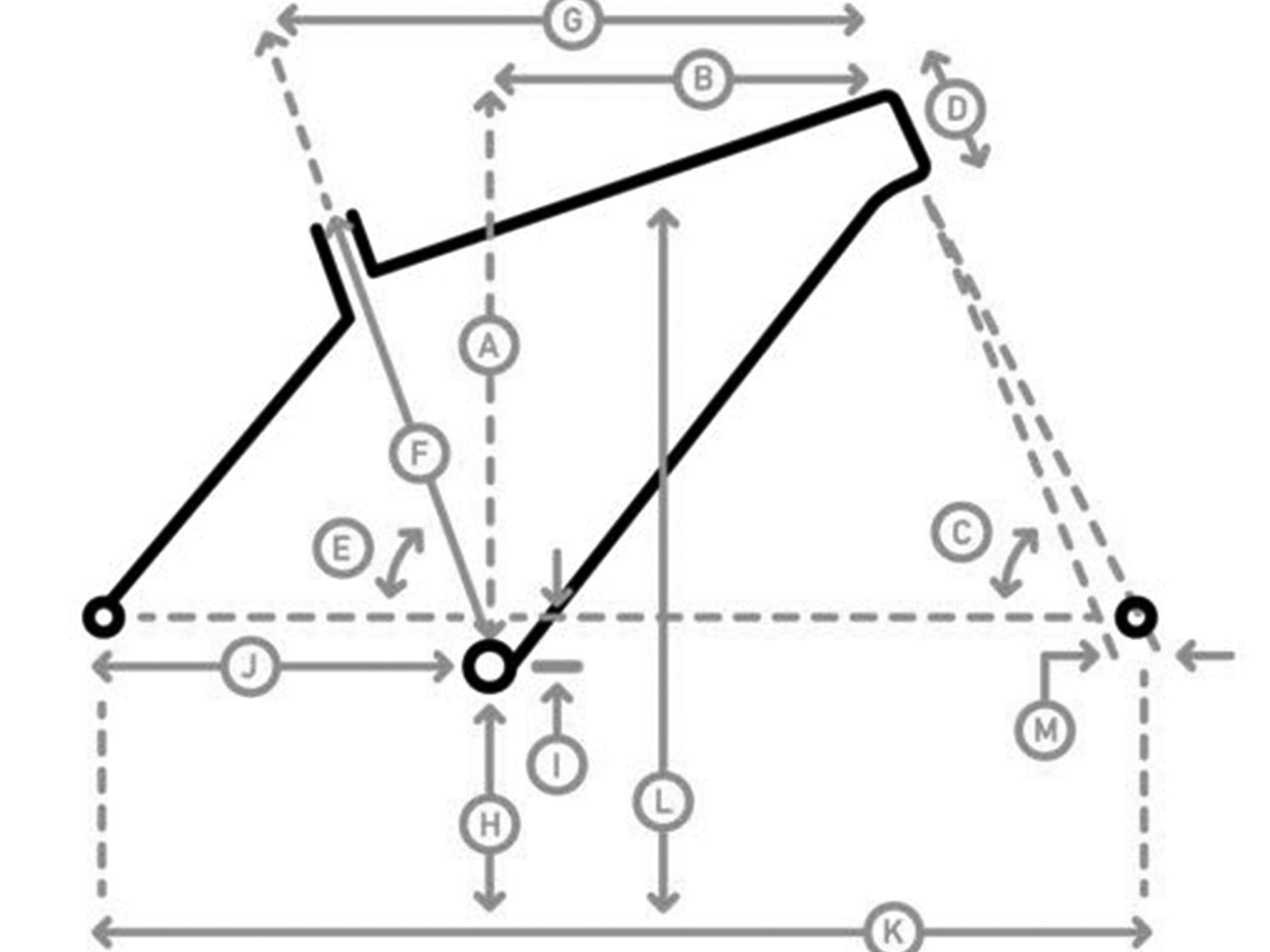

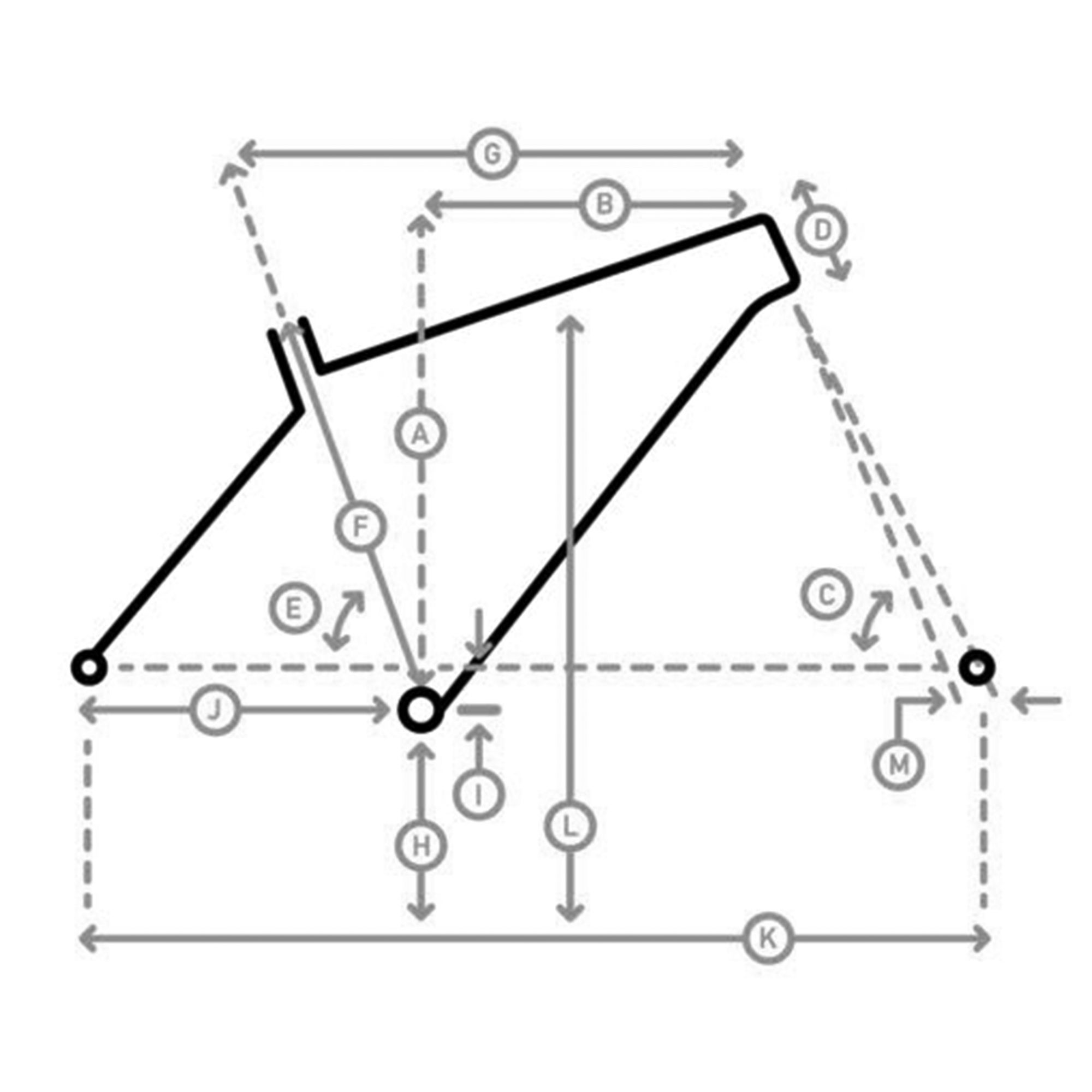

Size Guide

Size (CM)	50	52	54	56	58	60
A - Stack	546	564	578	592	606	620
B - Reach	375	375	380	390	402	415
C - HT Angle	70.5°	71.5°	71.5°	71.5°°	71.5°	71.5°
D - HT Length	105	120	135	150	165	180
E - ST Angle	74.5°	74°	74°	74°	74°	73.5°
F - ST Length	460	480	500	520	540	560
G - TT	526	537	546	560	575	599
H - BB Height	269	269	269	269	269	269
I - BB Drop	76	76	76	76	76	76
J - CS Length	430	430	430	430	430	430
K - Wheelbase	1014	1017	1024	1039	1055	1073
L - Standover	713	733	752	770	788	806
M - Fork Offset	50	50	50	50	50	50
