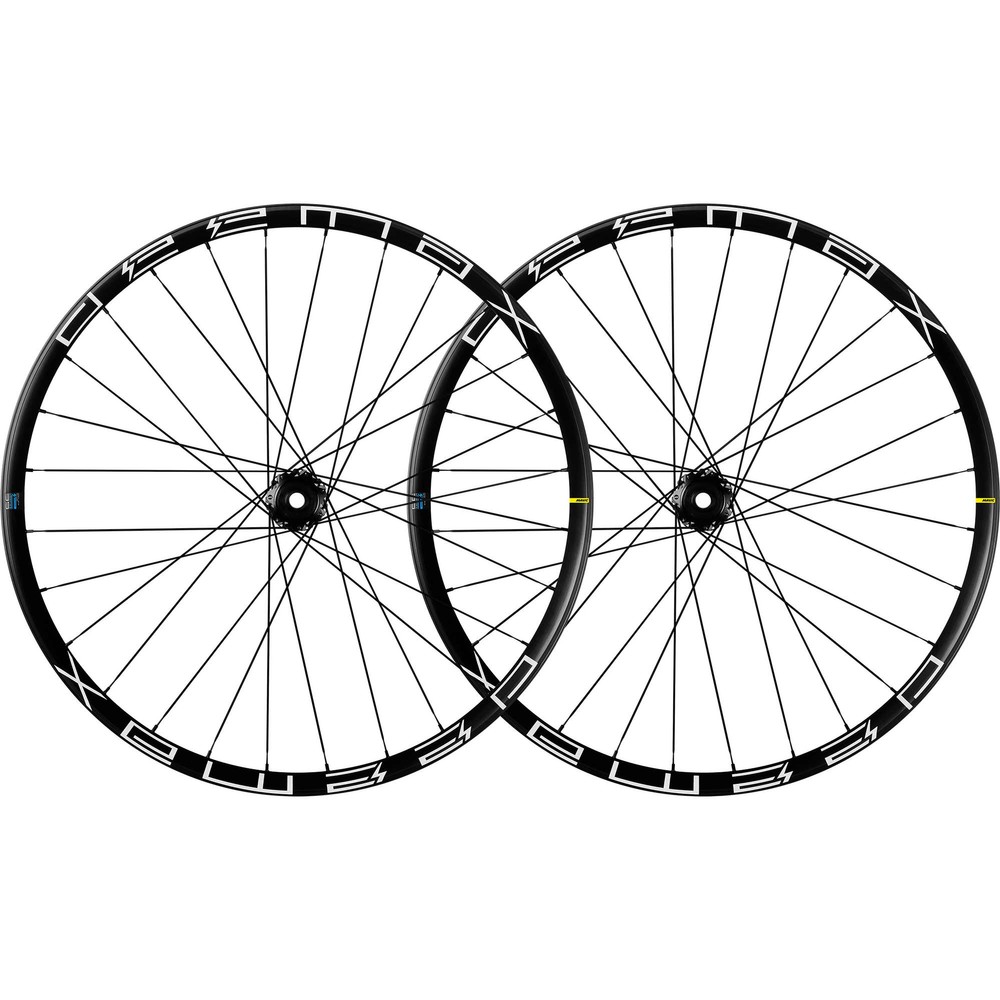

Mavic E-Deemax 35 27.5 6 Bolt Boost XD Wheelset


2.0 Black

Check to see if we have it in stock - just select your colour and size.

E-Deemax 35 27.5 6 Bolt Boost XD Wheelset

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1811198

Mavic E-Deemax 35 27.5 6 Bolt Disc Wheelset

A 35mm E-bike specific rim that's super strong, tubeless ready and with PFP technology. The rim is welded and laced with 28 double butted spokes on downhill inspired hubs. All the E-Deemax reliability and toughness within reach.

Strong and durable

  • Welded rim with Pinch Flat Protection for :
  • Less risk of flat
  • A super strong rim profile
  • A perfectly sealed rim profile

E-Bike specific and reliable construction

  • 28 wide double butted spokes
  • Super reliable ID360 double ratchet freewheel system
  • Hubs inspired by downhill practises

Tubeless ready technology

  • A tubeless rim profile with tubeless tape make it easy to ride tubeless tyres for more traction and less risk of flat

Weight: 2260g

Understanding the different Mavic freehub body acronyms:

  • HG or M11 Shimano HG Road 11/12x (other speeds with spacer)
  • MS - Shimano Microspline
  • XD - SRAM XD
  • XD-R - SRAM XD-R
  • ED11 - Campagnolo 9/12x
  • N3W - Campagnolo 13x


The name E-Deemax has become a reference for E-Bike riders, this new E-Deemax 30 lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price. One of the key factors is our Pinch Flat Protection technology, a rim design with a wider contact surface at the top of sidewall, which significantly reduces the risk of tyre cuts and punctures. The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tyre pressure for better traction and control.

As all our E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg.

Our Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.

The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 30 is available with 6-bolt or center lock brake rotors in 29" only and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.

Maxtal Aluminium Alloy

Exclusive to Mavic. this specific aluminium alloy offers a higher strength to weight ratio than tradition 6106 alloy

Instant Drive 360 technology

Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

UST tubeless technology

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

SUP Welding technology

Soude Usine Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

QRM Auto Bearing Preload Technology

Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.


  • Profile depth: 22mm
  • Inner width: 35mm
  • Rear axle: 12x148mm
  • Discipline: Downhill
  • Spokes: Straight Pull, Flat.
  • Rim Diameter: 27.5"
  • Nipples: Steel ABS Black
  • Rim material: Maxtal
  • Tyre compatibility: UST Tubeless Ready Use with Mavic Tubeless Tape
  • Maximum weight: 180kg including bike
  • Braking system: 6 Bolt
  • Bearings: QRM automatic setting sealed cartridge
  • ETRTO Size: 622x30TC
  • Weight: 2260g
