Description

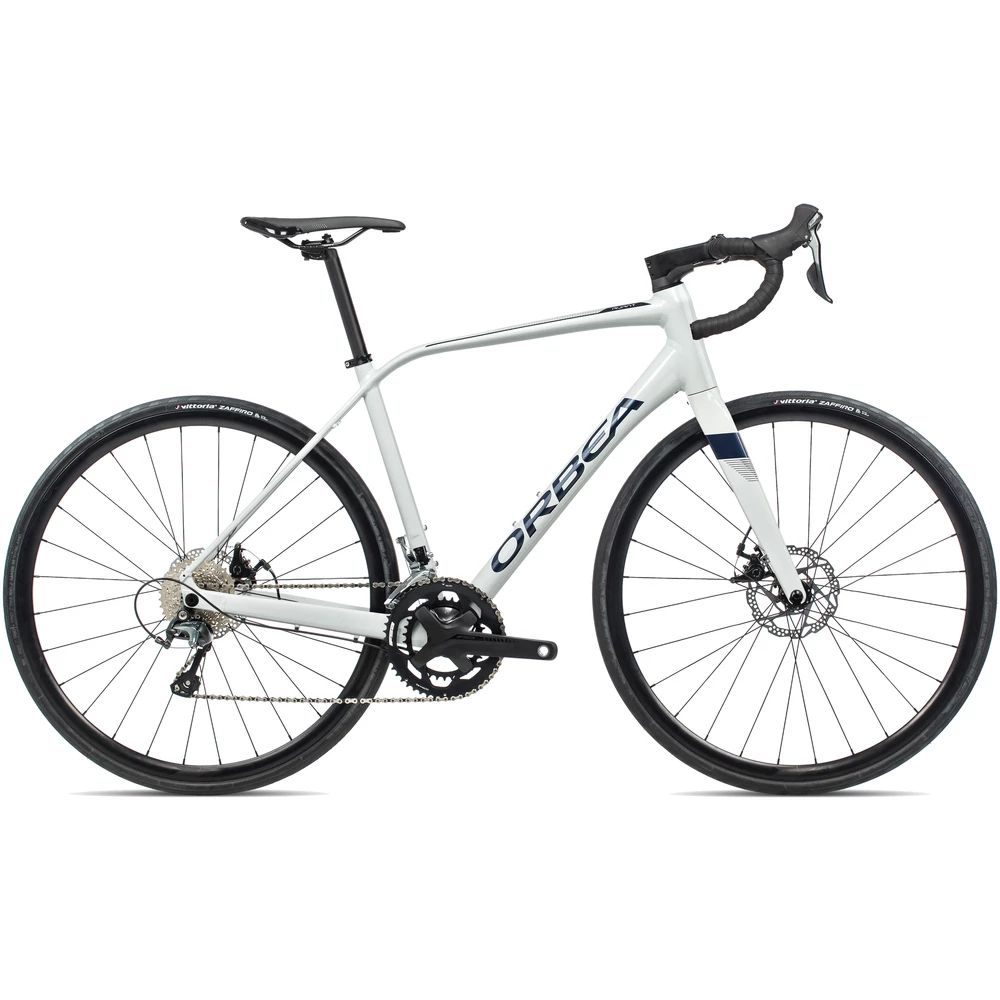

A sophisticated aluminium frame is blended with a refined geometry and ultra-reliable components to make the Orbea Avant H40-D Disc Road Bike a perfect choice for the longest road rides, whether they be in the mountains or at a sharp pace across rough surfaces.
The aluminium frame had a hydroformed construction and variable wall thickness to increase its stiffness to weight ratio markedly. Smooth welds link the tubes to give a clean aesthetic, and the kinked top tube design improves comfort by shrinking the rear triangle to increase vertical compliance. The carbon fork blades complement the frame by also possessing high lateral rigidity and by decreasing the effect of vibrations caused by irregular road surfaces. Generous frameset clearance permits the use of up to 35mm wide tyres while the completely internal cable routing gives a sharp, racy look.
An endurance-inspired geometry keeps the rider fresher for longer while durable but svelte alloy wheels give a lively but robust ride experience. Gear changes are looked after by the precise Shimano Tiagra setup and stopping duties are charged to the powerful disc brake configuration that works perfectly in all conditions.
Frame | Orbea Avant Hydro disc, hydroformed triple butted aluminium, 1,5" ICR headset, BB 68mm – BSC English bottom bracket standard, 12x142mm rear thru-axle with M12x2 P1 thread, internal cable routing, 27.2mm seatpost diameter, MMS system |
Fork | Orbea carbon fork 2021, 1-1/8” aluminium steerer |
Headset | Acros alloy 1-1/2" internal cable routing |
Stem | Orbea OC1 31.8mm interface, 6-degree (Length - 90mm (Size 47) / 100mm (Sizes 49, 51, 53) / 110mm (Sizes 55, 57) / 120mm (Size 60) |
Handlebar | Orbea OC1 Road, reach 80mm, drop 125mm (Width (C-C) - 380mm (Size 47) / 400mm (Size 49) / 420mm (Sizes 53, 55, 57) / 440mm (Sizes 57, 60)) |
Front Brake | Tektro MD-C550, mechanical disc |
Rear Brake | Tektro MD-C550, mechanical disc |
Brake Levers | Shimano Tiagra ST-4700, mechanical disc |
Front Derailleur | Shimano Tiagra 4700 |
Rear Derailleur | Shimano Tiagra 4700 GS, 10-speed |
Shift Levers | Shimano Tiagra ST-4700, 10-speed |
Chain | KMC X10, 10-speed |
Cassette | Sun Race CSMS1 11-34t, 10-speed |
Crankset | FSA Omega Megaexo, 34x50 teeth chainrings (Length 170mm (Sizes 47, 49, 51, 53) / 172.5mm (Sizes 55, 57) / 175mm (Size 60) |
Front Wheel | Orbea Corsa, 12mm E-Thru hubset Shimano RS470 28H with Orbea thru-axle 12x100mm M12x2 P1, solid |
Rear Wheel | Orbea Corsa, 12mm E-Thru hubset Shimano RS470 28H with Orbea thru-axle 12x142mm M12x2 P1, solid |
Front Tyre | Vittoria Zafiro V Rigid bead 700x28c, clincher |
Rear Tyre | Vittoria Zafiro V Rigid bead 700x28c, clincher |
Saddle | Selle Royal Seta RS |
Seatpost | Orbea Alloy 27.2mm diameter, 20mm offset |
Pedals | Available to be purchased separately |
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
