Orbea Gain D20 Ultegra Disc E-Road Bike 2021

★★★★★ ★★★★★
(0)
£3,399.00

From only £127.46 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Orbea
Gain D20 Ultegra Disc E-Road Bike 2021
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1291352

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

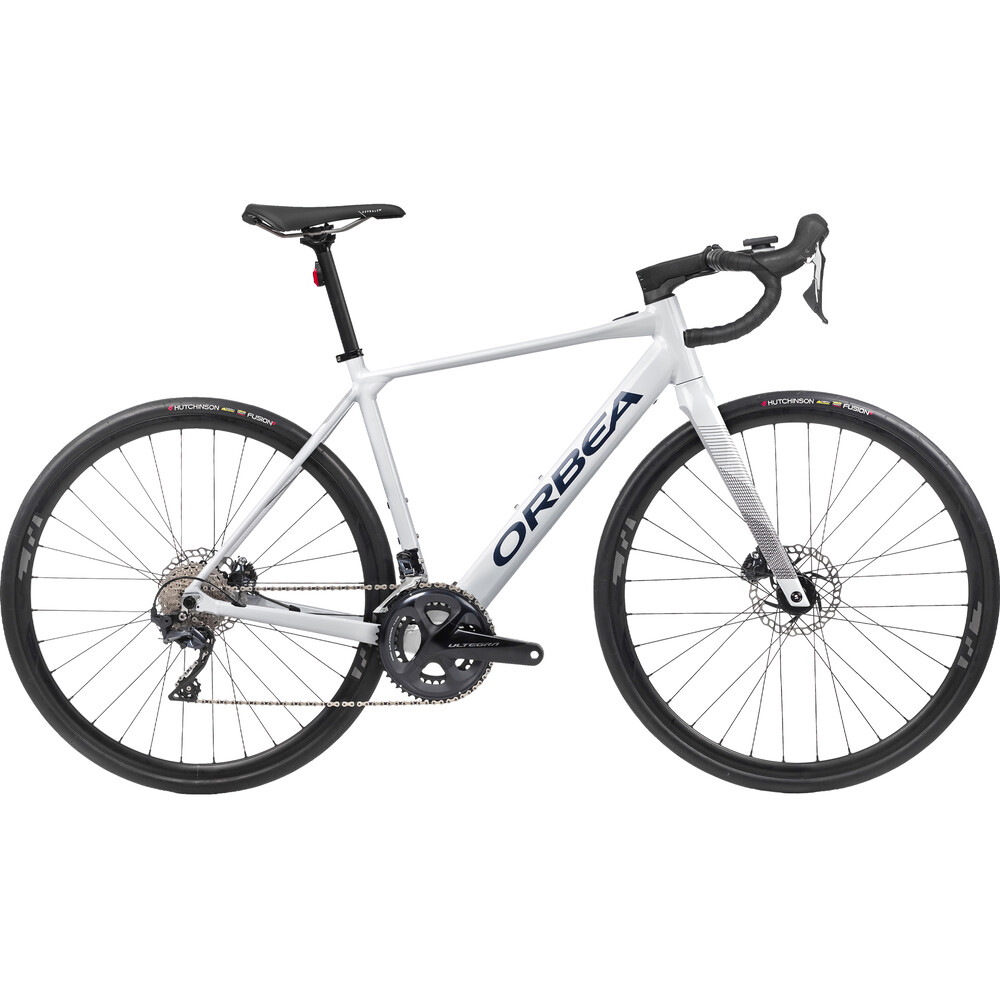

Orbea Gain D20 Ultegra Disc E-Road Bike 2021

When enjoying your ride is your number one priority, the Orbea Gain D20 Ultegra Disc E-Road Bike is the perfect companion. The powerful 250-watt motor kicks in when you need it to and acts to enhance your ride rather than dominate it. You'll still be riding your bike, but the addition of a little extra power through the motor in the rear wheel means you can enjoy the scenery that little bit more. And because the motor is not mounted at the chainset, you get complete disengagement when not in use.

The 248Wh battery is concealed in the downtube, making the bike's silhouette appear more like a traditional road bike. Easily check your power consumption and remaining battery life using the out-front Mahle Ebikemotion iWoc ONE remote interface. With an integrated rear light mounted in the seat post, and a 60-lumen front light mounted on the interface, you're easily spotted while out on the road.

The addition of a Shimano Ultegra R8020 groupset to this bike pushes it into the premium bracket, with reliable 11-speed shifting and super-precise hydraulic disc brakes that work equally well in any weather. The 30c Hutchinson Fusion 5 tyres provide a plush ride so you can enjoy long days in the saddle with great comfort.

Highlights

  • The Mahle Ebikemotion X35 Plus motor is designed to improve your rides, not dominate them
  • Motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
  • ICR Plus internal cable routing keeps the cockpit clean looking
  • Integrated lights
  • Mahle Ebikemotion 248Wh battery neatly housed in the downtube
  • Mahle Ebikemotion iWoc ONE interface displays battery and assist levels as you ride
  • Hydroformed Aluminium frame is lightweight and robust
  • Endurance geometry is perfect for riding all day long
  • Shimano Ultegra R8020 11-speed groupset
  • Hutchinson Fusion 5 Performance TLR tyres are 30mm wide for plush comfort on the road

Battery Specification

  • Maximum Assist: 250w up to 25km/hr
  • Motor Weight: 3.5kg
  • Range: Up to 47 miles / 75km depending on usage and riding conditions
  • Battery Power: 250Wh

Technical Specification

Frame Orbea Gain Hydro 6061 Hydroform Aluminium 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximum tyre, 1" 1/2 semi-integrated headset, 41 x 86.5 Pressfit bottom bracket
Fork Orbea Gain Hydrocarbon fork, full carbon, 1-1/8" - 1.5" tapered head tube compatible, 700x40 maximum tyre, flat mount disc mount, Thru-axle 12x100mm
Headset Orbea Acros Alloy 1-1/2" Internal Cable Routing
Stem Orbea OC1 31.8mm interface -6º
Handlebar Orbea OC2 Road, reach 80mm, drop 125mm
Front Brake Shimano Ultegra R8070 hydraulic disc
Rear Brake Shimano Ultegra R8070 hydraulic disc
Brake Levers Shimano Ultegra R8020
Rear Derailleur Shimano Ultegra R8000 GS 11-speed
Front Derailleur Shimano Ultegra R8000
Shift Levers Shimano Ultegra R8020 11-speed
Chain KMC X11
Cassette Shimano Ultegra R8000 11-32t 11-speed
Crankset Shimano Ultegra R8000 34x50t
Front Wheel Blackjack Ready GR clincher
Rear Wheel Blackjack Ready GR clincher
Front Tyre Hutchinson Fusion 5 Performance TLR 700x30c clincher
Rear Tyre Hutchinson Fusion 5 Performance TLR 700x30c clincher
Saddle Selle Royal Asphalt GR
Seatpost Orbea OC 27.2 Offset 0, for integrated light
Pedals Available to be purchased separately
Accessories 60 Lumen COB LED front light on display holder, 11-lumen Lezyne STVZO seatpost mounting rear light
Motor Mahle Ebikemotion X35 Plus 25kmh (250 watts, 40Nm maximum torque)
Remote Mahle Ebikemotion iWoc ONE
Battery Mahle Ebikemotion 36V/6.9A 248Wh ANT+
Charger Mahle Ebikemotion X35

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.


Orbea Gain D20 Ultegra Disc E-Road Bike 2021 Sizing
