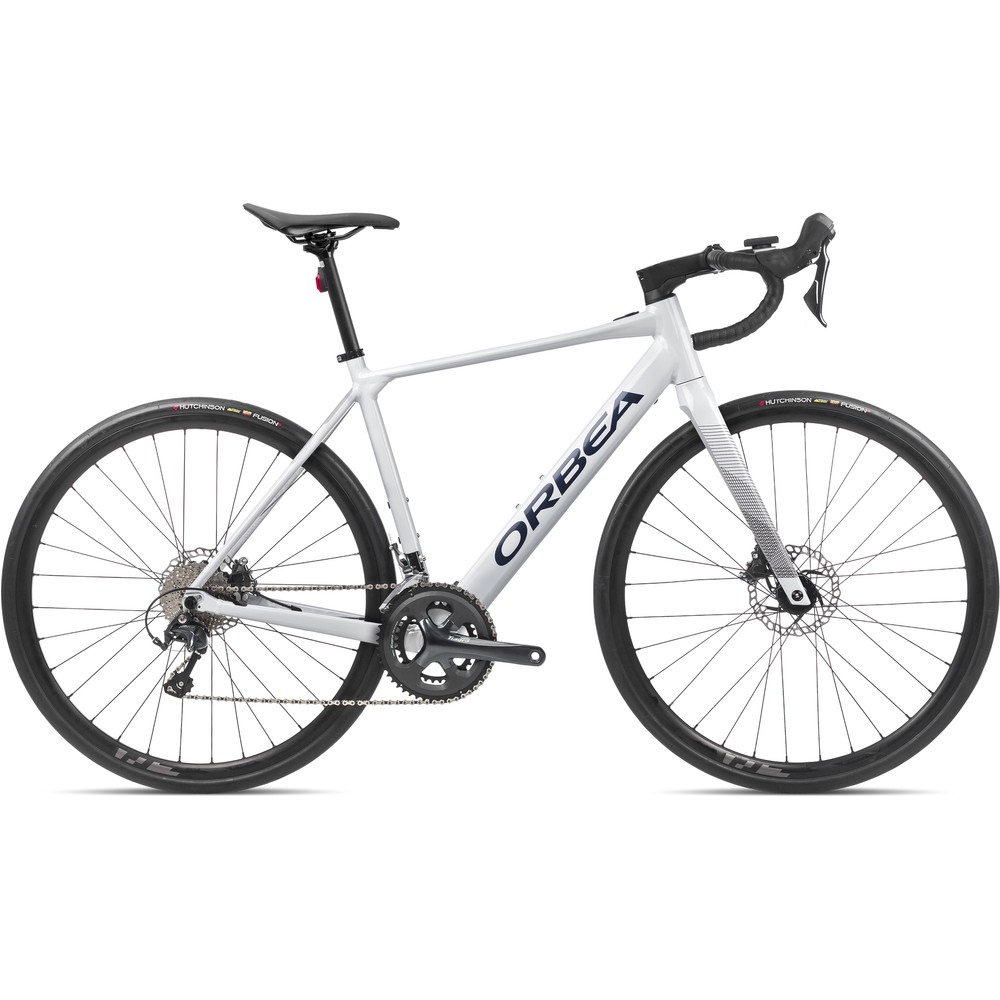

Orbea Gain D40 Electric Road Bike 2022

£2,899.00

Need help choosing an electric bike?

Our Kingston electric bike store team are here to help you. Email kingstonsales@sigmasports.com or call 0333 006 8833

Select a colour and size to view stock availability

Orbea
Gain D40 Electric Road Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1464446

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

Orbea Gain D40 Electric Road Bike 2022

The Orbea Gain D40 Electric Road Bike is an assisted road bike designed to elevate your performance on the tarmac. Integrated into the downtube is a lightweight 248Wh battery, which pairs with an Ebikemotion X35 motor to deliver 40Nm of torque and 250W of power. This lightweight system retains the responsiveness of a road bike and sees the motor mounted in the rear hub. This delivers a sleek aesthetic, further compounded by the Orbea ICR cable integration.

The frame uses Orbea endurance geometry to retain an upright position and is equipped with a carbon fork to damp road buzz. A Shimano Tiagra drivetrain offers smooth shifting, reminiscent of that on high-end drivetrains, in a lightweight 10-speed package. The Orbea Ready GR wheels are lightweight and durable, and the 30c Hutchinson tyres boost traction and compliance on the asphalt.

Browse our range of Orbea electric road bikes today.

Highlights

  • The Ebikemotion X35 Plus motor improves your rides rather than dominates them
  • The motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
  • ICR internal cable routing keeps the cockpit clean looking
  • The integrated rear light draws power from the battery
  • An Ebikemotion 248Wh battery is neatly housed in the downtube
  • The Ebikemotion iWoc ONE interface displays battery and the assistance level as you ride
  • Hydroformed Aluminium frame lightweight and robust
  • Endurance geometry is perfect for all-day rides
  • The Shimano Tiagra groupset offers slick performance and control
  • Wide Hutchinson tyres are plush and grippy on the tarmac

Battery Specification

  • Maximum Assist: 250w, 40Nm
  • Motor Weight: 3.5kg
  • Battery Power: 248Wh

Technical Specification

Frame Orbea Gain Hydro 6061 Hydroformed Aluminium 2022, ICR cable routing, forged BB, safety screw, 135x9mm QR, flat mount disc mount, 700x40 maximum tyre, 1" 1/2 semi-integrated headset
Fork Orbea Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tapered head tube compatible, 700x40 maximum tyre, flat mount disc mount, thru-axle 12x100mm
Headset Acros Alloy 1-1/2" Internal Cable Routing
Stem Orbea OC RP21 Road Performance, ICR, -6º, IFC01 Computer mount interface
Handlebar Orbea OC RP30 Road Performance, 80mm reach, 125mm drop
Front Brake Shimano Tiagra 4770, hydraulic disc
Rear Brake Shimano Tiagra 4770, hydraulic disc
Brake Levers Shimano Tiagra ST-4770
Front Derailleur Shimano Tiagra 4700
Rear Derailleur Shimano Tiagra 4700 GS 10-speed
Shift Levers Shimano Tiagra ST-4770
Chain KMC X10
Cassette Shimano Tiagra HG-500, 11-32t, 10-speed
Crankset Shimano Tiagra 4700, 34x50t
Front Wheel Orbea Ready GR, clincher, 700c
Rear Wheel Orbea Ready GR, clincher, 700c
Front Tyre Hutchinson Fusion 5 Performance, clincher, 700c
Rear Tyre Hutchinson Fusion 5 Performance, clincher, 700c
Saddle Fizik Aliante R5
Seatpost Orbea OC 27.2mm, 0mm offset, for integrated light
Pedals Available to be purchased separately
Accessories Lezyne FENDER STVZO, seatpost mount, 11 lumens
Motor Ebikemotion X35 Plus, 250W, 40Nm
Remote Ebikemotion iWoc ONE
Battery Ebikemotion 36V/6.9A 248Wh ANT+
Charger Ebikemotion X35
Electric assisted speed limit 15.5 mph / 25 km/h

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.


Orbea Gain D40 Electric Road Bike 2022 Sizing
