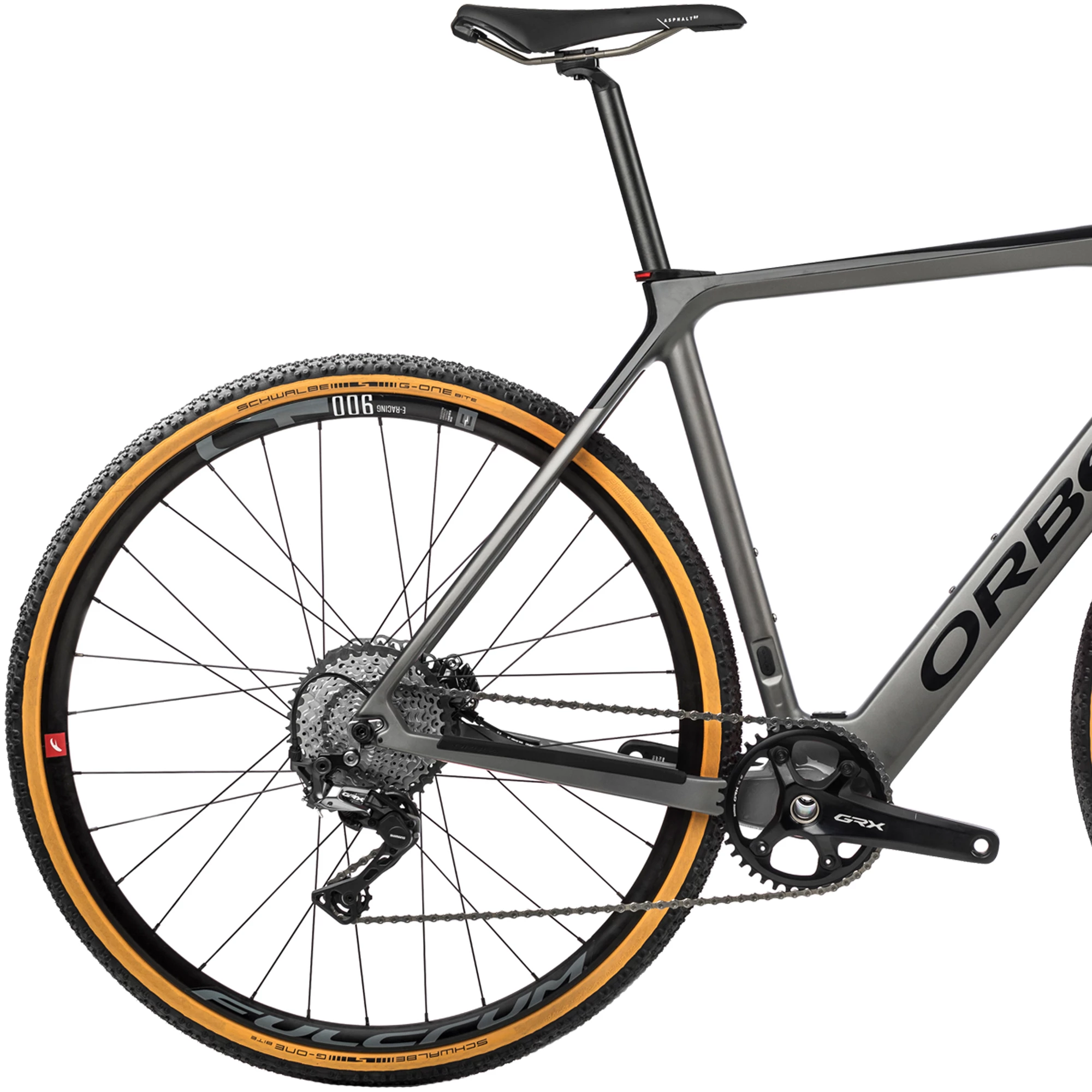

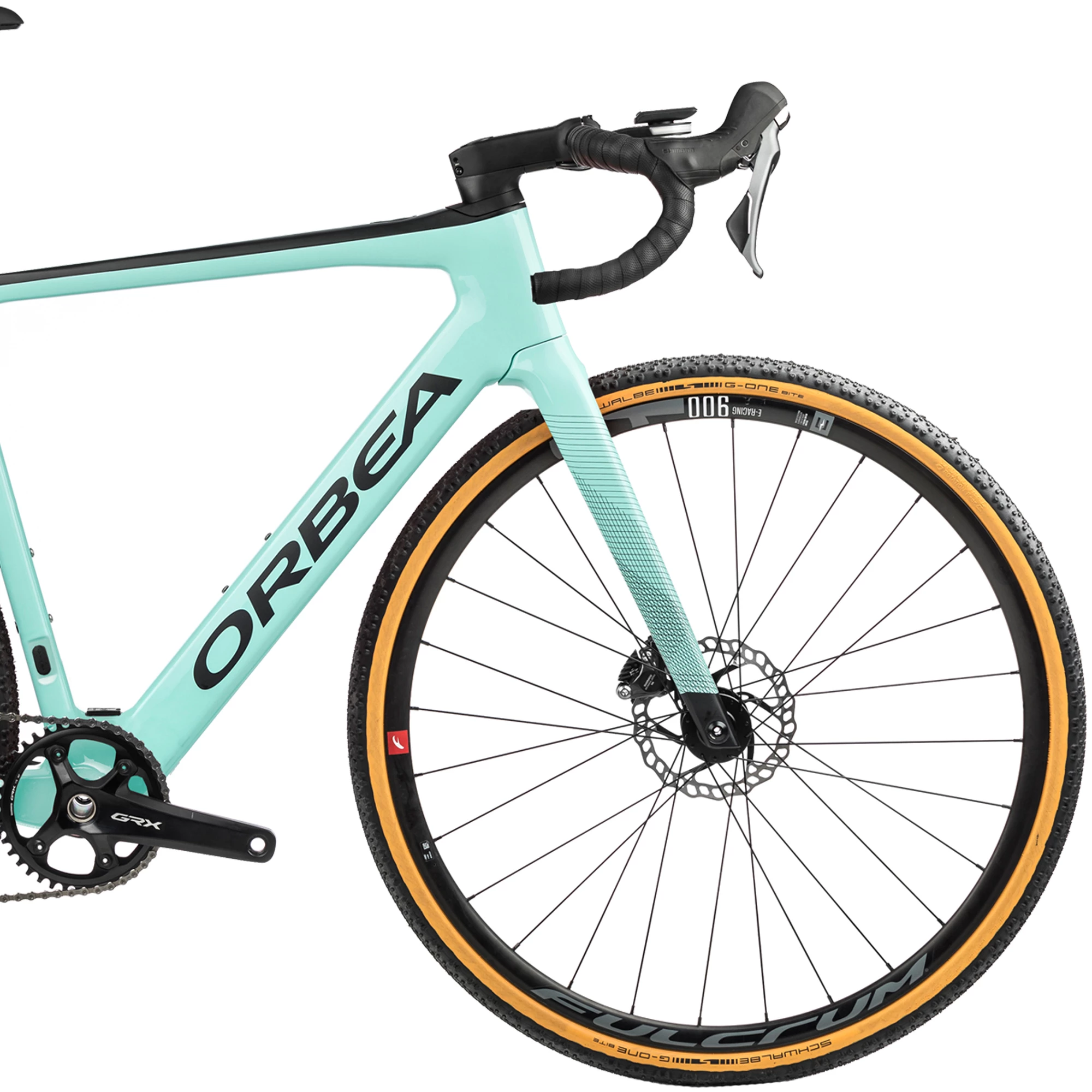

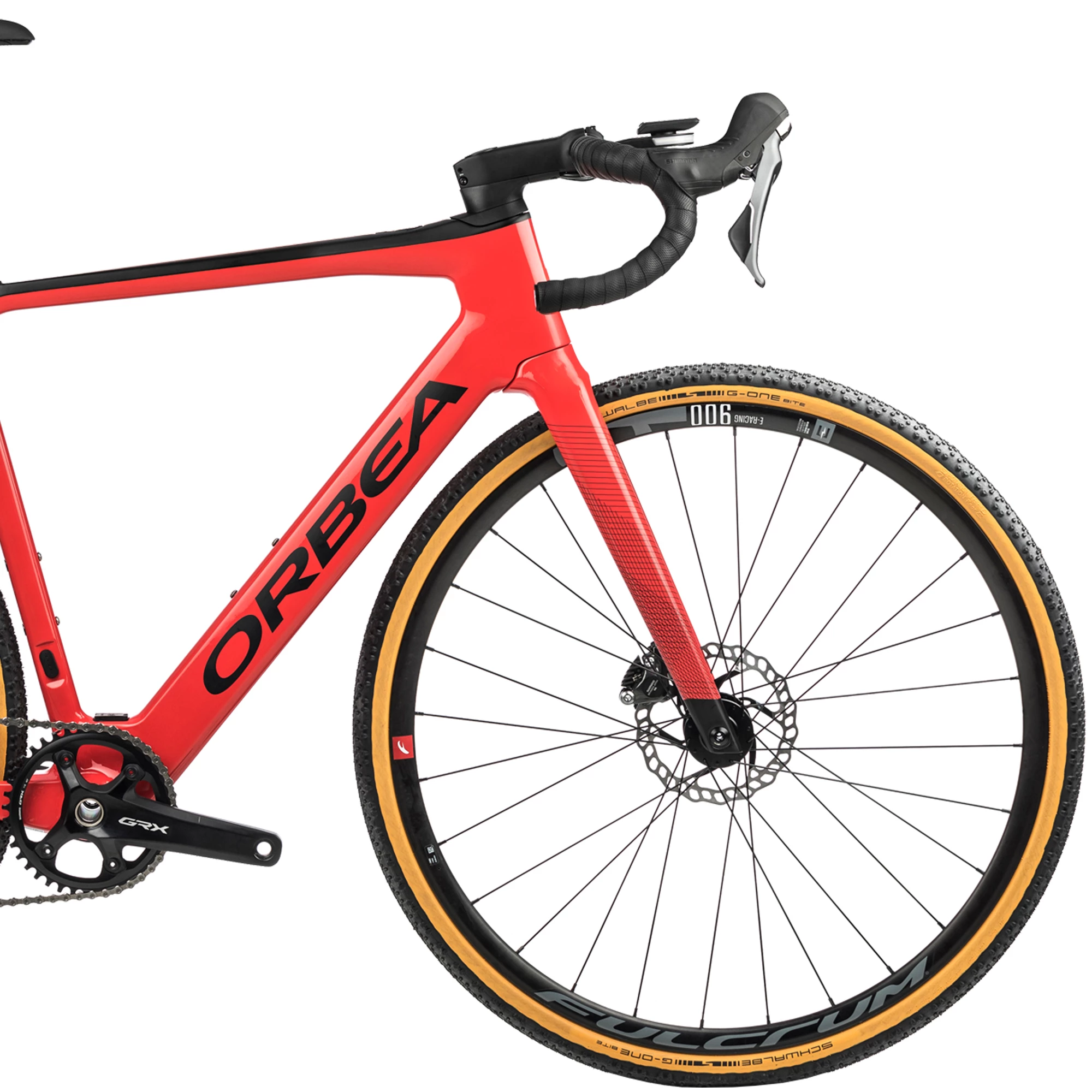

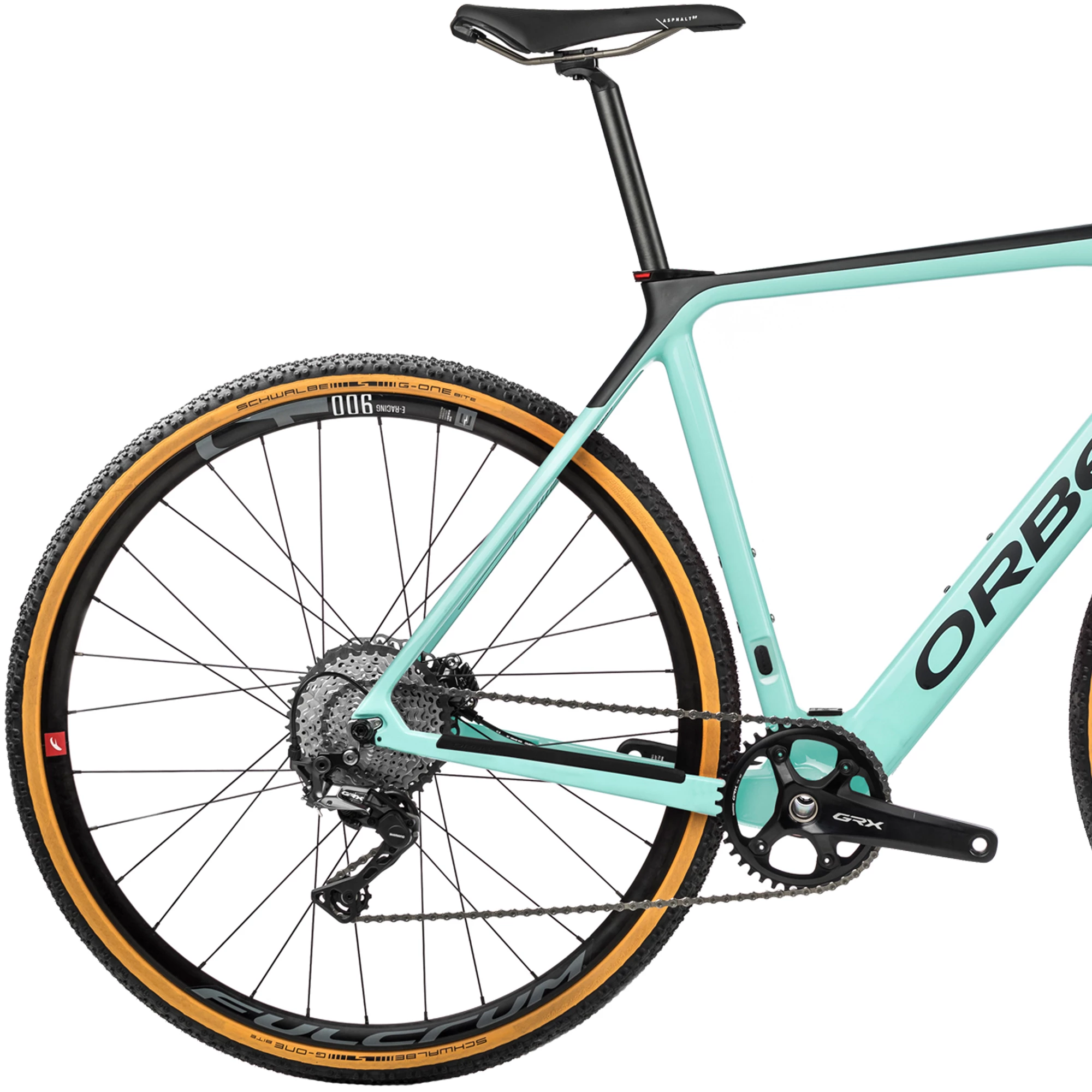

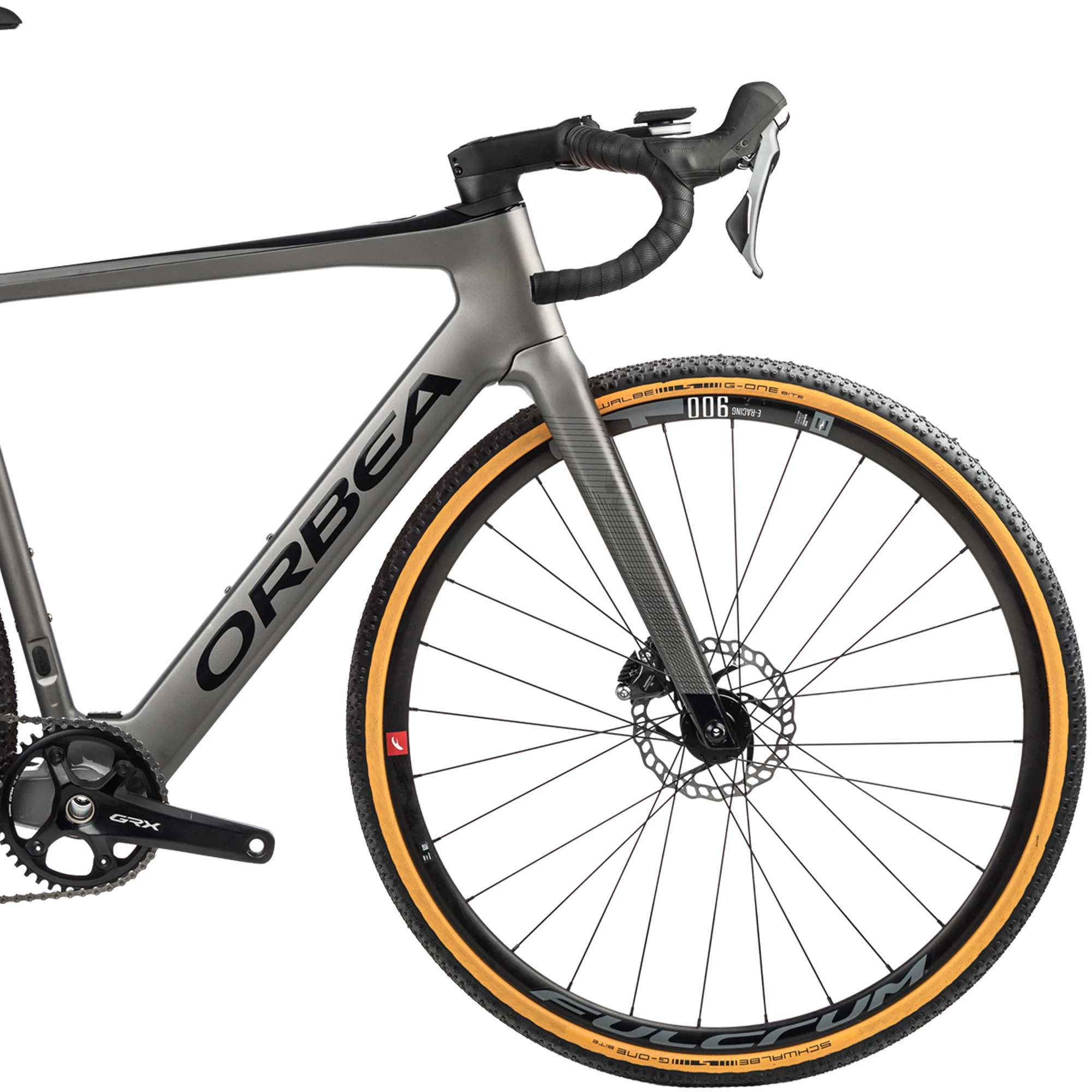

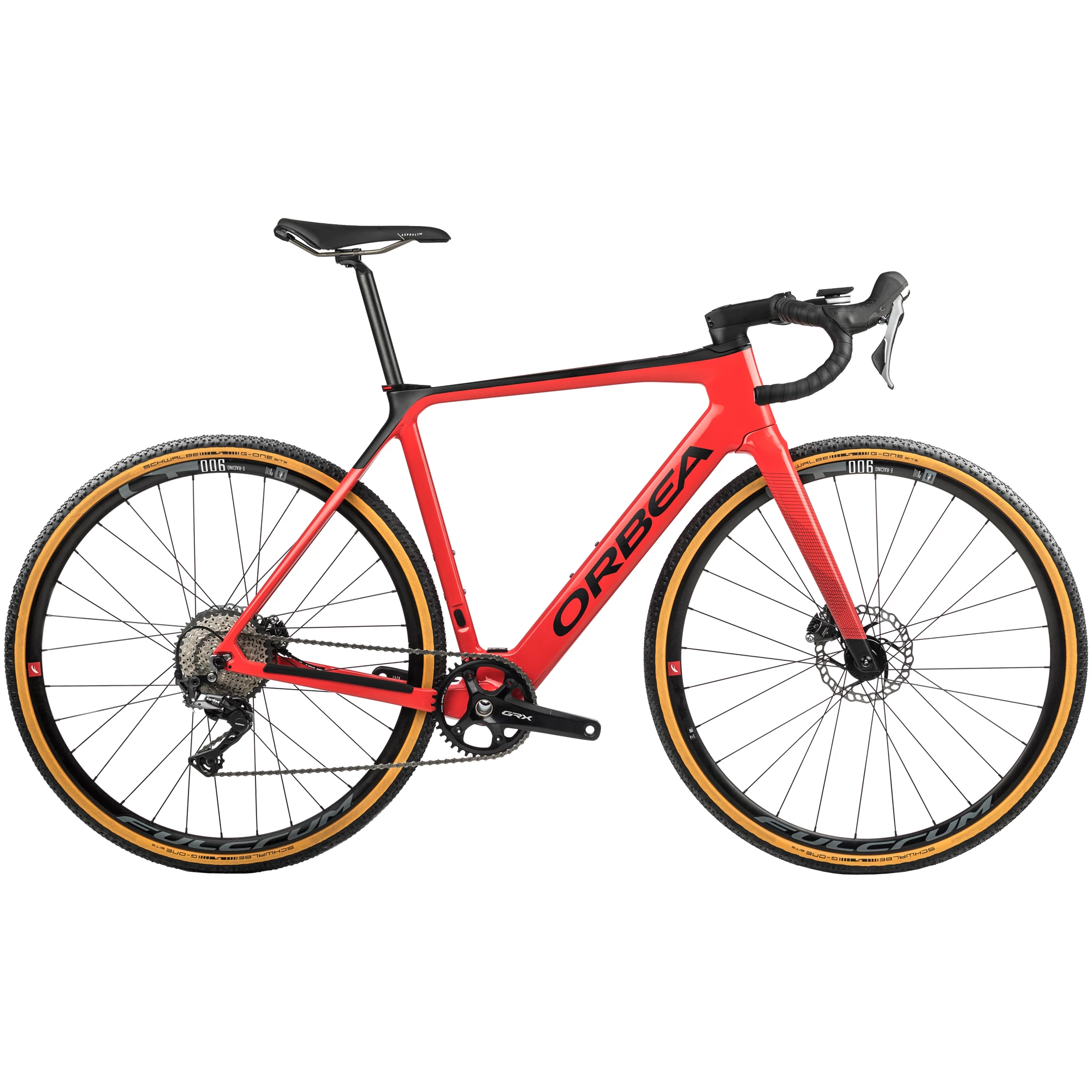

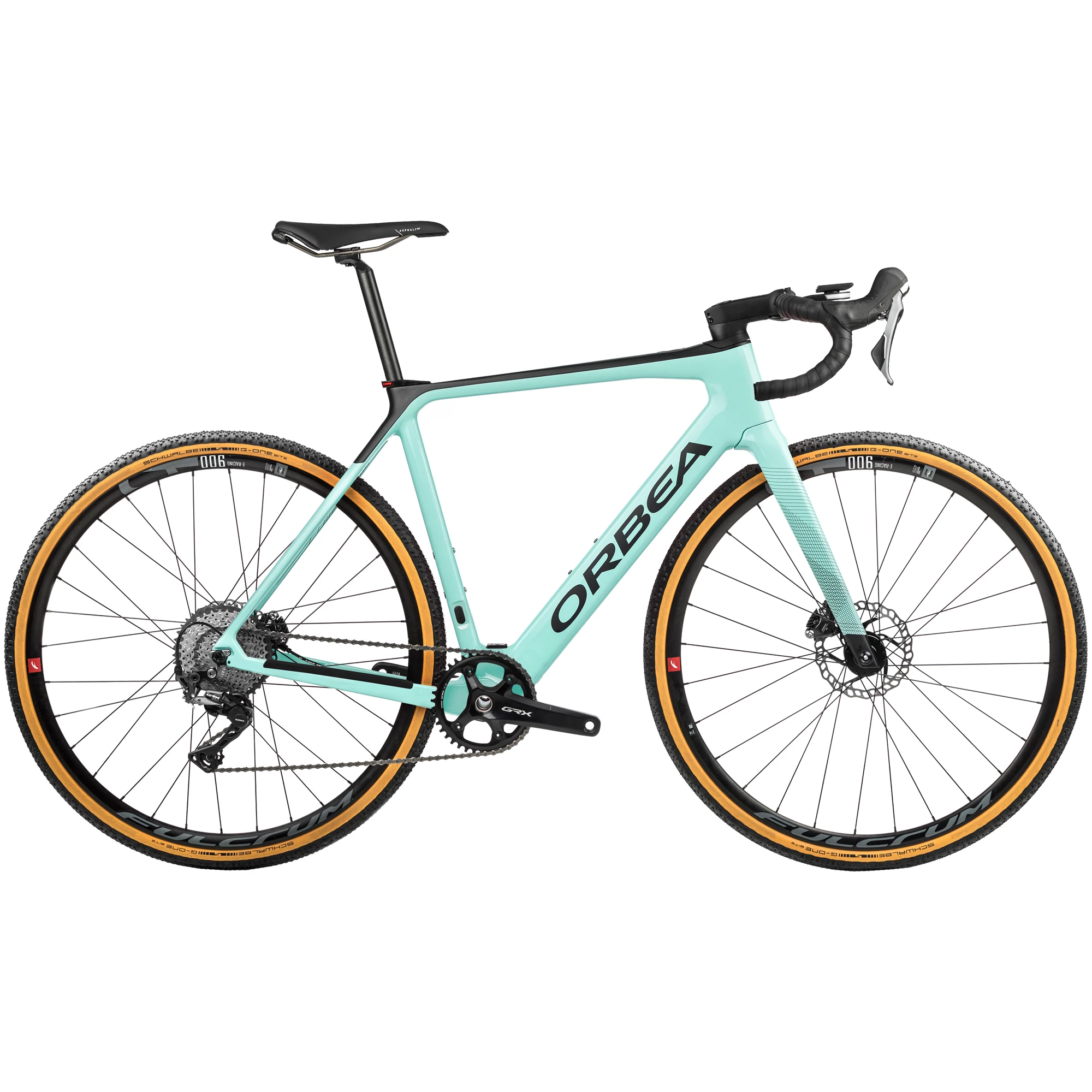

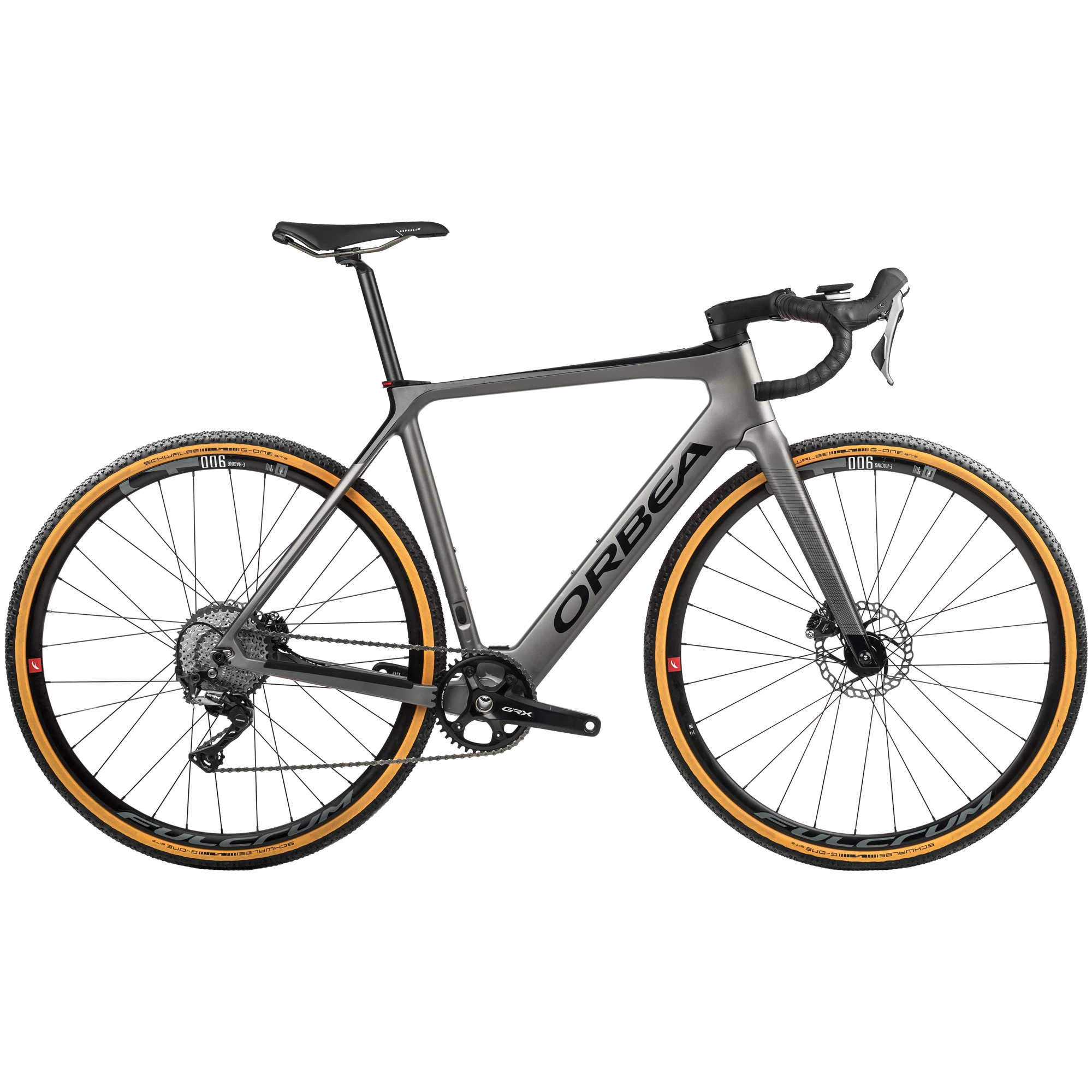

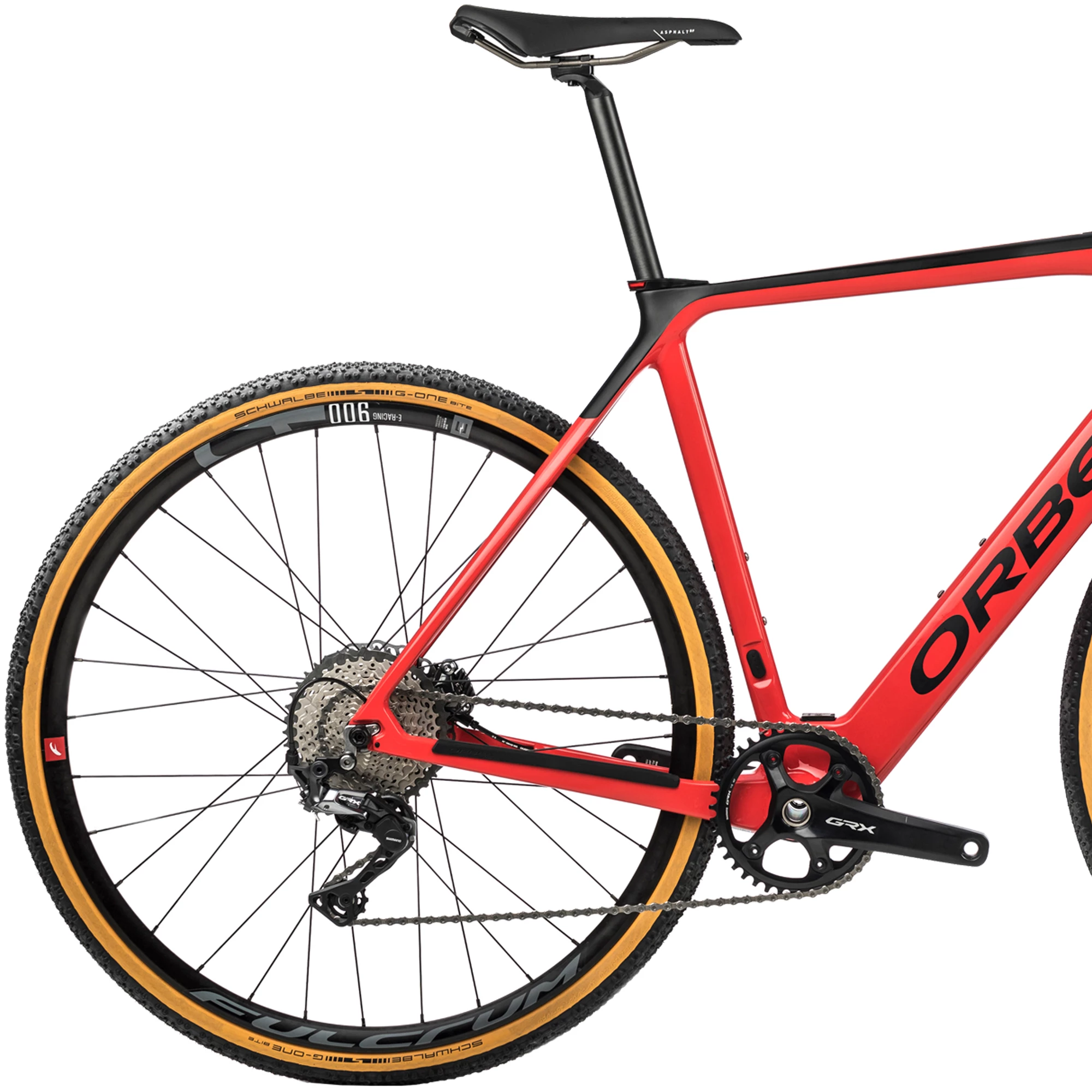

Orbea Gain M20 GRX 810 Disc E-Gravel Bike 2021

A lightweight top-end carbon fibre frameset pairs wonderfully with a powerful motor and some neat gravel-specific equipment to make the Orbea Gain M30 GRX 810 Disc E-Gravel Bike. Get out and explore beyond the tarmac and beyond your comfort zone, with the backing of a 250-watt motor for when the going gets tough. And when you don't need power assistance, this bike rides just like a regular gravel bike.

Glancing at the silhouette of the Orbea Gain, it's easy to miss the fact that this is an e-bike, since the motor is housed within the rear hub and the battery concealed within the down tube. But at the touch of a button, you can harness 250 watts of power to help you up steep single track hills, or fight a headwind on the towpath. Integrated lights on the out-front display bracket and in the seat clamp make for very neat finishing touches, along with the internal cable routing through the stem for a super-clean looking cockpit.

Shimano's GRX 810 groupset is about as good as it gets in terms of gravel-specific equipment. The 1 x 11-speed setup is simple and intuitive with all the gears you need while boasting a lightweight construction too. Schwalbe G-ONE Bite clincher tyres are 38mm wide, with loads of grip for looser surfaces and are also fairly quick on tarmac.

Highlights

  • A hugely capable gravel specific e-bike
  • Lightweight Orbea Carbon OMR monocoque frameset
  • The Mahle Ebikemotion X35 Plus motor is designed to improve your rides, not dominate them
  • Motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
  • ICR Plus internal cable routing keeps the cockpit clean looking
  • Integrated lights
  • Mahle Ebikemotion 248Wh battery neatly housed in the downtube
  • Mahle Ebikemotion iWoc ONE interface displays battery and assist levels as you ride
  • Endurance geometry is perfect for riding all day long
  • Shimano GRX 810 11-speed lightweight gravel-specific groupset
  • Schwalbe G-ONE Bite gravel tyres are 38mm wide for superb traction

Battery Specification

  • Maximum Assist: 250w up to 25km/hr
  • Motor Weight: 3.5kg
  • Range: Up to 47 miles / 75km depending on usage and riding conditions
  • Battery Power: 248Wh

Technical Specification

Frame Orbea Gain Carbon OMR monocoque structure, integrated seat clamp with integrated Lezyne STVZO rear light, ICR internal cable routing, forged bottom bracket BB386 EVO, 135x9 quick release, flat mount disc, 700x40mm maximum tyre clearance, 1" 1/2 semi headset
Fork Orbea Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40mm maximum tyre clearance, flat mount disc, Orbea 12x100mm Thru-Axle M12x2 P1 Lite, down tube aero integration
Headset Orbea Acros Alloy 1-1/2" Internal Cable Routing
Stem Orbea ICR -8º
Handlebar OC1 All Road, reach 80mm, drop 125mm, flare 12º
Front Brake Shimano GRX ST-RX810 hydraulic disc
Rear Brake Shimano GRX ST-RX810 hydraulic disc
Brake Levers Shimano GRX 810
Rear Derailleur Shimano GRX RX812 GS
Front Derailleur N/A
Shift Levers Shimano GRX ST-RX810 11-speed
Chain Shimano HG 601, 11-speed
Cassette Shimano XT M8000 11-40t 11-Speed
Crankset Shimano GRX RX810 40t
Front Wheel Fulcrum E-Racing 900 clincher
Rear Wheel Fulcrum E-Racing 900 clincher
Front Tyre Schwalbe G-ONE Bite, 40-622, 700x38C, Performance Line RaceGuard, TLE, ADDIX Classic SkinX, tubeless-ready clincher
Rear Tyre Schwalbe G-ONE Bite, 40-622, 700x38C, Performance Line RaceGuard, TLE, ADDIX Classic Skin, tubeless-ready clincher
Saddle Selle Royal Asphalt GR
Seatpost OC2 Carbon 27.2 Offset 20mm
Pedals Available to be purchased separately
Accessories 60 Lumen COB LED front light on display holder, 11-lumen Lezyne STVZO integrated seat clamp rear light
Motor Mahle Ebikemotion X35 Plus 25kmh (250 watts, 40Nm maximum torque)
Remote Mahle Ebikemotion iWoc ONE
Display Ebikemotion Pulsar One monochrome ANT+ LEV
Battery Mahle Ebikemotion 36V/6.9A 248Wh ANT+
Charger Mahle Ebikemotion X35
