Description

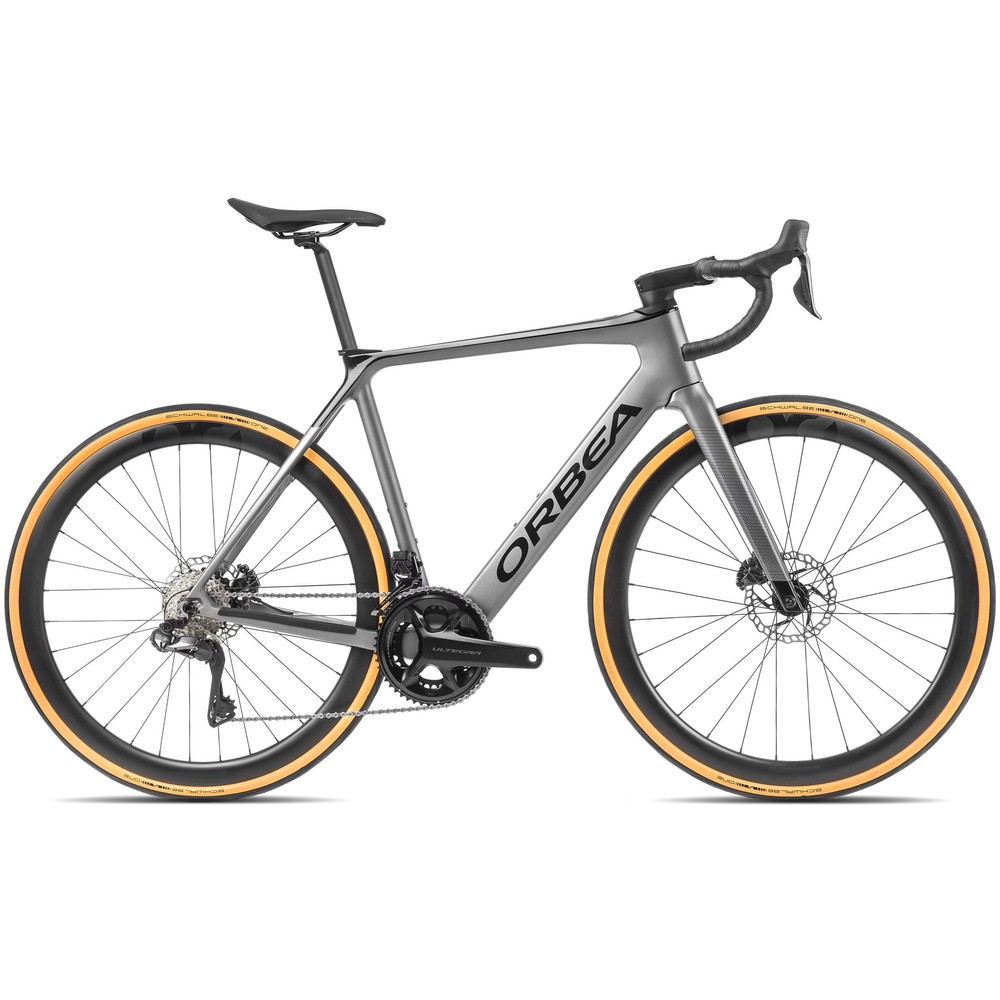

Orbea Gain M20i Electric Road Bike 2022
A fast and efficient choice, the Orbea Gain M20i Electric Road Bike delivers an authentic cycling experience with a twist of powered assistance, taking the sting out of hills to encourage exploration. The carbon frame is lightweight and stiff, offering explosive power transfer for rapid acceleration, and sees the 248Wh battery integrated neatly into the downtube. The Ebikemotion X35 Plus hub motor provides 40Nm of hill-shredding torque and assistance up to a maximum speed of 15.5mph / 25kph, while an Ebikemotion Pulsar One display shows the remaining battery charge and the current level of assistance, keeping key ride data in your line of sight.
Comfort is key to your performance over longer distances, and the relaxed geometry of the Gain is ideal for endurance rides and sportive events. A full-carbon fork provides compliance to damp road vibration.
Offering performance where it counts, Shimano's 12-speed electronic Ultegra drivetrain creates precise, smooth shifting, and the hydraulic disc brakes work consistently in wet and dry conditions. The Orbea OC2 carbon wheelset is both durable and lightweight and tubeless-ready rims mean you can take advantage of lower tyre pressures. Schwalbe ONE tyres with a 30c width take the sting out of bumps and potholes, while the Fizik Aliante R5 saddle issues lasting comfort.
Browse our range of Orbea electric road bikes today.
Highlights
- The Ebikemotion X35 Plus motor improves your rides rather than dominating them
- The motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
- ICR Plus internal cable routing keeps the cockpit clean looking
- An Ebikemotion 248Wh battery is neatly housed in the downtube
- The Ebikemotion iWoc ONE interface displays battery and the assistance level as you ride
- Endurance geometry is perfect for all-day rides
- Shimano Ultegra Di2 12-speed groupset is efficient and precise
- Schwalbe G-ONE tyres are plush and comfortable, thanks to their 30c width
Battery Specification
- Maximum Assist: 250w, 40Nm
- Motor Weight: 3.5kg
- Battery Power: 248Wh
Technical Specification
| Frame | Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximum tyre, 1" 1/2 semi headset, BB386 EVO |
| Fork | Orbea Gain OMR carbon fork, with 1-1/2 carbon steerer, 700x40 maximum tyre, flat mount disc mount, 12x100mm thru-axle, with downtube aero integration |
| Headset | Acros Alloy 1-1/2" internal cable routing |
| Stem | Orbea OC RP10 Road Performance, ICR, -8º, IFC01 Computer mount interface |
| Handlebar | Orbea OC RP20 Road Performance SL, 80mm reach, 125mm drop, with Di2 hole |
| Front Brake | Shimano R8170 hydraulic disc |
| Rear Brake | Shimano R8170 hydraulic disc |
| Brake Levers | Shimano ST-8170 |
| Front Derailleur | Shimano Ultegra Di2 R8150 |
| Rear Derailleur | Shimano Ultegra Di2 R8150 |
| Shift Levers | Shimano ST-8170, 12-speed |
| Chain | Shimano M8100 |
| Cassette | Shimano Ultegra R8100, 11-30t, 12-speed |
| Crankset | Shimano Ultegra R8100, 34x50t |
| Front Wheel | Orbea OC2 Carbon 42, tubeless-ready, 700c |
| Rear Wheel | Orbea OC2 Carbon 42, tubeless-ready, 700c |
| Front Tyre | Schwalbe ONE 30-622, 700x30C, Performance Line RaceGuard, TLE, tubeless-ready |
| Rear Tyre | Schwalbe ONE 30-622, 700x30C, Performance Line RaceGuard, TLE, tubeless-ready |
| Seatpost | Orbea OC carbon, 27.2mm diameter, 20mm offset |
| Pedals | Available to be purchased separately |
| Accessories | Front position light, on display holder, COB LED, On/Off, 60 lumen, ECE50 |
| Motor | Ebikemotion X35 Plus, 250W, 40Nm |
| Remote | Ebikemotion iWoc ONE |
| Display | Ebikemotion Pulsar One monochrome ANT+ LEV |
| Battery | Ebikemotion 36V/6.9A 248Wh ANT+ |
| Charger | Ebikemotion X35 |
| Electric assisted speed limit | 15.5mph / 25kph |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
