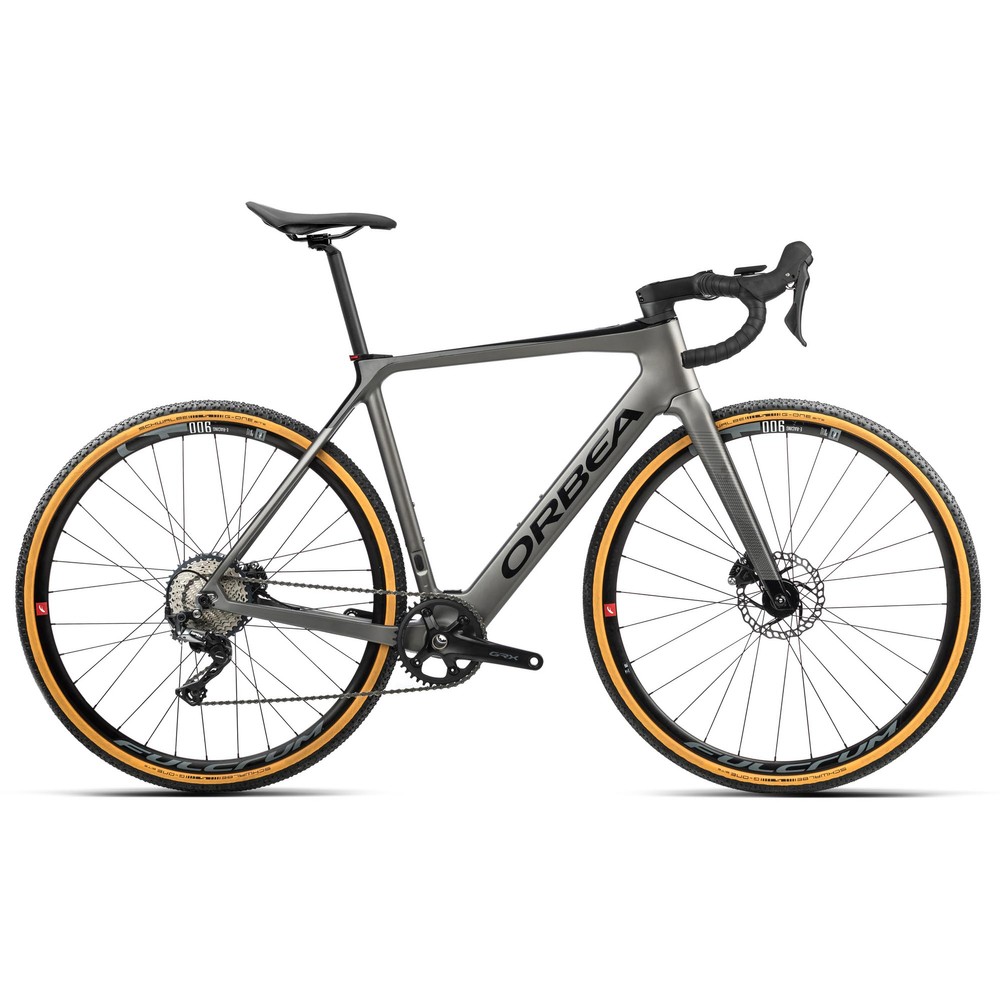

Orbea Gain M30 1X Electric Gravel Bike 2022

£4,099.00

Need help choosing an electric bike?

Our Kingston electric bike store team are here to help you. Email kingstonsales@sigmasports.com or call 0333 006 8833

Select a colour and size to view stock availability

Orbea
Gain M30 1X Electric Gravel Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1464524

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

Orbea Gain M30 1X Electric Gravel Bike 2022

Built for all-road adventures, the Orbea Gain M30 1X Electric Gravel Bike opens up the world for exploration, with its reliable single-ring drivetrain, wide 38c tyres and lightweight frameset providing the tools you need to expand your horizons. At the heart of this ride is the carbon frameset, which features an integrated seat clamp and rear STVZO compliant rear light. Light yet durable, this frameset neatly houses the internal battery within the downtube, which works in conjunction with the integrated cabling to deliver a sleek, uncluttered aesthetic.

Smart and intuitive, the Ebikemotion X35 Plus motor system is renowned for its impeccable performance and natural feel. Rather than dominating your rides, it offers silky-smooth help that enhances your power, supplying a familiar and authentic ride experience with assistance up to a maximum speed of 15.5 mph / 25 km/h

The parts specification balances off-road durability with lightweight performance, offering a perfect blend for fast, overland rides. Shimano takes care of the drivetrain and brakes, with their excellent GRX groupset providing near-telepathic shifting and well-controlled braking. The Fulcrum E-Racing 900 wheelset is lightweight and robust, while the Schwalbe G-ONE Bite tyres issue tacky traction across a range of surfaces without compromising rolling speed.

Browse our range of Orbea electric gravel bikes today.

Highlights

  • The Ebikemotion X35 Plus motor improves your rides rather than dominating them
  • The motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
  • ICR Plus internal cable routing keeps the cockpit clean looking
  • Integrated lights draw power from the main battery
  • An Ebikemotion 248Wh battery is neatly housed in the downtube
  • The Ebikemotion iWoc ONE interface displays battery and the assistance level as you ride
  • Endurance geometry is perfect for all-day rides
  • Shimano GRX 11-speed groupset is ideal for gravel riding
  • Schwalbe G-ONE Bite tyres are plush and comfortable off-road, providing plenty of grip on a range of surfaces

Battery Specification

  • Maximum Assist: 250w, 40Nm
  • Motor Weight: 3.5kg
  • Battery Power: 248Wh

Technical Specification

Frame Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximum tyre, 1" 1/2 semi headset, BB386 EVO
Fork Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40 maximum tyre, flat mount disc mount, 12x100mm Thru-Axle, with down tube aero integration
Headset Acros Alloy 1-1/2" Internal Cable Routing
Stem Orbea OC RP10 Road Performance ICR, -8º, IFC01 Computer mount interface
Handlebar Orbea OC GR30 Gravel, 80mm reach, 125mm drop, 12°
Front Brake Shimano GRX400 hydraulic disc
Rear Brake Shimano GRX400 hydraulic disc
Brake Levers Shimano GRX400
Rear Derailleur Shimano GRX812 GS 11-speed
Shift Levers Shimano GRX ST-RX600 11-speed
Chain Shimano HG 601
Cassette Shimano SLX M7000, 11-40t, 11-speed
Crankset Shimano GRX RX600, 40t
Front Wheel Fulcrum E-Racing 900, clincher, 700c
Rear Wheel Fulcrum E-Racing 900, clincher, 700c
Front Tyre Schwalbe G-ONE Bite, 700x38c, Performance Line RaceGuard, TLE, ADDIX Classic Skin, tubeless-ready
Rear Tyre Schwalbe G-ONE Bite, 700x38c, Performance Line RaceGuard, TLE, ADDIX Classic Skin, tubeless-ready
Seatpost Orbea OC carbon. 27.2mm diameter, zero offset, for integrated light
Pedals Available to be purchased separately
Accessories Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen, STVZO
Motor Ebikemotion X35 Plus, 250W, 40Nm
Remote Ebikemotion iWoc ONE
Battery Ebikemotion 36V/6.9A 248Wh ANT+
Charger Ebikemotion X35
Electric assisted speed limit 15.5 mph / 25 km/h

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.


Orbea Gain M30 1X Electric Gravel Bike 2022 Sizing
