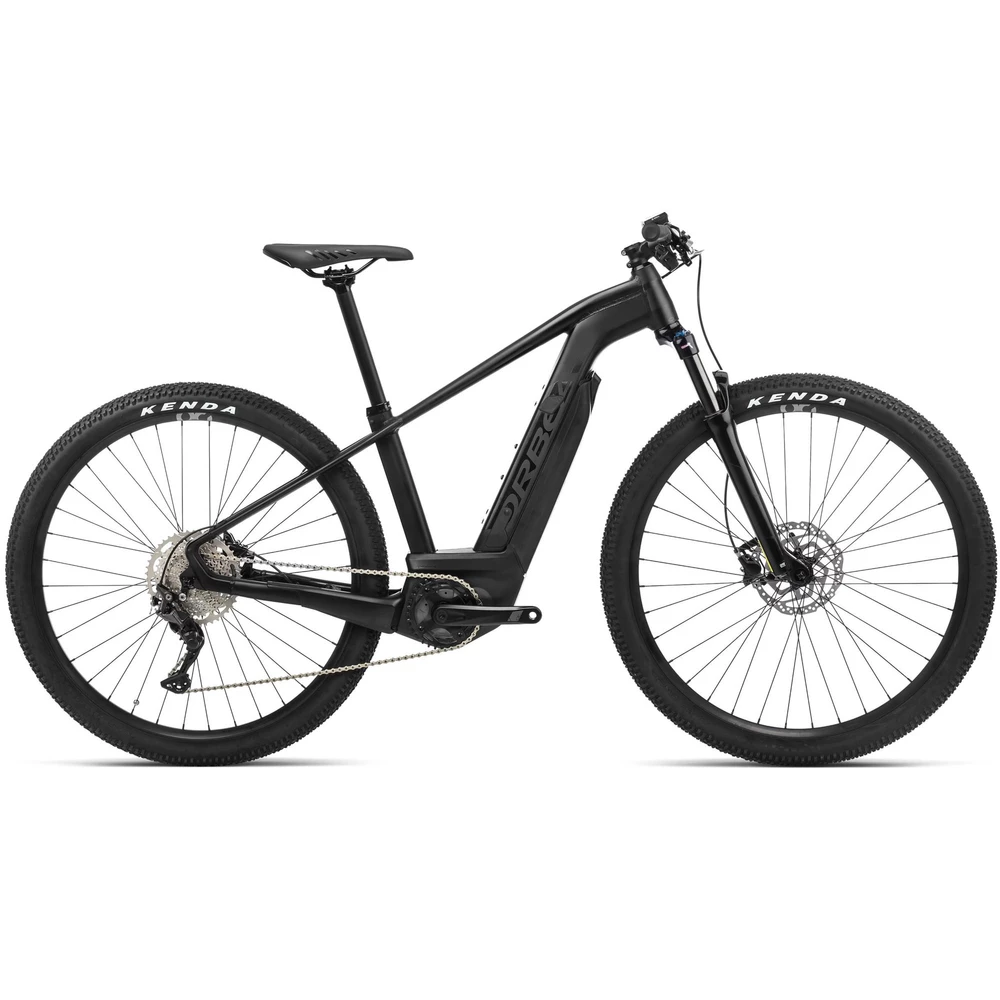

Orbea Keram 30 Electric Mountain Bike 2023
Fun and easy to ride, the Orbea Keram 30 Electric Mountain Bike offers a comfortable riding position and delivers a power boost through the Bosch motor system. The integrated 400Wh battery sits within the frame shape for a sleek protection and provides tool-free access, and the Bosch Active motor is lightweight and functions quietly. Providing assistance up to 15.5mph / 25kph, past this point it cuts out and creates minimal pedal resistance when your legs are left to pedal on their own.
The alloy frame is built incredibly strong and is paired with a 100mm travel SR Suntour X1 Coil fork that soaks up bumps, smoothing out the ride. MTB-specific Shimano Deore components make up the drivetrain and deliver smooth shifting across the 1x10-speed gears. Sturdy alloy wheels are more than capable of dealing with the forces of an e-bike, and they're fitted with grippy Kenda K1153 tyres.
This bike suits a range of riders, from commuters and city riders to those wanting to explore the trails.
Browse our range of Orbea electric mountain bikes today.
Highlights
- Orbea Keram aluminium frame
- SR Suntour X1 Coil fork with 100mm travel
- Shimano Deore groupset with hydraulic disc brakes
- Alloy wheels and Kenda K1153 tyres
- Bosch Active 250w motor and Bosch Performance 400Wh battery
Battery Specification
- Battery Power: 248Wh
- Maximum Assist: 250w / 40Nm torque
- Battery Weight: 2.6kg
Technical Specification
| Frame | Orbea Keram 2019, Hydroformed Alloy 6061, Hide out battery technology, bottle cage and dual battery compatible and hidden kickstand compatible |
| Fork | SR Suntour X1 Coil LO 100mm QR |
| Stem | Orbea-approved alloy, 7º |
| Handlebar | Orbea-approved Alloy, 31.8mm, Flat, 740mm, Sweep 9 |
| Front Brake | Shimano MT200, hydraulic disc |
| Rear Brake | Shimano MT200, hydraulic disc |
| Brake Levers | Shimano |
| Rear Derailleur | Shimano Deore M5120 SGS Shadow Plus, 10-speed |
| Shift Levers | Shimano Deore M4100 |
| Chain | KMC e10 Turbo Silver |
| Cassette | Shimano CS-M4100, 11-46t, 10-speed |
| Crankset | PW EB04-NW34 G3 |
| Front Wheel | Orbea-approved alloy, tubeless, 29", 25c, 36H |
| Rear Wheel | Orbea-approved alloy, tubeless, 29", 25c, 36H |
| Front Tyre | Kenda K1153 29x2.35", 22 TPI, clincher |
| Rear Tyre | Kenda K1153 29x2.35", 22 TPI, clincher |
| Saddle | Selle Royal 2077 DRN |
| Seatpost | Orbea-approved 31.6mm, 0mm setback |
| Pedals | VP-537 Black |
| Accessories | Abus battery downtube lock |
| Motor | Bosch Active, 250w, 40Nm |
| Display | BOSCH Performance Purion |
| Battery | BOSCH Performance, 400Wh |
| Charger | Compact Charger 2A (100-240V) Worldwide |
| Electric assisted speed limit | 15.5mph / 25kph |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
