Orbea Occam H20 Mountain Bike 2020

★★★★★ ★★★★★

From only £187.43 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Occam H20 Mountain Bike 2020

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1240333

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

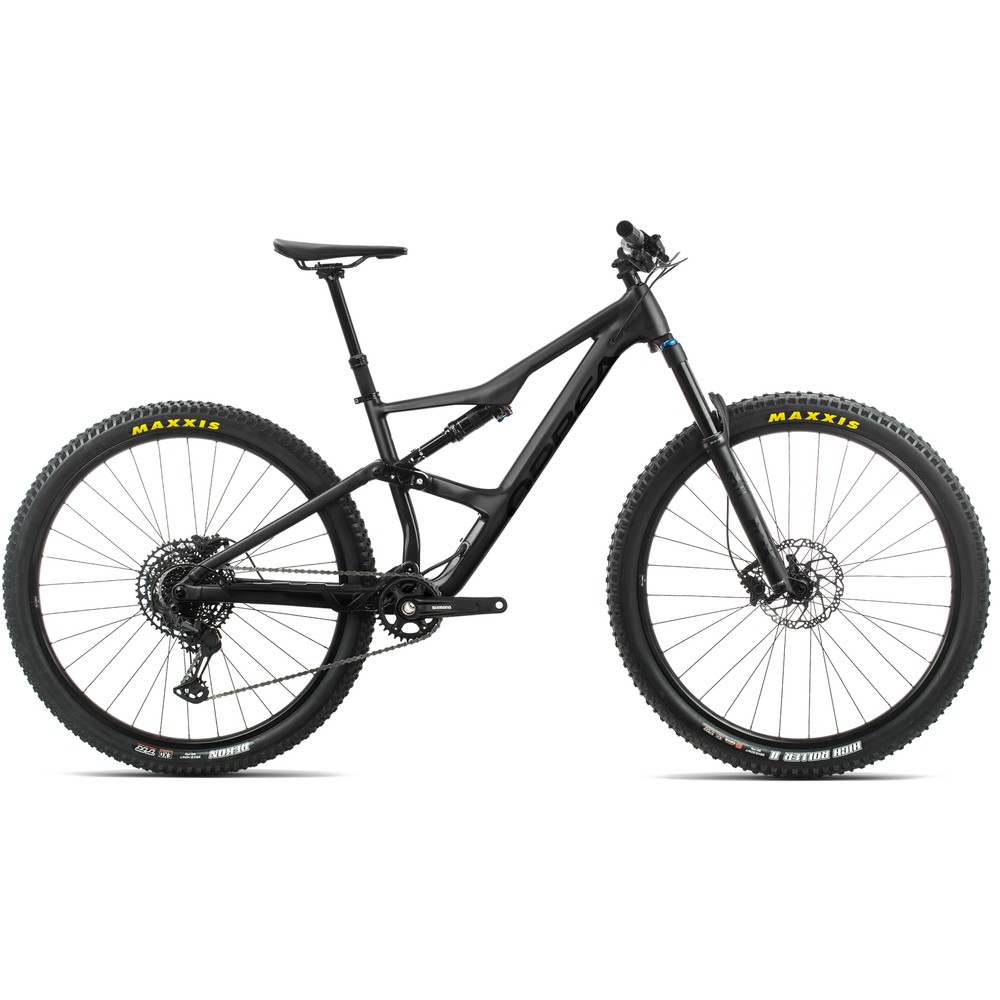

Orbea Occam H20 Mountain Bike 2020

Lively and capable, the Orbea Occam H20 Mountain Bike features a hydroformed 140mm travel aluminium frame with Trail geometry, full suspension and smooth tube to tube transitions to craft a versatile bike with impressive looks. Nimble up climbs and stable whilst descending, this is a do-everything bike with a FOX 34 Float Performance 140mm travel fork that eats up bumps and dampens shocks. The innovative single-sided strut serves to alleviate suspension forces from a critical high-stress area whilst leaving space for a bottle accessed from the left side. Utilise the telescopic Orbea OC2 Dropper seatpost on tricky descents, sweeping turns and more.

Sharp shifting is a given with Shimano SLX and XT components, with the 1x12-speed setup ensuring all bases are covered when it comes to selecting the right gear for the toughest gradients. The single 32t chainring makes for simple maintenance, whilst hydraulic disc brakes provide sure stopping power regardless of conditions. Rapid-rolling 29" Maxxis tyres feature chunky tread to glide over obstacles and improve traction, and are paired with Mach1 Maxx wheels which can be run tubeless if desired.


  • Orbea Occam Hydro - hydroformed triple-butted aluminium frame
  • 140mm travel front and rear
  • Trail geometry for stability and natural cornering
  • Shimano SLX and XT 12-speed components, 1x drivetrain and hydraulic disc brakes
  • Mach1 Maxx tubeless-ready clincher wheels
  • Orbea OC2 Dropper Seatpost

Technical Specification

Frame Orbea Occam Hydro High Polished 2020 Triple Butted 140mm travel 29"-Boost 12x148
Rear Shock FOX Float DPS Performance 3-Position Evol custom tune 210x50mm
Fork FOX 34 Float Performance 140 3-Position QR 15x110
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem Orbea OC1 3D Forged 35mm interface 7º
Handlebar Orbea OC1 35, 12mm rise, 780mm width
Front Brake Shimano MT501 BR500 hydraulic disc
Rear Brake Shimano MT501 BR500 hydraulic disc
Brake Levers Shimano MT501 BR500
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Shift Levers Shimano SLX M7100
Cassette Shimano SLX M7100 10-51t 12-speed
Crankset Shimano MT610 32t
Front Wheel Mach1 Maxx 25c tubeless-ready
Rear Wheel Mach1 Maxx 25c tubeless-ready
Front Tyre Maxxis High Roller II 2.50" FB 60 TPI Dual Exo TR tubeless-ready clincher
Rear Tyre Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR tubeless-ready clincher
Saddle Fizik Taiga S-alloy rail
Seatpost Orbea OC2 Dropper 31.6mm
Pedals Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.

Orbea Occam H20 Mountain Bike 2020 Sizing
