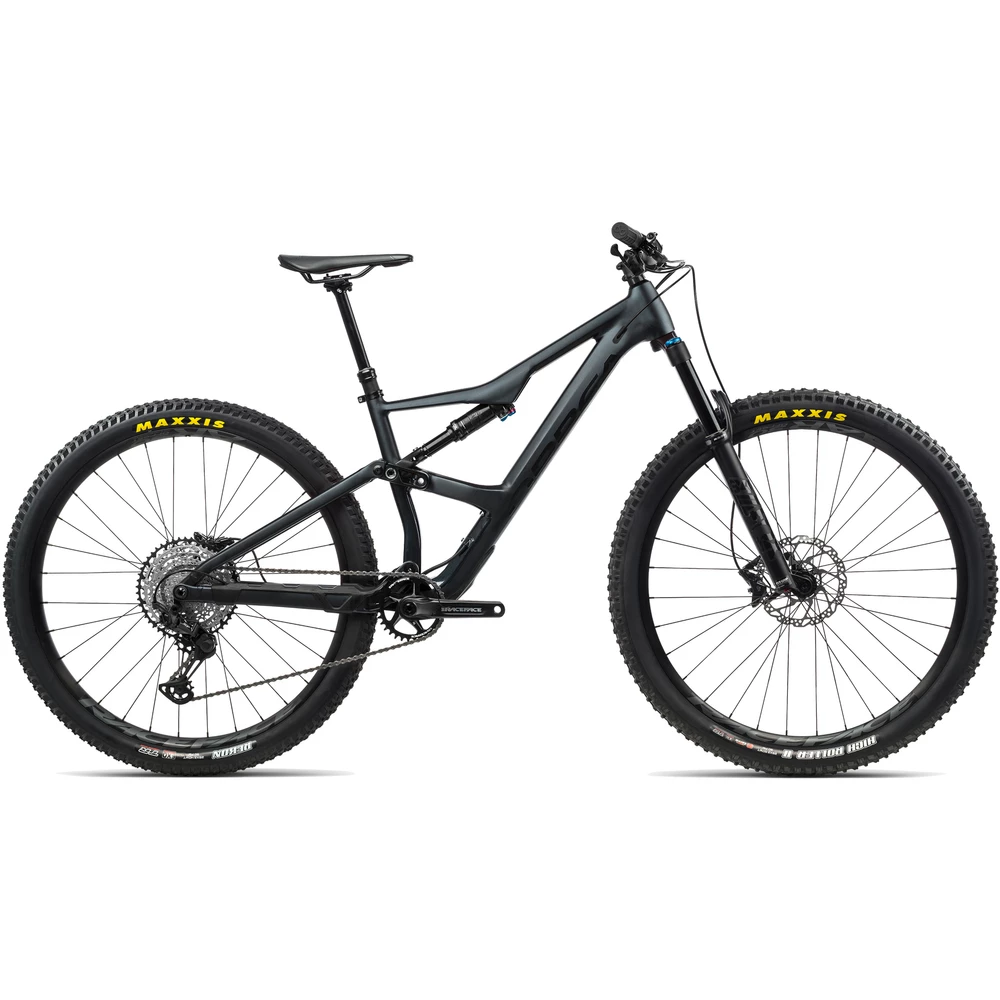

Orbea Occam H20 Mountain Bike 2021

With a refined alloy frame, a balanced geometry and highly respected components, the Orbea Occam H20 full suspension mountain bike imparts a lofty level of performance and an energetic character when confronting any trail terrain, whether it be fast and bumpy or tight and technical.

Efficiency of power transfer and low weight is achieved by the frame thanks to its high-grade, hydroformed alloy construction that possesses a triple-butted internal tube format. Increased trail adhesion is granted by the asymmetrical design that links the front and rear triangles to reduce peak loads and aid the FOX suspension unit in giving plush and controlled levels of cushioning. Complementing the frame is the FOX 34 Float Performance fork that levels the ruts, rocks and roots to heighten trail composure and line accuracy. The frame and fork are blended together with a perfectly poised geometry that raises stability, cornering prowess and power transfer in equal measures.

29” Race Face AR 30 wheels roll with fluidity, no matter the obstacles being encountered, accelerate sharply under power and are hardy enough for the roughest of tracks. The hydraulic disc configuration bestows accurate and powerful braking in any off-road conditions while the Shimano XT 12-speed setup guarantees slick and dependable gear changes.

To complete the build, the dropper post gives the rider confidence-inspiring amounts of balance when flying down twisty descents and is remotely controlled for added convenience.


  • A multifaceted trail bike that’s great on the steepest climbs, capable on the trickiest descents and manoeuvrable on winding single track
  • Hydroformed, triple butted aluminium frame is light, stiff and incredibly strong
  • Asymmetrical rear shock linkage design reduces frame stress and improves suspension efficiency
  • FOX Float DPS Performance rear shock offers 140mm of travel to progressively manage impacts
  • FOX 34 Float Performance fork uses its 140mm of suspension to increase line accuracy and control
  • Trail Geometry gives greater stability, composed cornering and efficient power transfer
  • Race Face AR 30 29” alloy wheelset is light but robust and rolls with greater momentum across the toughest of trail conditions
  • Shimano XT 12-speed gears are crisp and durable
  • Shimano hydraulic disc brakes are powerful and precise in all trail conditions
  • Dropper post with remote activation allows control on the fastest descents

Technical Specification

Frame Orbea Occam Hydro High Polished 2020 Triple Butted Aluminium, 140mm travel, 29”, Boost 12x148mm
Fork FOX 34 Float Performance, 140mm travel, 3-Position, QR15x110mm
Rear Shock Fox Float DPS Performance, 140mm travel, 3-Position Adjust Evol custom tune 210x50mm
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem Orbea OC1 3D Forged 35mm interface 7-degree (Length
Handlebar Orbea OC1 35mm diameter, 12mm rise, 780mm width
Front Brake Shimano M6100, hydraulic disc
Rear Brake Shimano M6100, hydraulic disc
Brake Levers Shimano M6100, hydraulic disc
Rear Derailleur Shimano XT M8100 SGS Shadow Plus, 12-speed
Shift Levers Shimano SLX M7100 I-Spec EV, 12-speed
Chain Shimano M6100, 12-speed
Cassette Shimano SLX M7100, 10-51t, 12-speed
Crankset Race Face Aeffect, 32 tooth chainring (Length
Front Wheel Race Face AR 30c tubeless-ready
Rear Wheel Race Face AR 30c tubeless-ready
Front Tyre Maxxis High Roller II 2.50" FB 60 TPI Dual Exo, tubeless-ready
Rear Tyre Maxxis Rekon 2.40" FB 60 TPI Dual Exo, tubeless-ready
Saddle Fizik Taiga S-alloy rail
Seatpost Orbea OC2 Dropper 31.6mm diameter (Length
Dropper Post Remote Shimano SL-MT500 I-Spec EV
Pedals Available to be purchased separately
