Orbea Occam M10 Mountain Bike 2021

★★★★★ ★★★★★
(0)
£4,499.00

From only £112.48 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Orbea
Occam M10 Mountain Bike 2021
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1285882

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

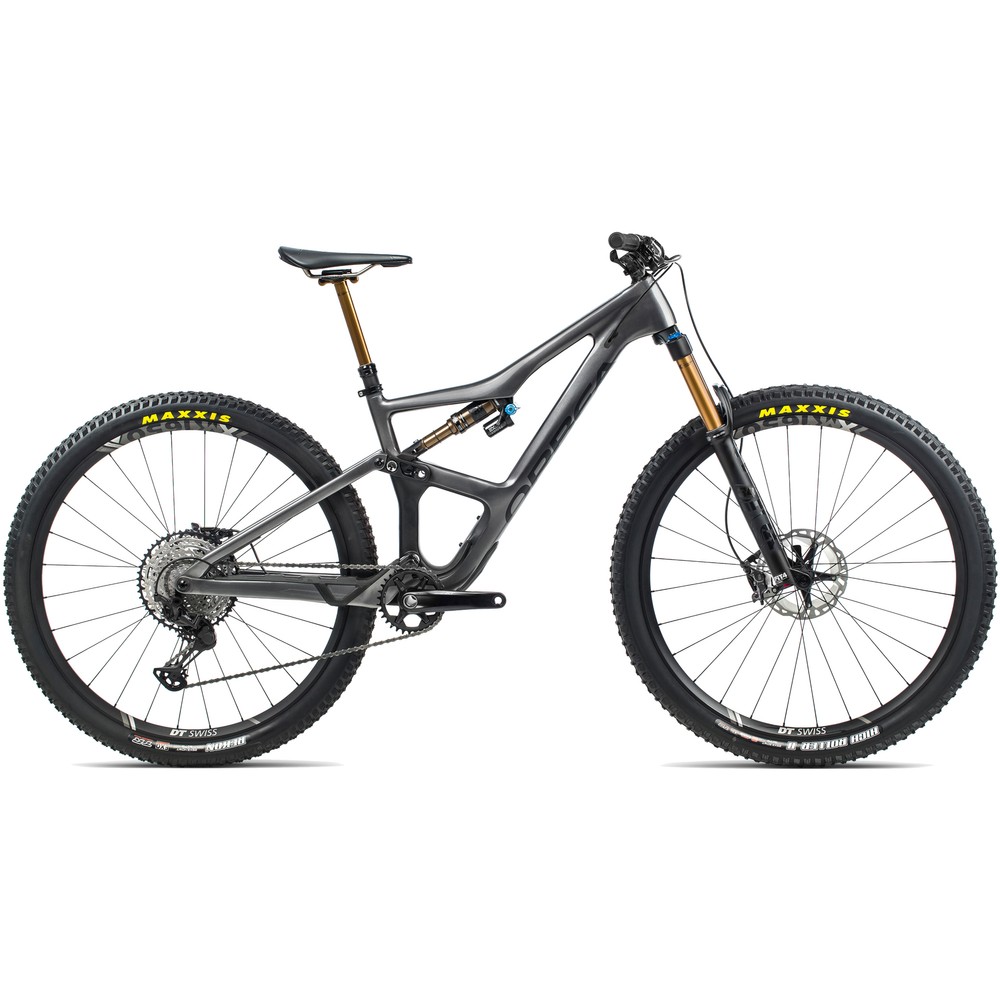

Orbea Occam M10 Mountain Bike 2021

With a genuinely versatile, trail-inspired character that fuses liveliness with robustness, the Orbea Occam M10 full suspension mountain bike uses its highly advanced carbon frame and precise components to conquer absolutely any off-road riding scenario.

A lofty stiffness to weight ratio is infused naturally into the frame via its refined carbon materials, monocoque carbon construction and sophisticated moulding process. The front and rear triangles are joined via an asymmetrical suspension linkage design that reduces peak forces on the frame and assists the FOX DPX2 Factory shock unit in delivering controlled cushioning for enhanced trail adhesion. Partnering the chassis is the FOX 34 Float Factory fork that smooths the trail and increases line accuracy thanks to its 140mm of plush and metered suspension.

Composure, reactive steering and heightened levels of power transfer are all infused by the balanced frameset geometry while the light and robust DT Swiss XM-1650 29-inch wheelset rolls over obstacles with increased momentum and poise. Gear changing is taken care of in an exacting manner by the reliable XT gear configuration and stopping duties, in any weather condition, are catered for by the matching XT hydraulic disc brakes.

To complete the build, a dropper post with remote switch allows for the most frantic of descents to be tackled with confidence and safety.

Highlights

  • A multifaceted trail bike that’s great on the steepest climbs, capable on the trickiest descents and manoeuvrable on winding single track
  • High modulus and high strength carbon monocoque frame construction realised via advanced moulding techniques promotes the highest stiffness to weight ratio
  • Asymmetrical rear shock linkage design reduces frame stress and improves suspension efficiency
  • FOX DPX2 Factory rear shock offers 140mm of travel to progressively manage impacts
  • FOX 34 Float Factory fork uses its 140mm of suspension to increase line accuracy and control
  • Trail Geometry gives greater stability, composed cornering and efficient power transfer
  • DT Swiss XM-1650 Spline 29” alloy wheelset is light but robust and rolls with greater momentum across the toughest of trail conditions
  • Shimano XT gears are crisp and durable
  • Shimano XT hydraulic disc brakes are powerful and precise in all trail conditions
  • Dropper post with remote activation allows control on the fastest descents

Technical Specification

Frame Orbea Occam OMR Carbon 2020, 140mm travel, 29”, C-Boost 12x148mm
Fork FOX 34 Float Factory, 140mm travel, FIT4 3-Pos-Adj QR15x110mm Kashima
Rear Shock FOX DPX2 Factory, 140mm travel, 3-Position Adjust Evol Kashima custom tune 210x50mm
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem Race Face Aeffect R 35mm interface (Length
Handlebar Race Face Next R 35, 20mm rise, 780mm width
Front Brake Shimano XT M8120, hydraulic disc
Rear Brake Shimano XT M8120, hydraulic disc
Brake Levers Shimano XT M8120, hydraulic disc
Rear Derailleur Shimano XT M8100 SGS Shadow Plus, 12-speed
Shift Levers Shimano XT M8100 I-Spec EV, 12-speed
Chain Shimano M6100, 12-speed
Cassette Shimano SLX M7100, 10-51t, 12-speed
Crankset Shimano XT M8100, 32 tooth chainring (Length
Front Wheel DT Swiss XM-1650 Spline 30c TLR CL, star ratchet, boost
Rear Wheel DT Swiss XM-1650 Spline 30c TLR CL, star ratchet, boost
Front Tyre Maxxis High Roller II 2.50" FB 60 TPI Dual Exo, tubeless-ready
Rear Tyre Maxxis Rekon 2.40" FB 60 TPI Dual Exo, tubeless-ready
Saddle Fizik Taiga S-alloy rail
Seatpost Orbea OC2 Dropper 31.6mm diameter (Internal routing) (Length
Dropper Post Remote Shimano SL-MT500 I-Spec EV

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.
