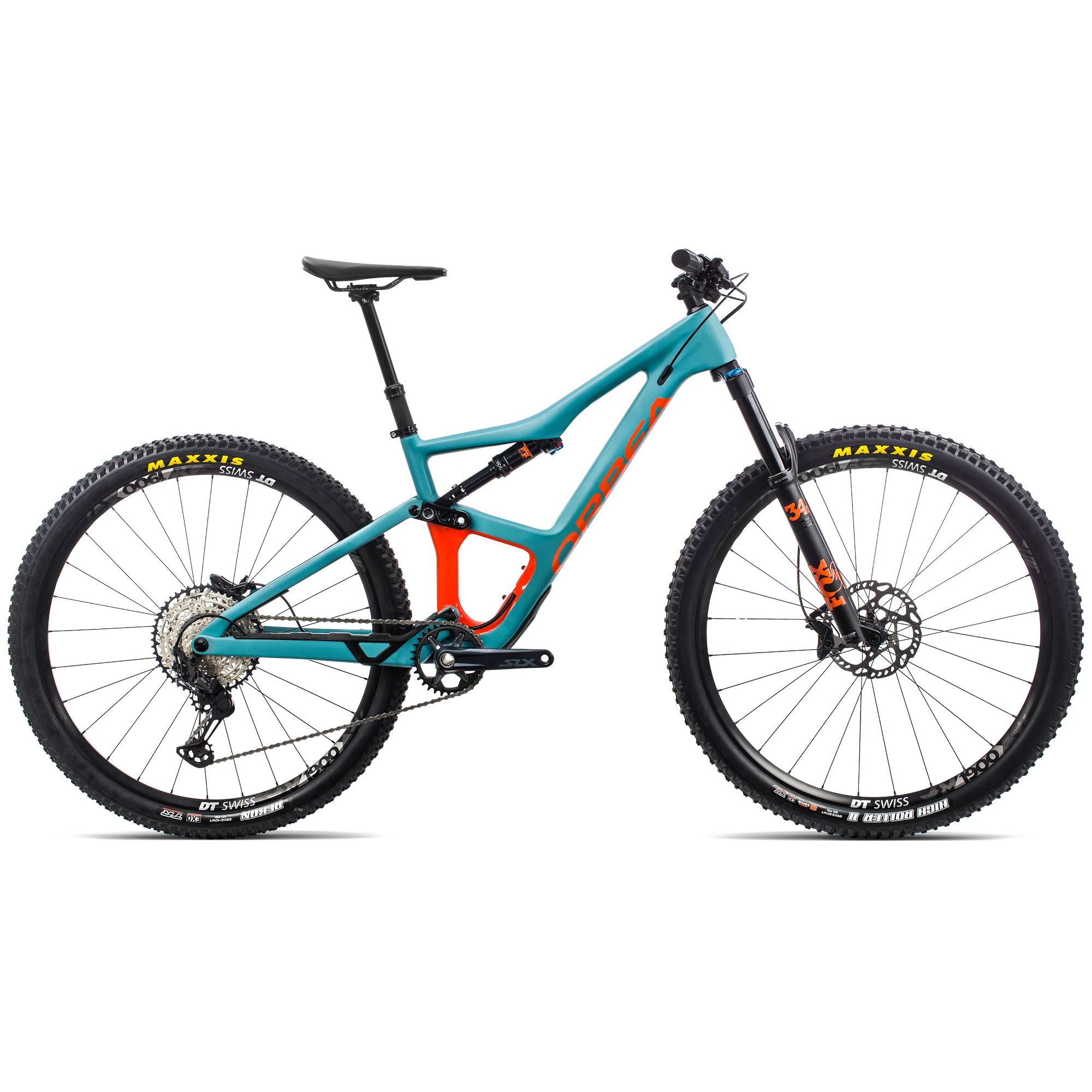

Orbea Occam M30 Mountain Bike 2020

The Orbea Occam M30 Mountain Bike conquers trails and oozes capability thanks to its full-suspension 140mm travel frameset. It's something of a generalist: with a spacious cockpit, longer wheelbase and slacker head angle boasting stability and 29" DT Swiss wheels that crunch comfortably over roots and rocks with fast-rolling reliability. The Orbea Monocoque Race (OMR) frame melds high modulus and high strength fibres to form a frame that's light, durable and nimble - handling varied terrain with ease for competent climbing and consistent control on hair-raising descents. The FOX 34 Float Performance fork ensures trail-smoothing suspension with 140mm travel that eats up bumps and absorbs shocks. The single-sided frame strut reinforces an area that takes a battering when it comes to suspension forces, and this design also means a mid-ride drink can be reached for, on the left side.

Shimano SLX and XT 12-speed components top off this build, with precise shifting seeing you through the longest days and a sweeping selection of gears and 32T single chainring ensuring you can spin up challenging gradients. Shimano MT501 hydraulic disc brakes provide certain stopping power no matter the conditions, and DT Swiss wheels can be set up tubeless to banish pinch flats with rapid Maxxis tyres. Should you need to lower or raise your saddle, the Orbea OC2 Dropper seatpost makes this a cinch.


  • Orbea Occam OMR carbon frame
  • 140mm travel with the FOX Float DPS Performance rear shock and FOX 34 Float Performance fork
  • Trail geometry with low bottom bracket for intuitive cornering
  • 12-speed 10-51t cassette
  • Shimano SLX /XT drivetrain
  • DT Swiss M-1900 Spline wheelset
  • Orbea OC2 Dropper seatpost

Technical Specification

Frame Orbea Occam OMR 2020 140mm travel 29" C-Boost 12x148
Rear Shock FOX Float DPS Performance 3-Position Evol custom tune 210x50mm
Fork FOX 34 Float Performance 140 3-Position QR15x110, 140mm travel
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem Orbea OC1 3D Forged 35mm interface 7º
Handlebar Orbea OC1 35, 12mm rise, 780mm width
Front Brake Shimano MT501 BR520 hydraulic disc
Rear Brake Shimano MT501 BR520 hydraulic disc
Brake Levers Shimano MT501 BR520
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Shift Levers Shimano SLX M7100
Cassette Shimano SLX M7100 10-51t 12-speed
Crankset Shimano SLX M7100 32t
Front Wheel DT Swiss M-1900 Spline 30c TLR 15x110mm Centre Lock
Rear Wheel DT Swiss M-1900 Spline 30c TLR 12x148mm Centre Lock
Front Tyre Maxxis High Roller II 2.50" FB 60 TPI Dual Exo TR clincher
Rear Tyre Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR clincher
Saddle Fizik Taiga S-alloy rail
Seatpost Orbea OC2 Dropper 31.6mm
Pedals Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance or contact Customer Care. We do not install accessories to bikes, including mudguards.
