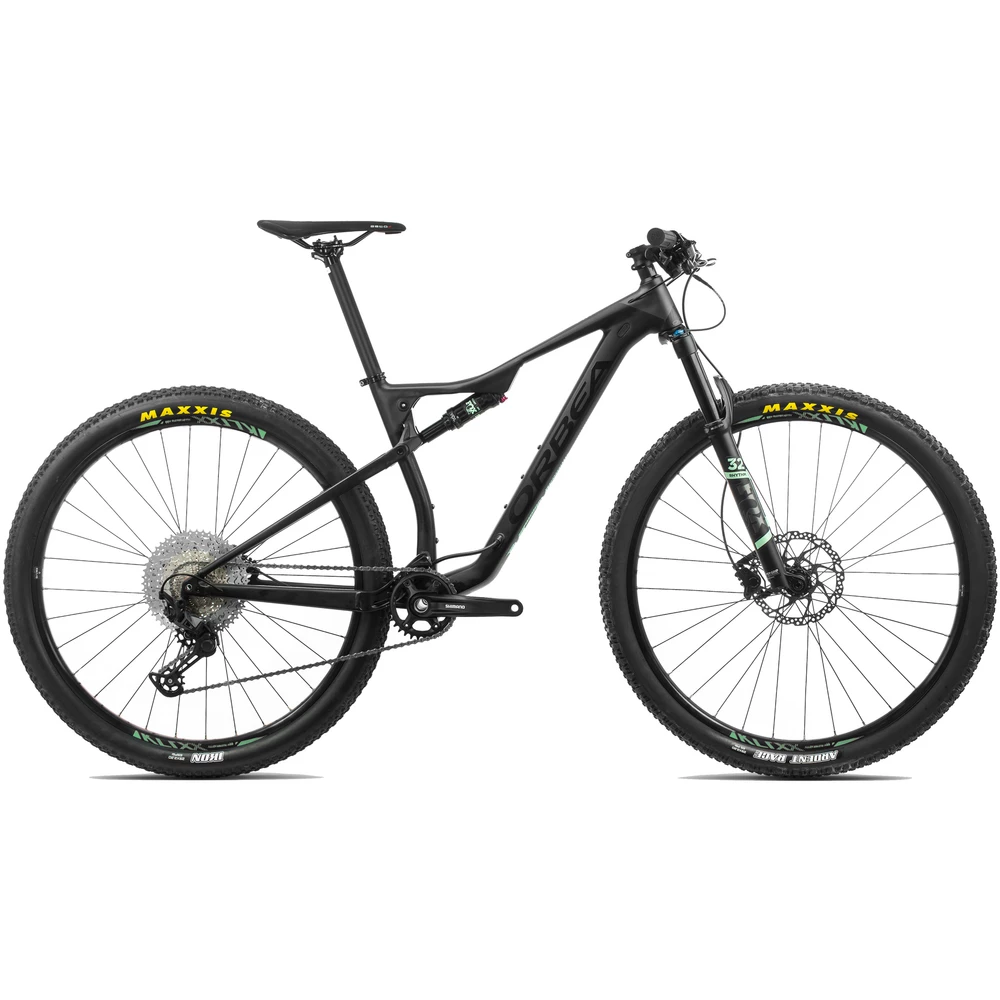

Orbea’s Oiz 29" H30 Mountain Bike brings the XC race-winning success of the carbon model to a wider audience by using carefully sculpted, hydroformed alloy for the frame instead. The geometry follows that of the longer travel TR versions, with 120mm of suspension front and rear whilst retaining all the XC efficiency that the Oiz is renowned for. Both the shock units feature remote lockouts and there is internal routing for the gear cables protecting them from mud and grit. The configuration of the front triangle leaves enough room for two water bottles, so hydration on longer rides or races isn’t a problem.
As befits its cross-country heritage, 29” wheels and fast, light 2.2” Maxxis Ikon tyres are fitted, ensuring speed across any terrain. Both wheels and tyres are tubeless-ready, making the conversion simpler for the extra benefits of a set up without inner tubes. Shimano’s Deore M6100 groupset is well-loved for its excellent, no-nonsense performance and reliability, with the 12-speed 10-51t cassette offering a very wide range of gears. Equally impressive are the hydraulic disc brakes for modulated control and excellent stopping power.
Highlights
Orbea Oiz Hydro High Polished alloy frame with FOX i-line DPS Performance and 120mm of travel
FOX 32 Float Rhythm fork with 120mm of travel
Shimano M6100 hydraulic disc brakes
Shimano M6100 12-speed groupset
29” Maxxis Ikon 2.20" tyres
Technical Specification
Frame
Orbea Oiz Hydro High Polished 2020, alloy link Boost, PF Taper UFO2 I-Line, 120mm of travel

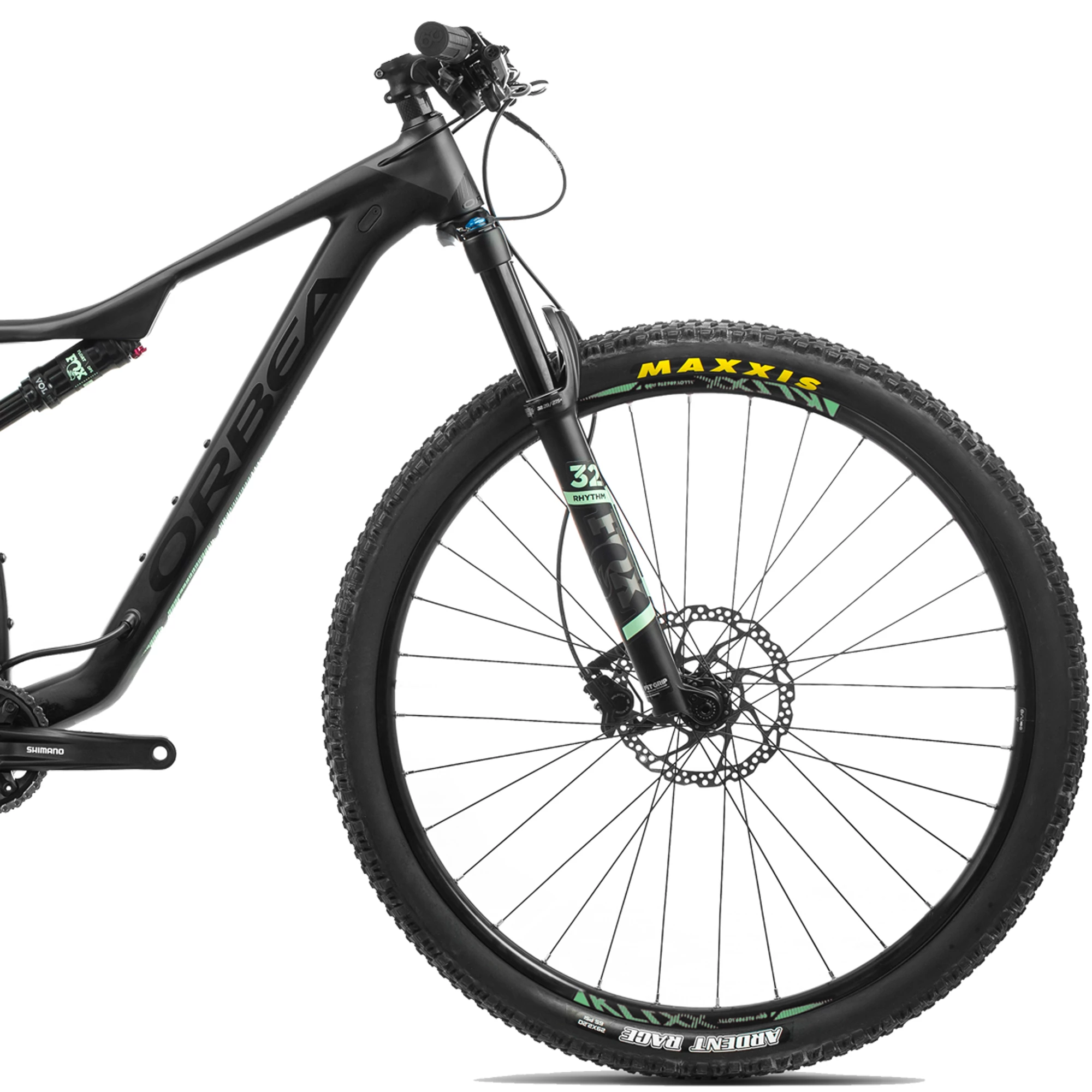

Fork
FOX 32 Float Rhythm 120, Remote Push-Unlock, QR15x110, 120mm of travel

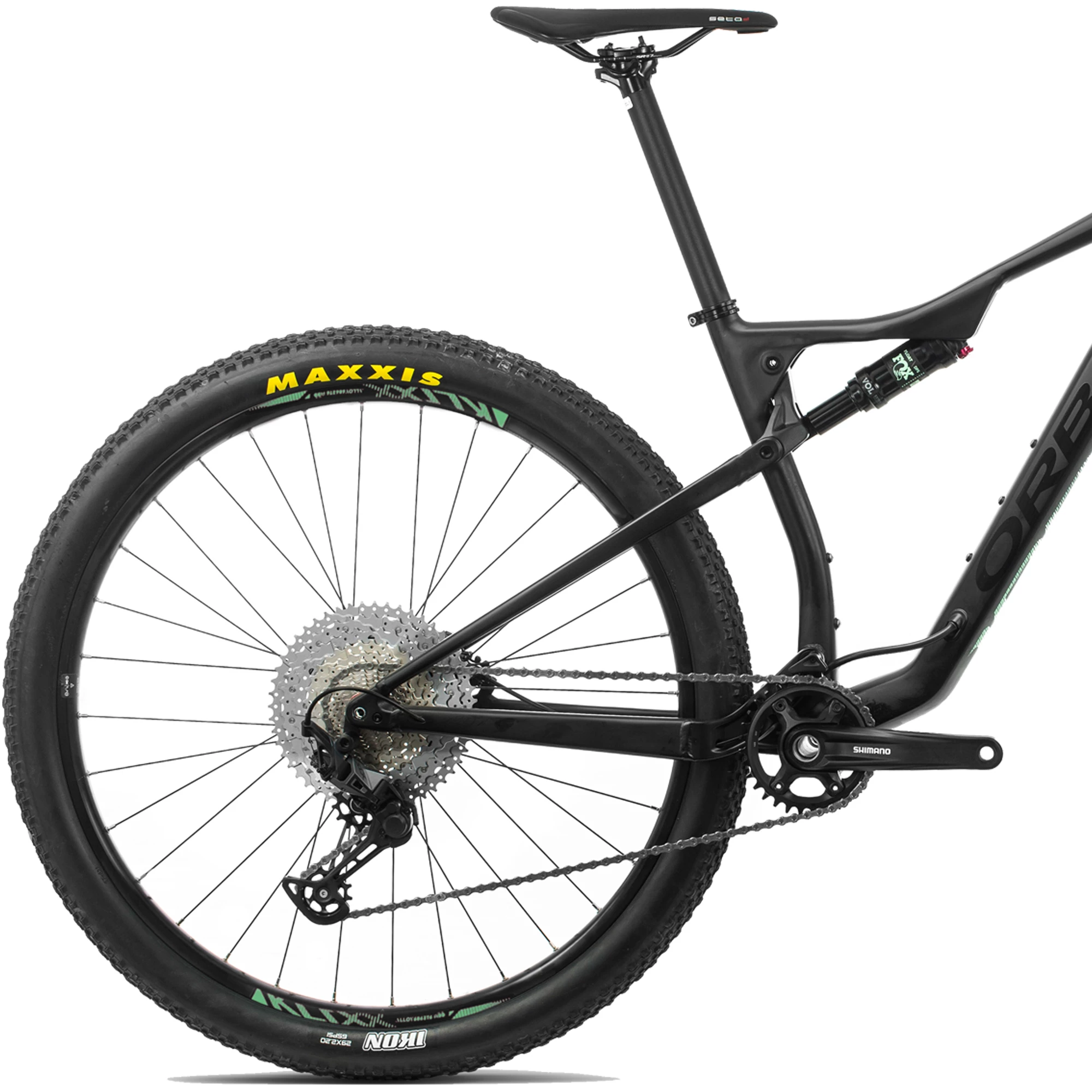

Rear Shock
FOX i-line DPS Performance, Remote Push-Unlock, Evol custom tune, 190x45mm
Headset
Acros Alloy 1-1/8 - 1-1/2” integrated
Stem
Orbea OC1 31.8mm interface, -7º
Handlebar
Orbea OC1 Flat 31.8mm, 740mm width
Front Brake
Shimano M6100 hydraulic disc
Rear Brake
Shimano M6100 hydraulic disc
Brake Levers
Shimano M6100 hydraulic disc
Rear Derailleur
Shimano Deore M6100 SGS Shadow Plus, 12-speed
Shift Levers
Shimano Deore M6100 I-Spec EV
Chain
Shimano M6100
Cassette
Shimano Deore M6100, 10-51t, 12-speed
Crankset
Shimano MT511 32t
Front Wheel
Orbea OC1 25c tubeless-ready, 29”
Rear Wheel
Orbea OC1 25c tubeless-ready, 29”
Front Tyre
Maxxis Ikon 2.20" FB 60 TPI Dual, clincher
Rear Tyre
Maxxis Ikon 2.20" FB 60 TPI Dual, clincher
Saddle
Selle Royal Seta Sport
Seatpost
Orbea alloy 31.6x400mm, offset 0°
Pedals
Available to be purchased separately
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
