Orbea Oiz M LTD Mountain Bike 2021

★★★★★ ★★★★★
(0)

This item is no longer available to buy. Click here to view similar products.

Product ID: 1288007

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

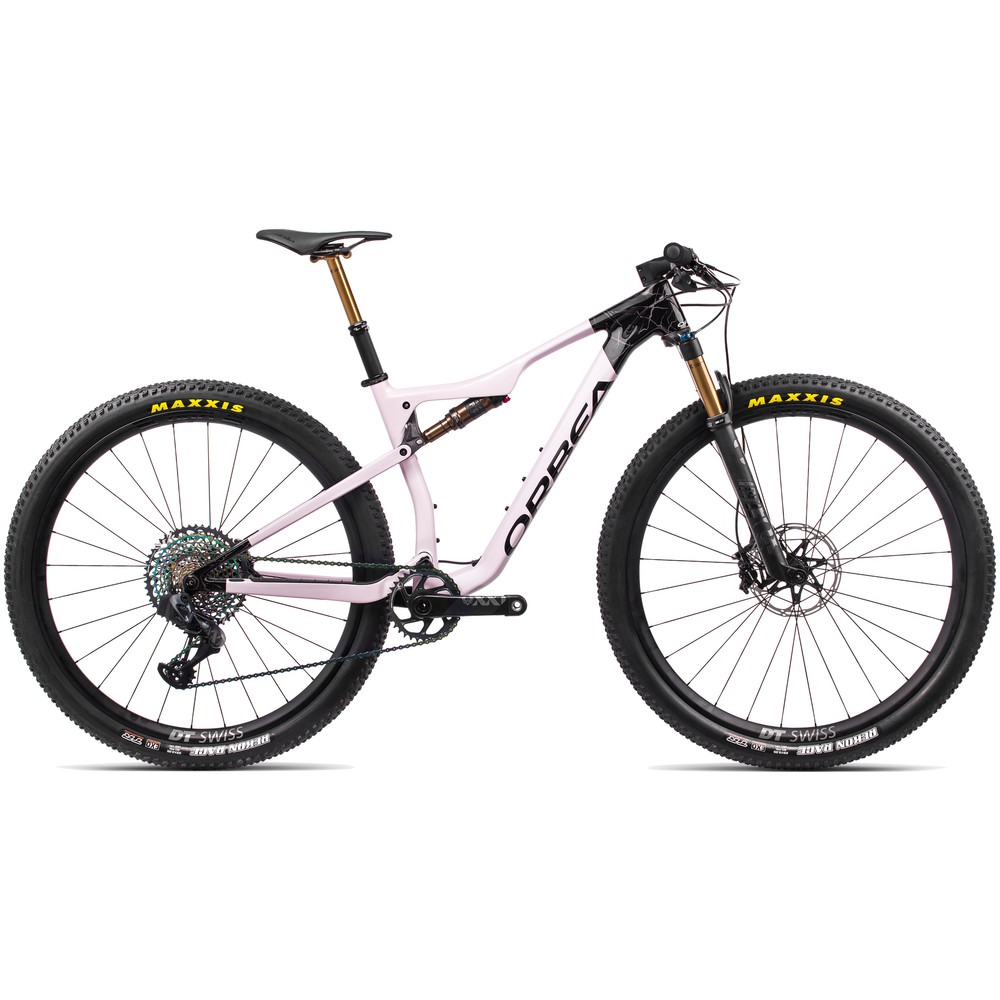

Orbea Oiz M LTD Mountain Bike 2021

The Orbea Oiz M LTD Mountain Bike amalgamates an advanced frame construction with a sophisticated suspension design and top-level components to aid the most experienced riders in their quest for velocity across technical XC courses and demanding cross country routes.

Orbea’s highest grade of OMX carbon is utilised in the front and rear triangles of the frame to deliver an optimum ratio of stiffness to weight. These two components are linked via the lightweight UFO rear suspension configuration and Fibrelink junction that work in collaboration with the FOX damping unit to deliver refined and progressive shock management.

The FOX 32 Float SC Factory fork partners the frame and grants increased line accuracy and control across a multitude of surface conditions via its plush 100mm of travel. The frame and fork are realised with Orbea’s World Cup Geometry that is aggressive and meticulously honed to place the rider in an optimum position for power transfer and nimble handling.

DT Swiss XRC-1200 Spline wheels are professional level performers and use their light but robust full carbon rims and 29” circumference to deliver rapid acceleration and increased rolling momentum across even the roughest of trails. These wheels are propelled by the range-topping SRAM XX1 Eagle AXS gear setup that accurately changes through its ratios via its wireless electronic configuration. Precise braking is added to the build by the highly modulated SRAM hydraulic disc brakes.

A FOX dropper post gives increased control on tricky descents and this, along with the front and rear suspension can be locked out via the innovative three-way Squidlock handlebar lever.

Highlights

  • The Oiz is designed for fast, experienced riders who demand a super light and efficient full suspension bike for technical XC courses and high-performance cross country riding
  • An OMX carbon frame with a highly advanced layup pattern delivers an optimum stiffness to weight ratio
  • UFO rear suspension design reduces pivot points and combines with the Fibrelink junction to deliver lateral stiffness, a composed action and low weight
  • FOX i-line DPS Factory rear shock progressively manages impacts
  • FOX 32 Float SC Factory fork increases line accuracy and control with its 100mm of metered travel
  • World Cup Geometry is aggressive and precise for maximum power transfer and rapid handling
  • DT Swiss XRC-1200 Spline 30c 29” carbon wheels are light and stiff for increased acceleration and reactivity
  • Top of the range SRAM XX1 Eagle AXS wireless electronic gears change faultlessly
  • SRAM hydraulic disc brakes are powerful and modulated regardless of riding conditions
  • FOX dropper post allows control on the fastest descents
  • Squidlock three-way lockout unit actuates front and rear suspension and the dropper post

Includes

  • SRAM Powerpack battery charger

Technical Specification

Frame Orbea Oiz Carbon OMX, Fiberlink, Boost, PF BB, UFO2, I-line shock
Fork FOX 32 Float SC Factory, 100mm travel, FIT4 Remote-Adj Push-Unlock, QR15x110, Kashima
Rear Shock FOX i-line DPS Factory 100mm travel, Remote Push-Unlock, Evol Kashima custom tune, 190x40mm
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem Orbea OC3, 31.8mm interface, -8 degree (Length
Handlebar FSA K-Force Flat, Di2 compatible, 760mm width
Front Brake SRAM Ultimate Carbon Stealth-a-majig Black, hydraulic disc
Rear Brake SRAM Ultimate Carbon Stealth-a-majig Black, hydraulic disc
Brake Levers SRAM Ultimate Carbon, hydraulic disc
Rear Derailleur SRAM XX1 Eagle AXS, 12-speed
Shift Levers SRAM XX1 Eagle AXS, 12-speed
Chain SRAM XX1 Eagle, Rainbow, 12-speed
Cassette SRAM XX1 XG-1299 Eagle, Rainbow, 10-51t, 12-speed
Crankset SRAM XX1 Eagle Dub Grey Boost, 34 tooth chainring (Length
Front Wheel DT Swiss XRC-1200 Spline 30c TLR CL, 15/110mm with FOX Kabolt Boost axle
Rear Wheel DT Swiss XRC-1200 Spline 30c TLR CL, 12/148mm Boost
Front Tyre Maxxis Rekon Race 2.35" 120 TPI Exo, tubeless-ready
Rear Tyre Maxxis Rekon Race 2.35" 120 TPI Exo, tubeless-ready
Saddle Selle Italia SLR Boost, full carbon Keramic Rail Ø7 x 9mm
Seatpost FOX Transfer Factory Kashima Dropper 31.6x363,5/125mm (Internal routing), Length
Remote Lockout Orbea OC Squidlock 3-position
Pedals Available to be purchased separately
Accessories Orbea OC chainguide

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.


Orbea Oiz M LTD Mountain Bike 2021 Sizing
