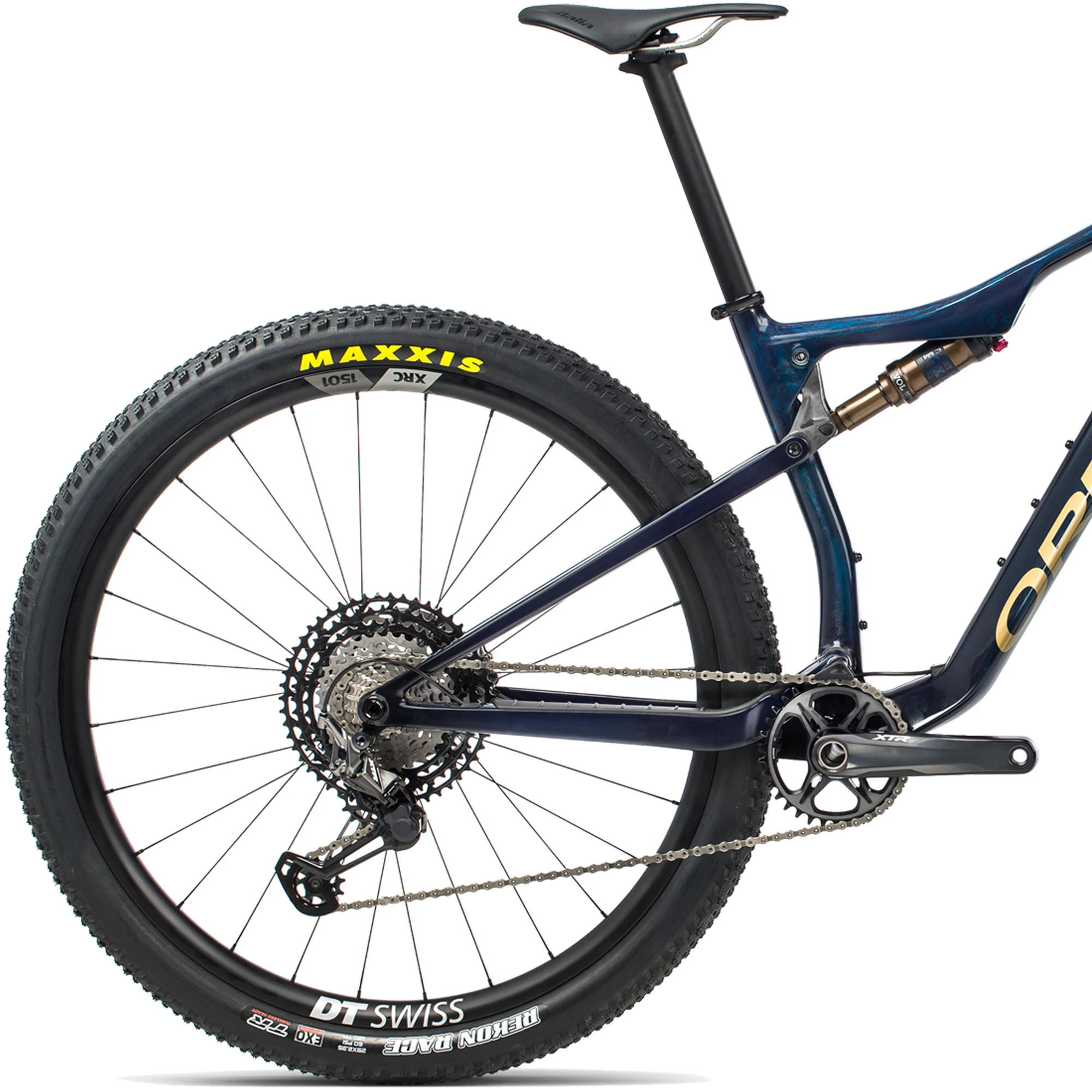

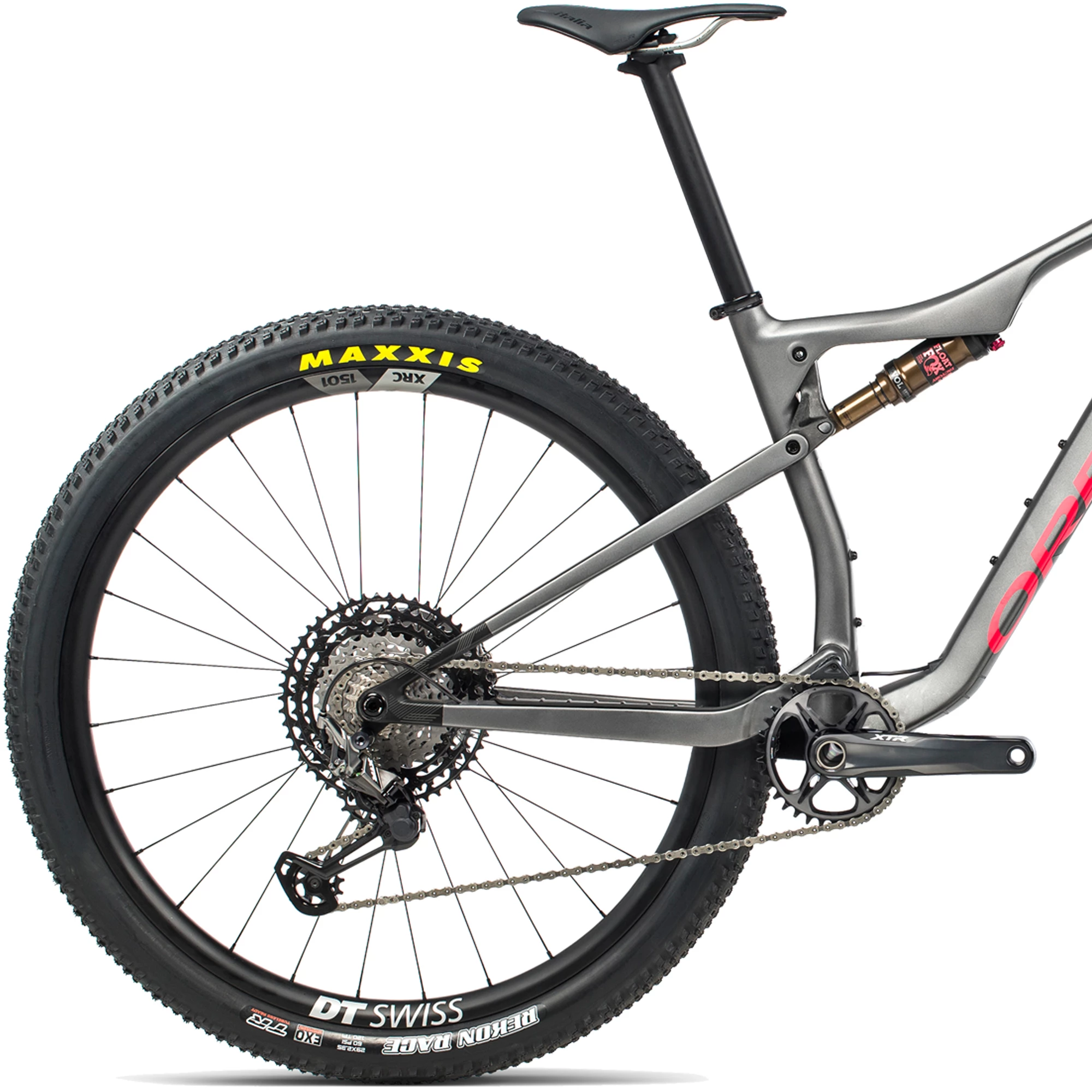

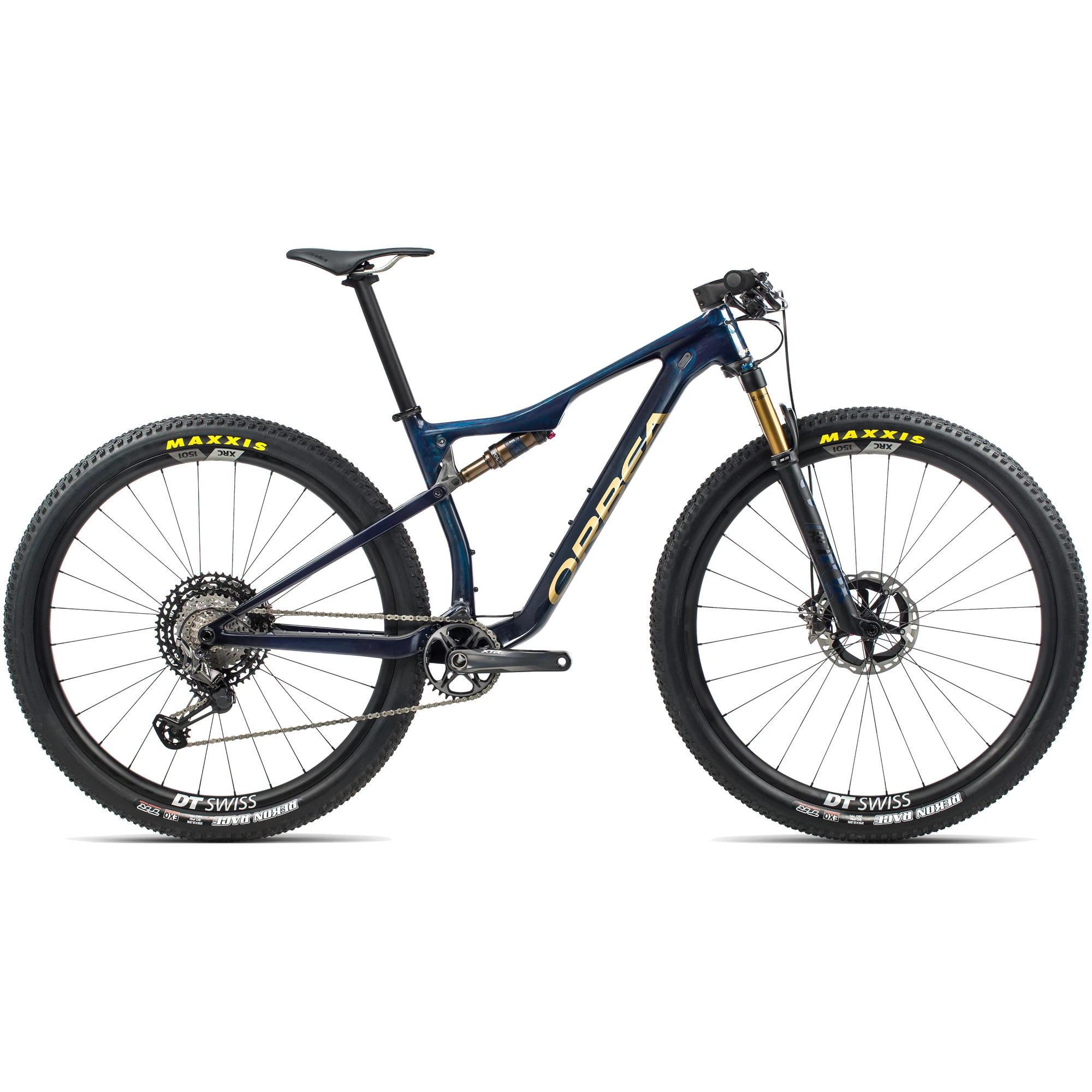

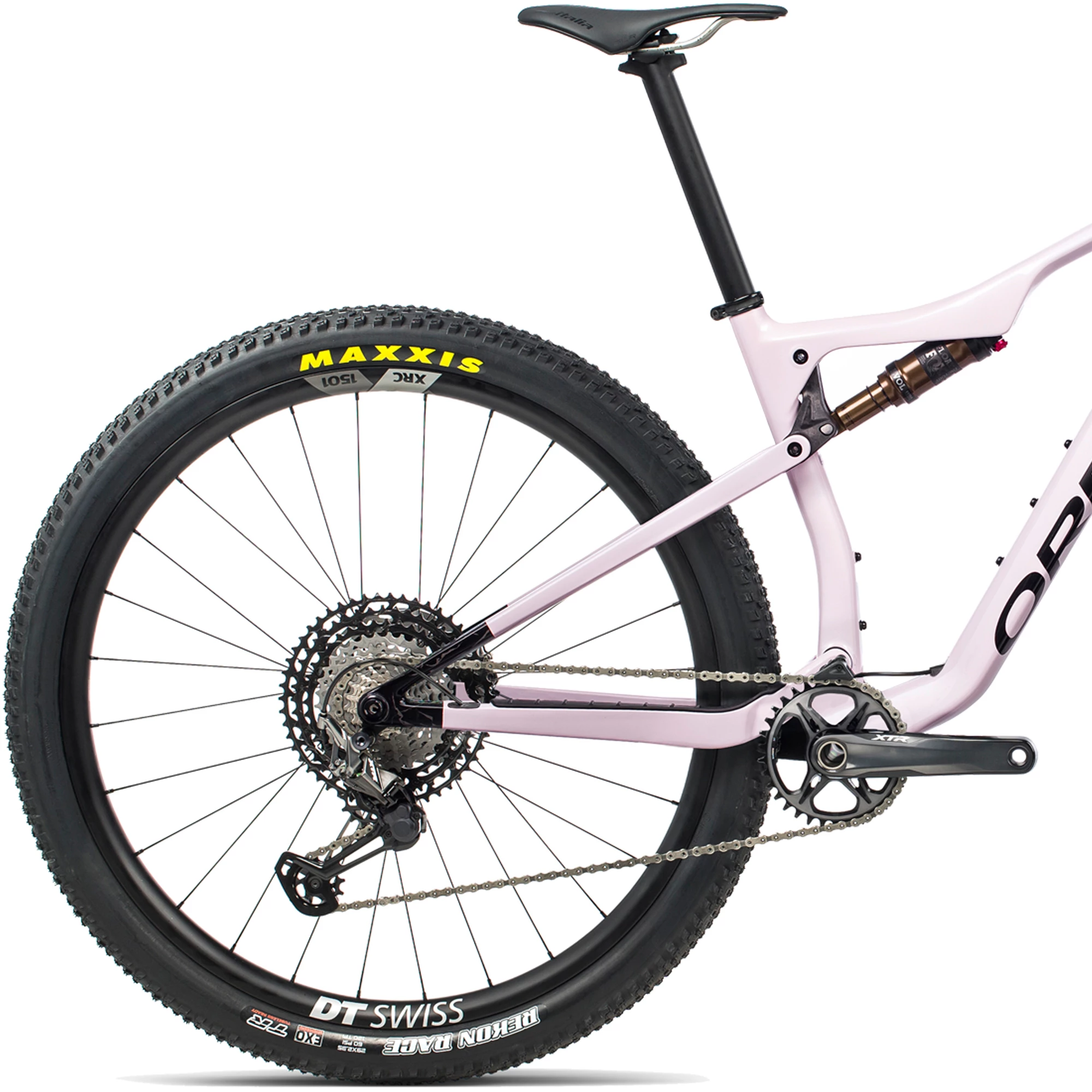

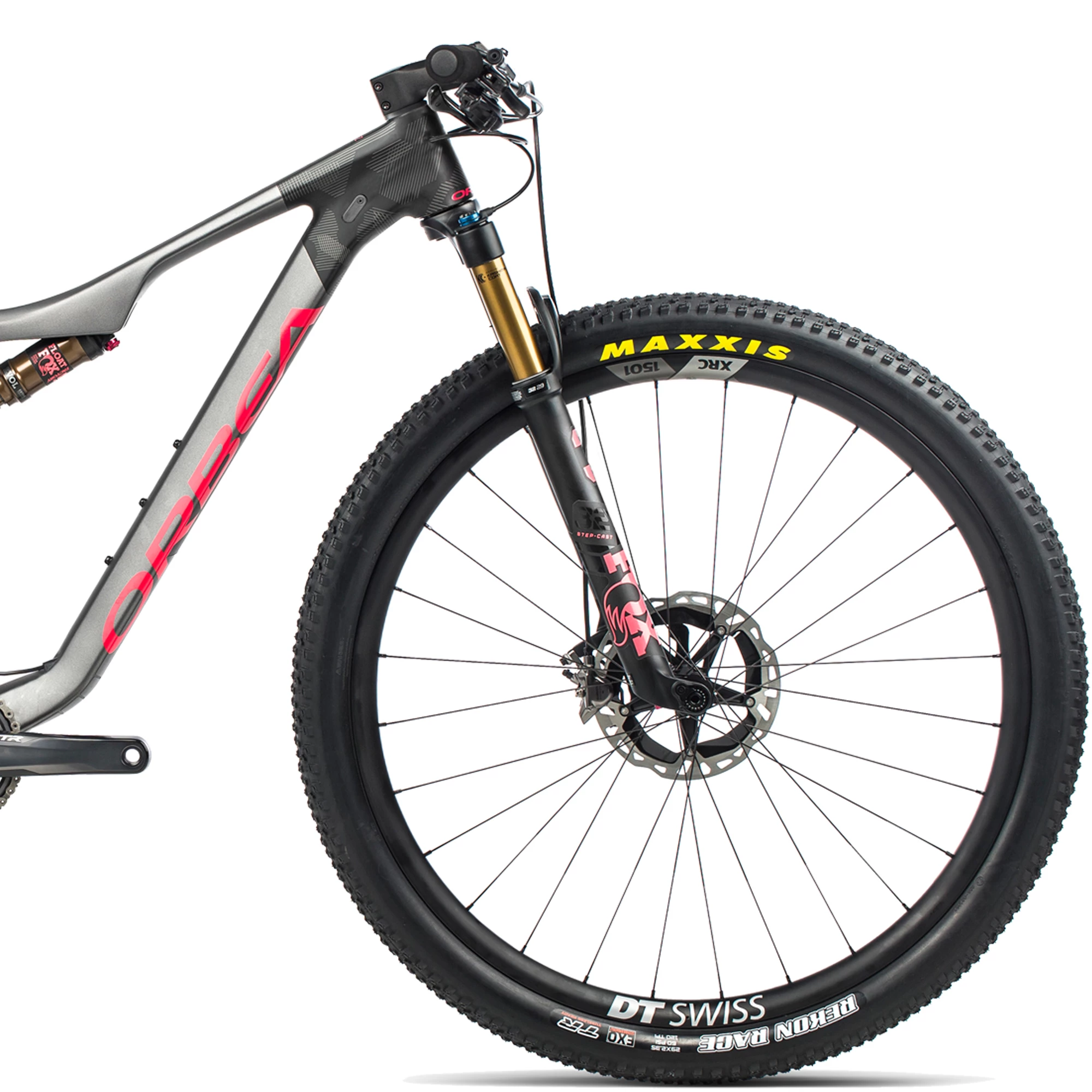

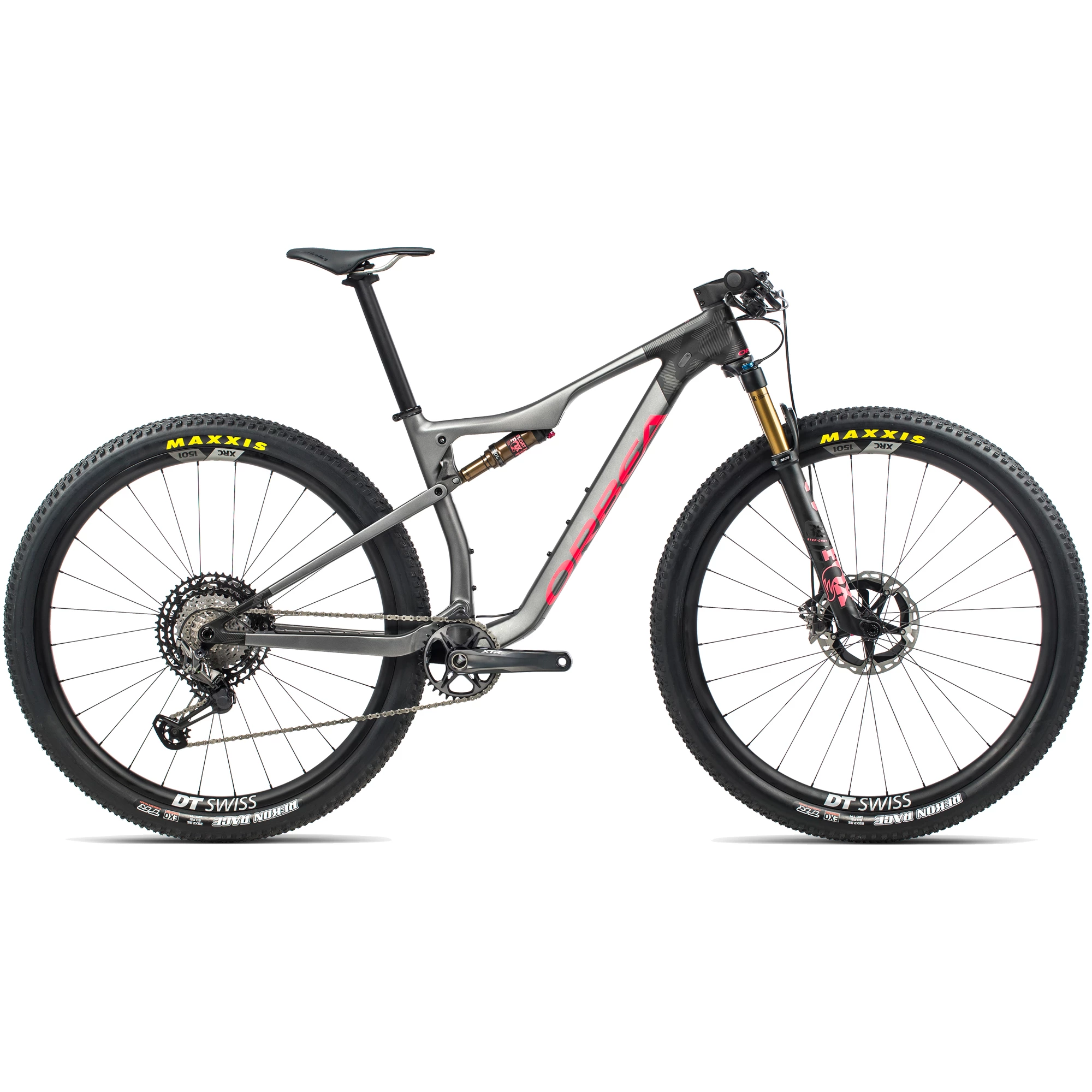

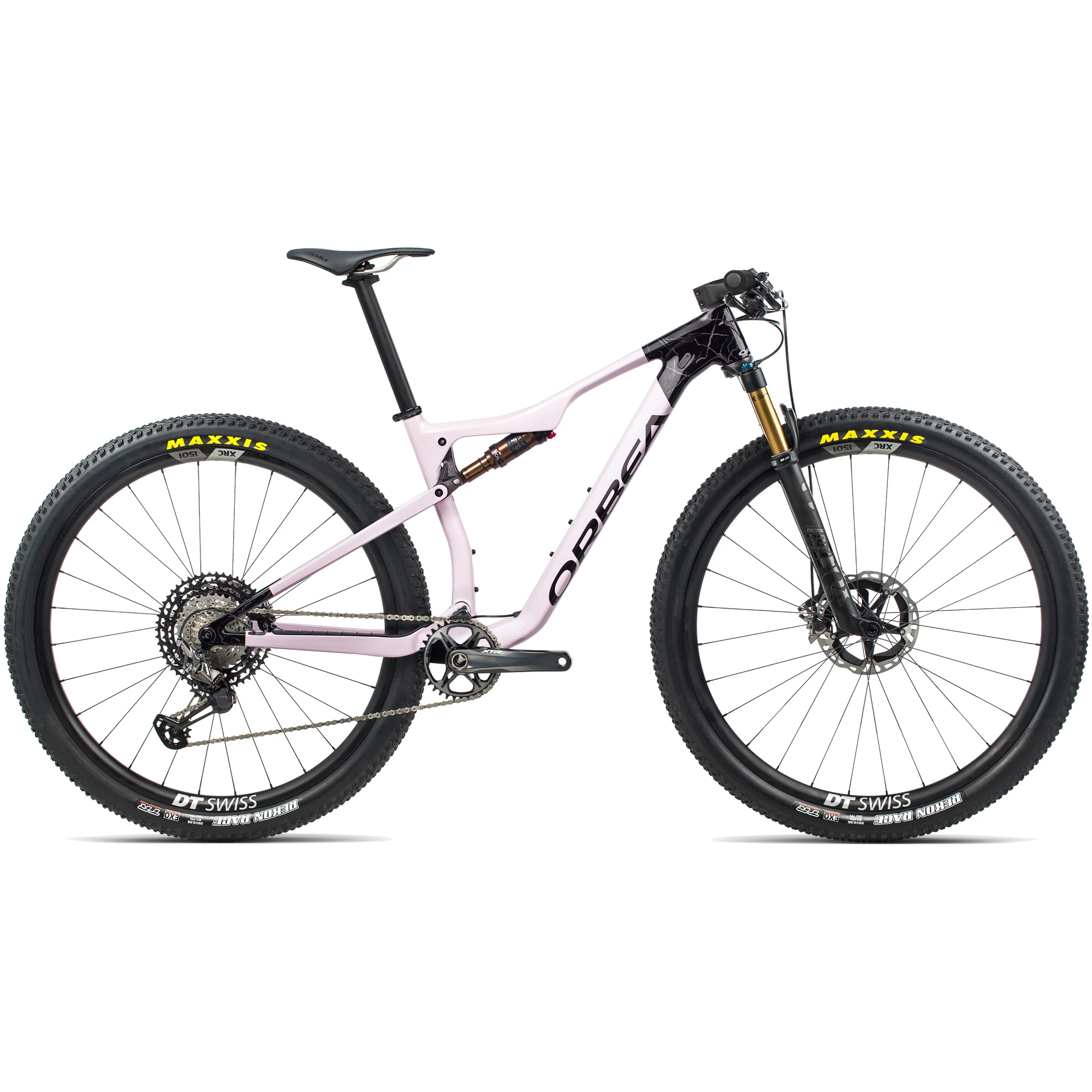

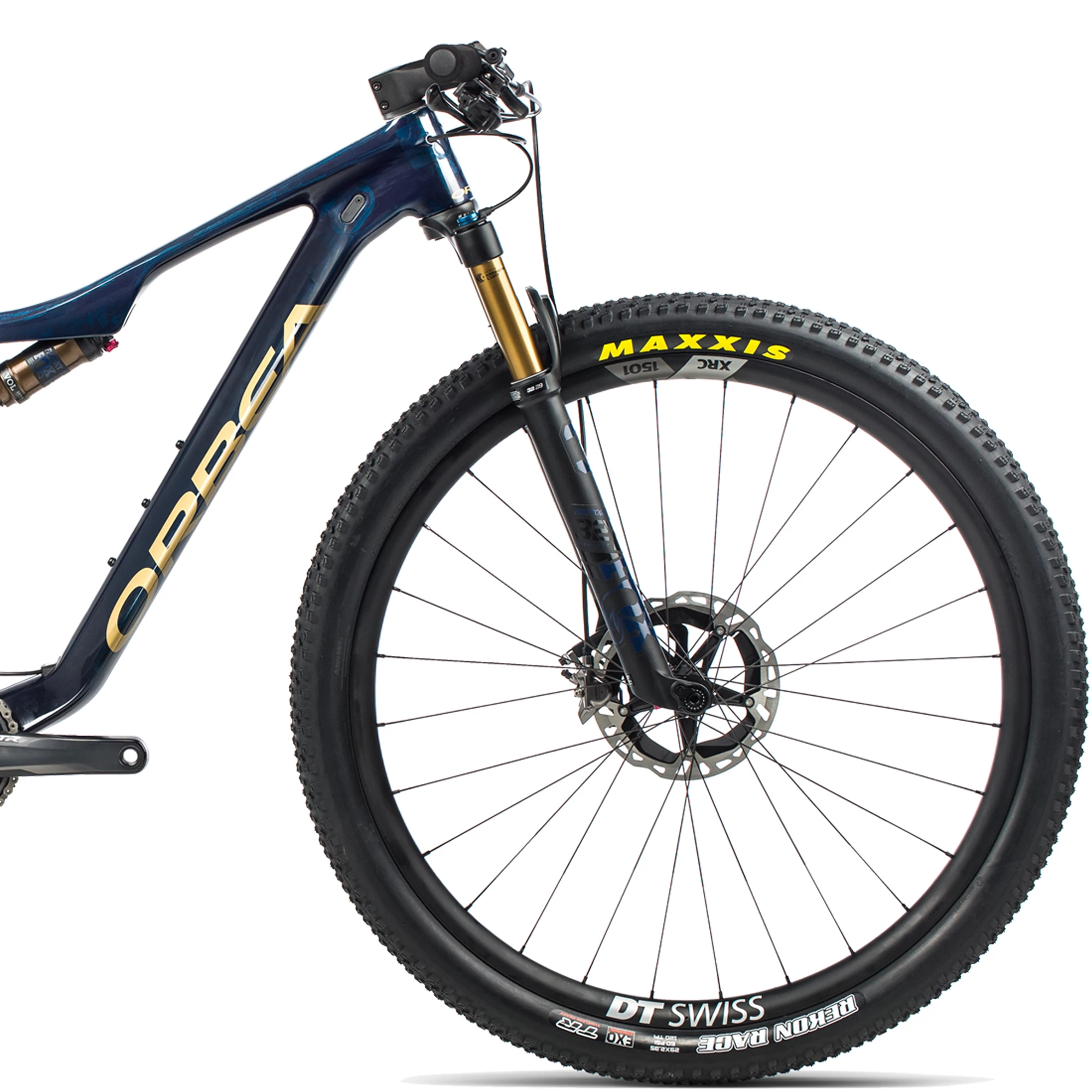

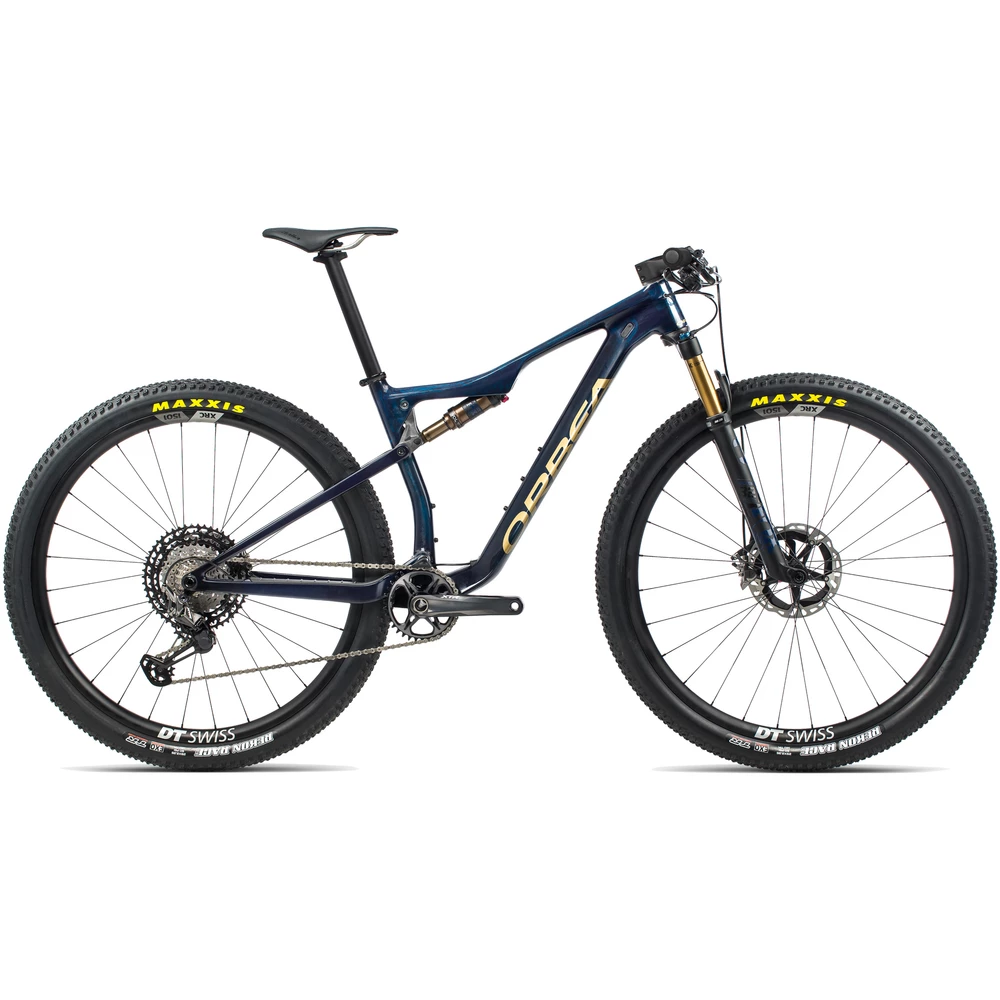

Orbea Oiz M Team Mountain Bike 2021

Catering for fast and experienced racers and dedicated amateur riders alike, the Orbea Oiz M Team Mountain Bike delivers unrivalled speed and precision across demanding XC courses and within highly technical cross country riding.

OMX carbon is Orbea’s prime grade and is utilised in the front and rear frame triangles to deliver increased levels of responsiveness while keeping the weight as low as possible. The lightweight UFO suspension design and Fibrelink junction join the front and rear frame components, and these assist the FOX damping unit in granting smooth and metered bump absorption. A FOX 32 Float SC Factory fork complements the frame perfectly, using its progressive suspension action to cushion any trail irregularity for escalated line accuracy. Orbea’s World Cup Geometry merges the frame and fork to deliver super-responsive handling and places the rider in the most efficient position for power transfer.

DT Swiss XRC-1501 Spline wheels use their 29” carbon rims to deliver acceleration and impetus across even the most rutted of surfaces. At the same time, the range-topping Shimano XTR gear setup faultlessly flicks through its ratios to ease the most testing of topography. Hydraulic disc brakes, also Shimano XTR, give the rider confidence, even when thundering into the tightest of turns, thanks to its pinpoint actuation.


  • The Oiz is designed for fast, experienced riders who demand a super light and efficient full suspension bike for technical XC courses and high-performance cross country riding
  • An OMX carbon frame with a highly advanced layup pattern delivers an optimum stiffness to weight ratio
  • UFO rear suspension design reduces pivot points and combines with the Fibrelink junction to deliver lateral stiffness, a composed action and low weight
  • FOX i-line DPS Factory rear shock progressively manages impacts
  • FOX 32 Float SC Factory fork increases line accuracy and control with its 100mm of metered travel
  • World Cup Geometry is aggressive and precise for maximum power transfer and rapid handling
  • DT Swiss XRC-1501 Spline 30c 29” carbon wheels are light and stiff for increased acceleration and reactivity
  • Top of the range Shimano XTR gears change faultlessly
  • Shimano XTR hydraulic disc brakes are powerful and modulated regardless of riding conditions

Technical Specification

Frame Orbea Oiz Carbon OMX, Fiberlink, Boost, PF BB, UFO2, I-line shock
Fork FOX 32 Float SC Factory, 100mm travel, FIT4 Remote-Adj Push-Unlock, QR15x110, Kashima
Rear Shock FOX i-line DPS Factory 100mm travel, Remote Push-Unlock, Evol Kashima, custom tune,190x40mm
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem Orbea OC3, 31.8mm interface, -8 degree (Length
Handlebar Orbea OC3 Carbon Flat, 31.8mm diameter, 760mm width
Front Brake Shimano XTR M9100, hydraulic disc
Rear Brake Shimano XTR M9100, hydraulic disc
Brake Levers Shimano XTR M9100, hydraulic disc
Rear Derailleur Shimano XTR M9100 SGS Shadow Plus, 12-speed
Shift Levers Shimano XTR M9100, 12-speed
Chain Shimano CN-9100, 12-speed
Cassette Shimano XTR M9100, 10-51t, 12-speed
Crankset Shimano XTR M9100, 34 tooth chainring (Length
Front Wheel DT Swiss XRC-1501 Spline 30c TLR CL, 15/110mm Boost axle
Rear Wheel DT Swiss XRC-1501 Spline 30c TLR CL, 12/148mm Boost axle
Front Tyre Maxxis Rekon Race 2.35”, 120 TPI Exo, tubeless-ready
Rear Tyre Maxxis Rekon Race 2.35”, 120 TPI Exo, tubeless-ready
Saddle Selle Italia SLR Boost, Titanium Rail 316 Ø7mm
Seatpost Orbea OC2 Carbon 31.6 diameter, 0mm offset
Remote Lockout Orbea OC Squidlock 3-position
Pedals Available to be purchased separately
Accessories Orbea OC chainguide

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.
