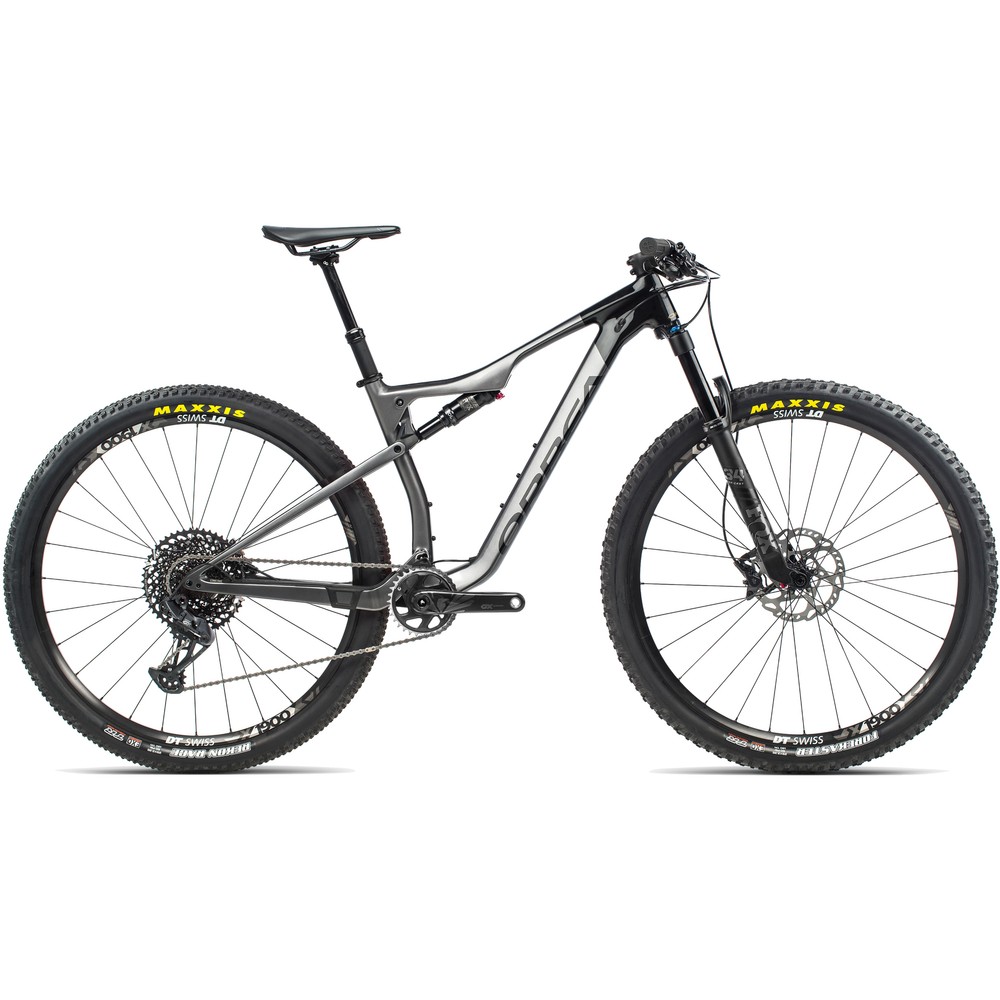

Orbea Oiz M20 TR Mountain Bike 2021

★★★★★ ★★★★★

Select a colour and size to view stock availability

Find My Size
Oiz M20 TR Mountain Bike 2021

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1287480

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports cycle to work scheme
Cycle to Work Scheme

Cyclescheme can save you up to 39% on a bike and accessories. Visit our Cycle to Work Scheme page to learn more and claim.

Orbea Oiz M20 TR Mountain Bike 2021

Starting with a cross-country racing pedigree but adding increased amounts of suspension, front and rear, the Orbea Oiz M20 TR Mountain Bike delivers the speed and composure to conquer any trail of any technicality with consummate ease.

A lightweight OMR carbon mainframe is amalgamated with a refined alloy rear triangle to deliver high amounts of responsiveness and robustness. These two frame components are neatly joined with Orbea’s refined UFO suspension design that reduces pivot points to heighten stiffness and aids the FOX damping unit in granting smooth and plush levels of cushioning. The FOX 34 Float SC Performance fork adds increased trail composure thanks to its 120mm of progressive travel. An aggressive chassis geometry infuses nimble handling and also positions the rider ergonomically to deliver an efficient pedal stroke.

DT Swiss X-1900 Spline alloy wheels and their 29” rim circumferences are solid performers and increase rolling momentum regardless of terrain severity. The SRAM GX Eagle gear setup changes without fault every shift and the Shimano hydraulic disc brakes stop with composure, even in the wettest and muddiest of conditions. A dropper post crowns the build by allowing heightened control when tackling the trickiest of descents.


  • The Oiz TR takes a thoroughbred XC racing platform and adds bigger suspension, front and rear to create a super-fast and nimble character that is set to conquer any trail
  • A lightweight OMR carbon mainframe with an alloy rear triangle delivers efficiency, stiffness and strength
  • UFO rear suspension design reduces pivot points and combines with the innovative alloy linkage pattern to deliver lateral stiffness and a composed action
  • FOX i-line DPS Performance rear shock with 120mm of suspension progressively manages even the largest of impacts
  • FOX 34 Float SC Performance fork increases line accuracy and control with its 120mm of metered travel
  • The geometry is aggressive and precise for maximum power transfer and rapid handling
  • DT Swiss X-1900 Spline 25c 29” alloy wheels are stiff, strong and light
  • SRAM GX Eagle gears change without fault and are durable
  • Shimano hydraulic disc brakes are powerful and modulated regardless of riding conditions
  • A dropper post is added to aid control on the most technical downhill sections

Technical Specification

Frame Orbea Oiz Carbon OMR main frame, AlloyLink rear triangle, Boost, BB92 PF bottom bracket, Taper UFO2, I-Line shock
Fork FOX 34 Float SC Performance, 120mm travel, Grip Remote Push-Unlock, QR15x110
Rear Shock FOX i-line DPS Performance, 120mm travel, Remote Push-Unlock, Evol custom tune, 190x45mm
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem Orbea OC1, 31.8mm interface, -7 degree (Length
Handlebar Orbea OC1 Flat, 31.8mm diameter, 740mm width
Front Brake Shimano XT M6100, hydraulic disc
Rear Brake Shimano XT M6100, hydraulic disc
Brake Levers Shimano XT M6100, hydraulic disc
Rear Derailleur SRAM GX Eagle Lunar, 12-speed
Shift Levers SRAM GX Eagle Lunar, 12-speed
Chain SRAM GX Eagle, 12-speed
Cassette  SRAM XG-1275 Eagle, 10-50t, 12-speed
Crankset SRAM GX Carbon Eagle, DUB, Lunar Boost, 32 tooth chainring (Length
Front Wheel DT Swiss X-1900 Spline 25c TLR CL, 15/110mm Boost
Rear Wheel DT Swiss X-1900 Spline 25c TLR CL, 12/148mm Boost
Front Tyre Maxxis Rekon Race 2.35”, 120 TPI Exo, tubeless-ready
Rear Tyre Maxxis Rekon Race 2.35”, 120 TPI Exo, tubeless-ready
Saddle  Fizik Taiga S-alloy rail
Seatpost Orbea OC2 Dropper, 31.6mm diameter, 390/125mm length
Remote Lockout Orbea OC Squidlock 3-position
Pedals Available to be purchased separately
Accessories Orbea OC chainguide

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance or contact Customer Care. We do not install accessories to bikes, including mudguards.
