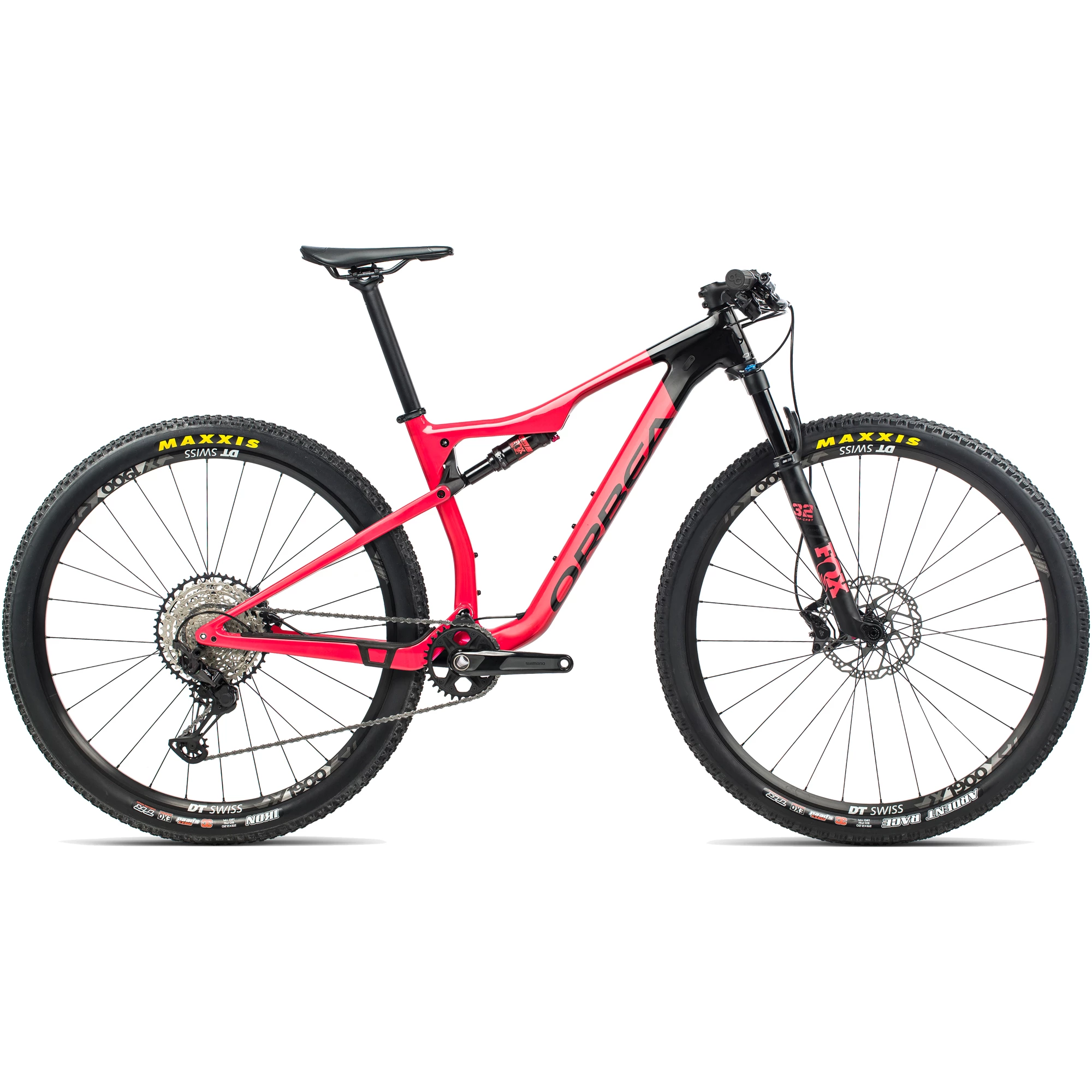

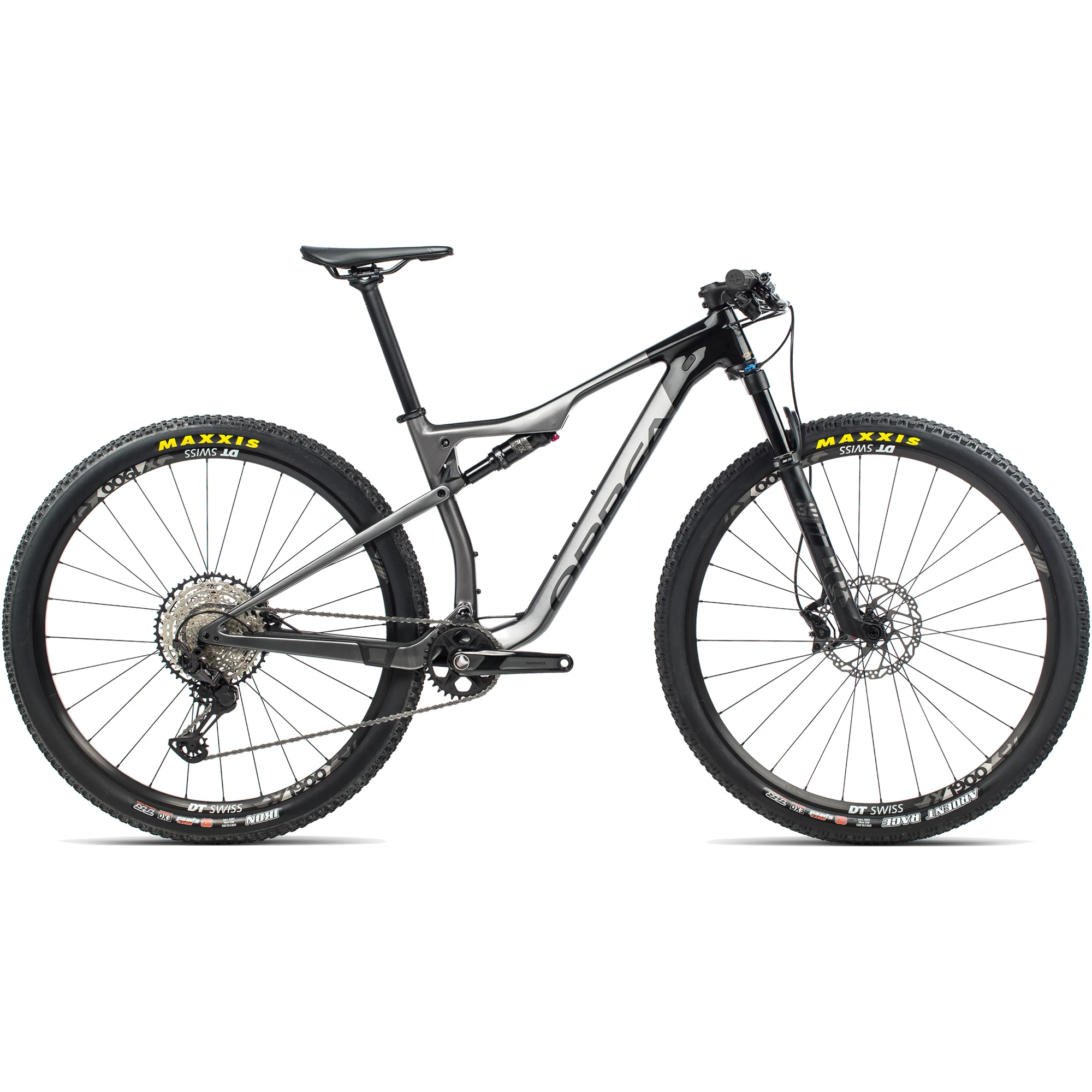

Orbea Oiz M30 Mountain Bike 2021

★★★★★ ★★★★★
(1)
$‌4,955.00

The colour and size combination selected is no longer available. Please select a different colour or size.

We're sorry, but unfortunately, we're unable to ship this item to your country

Assembled with Care: Your bike will be fully built by our trained mechanics before being carefully packaged and shipped to your door.

Ready to Ride: When you receive your bike all you'll need to do is unpack it, attach the pedals, turn the handlebars and ride.

Free Delivery: All bikes come with free delivery or you can upgrade to Premier Bike Delivery for $‌133.00 and have your bike delivered by hand.

Product ID: 1287853

Description

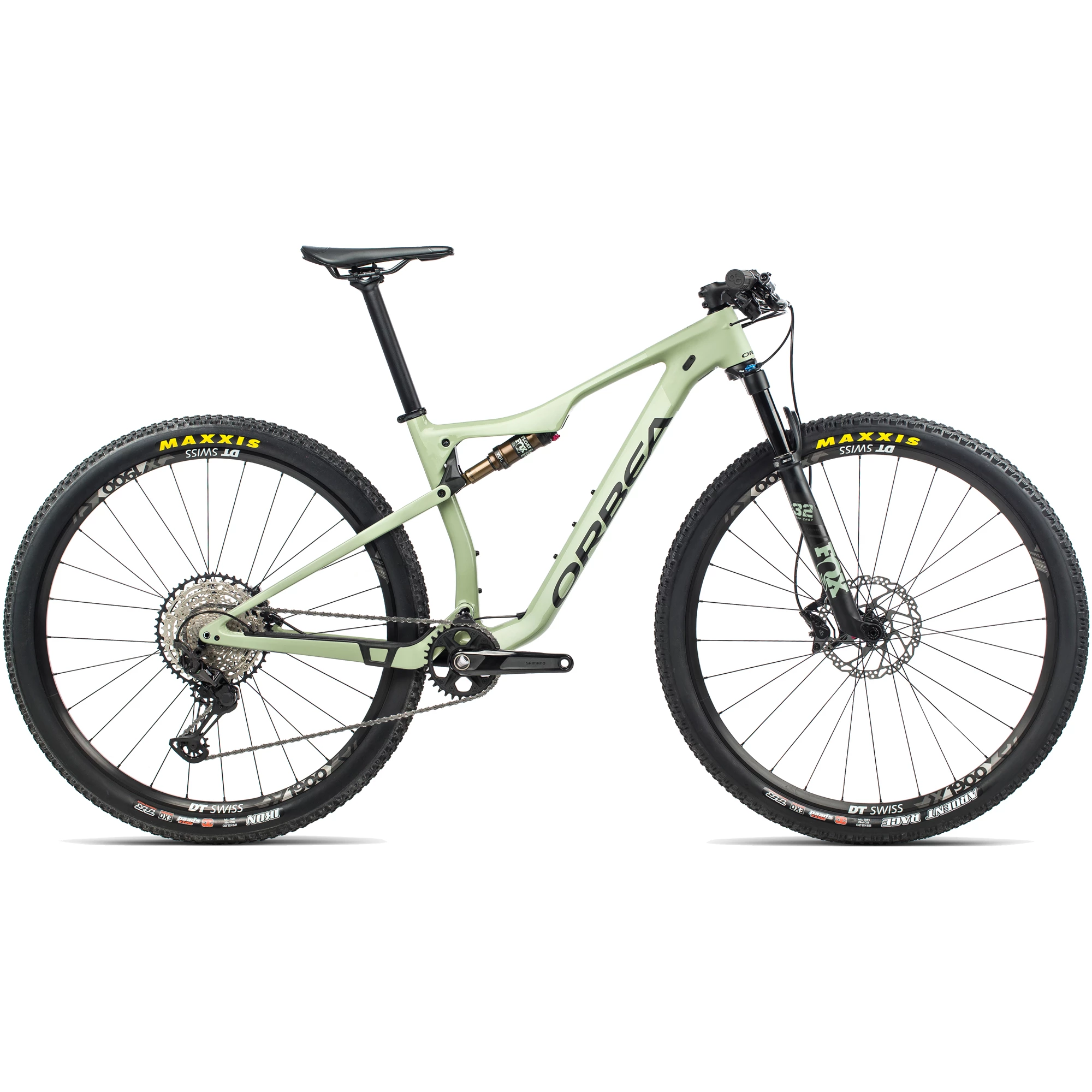

Orbea Oiz M30 Mountain Bike 2021

Excelling within any cross country riding scenario thanks to its racing-inspired design and accurate components, the Orbea Oiz M30 Mountain Bike delivers even the most experienced riders to the finish line with increased speed and heightened composure.

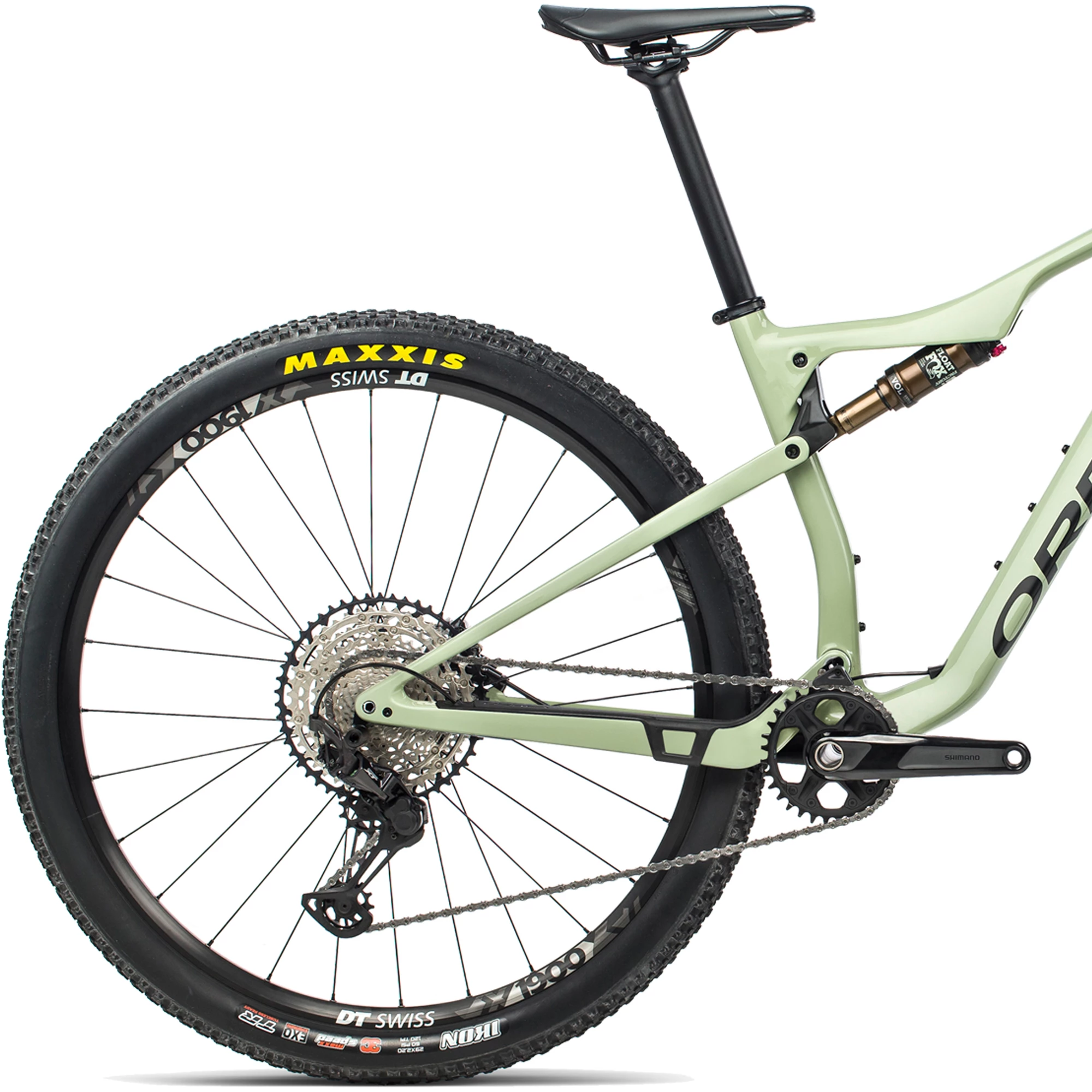

The OMR carbon main frame is light and responsive and is complemented by the stiff and efficient alloy rear triangle. These two frame parts are joined by the refined UFO suspension design that saves weight by reducing pivot points and combines with the FOX damping unit to infuse a progressive shock rate for heightened rear wheel traction. Line accuracy is improved by the plush suspension afforded by the FOX 32 Float SC Factory Performance while an aggressive, race-inspired frameset geometry gives sharp handling and a perfect riding position for efficient power transfer.

DT Swiss X-1900 wheels use their 29” alloy rims to grant acceleration and robustness and roll with heightened momentum over even the most irregular of surfaces. A Shimano Deore and XT gear partnership changes across its ratios with smooth actuation and hydraulic disc brakes, also from Shimano, stop with power and modulation no matter the trail conditions.

Highlights

  • The Oiz is designed for fast, experienced riders who demand a super light and efficient full suspension bike for technical XC courses and high-performance cross country riding
  • A lightweight OMR carbon mainframe with an alloy rear triangle delivers efficiency, stiffness and strength
  • UFO rear suspension design reduces pivot points and combines with the innovative alloy linkage pattern to deliver lateral stiffness and a composed action
  • FOX i-line DPS Performance rear shock progressively manages impacts
  • FOX 32 Float SC Performance fork increases line accuracy and control with its 100mm of metered travel
  • World Cup Geometry is aggressive and precise for maximum power transfer and rapid handling
  • DT Swiss X-1900 Spline 25c 29” alloy wheels are stiff, strong and light
  • Shimano Deore and XT gear configuration changes without fault and is durable
  • Shimano hydraulic disc brakes are powerful and modulated regardless of riding conditions

Technical Specification

Frame Orbea Oiz Carbon OMR main frame, AlloyLink rear triangle, Boost, PF92 bottom bracket, Taper UFO2, I-Line shock
Fork FOX 32 Float SC Performance, 100mm travel, Remote Push-Unlock, QR15x110
Rear Shock FOX i-line DPS Performance, 100mm travel, Remote Push-Unlock, Evol custom tune, 190x40mm
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem Orbea OC1, 31.8mm interface, -7 degree (Length
Handlebar Orbea OC1 Flat, 31.8mm diameter, 740mm width
Front Brake Shimano M6100, hydraulic disc
Rear Brake Shimano M6100, hydraulic disc
Brake Levers Shimano M6100, hydraulic disc
Rear Derailleur Shimano XT M8100 SGS Shadow Plus, 12-speed
Shift Levers Shimano Deore M6100 I-Spec EV, 12-speed
Chain Shimano M6100, 12-speed
Cassette Shimano CS-M7100, 10-51t, 12-speed
Crankset Shimano MT611, 32 tooth chainring (Length
Front Wheel DT Swiss X-1900 Spline 25c TLR CL, Boost axle
Rear Wheel DT Swiss X-1900 Spline 25c TLR CL, Boost axle
Front Tyre Maxxis Ikon 2.2" FB, 120tpi, 3C Exo, tubeless-ready
Rear Tyre Maxxis Ikon 2.2" FB, 120tpi, 3C Exo, tubeless-ready
Saddle Fizik Taiga S-alloy rail
Seatpost Orbea OC2 alloy forge head, 27.2 diameter, 0mm offset
Pedals Available to be purchased separately
Accessories Orbea OC chainguide

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
