Orbea Orca M30 Disc Road Bike 2022

£2,499.00

Select a colour and size to view stock availability

Orbea
Orca M30 Disc Road Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1465395

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

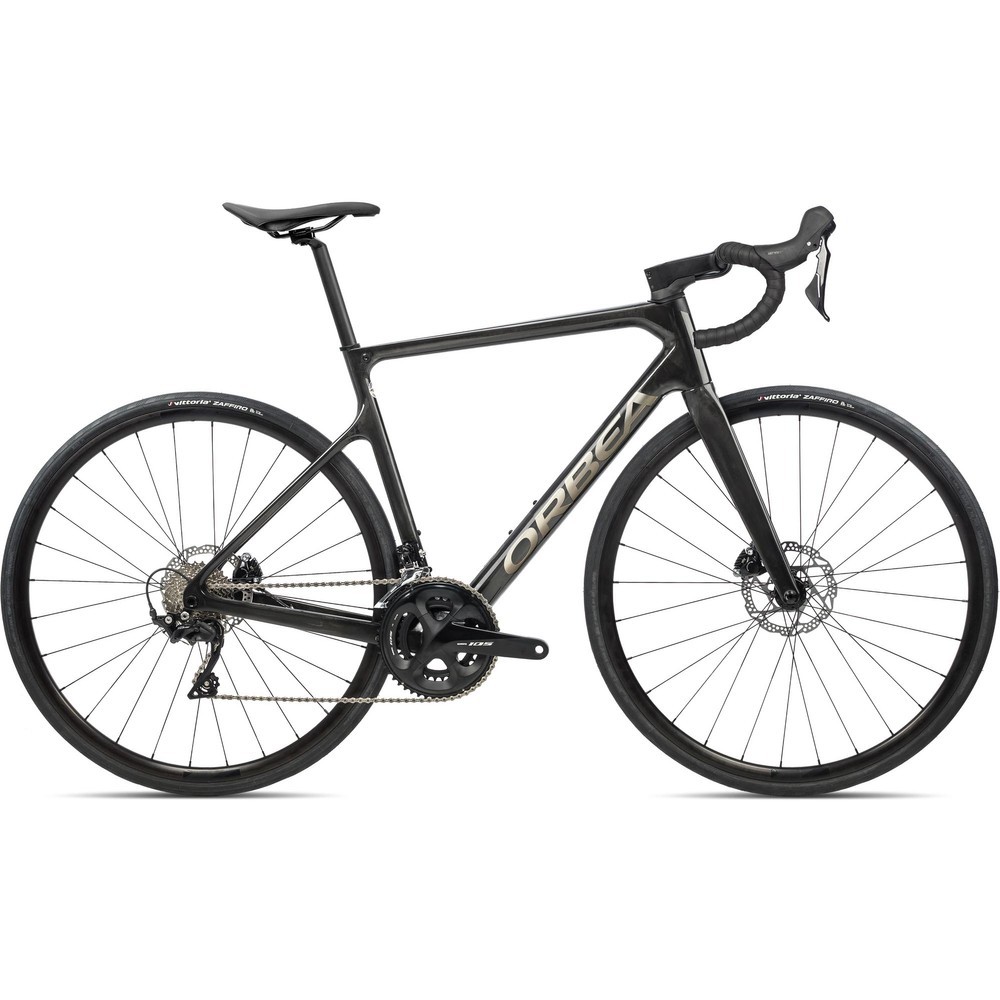

Orbea Orca M30 Disc Road Bike 2022

A fast and responsive choice for riders looking to make waves on their local scene, the Orbea Orca M30 Disc Road Bike ticks all the boxes for performance road riding. A lightweight carbon OMR frameset, powerful hydraulic disc brakes and an 11-speed drivetrain deliver a capable ride straight out the box and the perfect platform for any future upgrades. This frame sees much trickle-down technology from the higher-end models in the Orca series, with its responsive geometry providing a fun and engaging ride experience.

The house brand Orbea wheelset is lightweight and reliable and uses thru-axle hubs with cartridge bearings for lasting smooth performance. Shimano takes care of the groupset, with their 105 components delivering the sublime blend of durability and low weight, while the R7070 hydraulic disc brakes issue reliable power in all weather conditions. Internally routed cables provide a sleek aesthetic rarely seen at this price point, and the carbon fork legs damp vibration to prevent fatigue on longer rides.

Highlights

  • A modern and versatile race bike that’s exciting and inspiring across any road terrain
  • Full OMR carbon frameset uses optimised layups, single uniform frame structures and continuous fibre orientation to increase stiffness and compliance while keeping the weight low
  • The carbon fork with alloy steerer is stiff, strong and reduces road vibrations
  • Hidden cable routing through the stem and frame grants a crisp aesthetic
  • 35mm tyre clearance permits the use of plusher, grippier, and faster-rolling rubber
  • Racing inspired geometry maximises power transfer and efficiency and gives precise and intuitive handling
  • Orbea Ready 19 wheels have an alloy rim, are light, strong and are compatible with tubeless-ready or standard clincher tyres
  • Shimano 105 11-speed gears are precise and reliable
  • Shimano 105 hydraulic disc brakes offer powerful and modulated stopping power

Technical Specification

Frame Orbea Orca carbon OMR Disc, monocoque construction, 1,5” headset, BB 386 bottom bracket standard, power meter compatible, 12x142mm rear thru-axle with M12x2 P1 thread, speed release compatible dropout, internal cable routing, EC/DC compatible
Fork Orbea carbon fork, 1-1/8” aluminium steerer
Headset Acros alloy 1-1/2" internal cable routing
Stem Orbea OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface
Handlebar OC RP30-R Road Performance Riser, reach 70mm, drop 125mm
Front Brake Shimano 105 R7070, hydraulic disc
Rear Brake Shimano 105 R7070, hydraulic disc
Brake Levers Shimano 105 R7070, hydraulic disc
Front Derailleur Shimano 105 R7000
Rear Derailleur Shimano 105 R7000 GS, 11-speed
Shift Levers Shimano 105 ST-7020, 11-speed
Chain KMC X11-EL, 11-speed
Cassette Shimano 105 R7000 11-30t, 11-speed
Crankset Shimano 105 R7000, 34x50 teeth chainrings (Length 170mm Sizes 47, 49, 51, 53 / 172.5mm Sizes 55, 57 / 175mm Size 60)
Front Wheel Orbea Ready 19, 12mm E-Thru hub Shimano RS470 28H with Orbea thru-axle 12x100mm
Rear Wheel Orbea Ready 19, 12mm E-Thru hub Shimano RS470 28H with Orbea thru-axle 12x142mm
Front Tyre Vittoria Zafiro V Rigid bead 700x28c, clincher
Rear Tyre Vittoria Zafiro V Rigid bead 700x28c, clincher
Saddle Fizik Aliante R5
Seatpost Orbea OC2 27.2mm diameter, 20mm offset
Pedals Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.


Orbea Orca M30 Disc Road Bike 2022 Sizing
