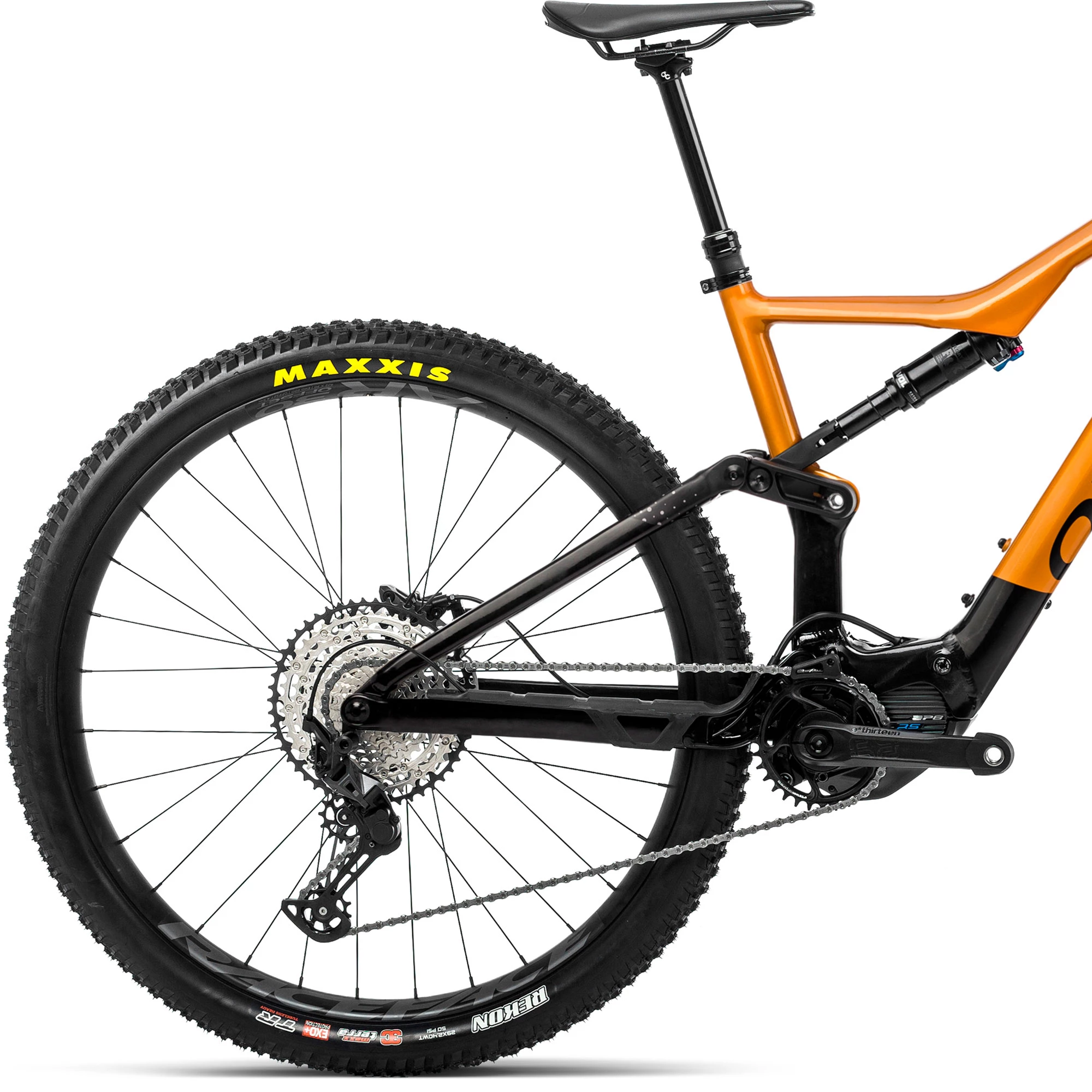

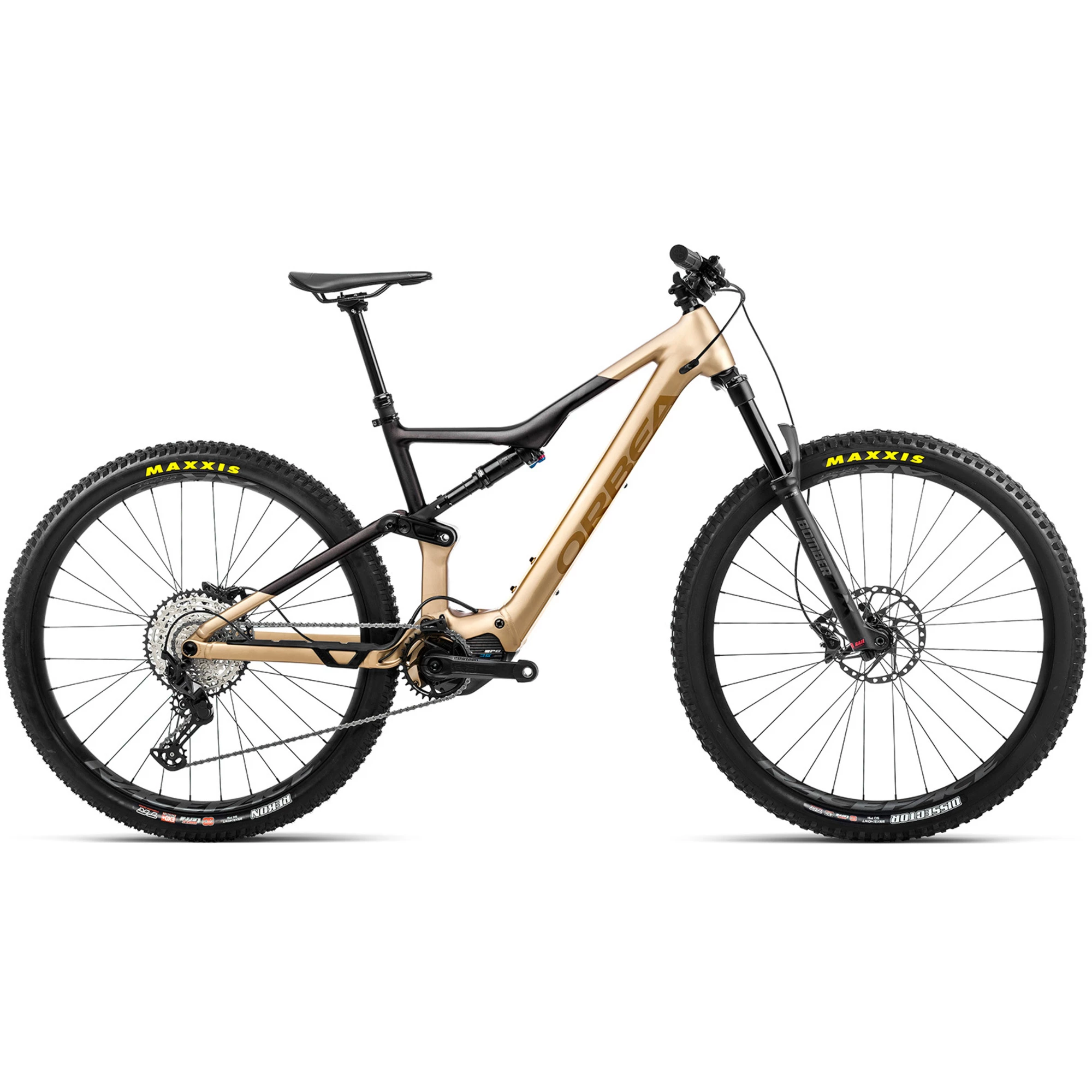

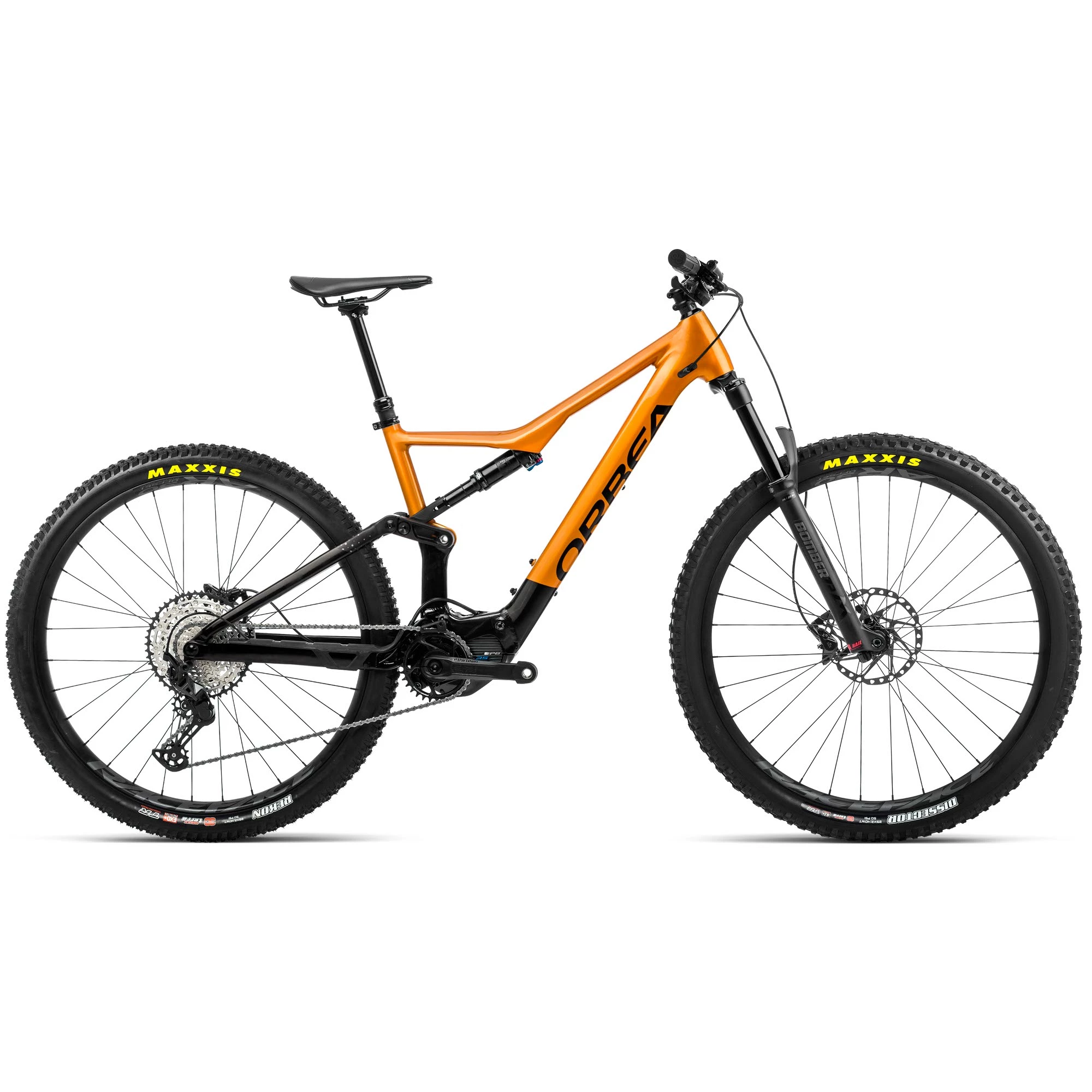

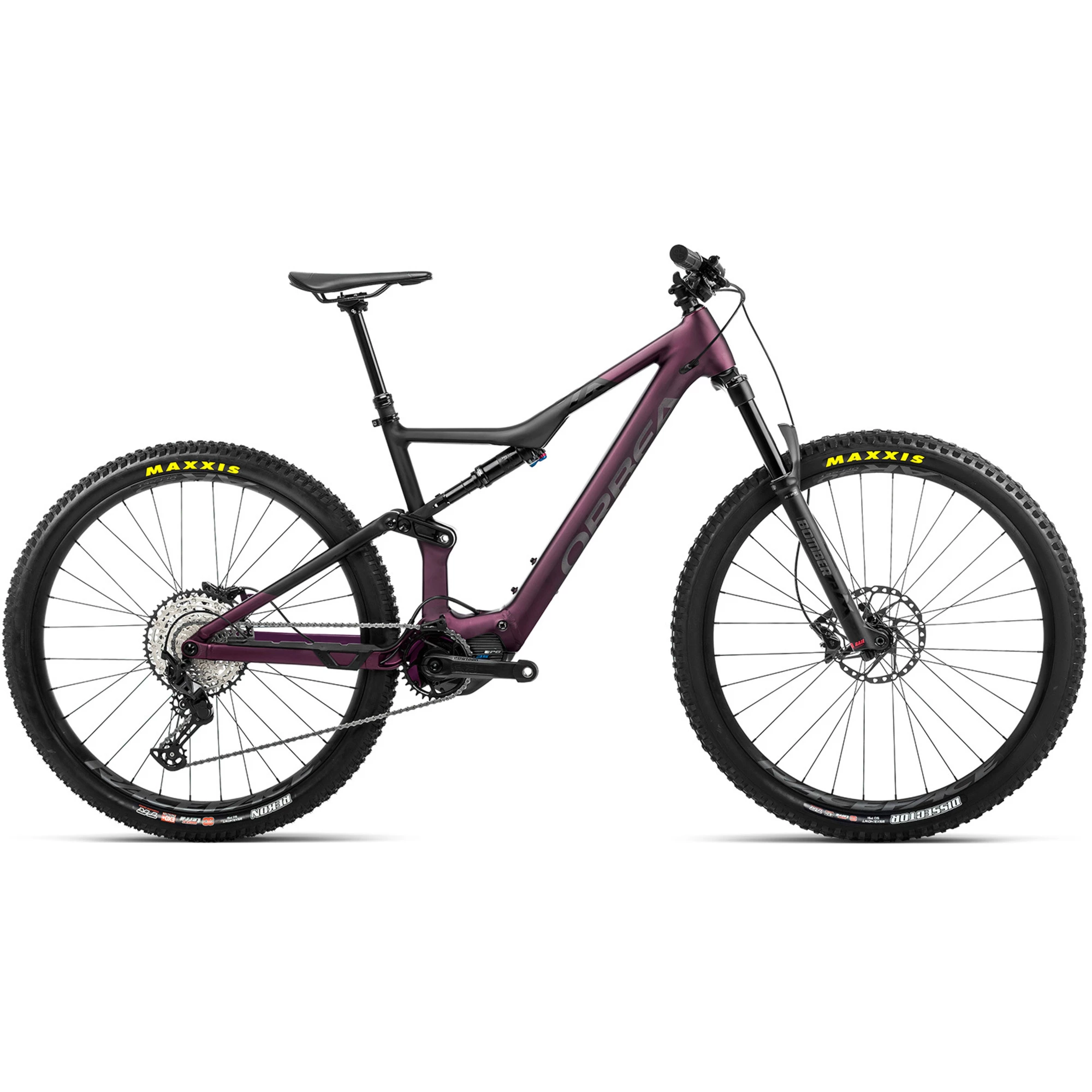

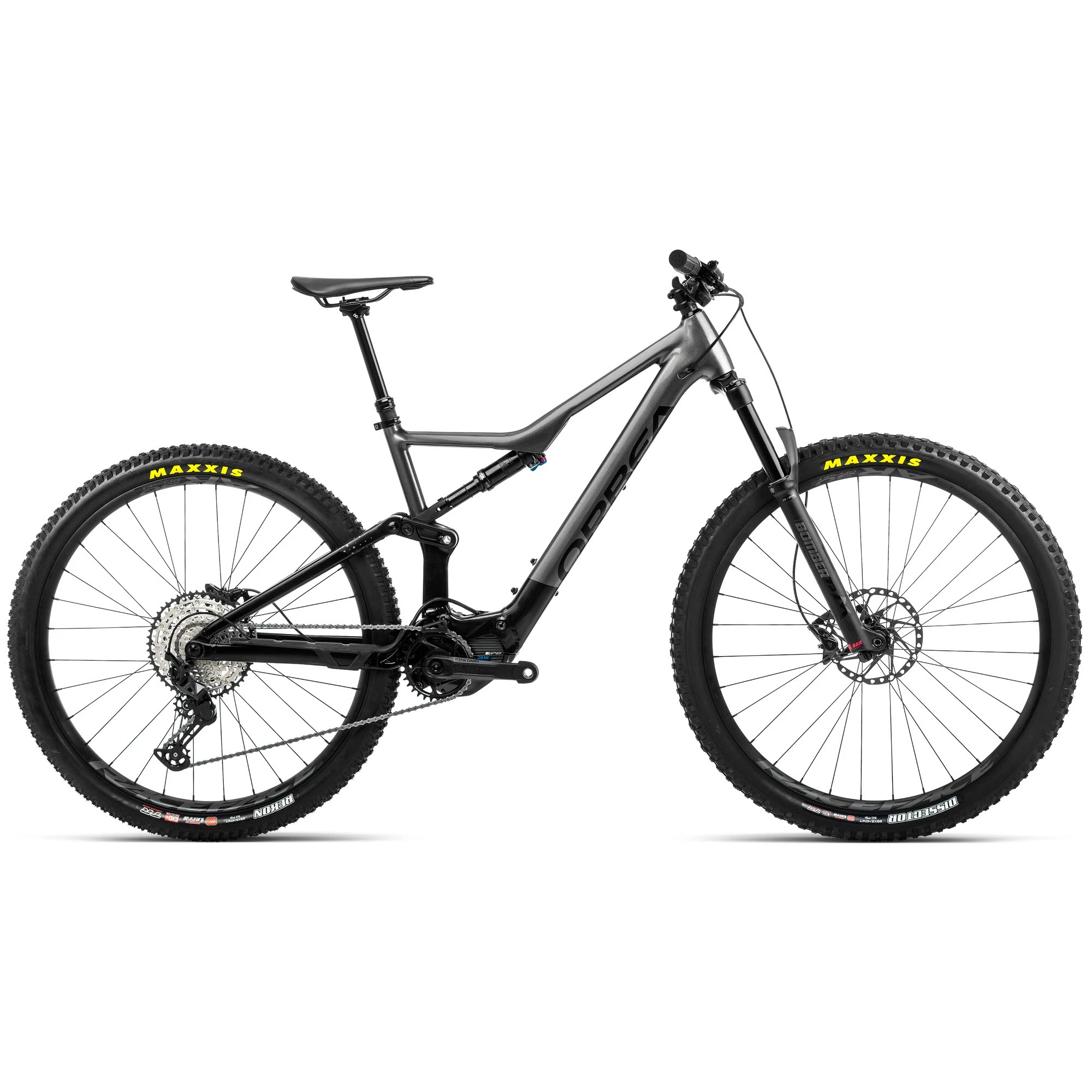

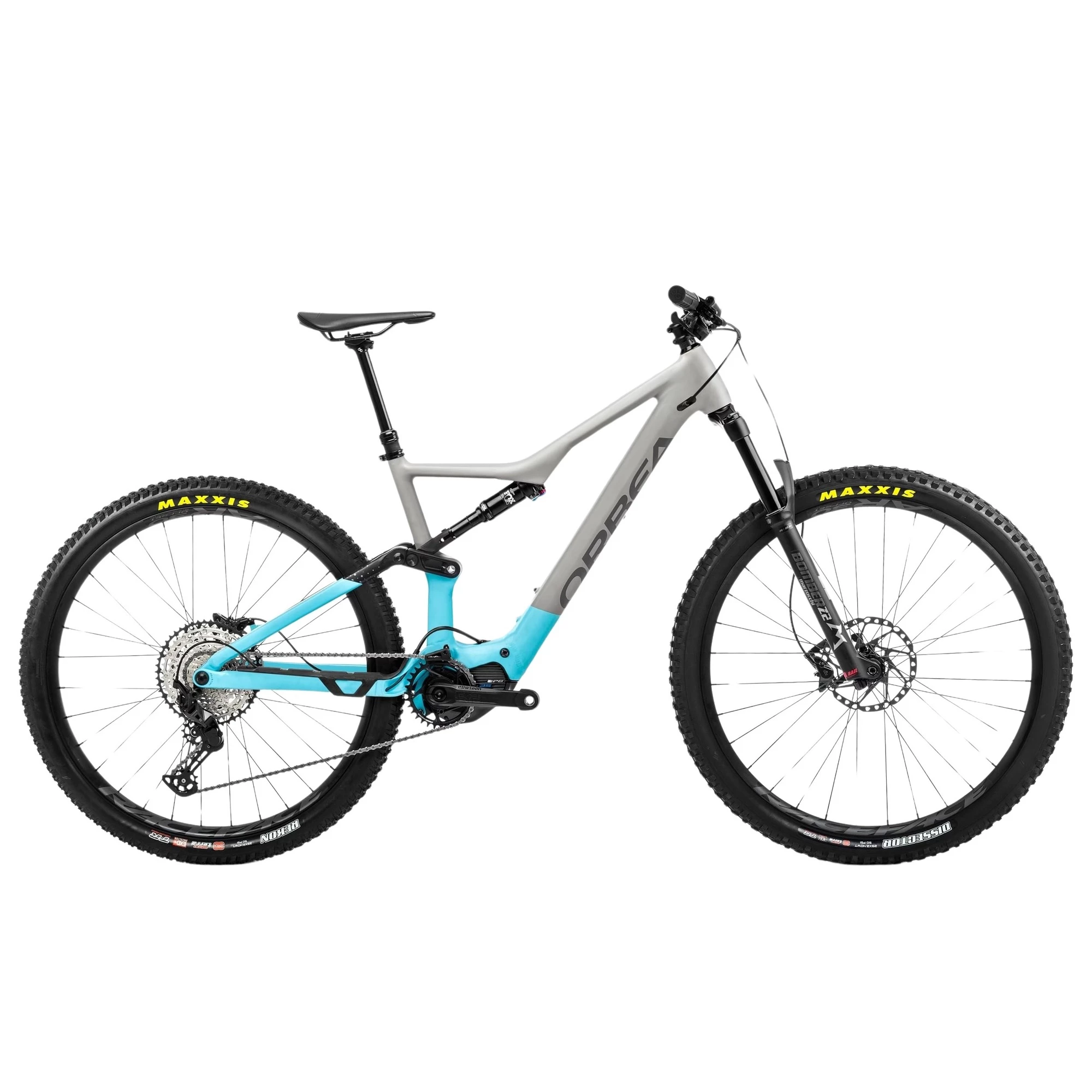

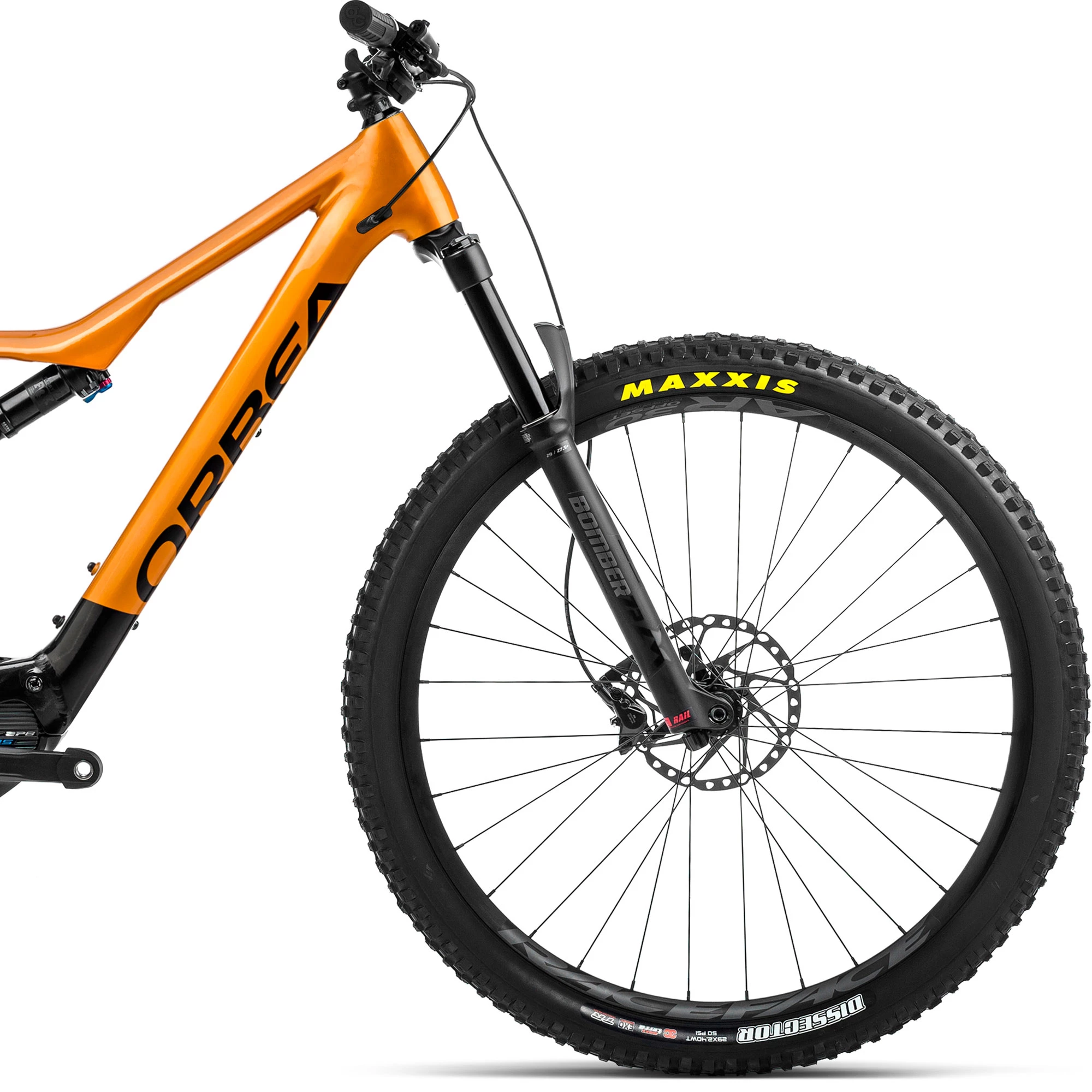

Orbea Rise H30 Electric Mountain Bike 2022
Orbea’s Rise H30 Electric Mountain Bike blends the ride-anywhere freedom of a trail bike with the support of an electric motor, making it the perfect companion for any mountain bike ride.

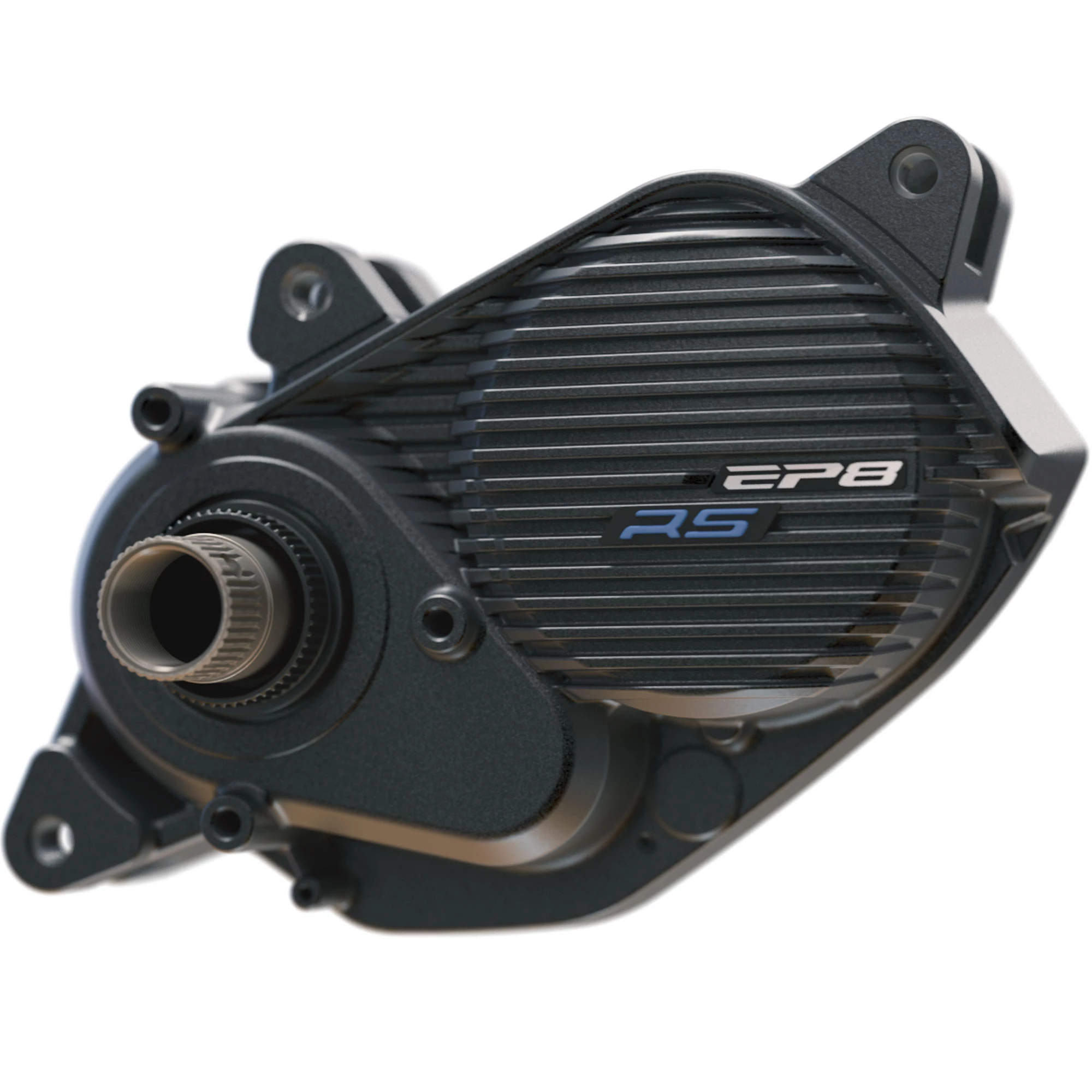

Orbea’s goal was that the motor should enhance, rather than dominate, the ride experience, and so the Shimano EP8-RS unit subtly boosts power in each mode without overwhelming the rider, adding assistance up to a maximum speed of 15.5 mph / 25 km/h. Their RS concept keeps the bike’s weight down for lower power consumption, meaning that for any given capacity the battery should last longer with Shimano’s E-Tube app allowing the user to fine-tune the power profile to personal preference.

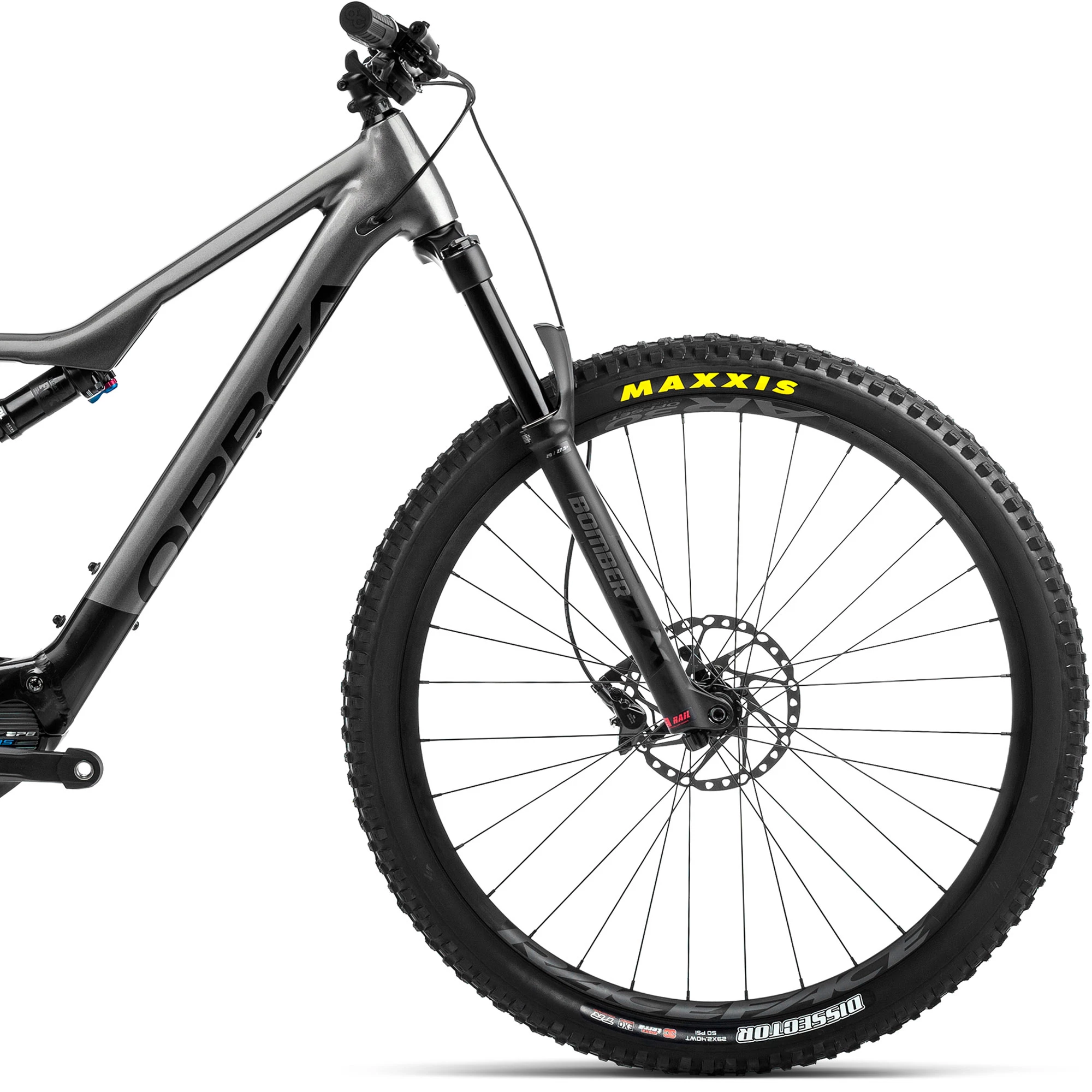

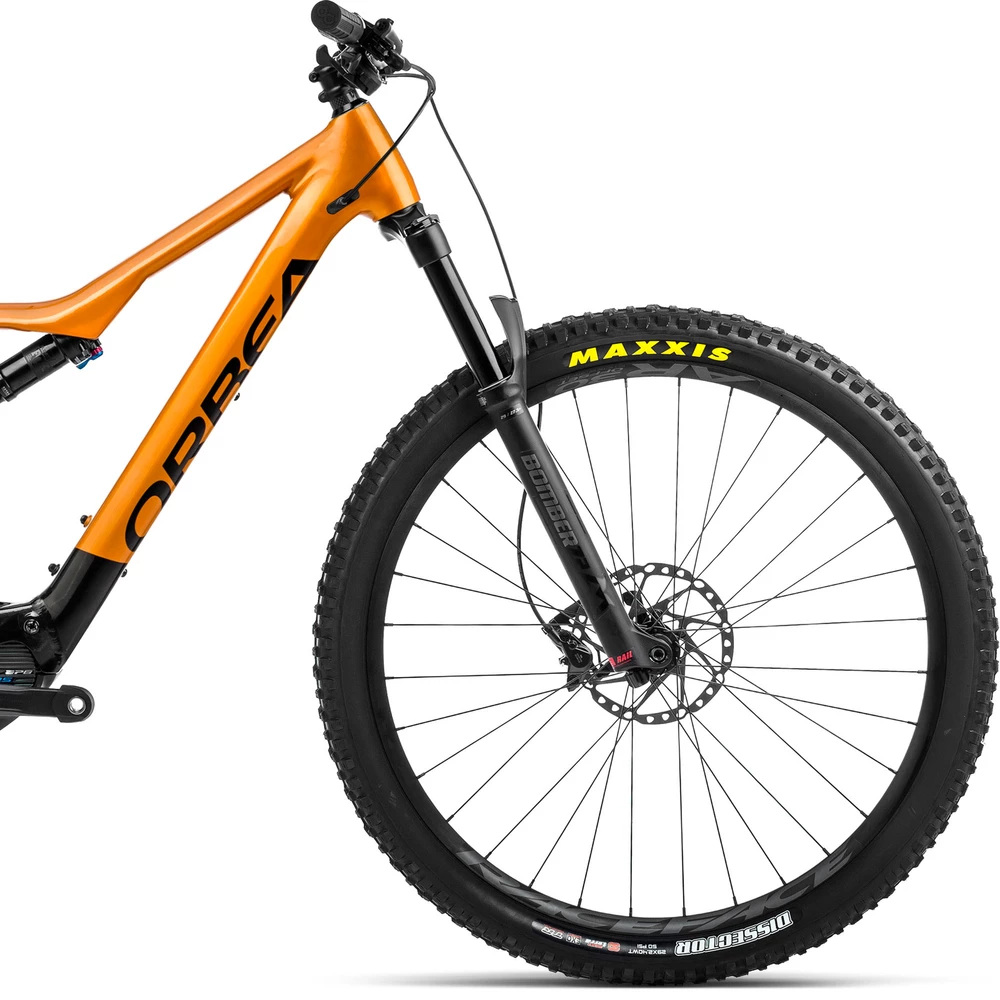

The frame and fork both provide 140mm of progressive, trail-ready suspension from the FOX Float shock and Marzocchi Bomber Z2 fork whilst the modern geometry provides a responsive and enjoyable ride that is just as competent on the uphills as it is capable on the descents.
Ever-reliable Shimano components make up the 12-speed drivetrain and brakes, ensuring total control and accurate shifting across the wide-range 11-51 tooth cassette. 29” Race Face AR 30c wheels add fast-rolling capacity with the 2.4” Maxxis Dissector and Rekon tyres gripping confidently off-road. Both wheels and tyres are tubeless-ready for enhanced performance, comfort and puncture resistance.
Browse our range of Orbea electric mountain bikes today.
Highlights
- Orbea Rise Hydro frame with FOX Float DPS Performance shock and 140mm travel
- Marzocchi Bomber Z2 fork, 140mm travel
- Shimano EP8-RS motor and Orbea RS Internal 540Wh battery with three assist levels
- Tubeless-ready 29” Race Face wheels and 2.4” Maxxis Dissector and Rekon tyres
- Shimano 12-speed drivetrain
- Shimano hydraulic disc brakes
- Orbea OC MC20 Mountain Control Dropper seatpost
Battery Specifications
- Maximum Assist: Up to 60Nm, 25kph
- Motor Weight: 2.6kg
- Battery Power: 540Wh
Technical Specification
| Frame | Orbea Rise Hydro 2022 140mm travel 29" Boost 12x148mm thru-axle |
| Fork | Marzocchi Bomber Z2 140 QR15x110 140mm travel |
| Rear Shock | FOX Float DPS Performance 3-Position Evol custom tune 210x55mm |
| Headset | Acros Alloy 1-1/8 - 1-1/2" Integrated |
| Stem | Orbea OC1 3D Forged, 35mm interface, 7º |
| Handlebar | Orbea OC1, 35mm, 12mm rise, 780mm width |
| Front Brake | Shimano MT410 hydraulic disc |
| Rear Brake | Shimano MT410 hydraulic disc |
| Brake Levers | Shimano MT410 hydraulic |
| Rear Derailleur | Shimano SLX M7100 SGS Shadow Plus, 12-speed |
| Shift Levers | Shimano Deore M6100 12-speed |
| Chain | Shimano M6100, 12-speed |
| Cassette | Shimano CS-M7100 10-51t 12-speed |
| Crankset | e*thirteen Plus Alu e*spec crank arms, direct mount 32T chainring, Boost |
| Front Wheel | Race Face AR 30c, tubeless-ready |
| Rear Wheel | Race Face AR 30c, tubeless-ready |
| Front Tyre | Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR, tubeless-ready |
| Rear Tyre | Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR, tubeless-ready |
| Saddle | Fizik Taiga S-alloy rail |
| Seatpost | Orbea OC MC20 Mountain Control Dropper, 31.6mm |
| Seatpost Lever | Orbea OC Horizontal |
| Pedals | Available to be purchased separately |
| Accessories | Orbea Rise chainguide |
| Motor | Shimano EP8-RS |
| Ui/Remote | Shimano SC-E7000 switch unit |
| Battery | Orbea RS Internal 540Wh |
| Charger | Orbea Smart Charger (42V-4A) |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
