Orbea Rise M-LTD FS Electric Mountain Bike 2023

RRP £9,999.00 Save 10%

Check to see if we have it in stock - just select your colour and size.

Rise M-LTD FS Electric Mountain Bike 2023

We're sorry, but unfortunately, we're unable to ship this item to your country

Get 20% off Clothing & Accessories with any Electric Bike.

Use code: ELECTRIC20

Shop all Clothing & Accessories

Product ID: 1674091

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

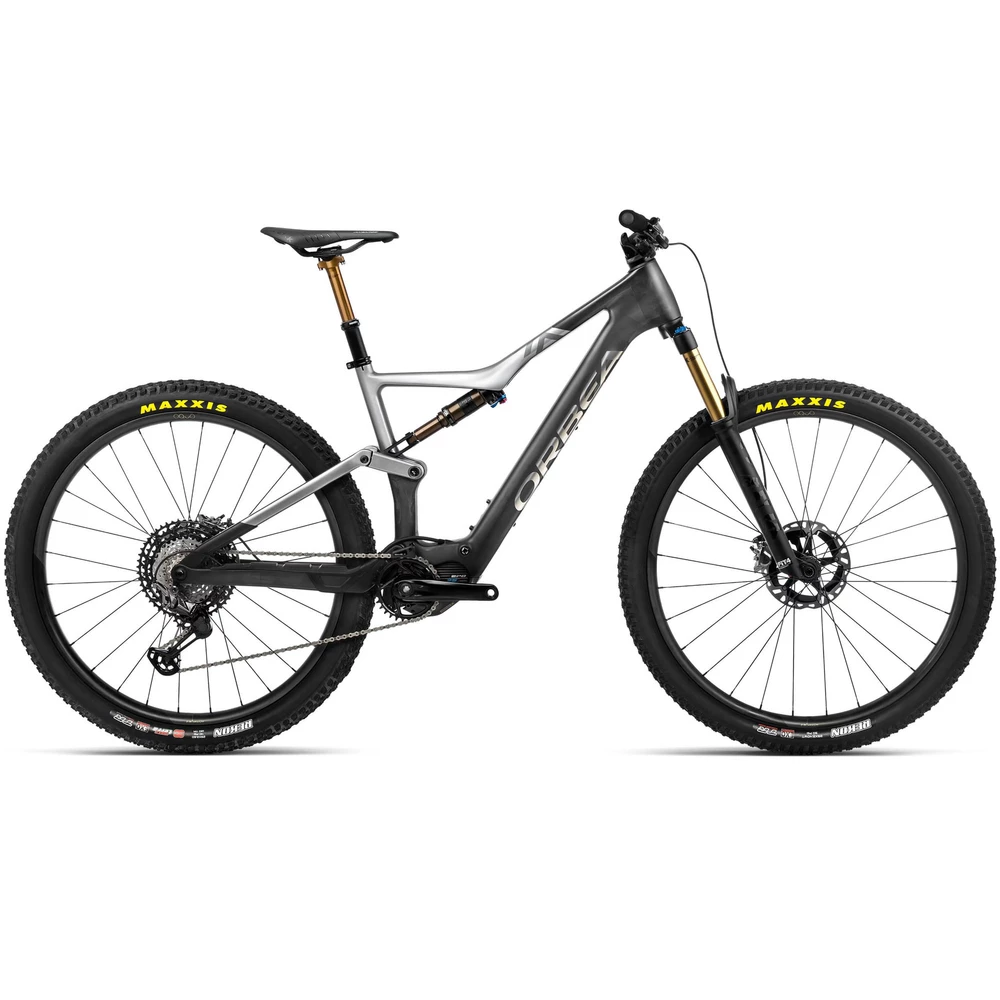

Orbea Rise M-LTD FS Electric Mountain Bike 2023

Splitting the difference between a full-power electric bike and a traditional model, the Orbea Rise M-LTD FS Electric Mountain Bike offers sublime handling with a twist of assisted power, making it a potent formula for unbridled fun on the trail. The Shimano EP8-RS motor system and integrated 360Wh battery see a low-profile footprint, keeping the weight down and the bike manoeuvrable on twisty singletrack. Providing 60Nm of power, the motor is no slouch, with assistance up to 15.5mph / 25kph, and the custom tune - Rider Synergy (RN) - sees it delivered in a natural way that doesn’t disrupt the feel of the bike. The Shimano E7000 remote ensures control over the assistance settings.

This is an e-bike that uses the most advanced materials and components and is boasted to be one of the lightest electric offerings out there. An OMR carbon frame, plush suspension, a lightweight electric system and top-drawer components all play a part in making it light and efficient with stable handling and good traction. Fast-rolling 29” OQUO Mountain Performance MP30LTD Carbon wheels deliver composure through rough terrain, helped by the excellent Maxxis Rekon tyres, 2.6" wide on the front and 2.4" on the rear.

A 12-speed Shimano XTR drivetrain meets the needs of the most demanding riders and the most extreme off-road conditions. Made as light yet strong as possible, the drivetrain shifts incredibly precisely and smoothly, and operation is silent thanks to Shadow Plus technology in the rear derailleur. With a 10-51t cassette, there are a wide range of gears, and the XTR hydraulic disc brakes are on hand for control on technical descents. With 140mm of FOX suspension travel, front and rear, the bike is aimed squarely at trail riders who enjoy the climbs and flat sections just as much as the descents, making it a great all-round option.

Browse our range of Orbea electric mountain bikes today.


  • Orbea Rise OMR carbon frame with Fox Float DPS Factory shock and 140mm of travel
  • Fox 34 Float Factory fork with 140mm of travel
  • Shimano XTR drivetrain and hydraulic disc brakes
  • OQUO Mountain Performance MP30LTD Carbon, tubeless-ready wheels and Maxxis tyres
  • Shimano EP8-RS motor and 360Wh battery

Battery Specifications

  • Maximum Assist: 250w / 60Nm torque / 25km/hour
  • Motor Weight: 2.7kg
  • Battery Power: 360wh

Technical Specification

Frame Orbea Rise Evo OMR 2023, 140mm travel, 29" wheels, Concentric Boost 12x148
Fork Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima, 140mm travel
Rear Shock Fox Float DPS Factory 3-Position Adjust Evol Kashima custom tune 210x55mm
Headset Alloy 1-1/2", Black Oxidated Bearing
Stem Orbea OC Mountain Control MC10 Alu SL, 0º
Handlebar Orbea OC Mountain Control MC10 carbon, Rise 20, Width 800
Front Brake Shimano XTR M9100, hydraulic disc
Rear Brake Shimano XTR M9100, hydraulic disc
Brake Levers Shimano XTR
Rear Derailleur Shimano XTR M9100 SGS Shadow Plus, 12-speed
Shift Levers Shimano XTR M9100
Chain Shimano CN-9100, 12-speed
Cassette Shimano XTR M9100, 10-51t, 12-speed
Crankset Shimano Steps EM900 / e*thirteen e*spec Direct Mount 32T Boost
Chainguide Orbea Rise
Front Wheel OQUO Mountain Performance MP30LTD Carbon, tubeless-ready
Rear Wheel OQUO Mountain Performance MP30LTD Carbon, tubeless-ready
Front Tyre Maxxis Rekon 2.60" 120 TPI 3CMaxxTerra Exo TLR
Rear Tyre Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR
Saddle Fizik Antares R1 142mm
Seatpost Fox Transfer SL Factory Kashima Dropper 31.6
Pedals Available to be purchased separately
Motor Shimano EP801-RS
UI/Remote Shimano EN600-L
Battery Orbea Internal 360Wh (Optional 540Wh Range Extender)
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Accessories Orbea OC FLP Multitool MT-20, Hex 2, 3, 4, 5
Electric assisted speed limit 15.5mph / 25kph

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.

Orbea Rise M-LTD FS Electric Mountain Bike 2023 Sizing
