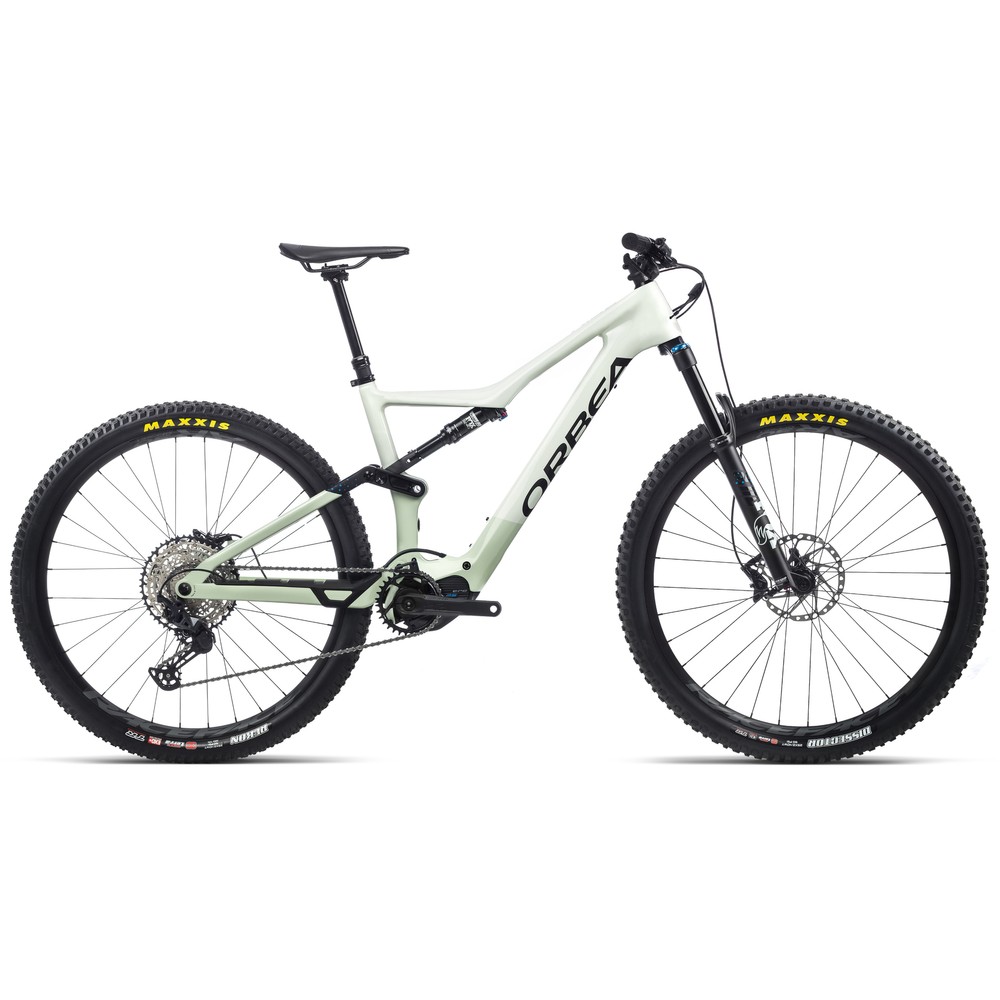

Orbea Rise M20 Electric Mountain Bike 2022

★★★★★ ★★★★★
(1)
£5,899.00

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1465695

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports cycle schemes
Cycle to Work Schemes

Save up to 47% with any one of our 11 Cycle to Work partners, and get the health benefits of a new bike in exchange for tax free salary sacrifice. To find out more about our various partners and how to apply click here.

Bike Delivery Options

Choose between Free Bike Delivery - to your home or place of work - or our new Premier Bike Delivery Service £99.99 and have your bike delivered "ready to ride" and set up to your measurements with seatpost and pedals adjusted on arrival by a qualified bike mechanic. Either way, our Customer Care team will be in touch to arrange a delivery date to suit you.

laka insurance
Laka Insurance

We've partnered with Laka to offer you 30 days free bike Insurance on your new bike purchase over £400. Click here for more info and find out how to claim.

Orbea Rise M20 Electric Mountain Bike 2022

Splitting the difference between a full-power electric bike and a traditional model, the Orbea Rise M20 Electric Mountain Bike offers sublime handling with a twist of assisted power, making it a potent formula for unbridled fun on the trail. The Shimano EP8 motor system and integrated 360Wh battery see a low-profile footprint, keeping the weight low and the bike manoeuvrable on twisty singletrack.

Providing 60Nm of power, the motor is no slouch with assistance up to 15.5 mph / 25 km/h, and the custom tune sees it delivered in a natural way that doesn’t disrupt the feel of the bike. The Shimano E7000 ensures total control over the assistance settings, and the fast-rolling 29” Race Face AR 30c wheels deliver composure through rough terrain, helped by the excellent Maxxis Rekon and Dissector tyres.

The 12-speed Shimano SLX drivetrain has a 10-51t cassette to help with steep climbs and M6100 hydraulic disc brakes are on hand for control on technical descents. With 140mm of plush FOX suspension travel at either end, the bike is aimed squarely at trail riders who enjoy the climbs and flat sections just as much as the descents, making it a great all-round option

Browse our range of Orbea electric mountain bikes today.

Highlights

  • Orbea Rise OMR Carbon frame with FOX Float DPS Performance and140mm of travel
  • FOX 34 Float Performance fork with 140mm of travel
  • Shimano SLX drivetrain and M6100 hydraulic disc brakes
  • Race Face AR 30c tubeless-ready wheels and Maxxis tyres
  • Shimano EP8-RS motor and 360Wh battery

Battery Specifications

  • Maximum Assist: 250w / 60Nm torque / 25km/hour
  • Motor Weight: 2.6kg
  • Battery Power: 360wh

Technical Specification

Frame Orbea Rise OMR Carbon,140mm travel, 29" wheels, C-Boost 12x148 axle
Fork FOX 34 Float Performance 140 3-Position QR15x110, 140mm travel
Rear Shock FOX Float DPS Performance 3-Position Evol custom tune 210x55mm
Stem Orbea OC1 3D Forged 35mm interface 7º
Handlebar Orbea OC1 35mm 12mm rise 780mm
Front Brake Shimano M6100, hydraulic disc
Rear Brake Shimano M6100, hydraulic disc
Brake Levers Shimano M6100
Rear Derailleur Shimano SLX M7100 SGS Shadow Plus, 12-speed
Shift Levers Shimano SLX M7100 I-Spec EV, 12-speed
Chain Shimano M6100, 12-speed
Cassette Shimano CS-M7100 10-51t 12-speed
Crankset e*thirteen Plus Alu 165mm 32t
Front Wheel Race Face AR 30c, 15x110mm, tubeless-ready
Rear Wheel Race Face AR 30c, 12x148mm, tubeless-ready
Front Tyre Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR, tubeless-ready, clincher
Rear Tyre Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR, tubeless-ready, clincher
Saddle Fizik Taiga S-alloy rail
Seatpost Orbea OC Mountain Control MC20, 31.6mm, Dropper
Pedals Available to be purchased separately
Motor Shimano EP8-RS
UI/Remote Shimano E7000 switch unit, Shimano EW-EN100 Junction
Battery Orbea RS Internal 360Wh
Accessories Orbea RS Charger (36V-2A)
Electric assisted speed limit 15.5 mph / 25 km/h

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
