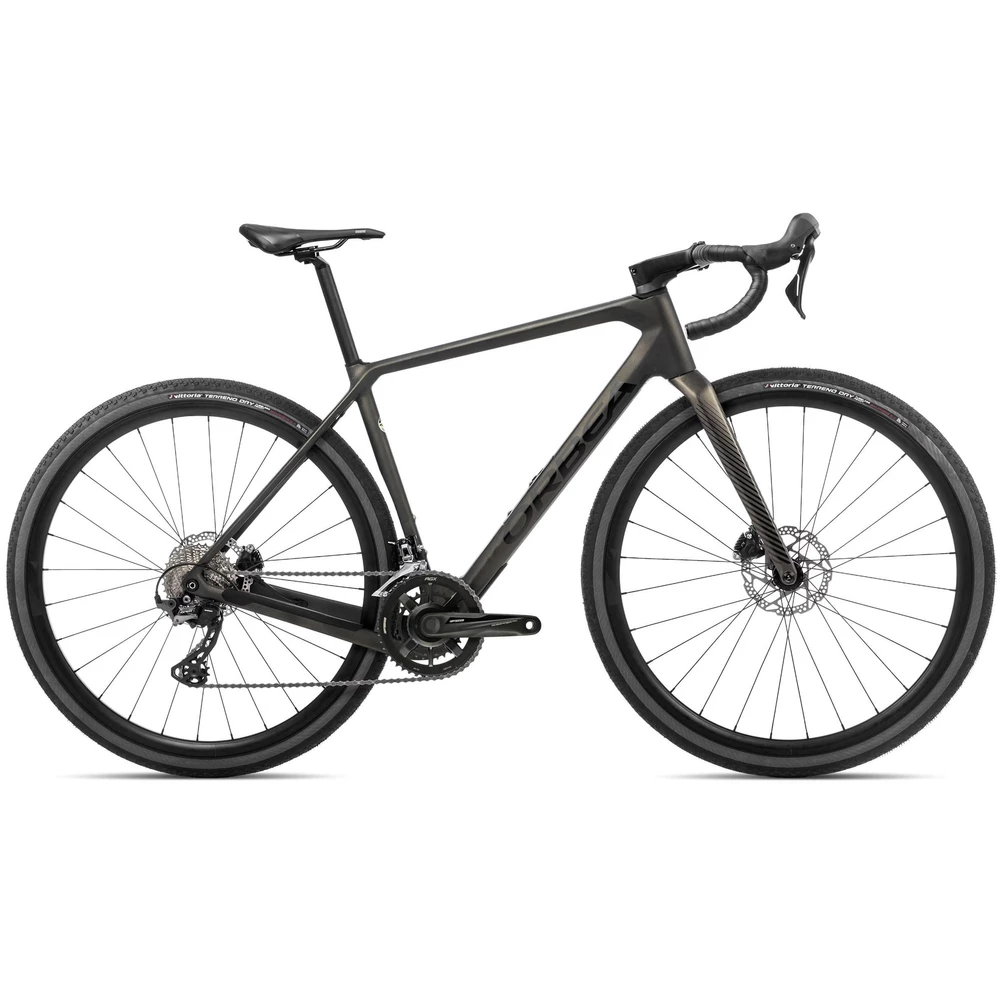

Orbea Terra M30TEAM Gravel Bike 2023

The highly versatile Orbea Terra M30TEAM Gravel Bike pairs an advanced monocoque OMR carbon frame with an OMR carbon fork that has longer legs and a rounded blade profile, for torsional stiffness, compliance and wide 700c x 45c/650b x 50c tyre clearance. This isn't simply a repurposed road bike, but one designed specifically for gravel adventures, where control and comfort are prioritised, and gravel-specific geometry creates a balanced ride with precise handling. An OC gravel handlebar with a flared design further improves control and the extra width adds leverage when out of the saddle on steep climbs.

The frame utilises LOCKR; a storage area inside the downtube with space for an inner tube, pump, CO2 cartridge, tools, or whatever you need, so you can carry more or keep your pockets light. There are mounting points for mudguards and up to three bottles, keeping you protected and hydrated when necessary.

Designed to eliminate chain slap for a near-silent ride, the GRX-mix 11-speed drivetrain features a rear derailleur with an integrated stabiliser mechanism, providing additional chain security on rough terrain. Hydraulic disc brakes offer phenomenal stopping power and excellent modulation, while the strong wheels fitted with 38c Vittoria Terreno Dry Gravel tyres enhance comfort and traction when riding on looser surfaces.


  • Versatile gravel-specific geometry
  • OMR carbon frame
  • Full OMR carbon fork damps vibration to reduce fatigue on rough terrain
  • Wide 700c x 45c/650b x 50c tyre clearance allows the use of different tyre widths to suit the terrain
  • Integrated mudguard mounts offer all-weather protection
  • 11-speed Shimano GRX-mix groupset is reliable and supplies excellent chain retention
  • Shimano RX400 hydraulic disc brakes for all-condition stopping power

Technical Specification

Frame Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, power meter compatible, thru-axle 12mm x 142mm rear, thread M12x2 P1, internal cable routing, LOCKR service box
Fork Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, thru-axle 12x100mm, thread M12x2 P1
Headset FSA 1-1/2" integrated aluminium cup
Stem Orbea OC Road Performance RP21, -6º
Handlebar Orbea OC Gravel GR30, reach 80, drop 125
Front Brake Shimano RX400, hydraulic disc
Rear Brake Shimano RX400, hydraulic disc
Brake Levers Shimano ST-RX600, hydraulic disc
Front Derailleur Shimano GRX RX810
Rear Derailleur Shimano RD-RX810, 11-speed
Shift Levers Shimano ST-RX600, 11-speed
Cassette Shimano 105 R7000 11-34t, 11-speed
Crankset FSA Gossamer Pro Direct Mount AGX 30x46t
Chain Shimano HG 601
Front Wheel Orbea-approved, alloy, tubeless, 700c, 21c
Rear Wheel Orbea-approved, alloy, tubeless, 700c, 21c
Front Tyre Vittoria Terreno Dry CX Gravel G2.0 TNT, 700x38c, clincher
Rear Tyre Vittoria Terreno Dry Gravel G2.0 TNT, 700x38c, clincher
Saddle Prologo Akero AGX STN, width 155mm
Seatpost Orbea-approved carbon, 27.2, setback 20mm
Pedals Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
