Orbea Wild FS H10 Electric Mountain Bike 2022


Select a colour and size to view stock availability

Wild FS H10 Electric Mountain Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1466492

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

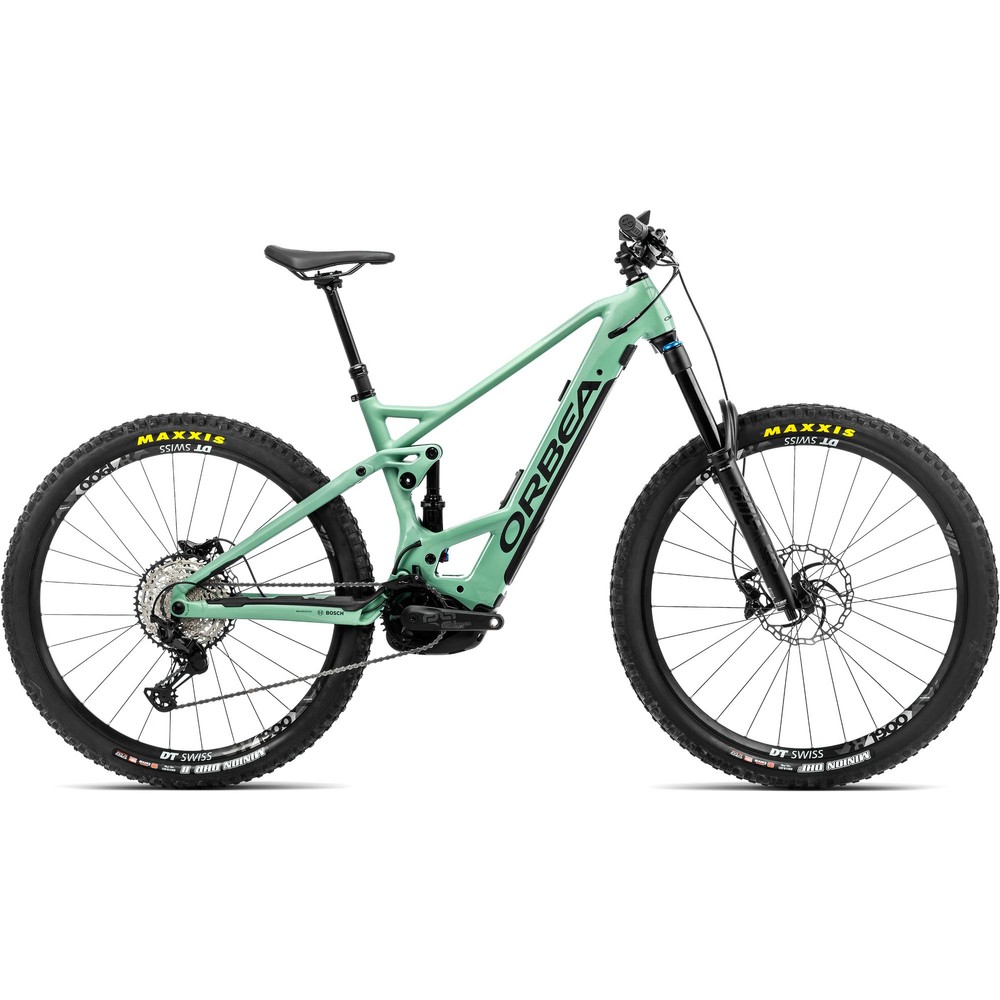

Orbea Wild FS H10 Electric Mountain Bike 2022

With its durable aluminium frame and high-spec components, the Orbea Wild FS H10 Electric Mountain Bike delivers a ride experience that few other bikes can match at this price point. Fast and fun, it features the Bosch Performance CX Cruise motor system and a high-capacity 625Wh battery, making it suitable for all-day riding on steep climbs.

Mirroring the geometry found on the much-praised carbon models, this bike offers a confident ride feel owing to its slack head angle and long, stable wheelbase. Wide bars and a short stem offer pinpoint control, and the 29” wheels roll fast over obstacles without hangup.

The DT Swiss wheels are durable, and a Shimano 12-speed drivetrain complements the motor, offering a wide range of gears to conquer all gradients. Stepping up from the H20 and H30 models, the H10 features a FOX 38 Performance fork and DPS Performance shock to deliver incredible traction and 160mm of plush, forgiving suspension.

Browse our range of Orbea electric mountain bikes today.


  • Powerful Bosch Performance CX Cruise motor system
  • High-capacity 625Wh battery
  • E-Thirteen Plus 160mm cranks
  • Shimano 12-speed drivetrain
  • Shimano four-piston brakes
  • FOX 38 Float Performance 160mm GRIP fork, Float DPS Performance rear shock
  • OC Key Holder steerer tube battery key storage
  • Tough DT Swiss HX-1900 Spline wheelset
  • Bosch KIOX display unit

Battery Specifications

  • Maximum Assist: 250w / 65Nm torque
  • Motor Weight: 2.9kg
  • Battery Power: 625wh

Technical Specification

Frame Orbea Full Suspension, hydroformed alloy, 160mm travel, boost 12x148 spacing
Fork FOX 38 Float Performance 160, Grip 3-Position, QR15x110, e-bike optimised
Rear Shock FOX Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
Headset Orbea OC Key Holder
Handlebar Orbea OC1 35mm, 12mm Rise, 780mm
Stem Orbea OC1 3D Forged, 35mm interface, 7º
Front Brake Shimano M420, hydraulic disc
Rear Brake Shimano M420, hydraulic disc
Brake Levers Shimano M420
Rear Derailleur Shimano XT M8100 SGS Shadow Plus, 12-speed
Shift Levers Shimano Deore M6100 I-Spec EV, 12-speed
Chain Shimano M6100
Cassette Shimano CS-M7100, 10-51t, 12-speed
Crankset E-Thirteen Plus Alu 160mm
Front Wheel DT Swiss H-1900 Spline 30c TLR, 29", tubeless-ready
Rear Wheel DT Swiss H-1900 Spline 30c TLR, 29", tubeless-ready
Front Tyre Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR, tubeless-ready, clincher
Rear Tyre Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR, tubeless-ready, clincher
Saddle Selle Royal Vivo
Seatpost Orbea OC MC20 Mountain Control Dropper, 31.6mm
Pedals Available to be purchased separately
Motor Bosch Performance CX Cruise (25km/h) BDU450CX
Battery Bosch Powertube 625Wh Horizontal BBP290
Display/UI Bosch KIOX display unit
Accessories Compact Charger 2A (100-240V) Worldwide
Electric assisted speed limit 15.5 mph / 25 km/h

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.

Orbea Wild FS H10 Electric Mountain Bike 2022 Sizing
