Orbea Wild FS M10 Electric Mountain Bike 2022


Need help choosing an electric bike?

Our Kingston electric bike store team are here to help you. Email kingstonsales@sigmasports.com or call 0333 006 8833

Select a colour and size to view stock availability

Wild FS M10 Electric Mountain Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1466571

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

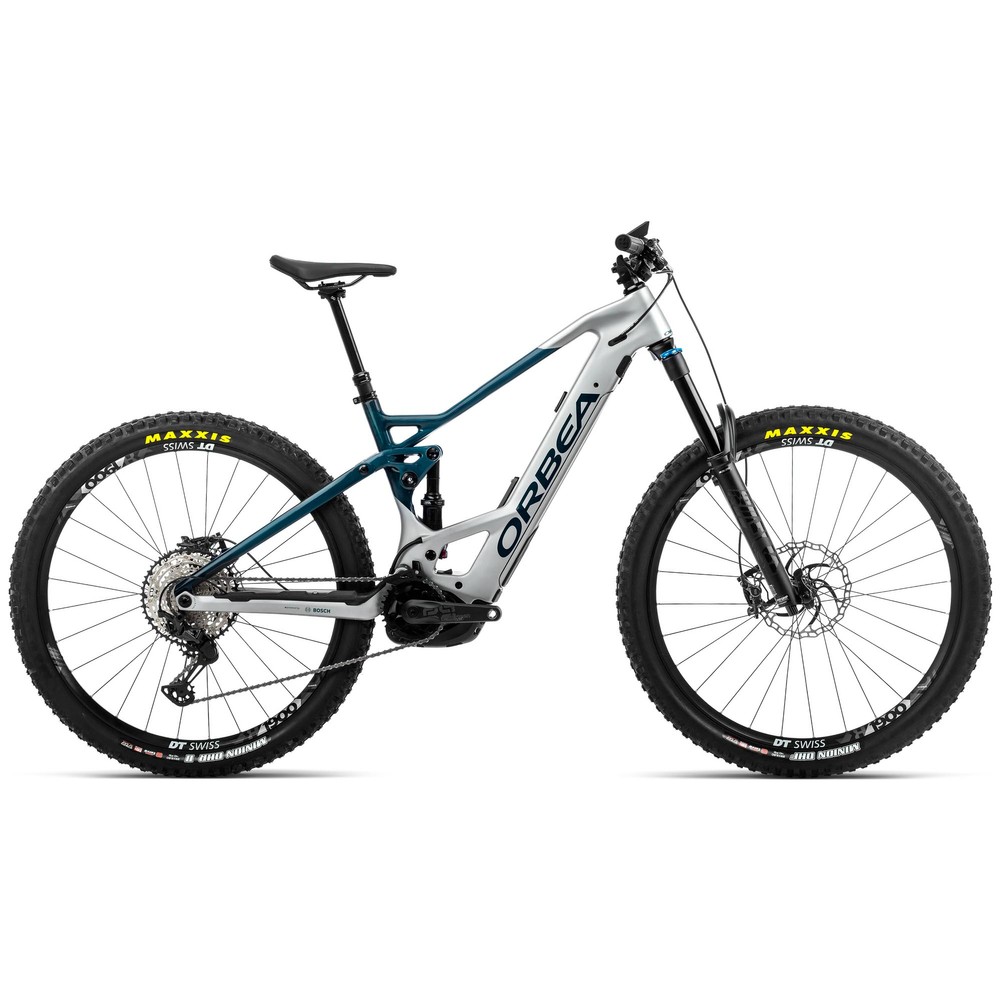

Orbea Wild FS M10 Electric Mountain Bike 2022

Engineered to be your ideal companion for long days on harsh terrain, the Orbea Wild FS M10 Electric Mountain Bike uses its 160mm suspension and powerful Bosch motor system to enhance your enduro rides. Confident and fun to ride, the geometry gifts the user a stable yet manageable platform, ideal for rowdy backcountry rides and bike-park features. This bike delivers on all levels, with its premium specification offering durable, lasting, future-proof performance.

Integrated neatly into the carbon frame is a 635Wh Bosch Powertube battery, which sees enough juice to assist on long, high-elevation rides. The Performance CX Cruise motor creates a reduced footprint compared to others in the lineup without sacrificing the torque needed to shred your way back to the top.

Offering supreme traction on loose terrain, the FOX suspension package is optimised for the additional weight of a motor and battery, making it perfect for aggressive riding. The DT Swiss wheelset is stiff and durable and is clad in Maxxis rubber to provide confident grip on any trail, while the Shimano drivetrain and four-piston brakes offer superior control across any landscape.

Browse our range of Orbea electric mountain bikes today.


  • Powerful Bosch Performance CX Cruise motor system
  • High-capacity 625Wh battery
  • E-Thirteen Plus 160mm cranks
  • Reliable Shimano 12-speed drivetrain
  • Powerful Shimano XT four-piston brakes
  • FOX 38 Float Performance 160mm fork, Float DPX2 rear shock
  • OC Key Holder steerer tube battery key storage
  • Tough DT Swiss H-1900 Spline wheelset
  • Bosch KIOX display unit

Battery Specifications

  • Maximum Assist: 250w / 65Nm torque
  • Motor Weight: 2.9kg
  • Battery Power: 625wh

Technical Specification

Frame Orbea Wild Full Suspension, carbon, 160mm travel, FiberLink, carbon battery cover, boost 12x148 rear spacing
Fork FOX 38 Float Performance 160, Grip 3-Position, QR15x110, e-bike optimised
Rear Shock FOX Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
Headset Orbea OC Key Holder
Handlebar Race Face Aeffect 35, 20mm rise, 780mm width
Stem Race Face Aeffect R 35mm interface
Front Brake Shimano XT M8120, hydraulic disc
Rear Brake Shimano XT M8120, hydraulic disc
Brake Levers Shimano XT M8120
Rear Derailleur Shimano XT M8100 SGS Shadow Plus, 12-speed
Shift Levers Shimano Deore M6100 I-Spec EV, 12-speed
Chain Shimano M6100
Cassette Shimano CS-M7100, 10-51t, 12-Speed
Crankset E-Thirteen Plus Alu 160mm
Front Wheel DT Swiss H-1900 Spline 30c TLR, 29", tubeless-ready
Rear Wheel DT Swiss H-1900 Spline 30c TLR, 29", tubeless-ready
Front Tyre Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR, tubeless-ready, clincher
Rear Tyre Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR, tubeless-ready, clincher
Saddle Fizik Aidon 208x145mm manganese rail
Seatpost Orbea OC MC20 Mountain Control Dropper, 31.6mm
Pedals Available to be purchased separately
Motor Bosch Performance CX Cruise (25km/h) BDU450CX
Battery Bosch Powertube 625Wh Horizontal BBP290
Display/UI Bosch Display unit KIOX Black
Accessories Compact Charger 2A (100-240V) Worldwide
Electric assisted speed limit 15.5 mph / 25 km/h

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
