Orbea Wild Full Suspension M10 29" Electric Mountain Bike 2021

★★★★★ ★★★★★
(0)

This item is no longer available to buy. View similar products.

Product ID: 1234369

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports cycle to work scheme
Cycle to Work Scheme

Cyclescheme can save you up to 39% on a bike and accessories. Visit our Cycle to Work Scheme page to learn more and claim.

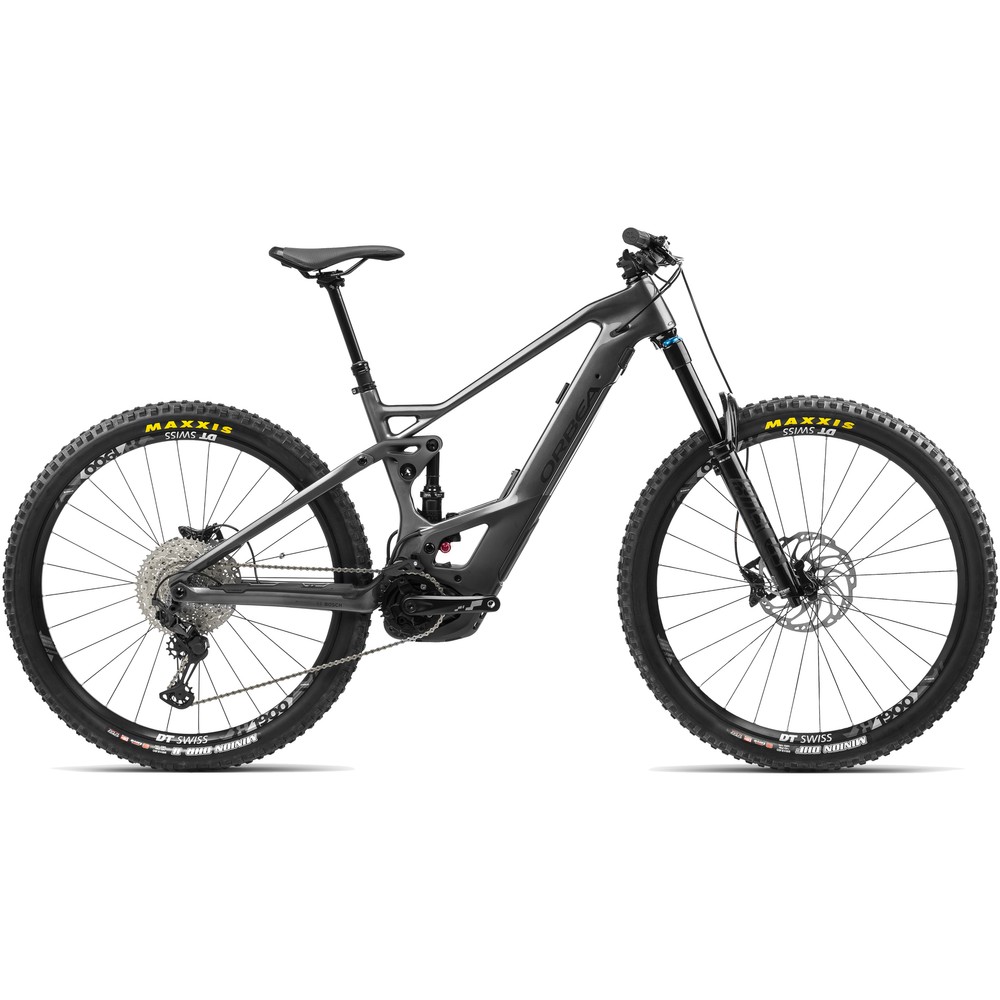

Orbea Wild Full Suspension M10 29" Electric Mountain Bike 2021

Built strong and designed for rowdy trail rides, the Orbea Wild Full Suspension M10 29" Electric Mountain Bike fills you with confidence on even the most technical trails. The powerful Bosch Bosch Performance CX Cruise motor system packs a punch on hills and flat sections, and the high-capacity 625Wh Powertube battery delivers the power you need to explore further than ever before.

The full carbon construction is lightweight and durable, and sees modern geometry to deliver an exciting and capable ride character. A carbon cover protects the battery from impact and uses a locking dial to ensure easy access to the battery when needed. Unique to the Orbea range, the Abus battery lock key is neatly housed in the steerer tube, so you will never leave home without it. 29" wheels are the new standard, and provide a fast, stable platform that quickly rolls over rough terrain, providing a higher top-speed than their 27.5" counterparts.

With rugged-performance in mind, the M10 build kit is highly durable without sacrificing functionality. The FOX 38 Float Performance fork is built for the impacts associated with enduro mountain biking and is paired with a FOX DPX2 air shock in the rear for control and grip on any surface. A 12-speed Shimano drivetrain sees reliable shifting all year round, and the classic Maxxis DHF/DHR II tyre combination offers claw-like grip in all conditions.

Highlights

  • Powerful Bosch Performance CX Cruise motor system
  • High-capacity 625Wh battery
  • E-Thirteen Plus 160mm cranks
  • Shimano 12-speed drivetrain
  • Shimano four-piston brakes
  • FOX 38 Float Performance 160mm fork, Float DPX2 rear shock
  • OC Key Holder steerer tube battery key storage
  • Tough DT Swiss H-1900 Spline wheelset
  • Bosch KIOX display unit

Battery Specifications

  • Maximum Assist: 250w / 85Nm torque
  • Motor Weight: 2.9kg
  • Battery Power: 625wh

Technical Specification

Frame Orbea Wild Full Suspension, carbon, 160mm travel, FiberLink, carbon battery cover, boost 12x148 rear spacing
Fork FOX 38 Float Performance 160, Grip 3-Position, QR15x110, e-bike optimised
Rear Shock FOX DPX2 Performance, Trunnion, Comp Adjust, Evol LV, custom tune 205x65mm
Headset Orbea OC Key Holder
Handlebar Race Face Aeffect 35, 20mm rise, 780mm width
Stem Race Face Aeffect R 35mm interface
Front Brake Shimano M420, hydraulic disc
Rear Brake Shimano M420, hydraulic disc
Brake Levers Shimano M420
Rear Derailleur Shimano XT M8100 SGS Shadow Plus, 12-speed
Shift Levers Shimano Deore M6100 I-Spec EV, 12-speed
Chain KMC e12 Turbo Silver
Cassette Shimano CS-M8100, 10-51t, 12-speed
Crankset E-Thirteen Plus Alu 160mm
Front Wheel DT Swiss H-1900 Spline 30c TLR, 29", tubeless-ready, 15x110mm
Rear Wheel DT Swiss H-1900 Spline 30c TLR, 29", tubeless-ready, 12x142mm
Front Tyre Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR, tubeless-ready, clincher
Rear Tyre Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR, tubeless-ready, clincher
Saddle Selle Royal Vivo
Seatpost Orbea OC2 Dropper 31.6mm
Pedals Available to be purchased separately
Motor Bosch Performance CX Cruise (25km/h) BDU450CX
Battery Bosch Powertube 625Wh Horizontal BBP290
Display/UI Bosch Display unit KIOX Black
Accessories Compact Charger 2A (100-240V) Worldwide, Shimano SL-MT500 I-Spec EV remote lockout

Orbea Wild Full Suspension M10 29" Electric Mountain Bike 2021 Sizing
