Description

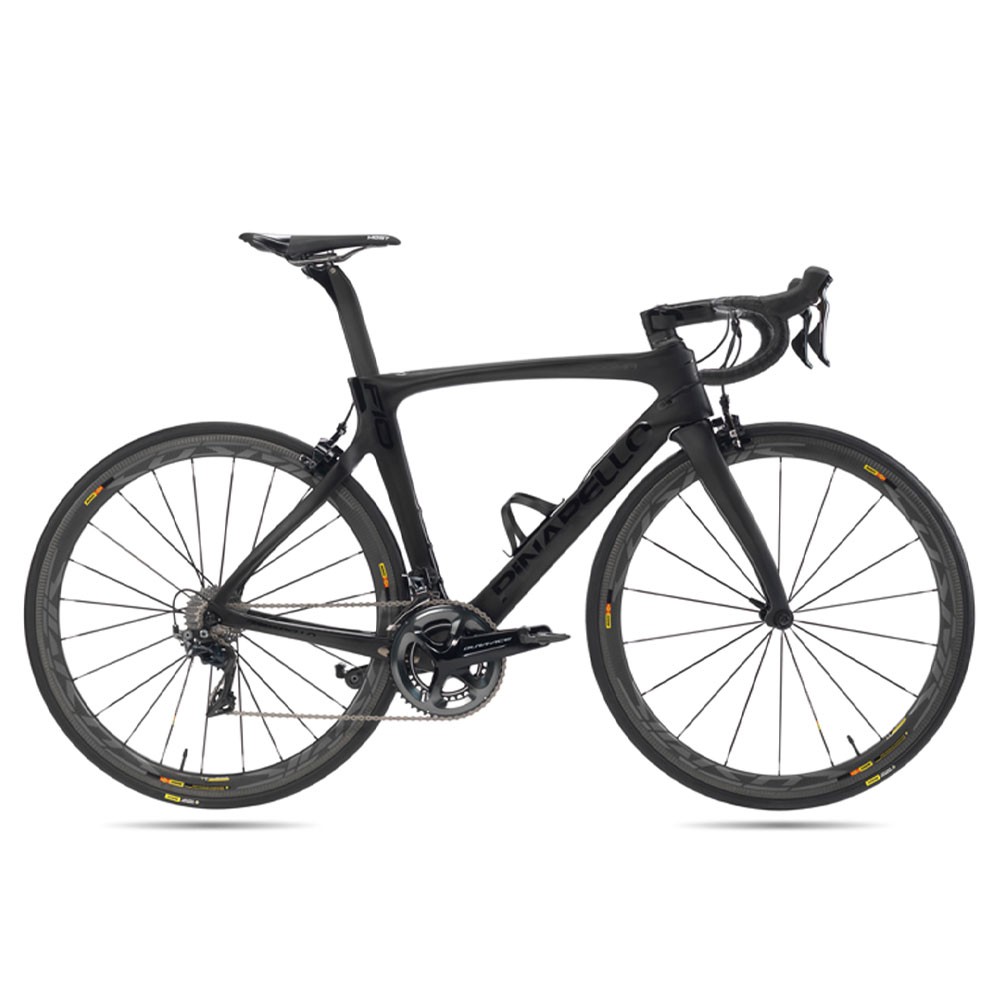

Pinarello Dogma F10 Dura-Ace Road Bike 2019
The Pinarello Dogma F10 Dura-Ace Road Bike combines Shimano’s top mechanical groupset with Pinarello’s highly successful pro-level F10 frameset with multiple Grand Tour victories under its belt. The Torayca T1100 1K Dream Carbon frame has a number of wind-cheating features, including Flatback tubing on the downtube to shelter the bottle cages and the ForkFlap which works to smooth airflow around the dropout. Internal cable routing also aids aerodynamics and gives the bike a clean, efficient look.
Shimano’s Dura-Ace groupset needs little introduction. Sitting at the top of the mechanical tree it is manufactured to fine tolerances using a mixture of carbon, titanium and alloy to provide brilliant, light and precise performance whether its shifting gear under load on a climb or slowing things down before an alpine hairpin. The 40mm deep carbon Mavic Cosmic Pro Carbon SL wheelset complements the frame perfectly, offering a distinct aerodynamic advantage over shallower rims and with the option to run them tubelessly with the supplied Yksion Pro UST tyres if so desired.
Features
- Pinarello Carbon Torayca T1100 1K Dream Carbon frame
- Shimano Dura-Ace mechanical 11-speed groupset
- Mavic Cosmic Pro Carbon SL wheelset
Technical Specification
| FRAME | Pinarello Carbon Torayca T1100 1K Dream Carbon |
| FORK | Pinarello Onda F10 with ForkFlap™ |
| STEM | MOST |
| HANDLEBAR | MOST |
| FRONT BRAKE | Shimano Dura-Ace 9100 calliper |
| REAR BRAKE | Shimano Dura-Ace 9100 calliper |
| BRAKE LEVERS | Shimano Dura-Ace 9100 calliper |
| FRONT DERAILLEUR | Shimano Dura-Ace 9100 |
| REAR DERAILLEUR | Shimano Dura-Ace 9100 11-speed |
| SHIFT LEVERS | Shimano Dura-Ace 9100 11-speed |
| CASSETTE | Shimano Dura-Ace 9100 11-speed cassette 11-28t |
| CRANKSET | Shimano Dura-Ace 9100 - HollowTech II 52/36t |
| FRONT WHEEL | Mavic Cosmic Pro Carbon SL clincher |
| REAR WHEEL | Mavic Cosmic Pro Carbon SL clincher |
| FRONT TYRE | Mavic Yksion Pro UST |
| REAR TYRE | Mavic Yksion Pro UST |
| SADDLE | MOST |
| SEATPOST | MOST Carbon Aero |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
