Final Few

Pinarello

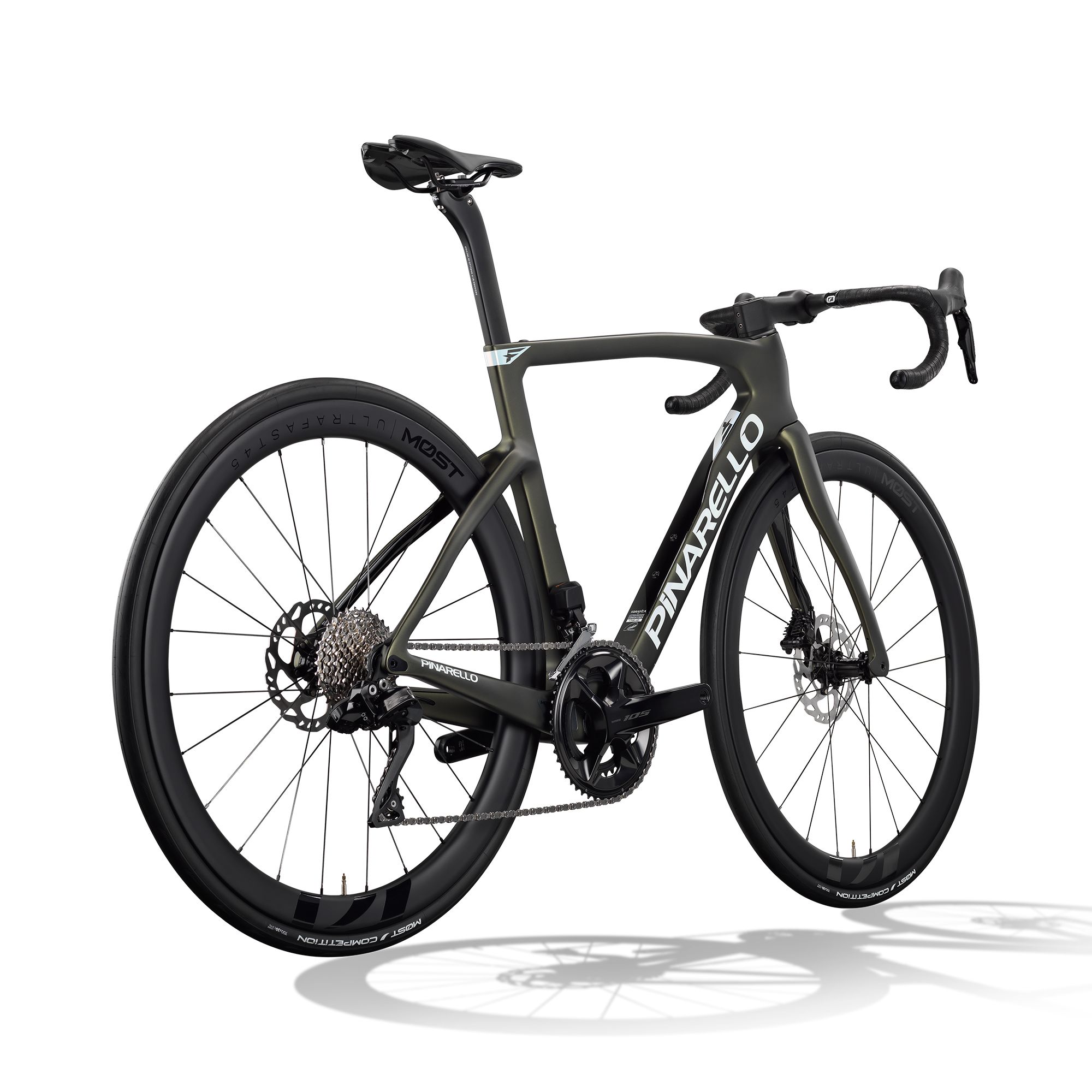

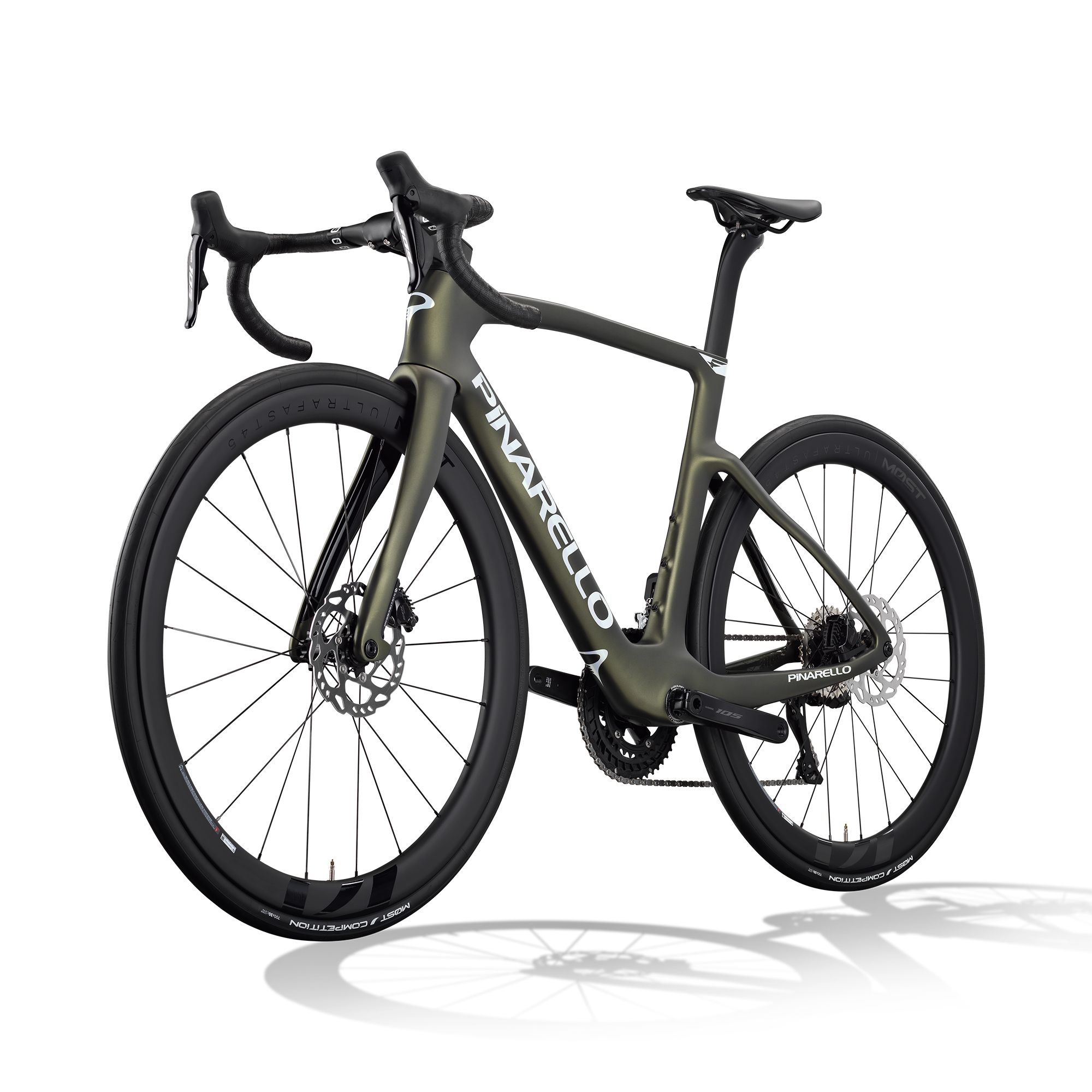

Pinarello F5 105 Di2 Road Bike 2026

£5,000.00

The Pinarello F5 Road Bike combines advanced engineering with all-round performance, delivering Dogma F-inspired race geometry, aerodynamic efficiency and a perfect balance of speed, comfort and value at a more accessible level.

Delivery

Select size to see delivery options

Collect in Store

Cycle to Work – Save up to 42%

Spread the cost of your new bike and save up to 42% through the Cycle to Work scheme. We accept all major providers including Cyclescheme, Green Commute Initiative, Bike2Work and more.
We do not accept Halfords Cycle2Work or Evans Cycles Ride-to-Work Scheme vouchers.
Check with your employer for eligibility.

Free Delivery on all bikes

Complimentary standard delivery on all bikes to UK mainland addresses. Orders typically arrive within 2–5 working days. A signature is required on delivery. When you receive your bike all you'll need to do is unpack it, attach your pedals, turn the handlebars and ride.

Premier Delivery

Upgrade to Premier Delivery at checkout for a nominated day, extended assembly and in-home handover by a trained technician. Available on eligible bikes across UK mainland.

Built, checked, tuned & tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Pedals & accessories

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team

You May Also Need

Vel
9 Piece Hex Key Set
£6.00
£15.00
Castelli
Entrata 2 Jacket
£93.00
£220.00
Shimano
PD-GR500 MTB Flat Pedals
£49.00
£70.00

Product Details

Pinarello F5 105 Di2 Carbon Road Bike 2026

The Pinarello F5 Road Bike combines advanced engineering with all-round performance, making it an ideal choice for riders seeking a race-ready machine with a perfect balance of speed, comfort, and value. Inspired by the Dogma F, it delivers proven race geometry and aerodynamic efficiency at a more accessible level.

Pinarello Frame and Design

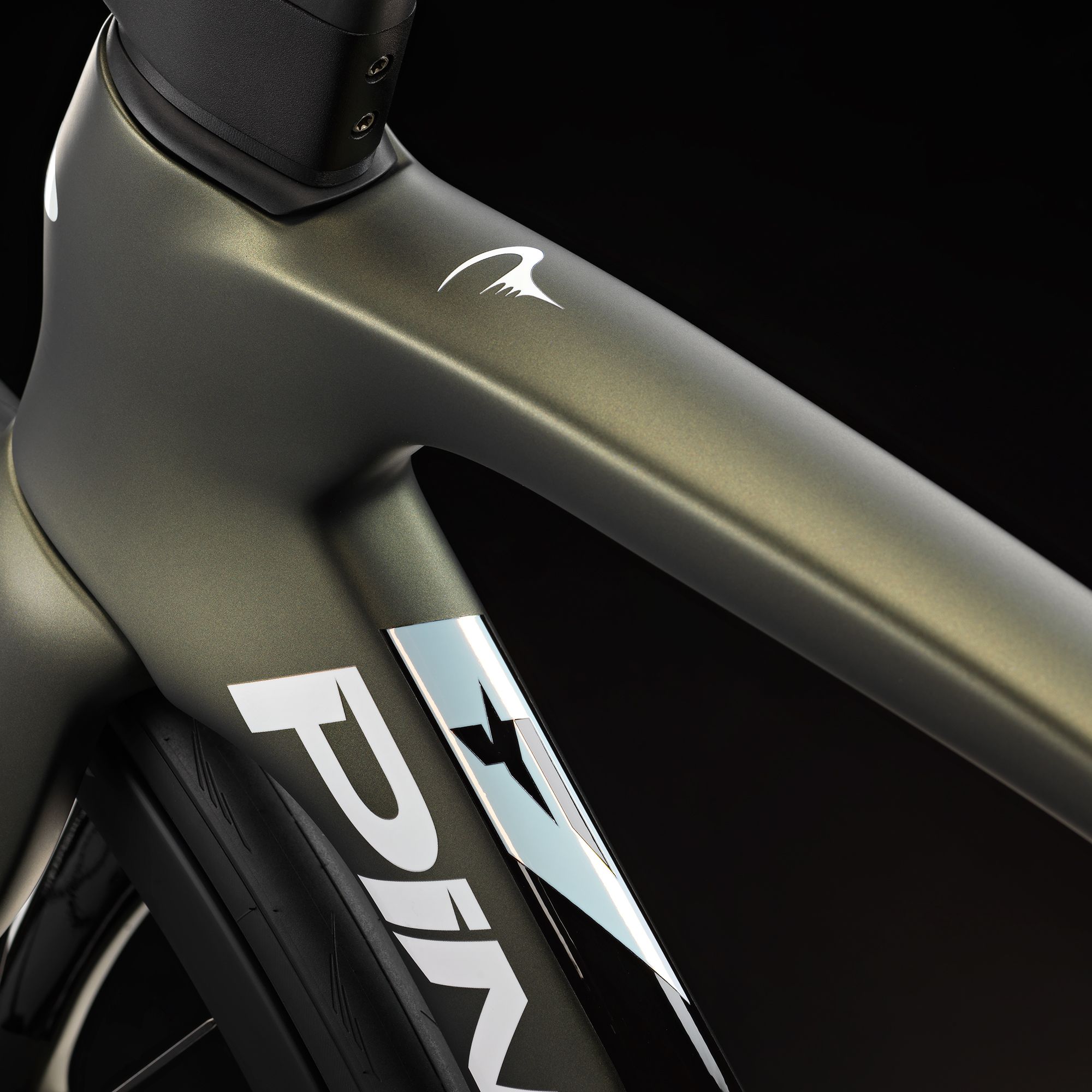

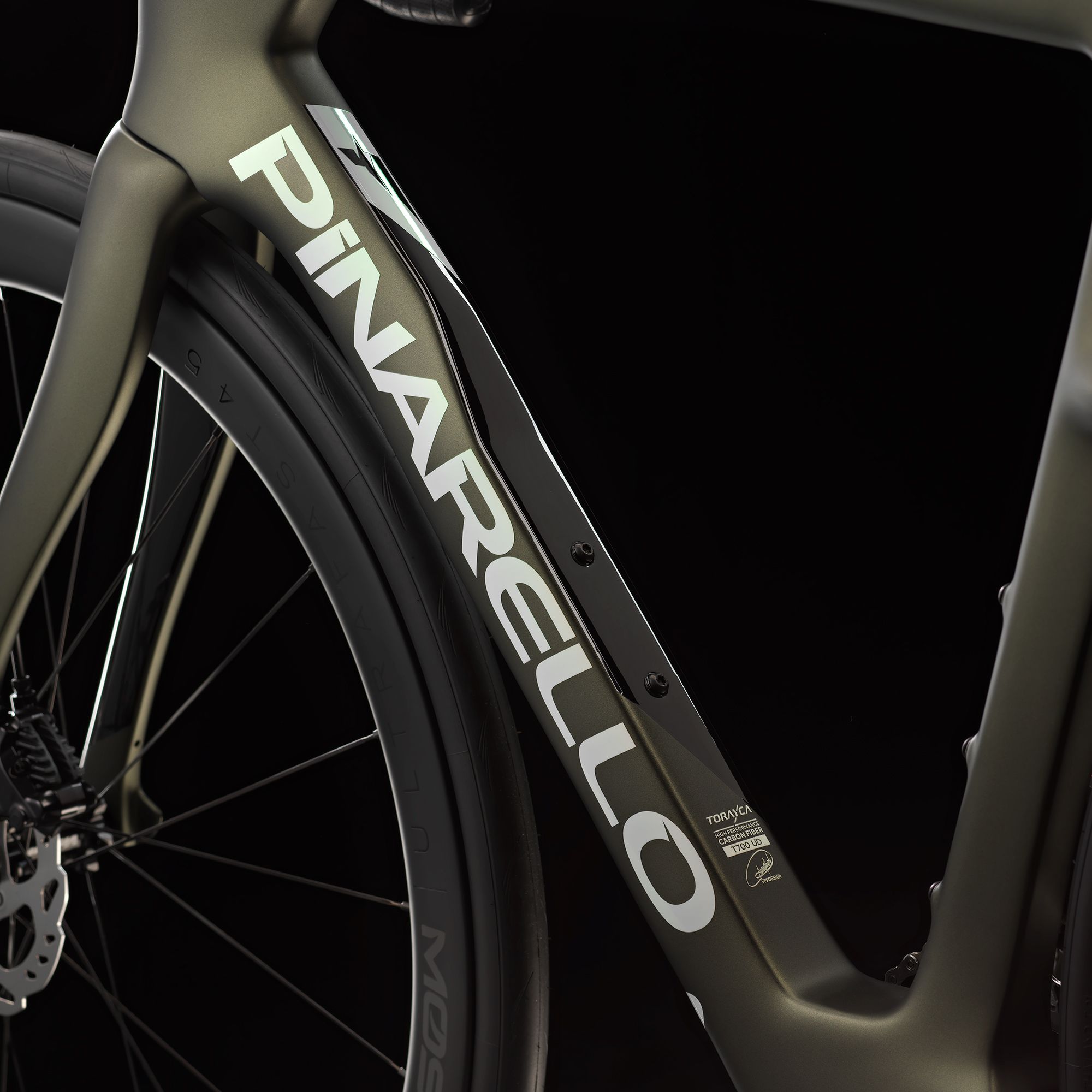

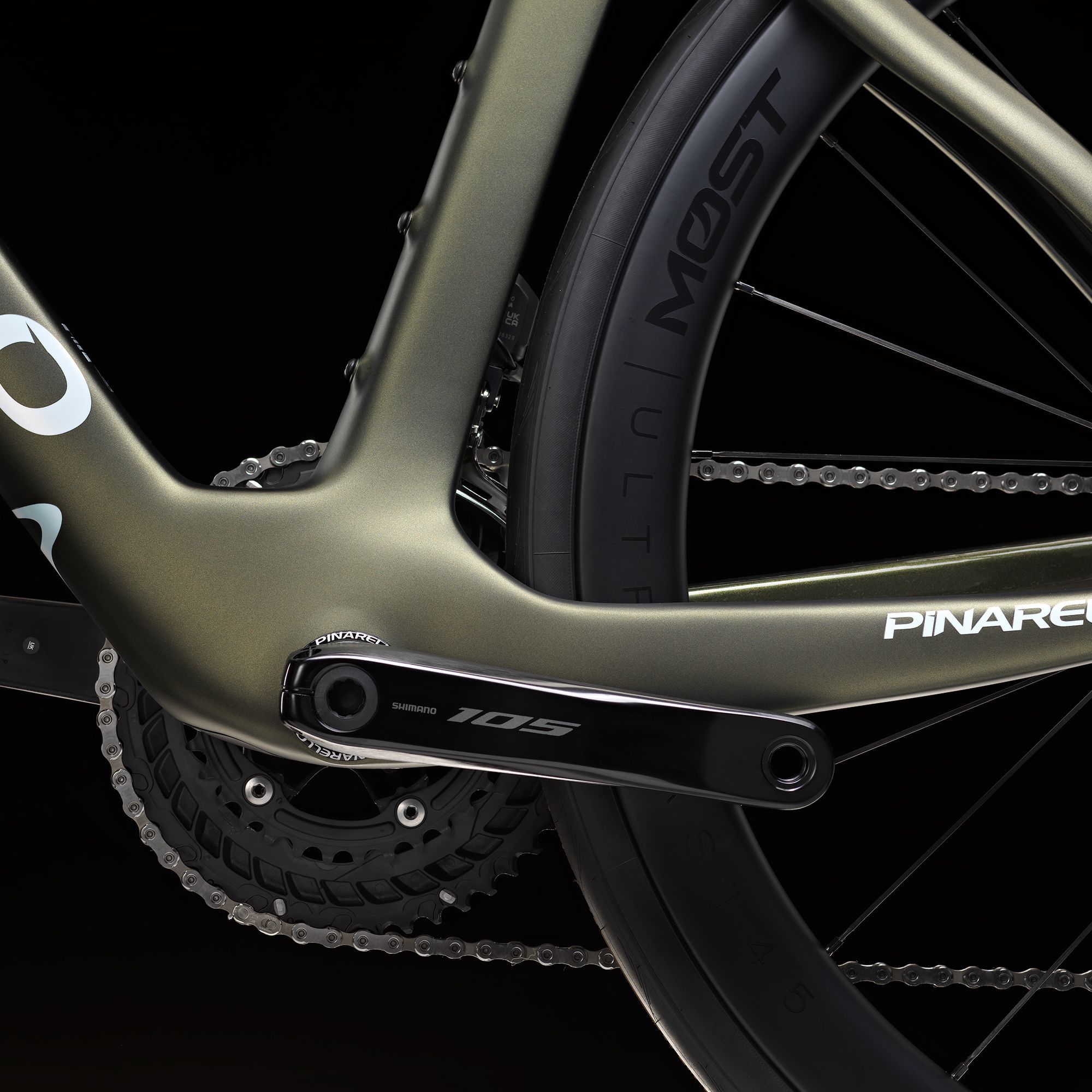

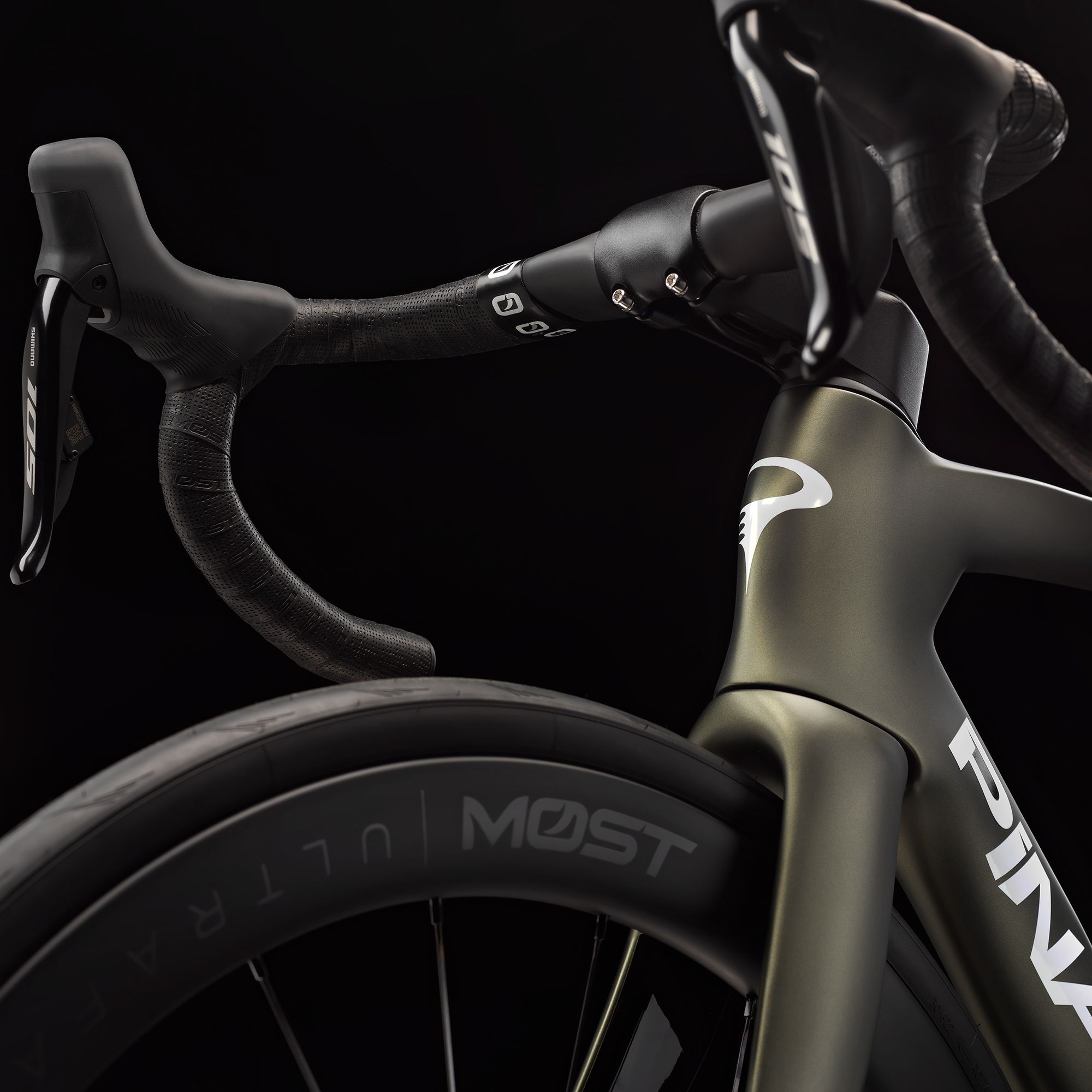

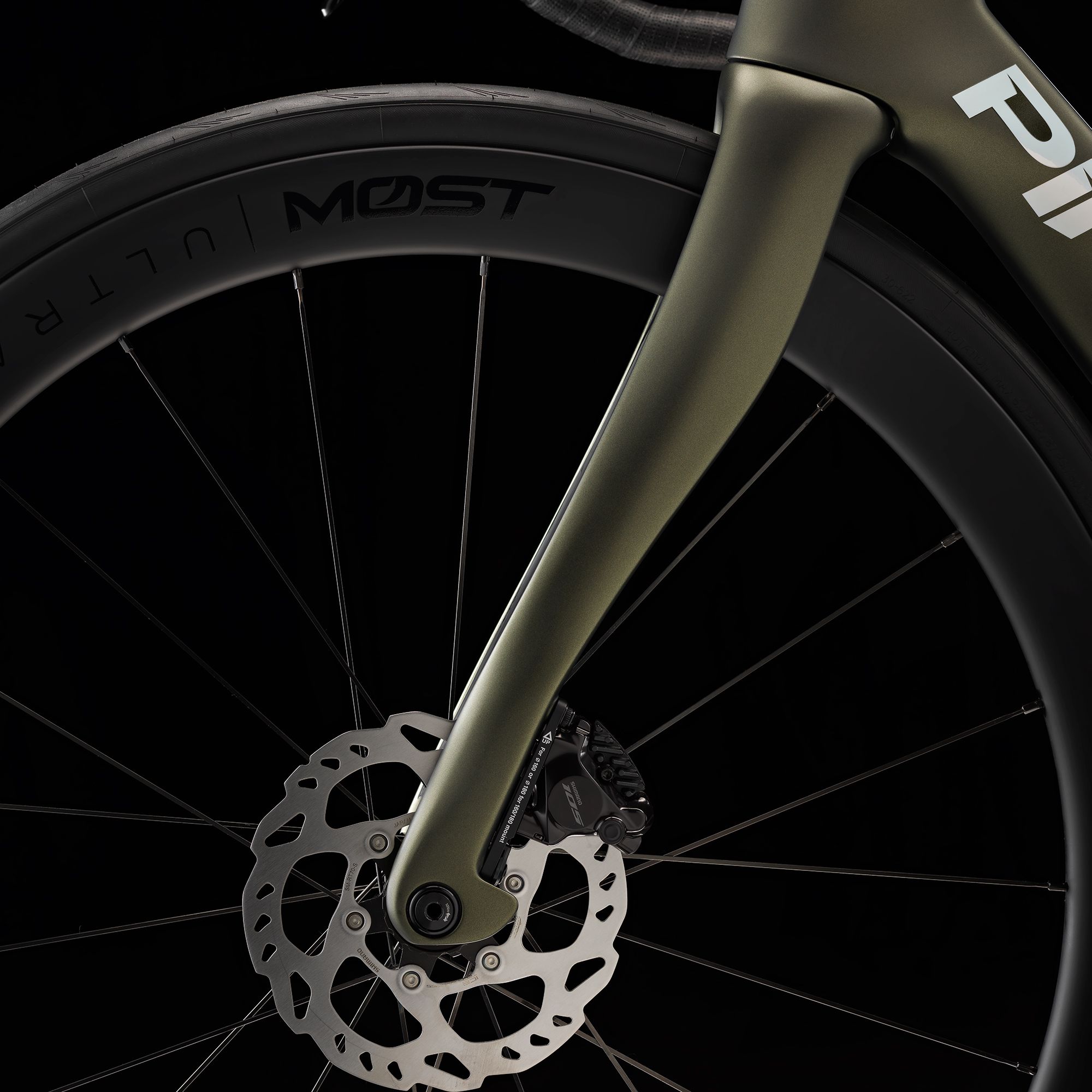

Built from T700 carbon, the F5 provides excellent responsiveness and performance while absorbing road vibrations for greater comfort on long rides. The updated frame design includes a lighter E-TICR headset with improved cable routing, a new aerodynamic headtube, and a redesigned ONDA fork for enhanced stability and speed on descents. The compact Aero KEEL bottom bracket improves stiffness and allows for tyre clearance up to 32mm, while the integrated seat clamp offers a clean appearance and improved protection from sweat and dust.

F5 Components

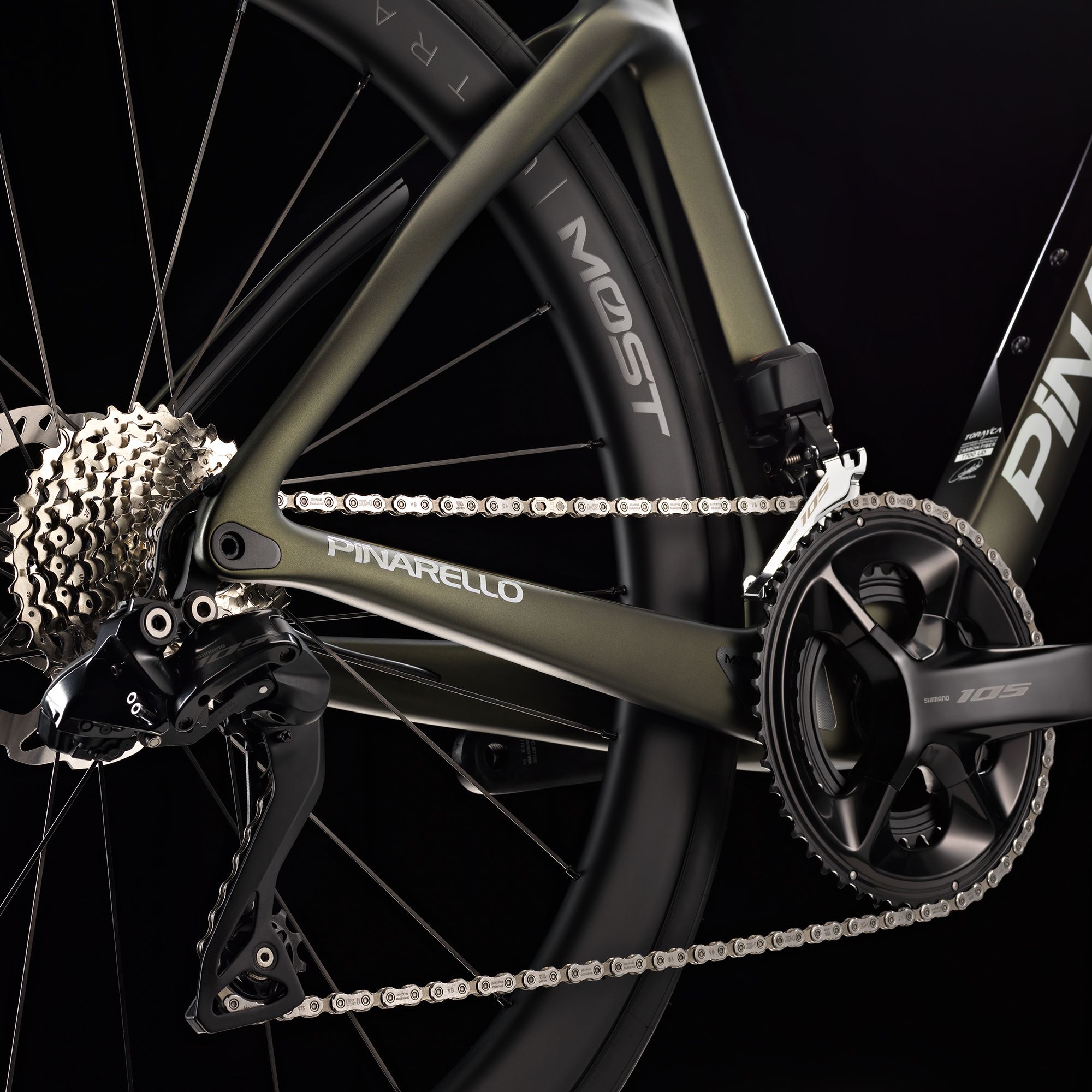

The F5 is fitted with a Shimano 105 Di2 12-speed electronic groupset and matched with the MOST Ultrafast 45 DB wheelset, delivering smooth, efficient shifting and reliable performance in a wide range of conditions.

Pinarello F5 Weight and Performance

With a complete build weight of 8.25kg using the 105 Di2 groupset and MOST Ultrafast 45 wheels, the F5 combines lightweight efficiency with the stiffness and precision needed for confident racing and fast-paced riding.

Features

Frame: Carbon T700
Groupset: Shimano 105 Di2 2x12 DB
Crankset: Shimano 105 Di2 2x12 DB
Wheels: MOST Ultrafast 45
Tyres: MOST Competition
Components: MOST Claw Ultra Aero + Jaguar Claw Ultra
Saddle: MOST Lynx MY26
Tyre clearance: 32 mm
Claimed weight: 8.25 kg

Specifications

Model: F5 105 Di2
Bottom Bracket [Maker]: Shimano
Bottom Bracket Standard: Italian
Brakes [Kind]: Hydraulic Disc
Brakes [Maker]: Shimano
Brakes [Model]: 105
Cassette [Maker]: Shimano
Cassette [Model]: 105
Crank [Maker]: Shimano
Crank [Model]: 105
Discipline Compatibility: Road
E-Bike: No
Family: F5
FD [Maker]: Shimano
FD [Model]: 105 Di2
Fork [Axle Diameter]: 12 mm
Fork [Axle Type]: Thru-Axle
Fork [Brake Type]: Disc
Fork [Material]: Carbon
Fork [Model]: ONDA
Fork [Rake]: 47 mm
Fork [Wheel Size]: 700c
Frame [Material]: Carbon
Frame [Tire Clearance]: 32c mm
Frameset: No
Gearing [Configuration]: 2x
Gearing [Kind]: Conventional
Gender: Unisex
Handlebar [Kind]: Drop
Handlebar [Maker]: MOST
Handlebar [Material]: Aluminium
Handlebar [Shape]: Drop bar
RD [Maker]: Shimano
RD [Model]: 105 Di2
Saddle [Maker]: MOST
Seatpost [Kind]: Rigid
Seatpost [Material]: Aluminium
Shifters [Maker]: Shimano
Shifters [Model]: 105 Di2
Shifting: Electronic
Stem [Maker]: MOST
Stem [Material]: Aluminium
Suspension Configuration: Rigid
Tires [Maker]: MOST
Tires [Width]: 30 mm
Wheels [Configuration]: Front+Rear
Wheels [Kinds]: Clincher
Wheelset [Maker]: MOST
Wheelset [Material]: Carbon
Wheelset [Model]: Ultrafast 45
Product code: 1950656 / 54293745959258

Size Guide

Size	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
Rider Height (ft. in.)	4'10" - 5'3"	5'4' - 5'5"	5'5" - 5'7"	57" - 5'8"	5'8 - 5'9"	5'9" - 5'10"	5'10" - 5'10"	5'10" - 6'0"	6'0" - 6'1"	6'1" - 6'4"	6'4" - 7'0"
Seat Tube (ctr-top)	430	465	500	515	530	540	550	560	575	595	620
Seat Tube (ctr-ctr)	425	450	465	485	500	510	520	525	540	560	600
Effective Top Tube	500	515	525	535	545	550	557	565	575	587	620
Actual Top Tube	-	-	-	-	-	-	-	-	-	-	-
Seat Angle (°)	74.4	74.4	74	73.7	73.7	73.4	73.4	73	73	72.4	72
Head Tube Angle (°)	69.5	70.5	71.4	72	72.5	72.8	72.8	73.2	73.7	73.4	73.4
Head Tube Length	97	104	109	114	123	131	142	149.5	163	199	239
Fork Rake	43	43	43	43	43	43	43	43	43	43	43
Chainstay Length	406	406	406	406	406	408	408	408	408	408	411
Wheelbase	-	-	-	-	-	-	-	-	-	-	-
Stack	502.4	517.6	525.4	532.3	542.6	551.2	561.6	570.2	584.8	613.3	651.7
Reach	351.4	364.8	372.1	378	383.3	385	388.8	390.7	396.7	393.3	410.1

*All measurements in mm unless otherwise stated.
