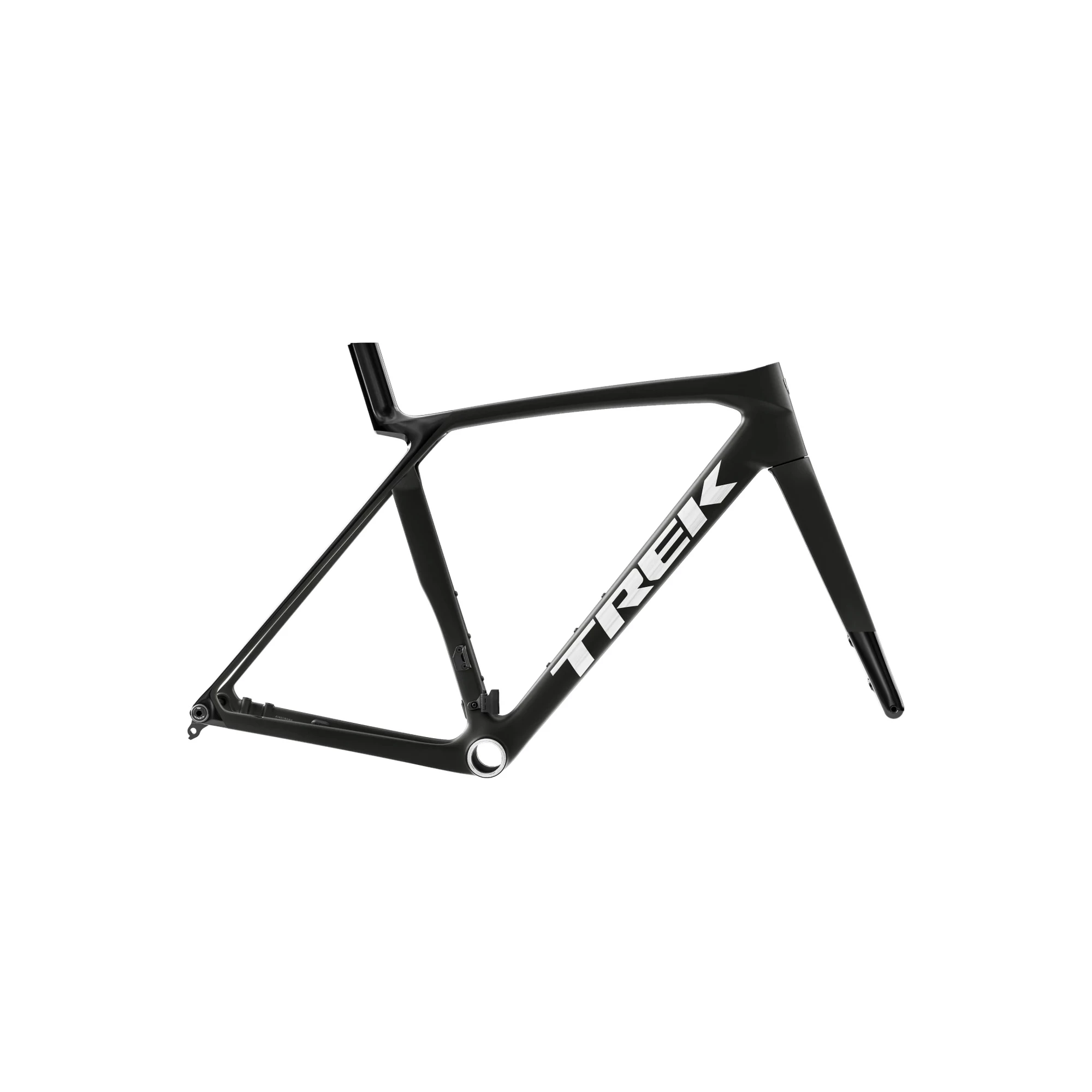

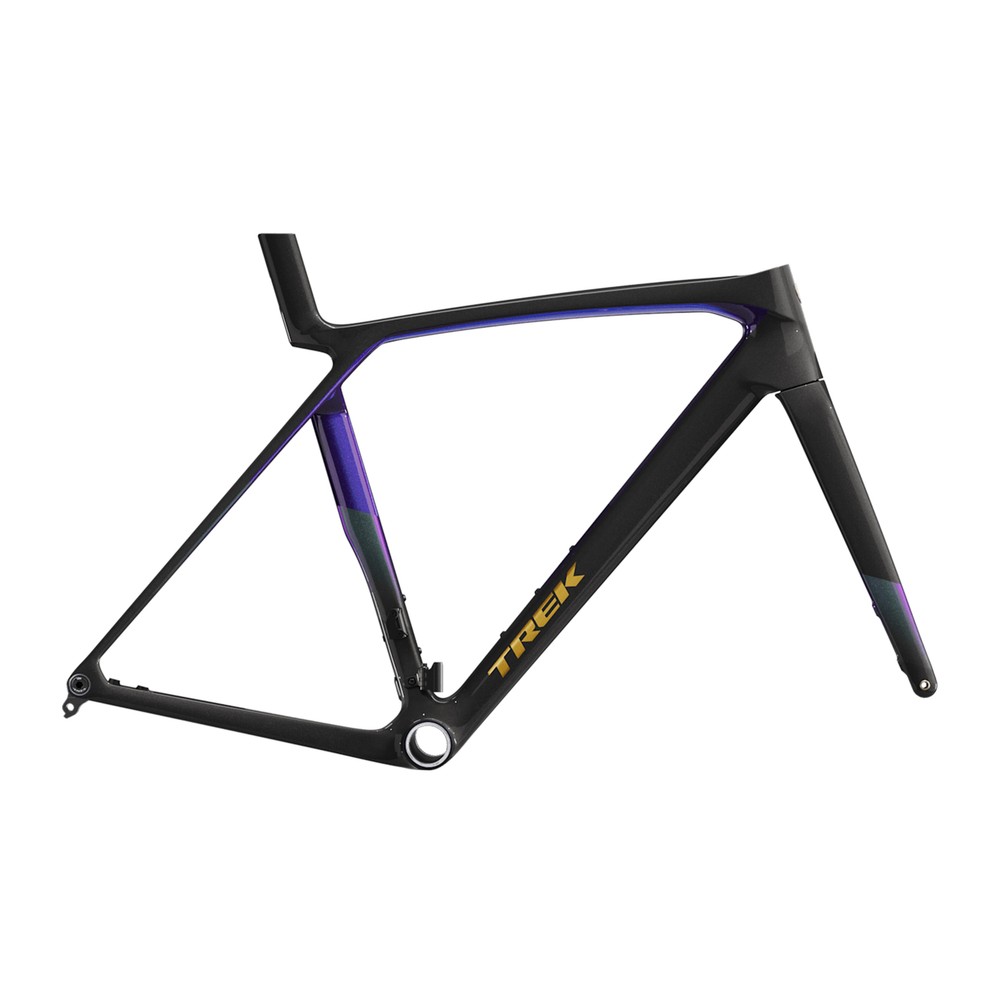

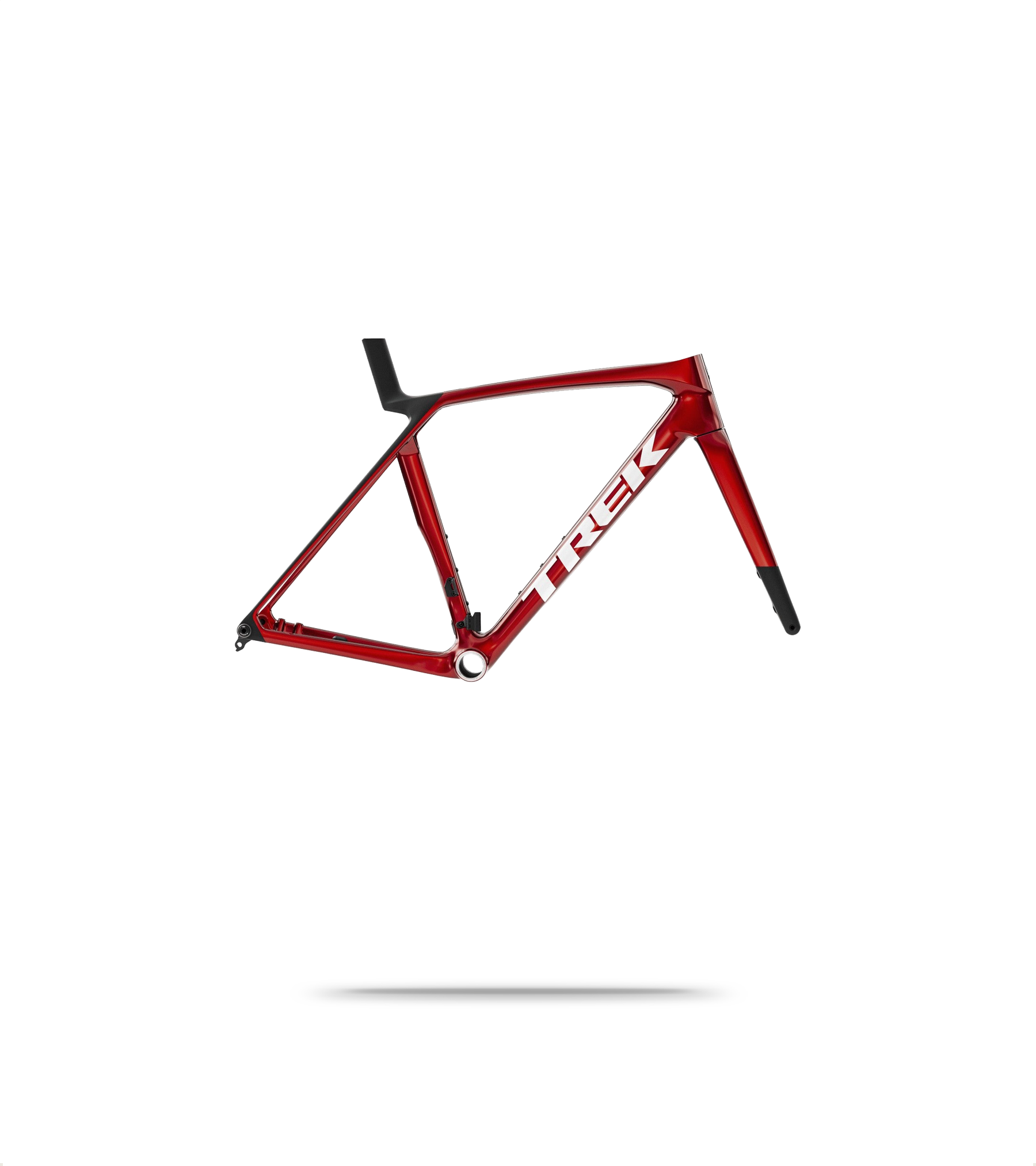

Trek Madone SL Gen 8 Frameset
The Madone SL Gen 8 Frame Set is an ultra-light, aerodynamic race-ready frame crafted with 500 Series OCLV Carbon, balancing stiffness, lightweight, and compliance. IsoFlow frame technology enhances comfort on long rides without compromising speed or aerodynamics.
Ideal for those who want to build their dream superbike from the ground up, this frame set offers energy-saving benefits and reduces road vibration fatigue. It features Full System Foil aero tubing and IsoFlow comfort technology for superbike performance. With a featherweight construction, this frame set excels in climbing and all-day comfort, and it supports all-new RSL Aero Bottles and Cages for added speed.
The seatpost is not included.
Technical Specification
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle |
| Weight | 1054g - ML (frame-only, painted) |
| Weight (fork) | 363g (fork-only, painted) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Max. chainring size | 1x 54T, 2x 56/43 |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Max tyre size | 32 mm (as measured, see manual for details) |
| Rotor size | Max brake rotor sizes |
| Seatpost | NOT INCLUDED |
Trek Madone SL Gen 8 Frameset Sizing
