Final Few

Pinarello

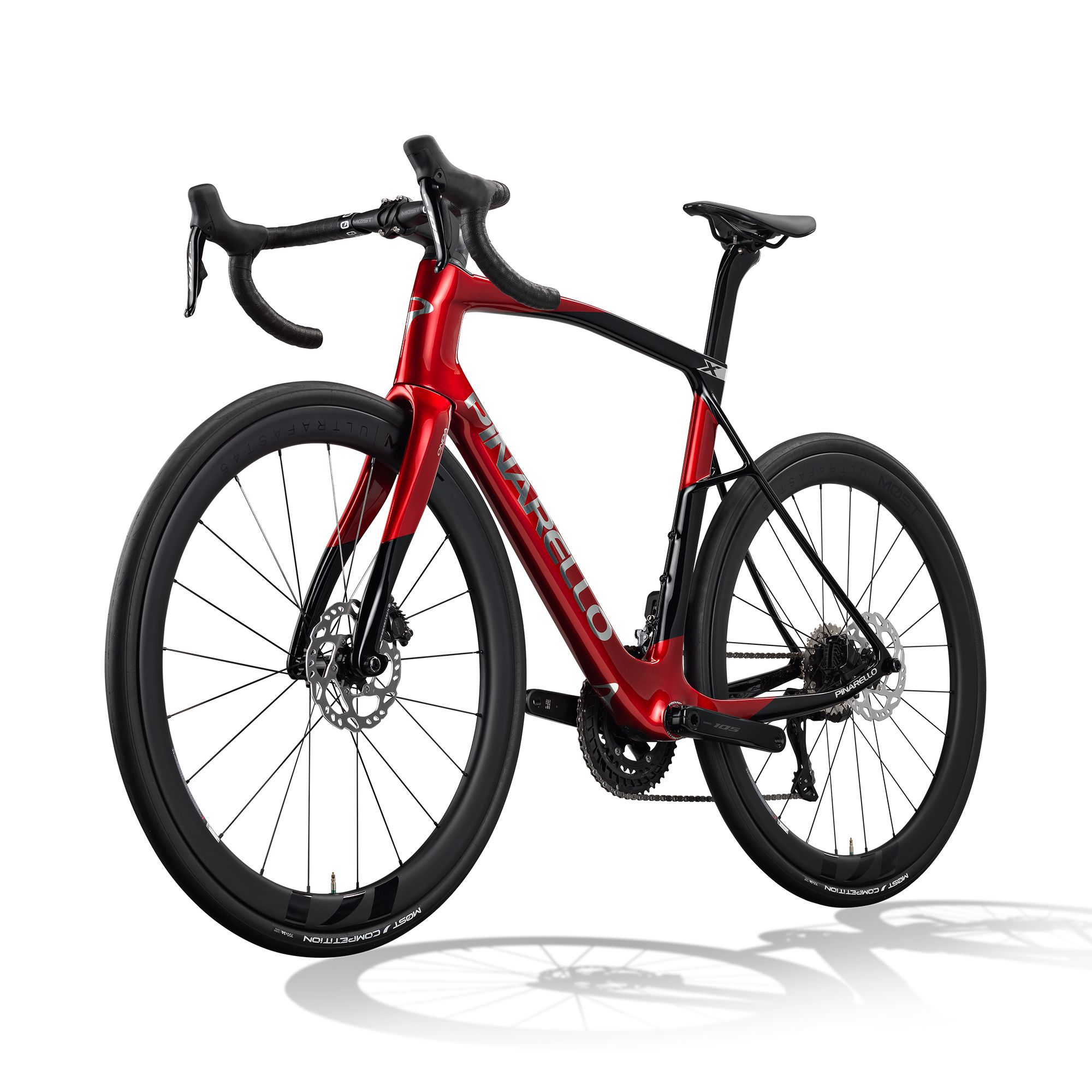

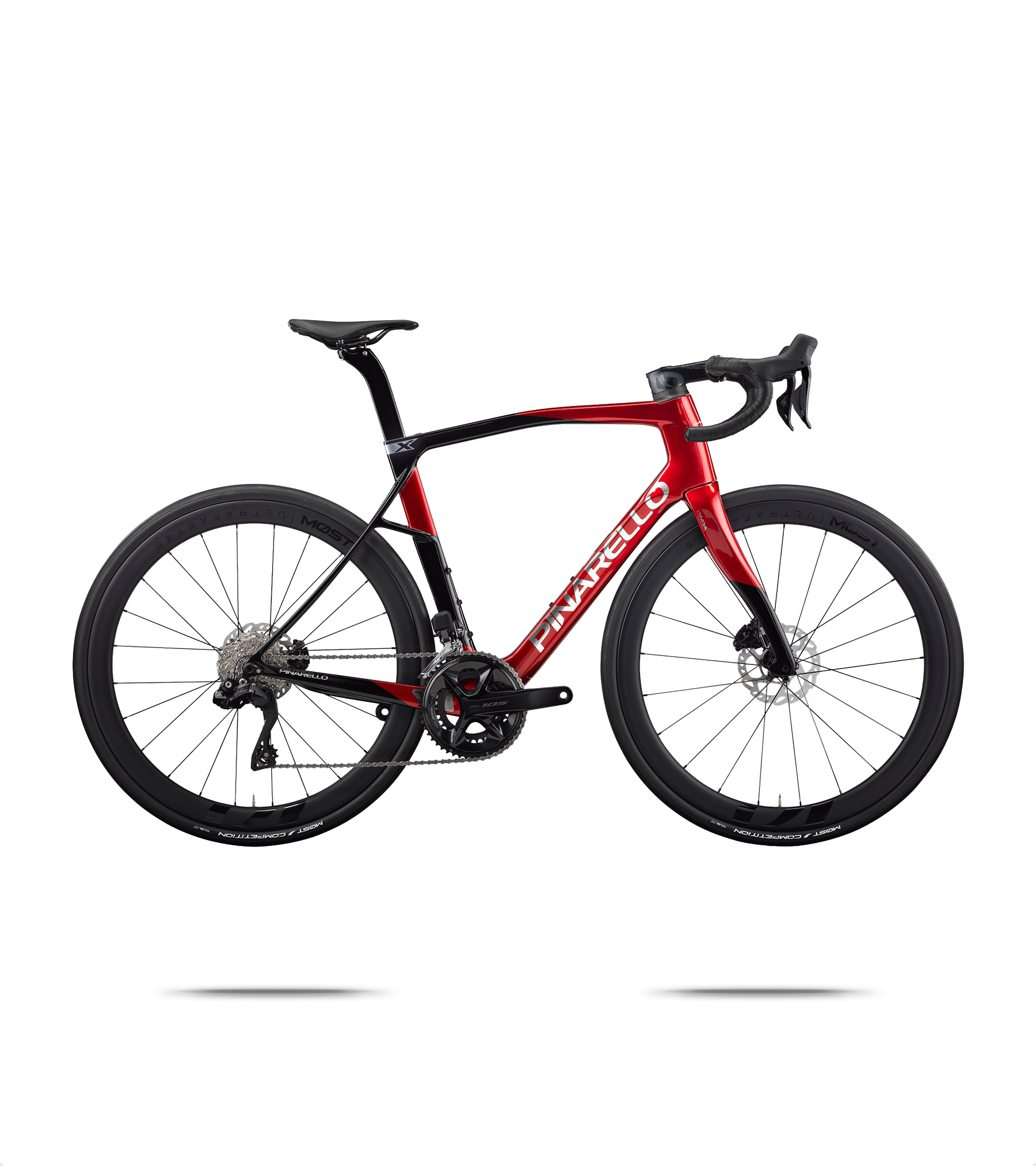

Pinarello X5 105 Di2 Disc Road Bike

£5,000.00

Delivery

Select size to see delivery options

Collect in Store

Cycle to Work – Save up to 42%

Spread the cost of your new bike and save up to 42% through the Cycle to Work scheme. We accept all major providers including Cyclescheme, Green Commute Initiative, Bike2Work and more.
We do not accept Halfords Cycle2Work or Evans Cycles Ride-to-Work Scheme vouchers.
Check with your employer for eligibility.

Free Delivery on all bikes

Complimentary standard delivery on all bikes to UK mainland addresses. Orders typically arrive within 2–5 working days. A signature is required on delivery. When you receive your bike all you'll need to do is unpack it, attach your pedals, turn the handlebars and ride.

Premier Delivery

Upgrade to Premier Delivery at checkout for a nominated day, extended assembly and in-home handover by a trained technician. Available on eligible bikes across UK mainland.

Built, checked, tuned & tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Pedals & accessories

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team

You May Also Need

Ale
Sauvage T-Care Plus Cycling Socks
£11.00
£23.00
Fabric
Lumaray V3 Headlight & Powerbank
£74.00
£74.99
Fizik
Vento Omna Road Cycling Shoes
£105.00
£149.99

Product Details

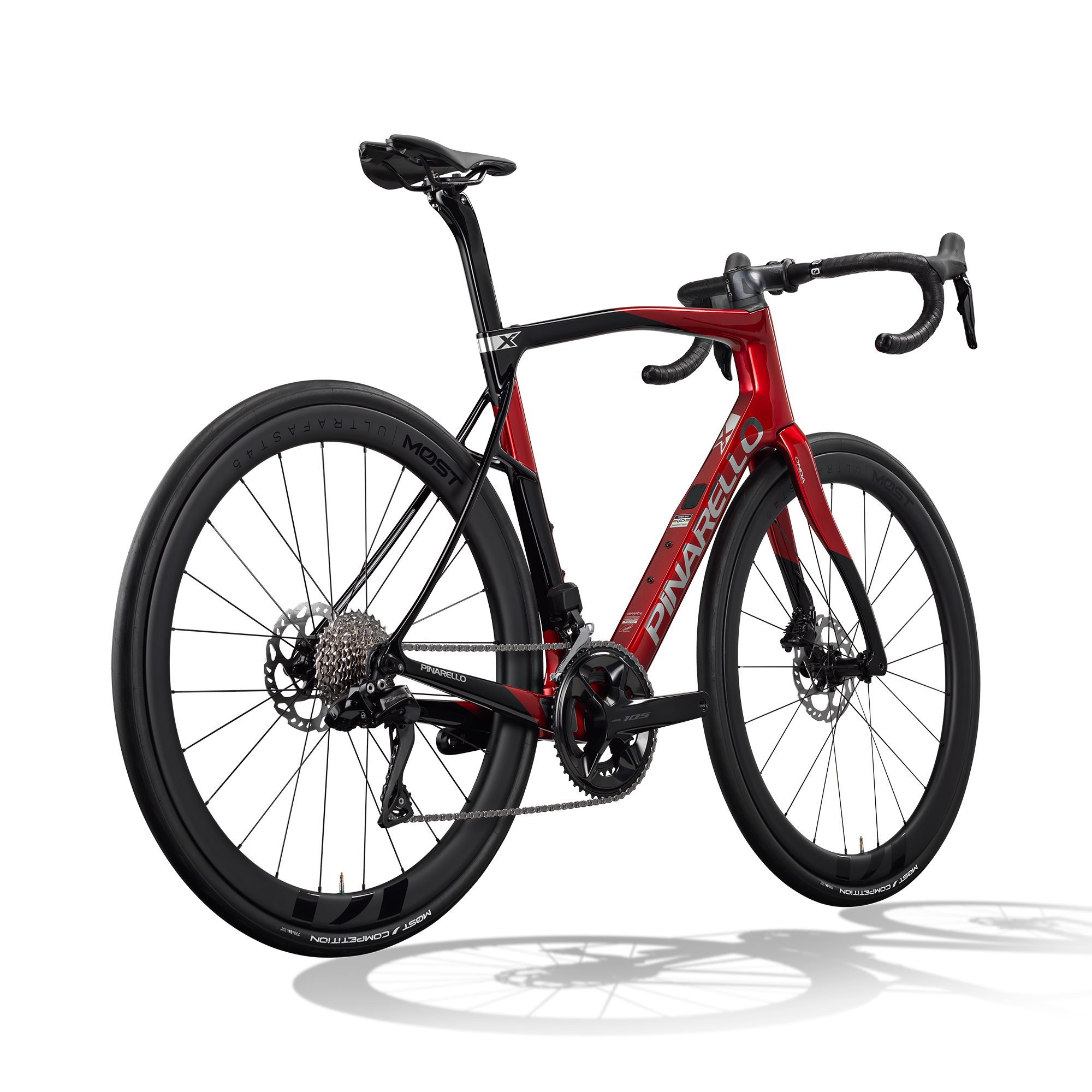

Pinarello X5 105 Di2 Disc Road Bike 2025

Introducing the Pinarello X5 with Shimano 105 Di2, a cutting-edge cycling marvel that blends technology and emotion seamlessly. Crafted with precision, these road bikes prioritize rider comfort and vibration absorption through innovative carbon fiber construction and a redesigned rear triangle. The Endurance+ geometry ensures a relaxed riding position, accommodating riders of all types. With X Stays technology, vibrations are absorbed while maintaining a lightweight frame and robust BB stiffness. Tire clearance of up to 35mm allows for enhanced comfort and speed. An asymmetric frame optimizes force distribution, providing a balanced cycling experience.

The Pinarello X5 Shimano 105 Di2 boasts T700 Toray Carbon for exceptional reactivity and increased dampening, resulting in superior comfort on the road. The bike's geometry provides a balanced riding position for cyclists of all types.

Features

Frame Set: Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved
Frame: Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved

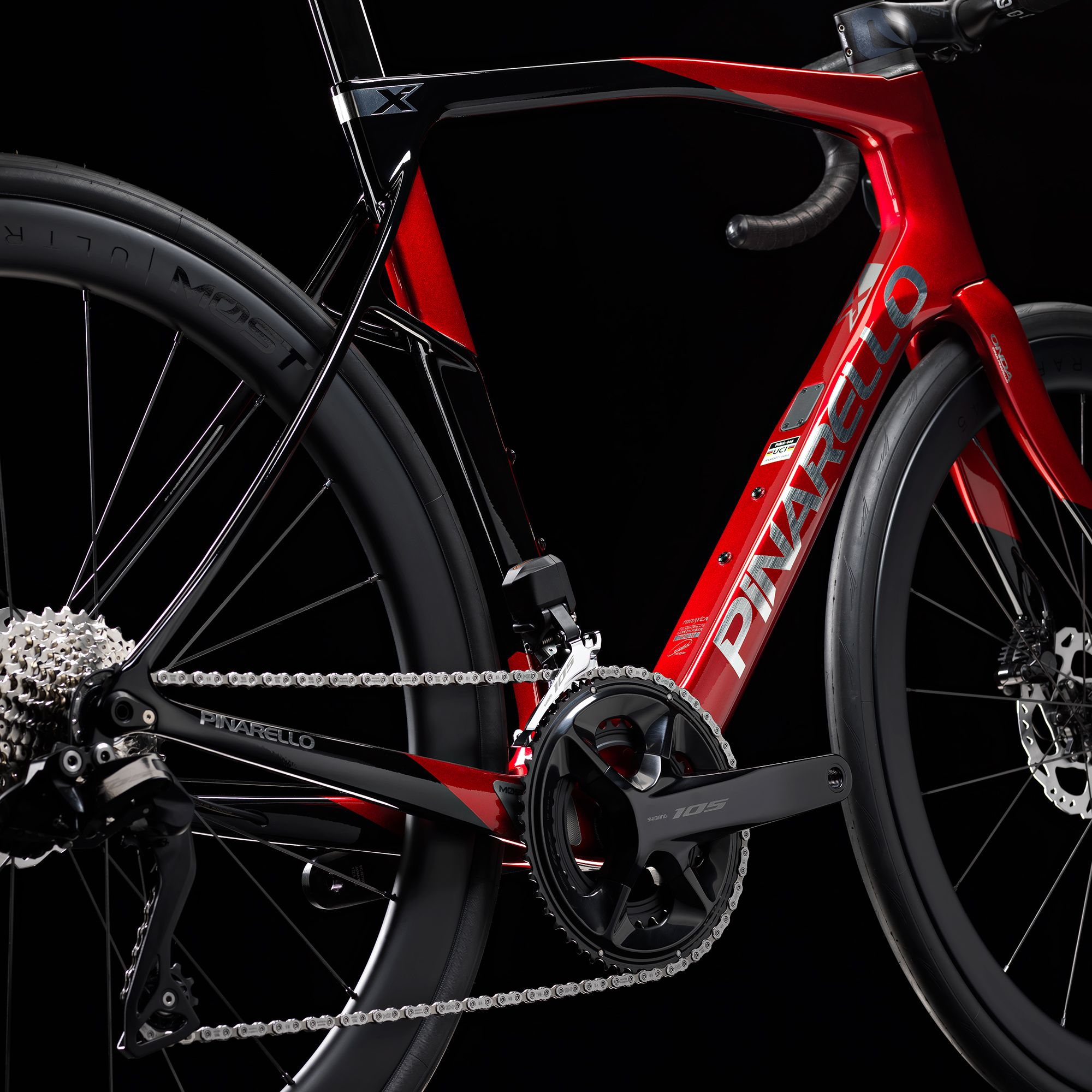

Crankset and Chainrings: Shimano 105 Di2 12S
Front Derailleur: Shimano 105 Di2 12S
Rear Derailleur: Shimano 105 Di2 12S
Cassette: Shimano 105 Di2 12S
Chain: Shimano 105 Di2 12S

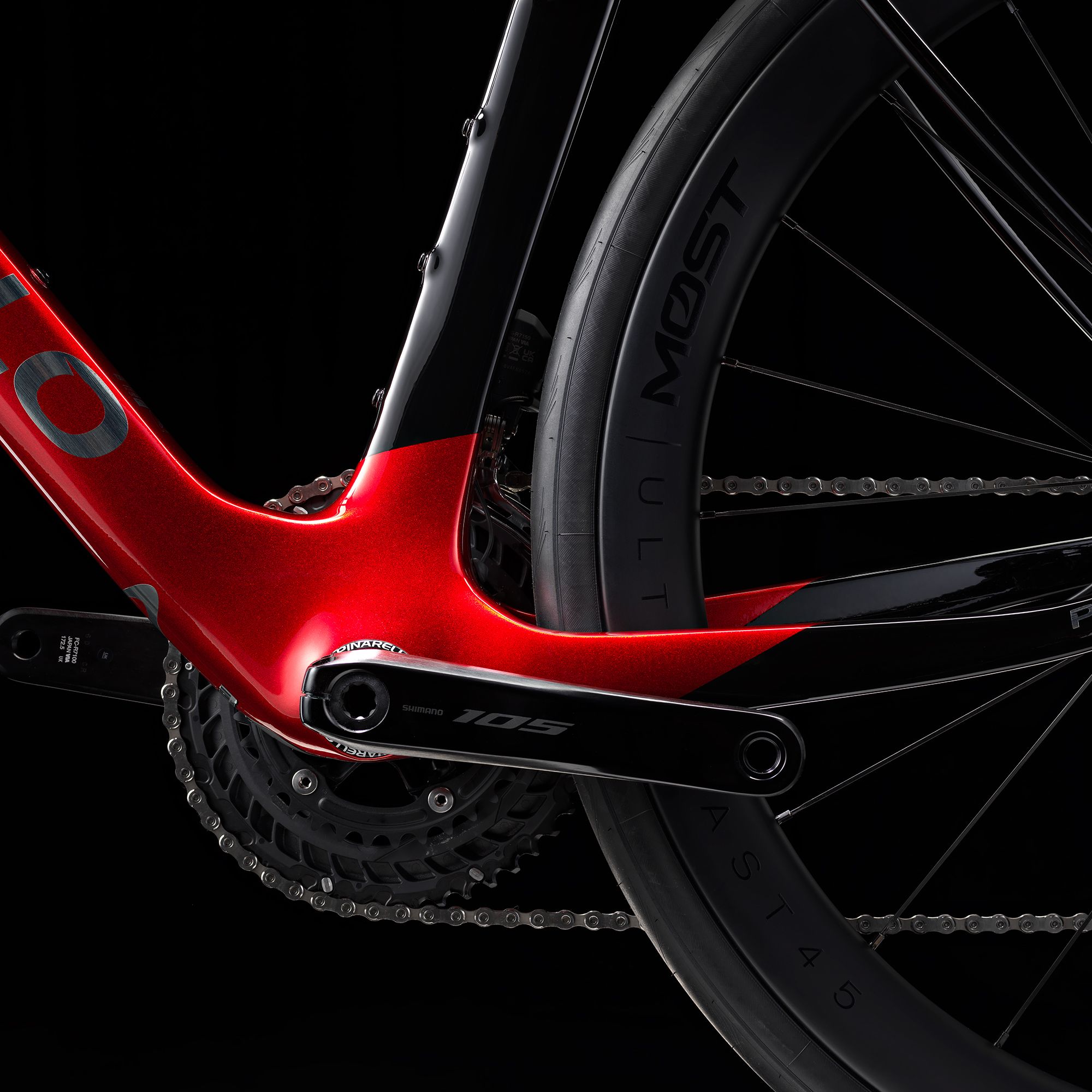

Bottom Bracket: Shimano 105

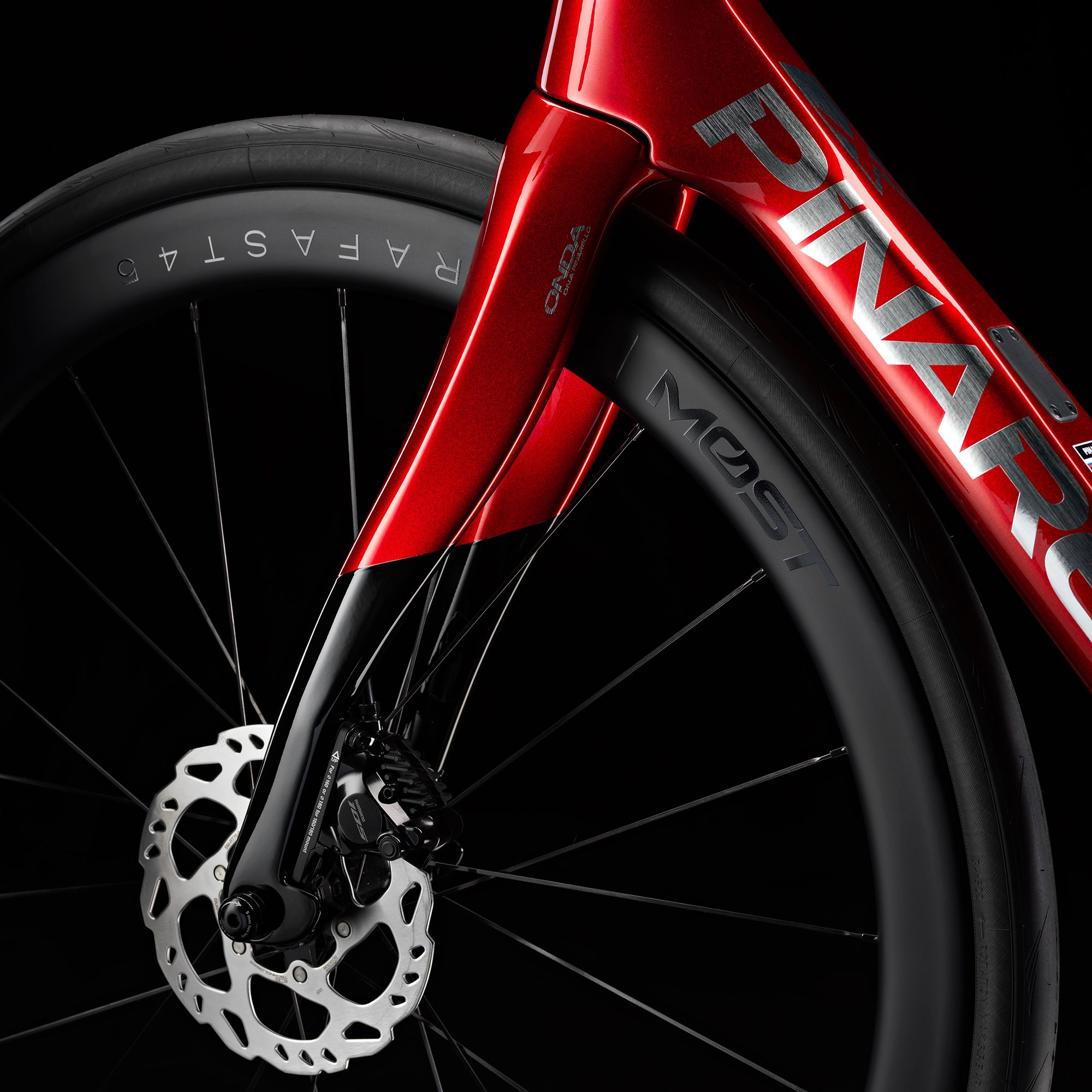

Front Brake Disc: Shimano 105 2 pistons caliper, 160mm rotor
Rear Brake Disc: Shimano 105 2 pistons caliper, 160mm rotor

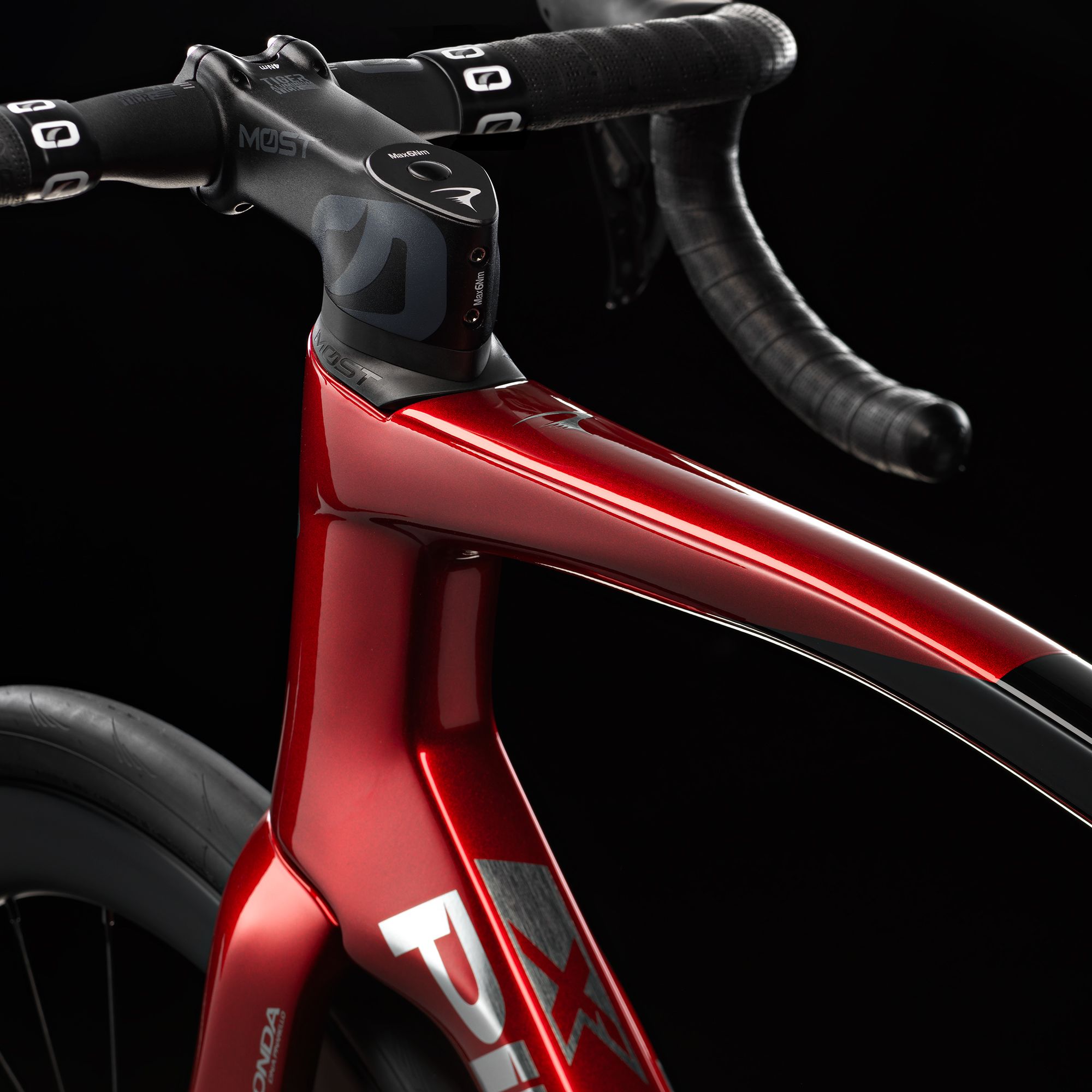

Handlebar: MOST Jaguar XA TiCR
Stem: Tiger Aero Alu TiCR
Bar Tape: MOST Ultragrip Evo 3mm - Black
Seat Clamp: FSC frontal seat clamp
Tyres Disc: Pirelli P7 Sport 35-622 black 60 tpi Nylon breaker
Wheelset Disc: MOST Ultrafast Carbon
Axles Disc: 12x100 & 12x142

Highlights

Pinarello X5 Shimano 105 Di2: Advanced carbon frame for comfort and responsiveness.
Endurance+ geometry: Ensures a relaxed riding position for all cyclists.

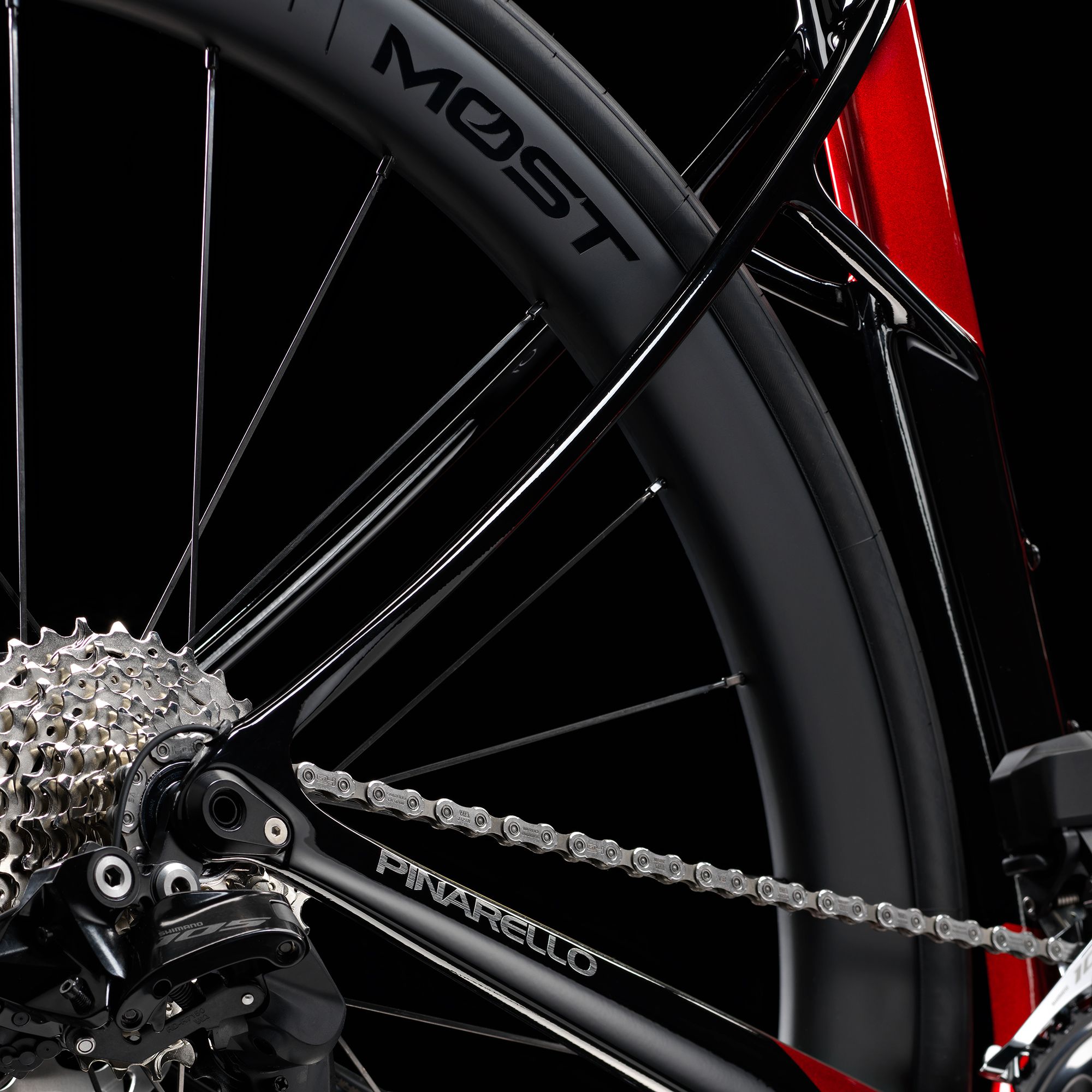

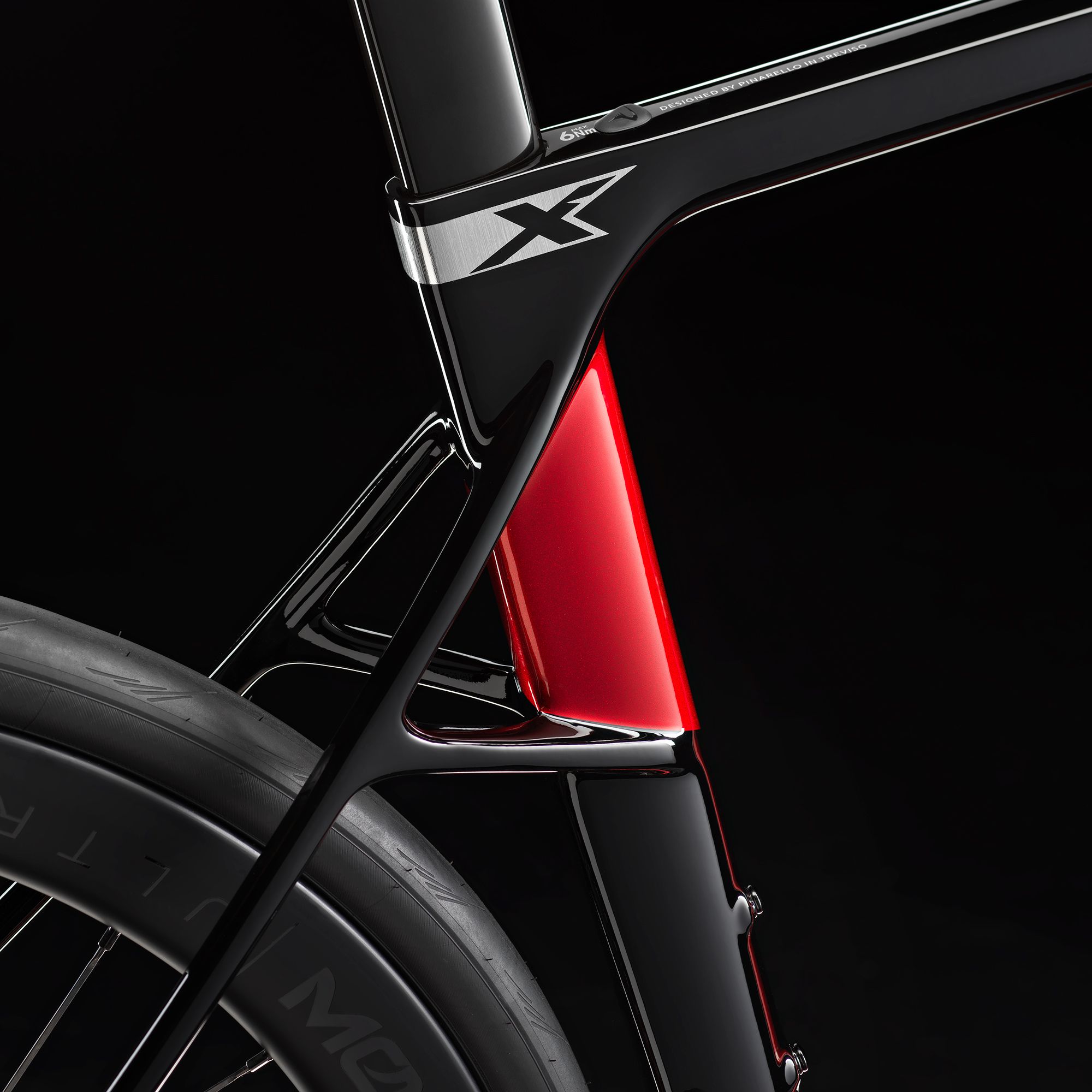

X Stays technology: Absorbs vibrations while maintaining a lightweight frame.
Up to 35mm tire clearance: Enhances comfort and speed on the road.

Specifications

Model: X5 105 Di2
Bottom Bracket [Maker]: Shimano
Bottom Bracket Standard: Italian
Brakes [Kind]: Hydraulic Disc
Brakes [Maker]: Shimano
Brakes [Model]: 105
Cassette [Maker]: Shimano
Cassette [Model]: 105
Chain [Maker]: Shimano
Chain [Model]: 105
Crank [Maker]: Shimano
Crank [Model]: 105
Discipline Compatibility: Road
E-Bike: No
Family: X5
FD [Maker]: Shimano
FD [Model]: 105 Di2
Fenders Mounts: No
Fork [Axle Diameter]: 12 mm
Fork [Axle Type]: Thru-Axle
Fork [Brake Type]: Disc
Fork [Material]: Carbon
Fork [Wheel Size]: 700c
Frame [Material]: Carbon
Frameset: No
Gearing [Configuration]: 2x
Gearing [Kind]: Conventional
Gender: Unisex
Handlebar [Kind]: Drop
Handlebar [Maker]: MOST
Handlebar [Shape]: Drop bar
Rack Mounts: No
RD [Maker]: Shimano
RD [Model]: 105 Di2
Shifters [Maker]: Shimano
Shifters [Model]: 105 Di2
Shifting: Electronic
Stem [Maker]: MOST
Stem [Material]: Aluminium
Suspension Configuration: Rigid
Tires [Maker]: Pirelli
Tires [Width]: 35 mm
Wheels [Configuration]: Front+Rear
Wheels [Kinds]: Clincher
Wheelset [Maker]: Fulcrum
Wheelset [Material]: Aluminium
Wheelset [Model]: Racing 800DB
Product code: 1974317 / 54294806397274

Size Guide

CC	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
CE	42.5	45	46.5	48.5	50	51	52	52.5	54	56	60
L	50	51.5	52.5	53.5	54.5	55	55.7	56.5	57.5	58.7	62
A	74.4	74.4	74	73.7	73.7	73.4	73.4	73	73	72.4	72
B	69.5	70.5	71.4	72	72.5	72.8	72.8	73.2	73.7	73.4	73.4
P	407	407	407	407	407	408	408	409	409	409	411
T	102	109	114	119	128	136	147	154.4	168	204	244
D	67	72	72	72	72	72	72	72	72	67	67
R	47	47	47	47	47	47	47	47	47	47	47
G	373	373	373	373	373	373	373	373	373	373	373
Reach	351.5	365.4	372.2	378.2	385.6	385.3	389.2	390.8	396.7	393.4	410
Stack	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
—	—	—	—	—	—	—	—	—	—	—	—
