Product Details

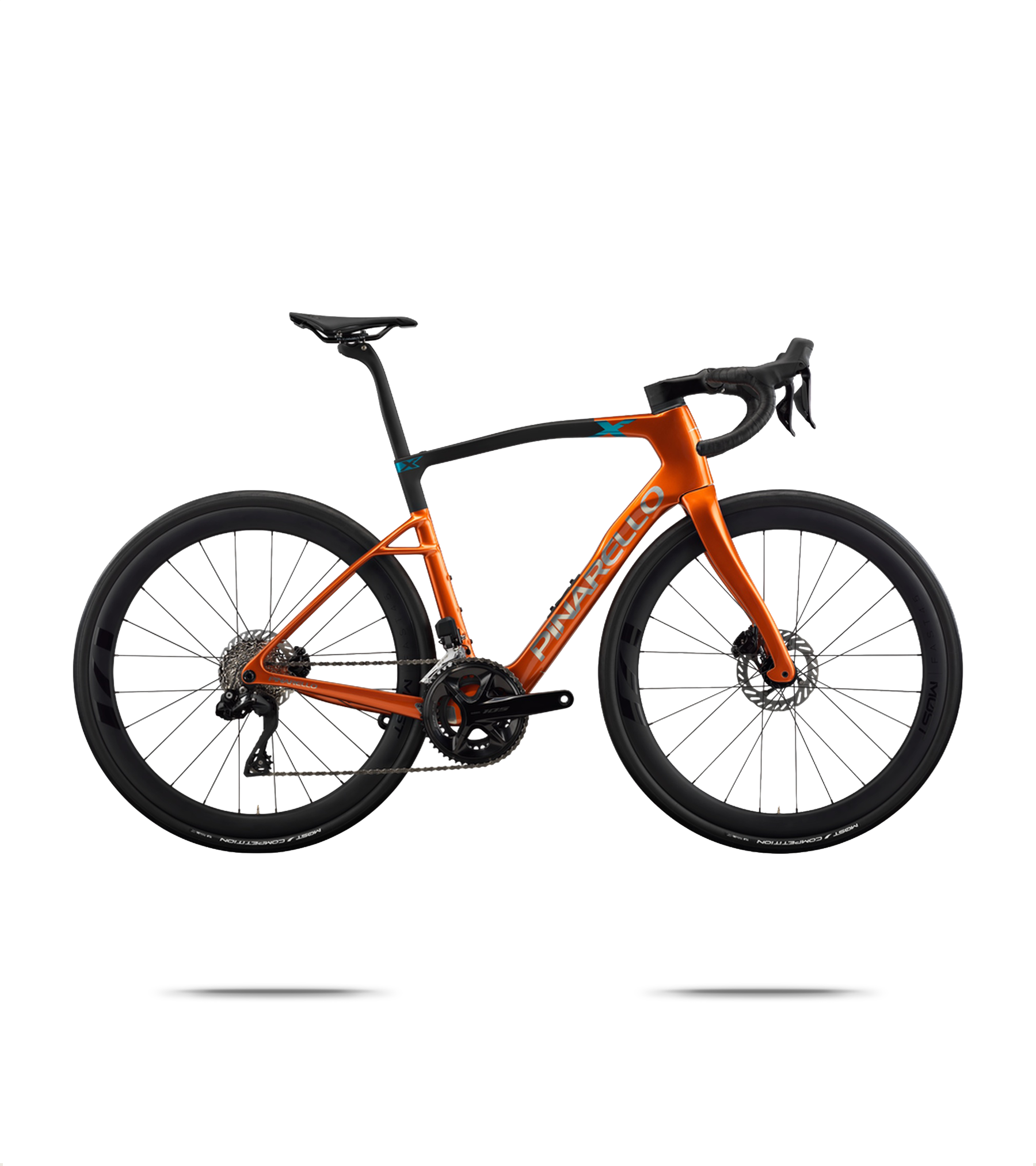

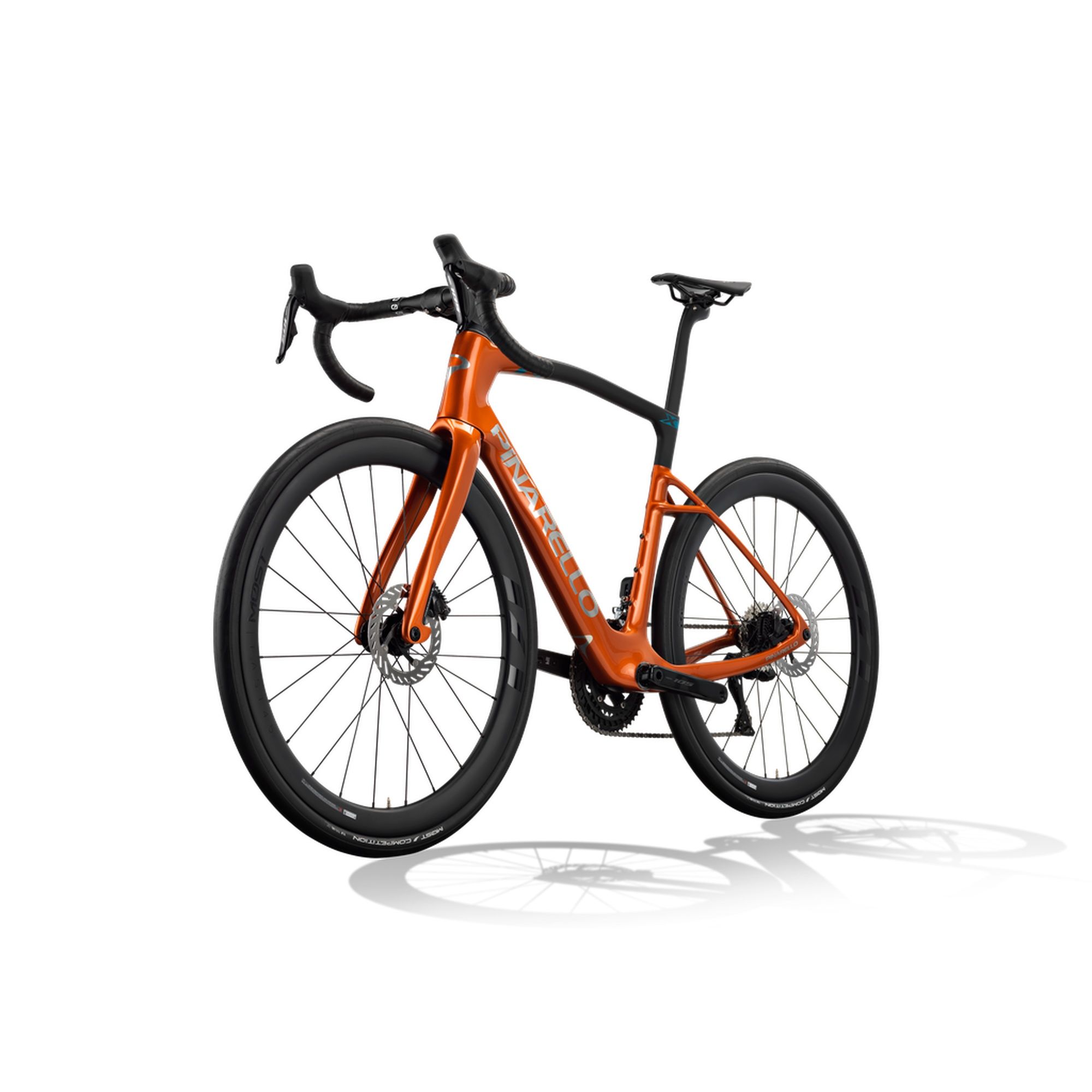

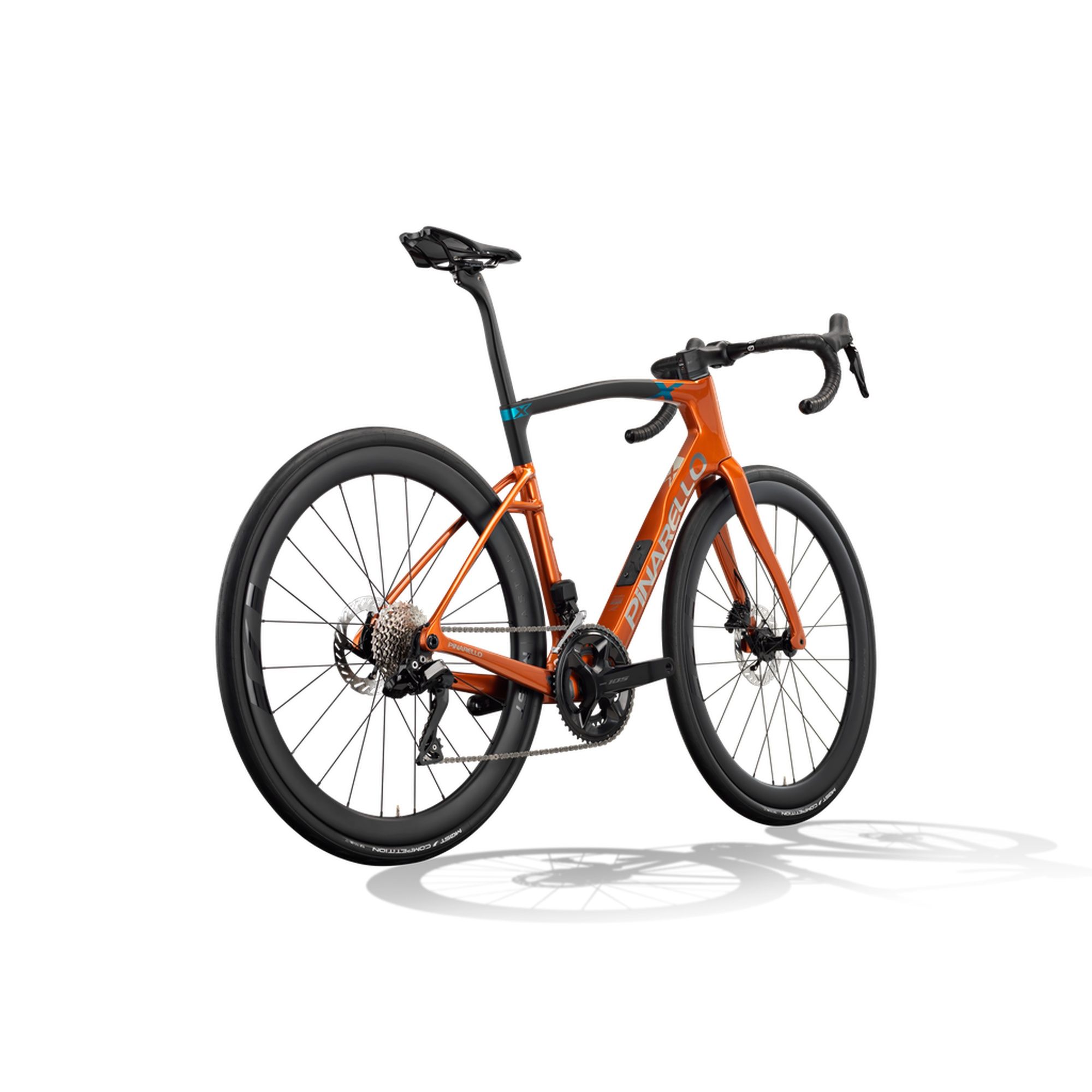

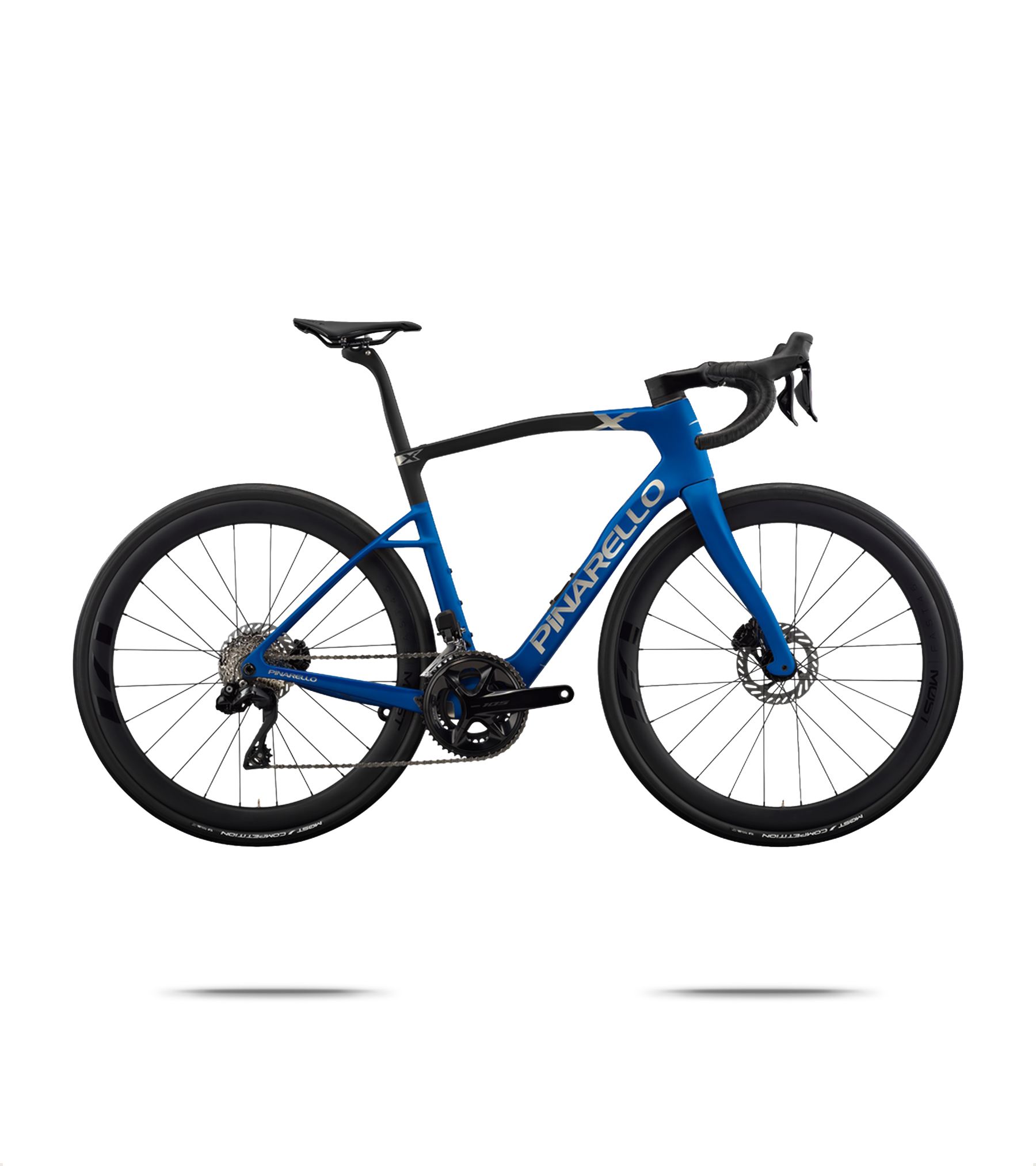

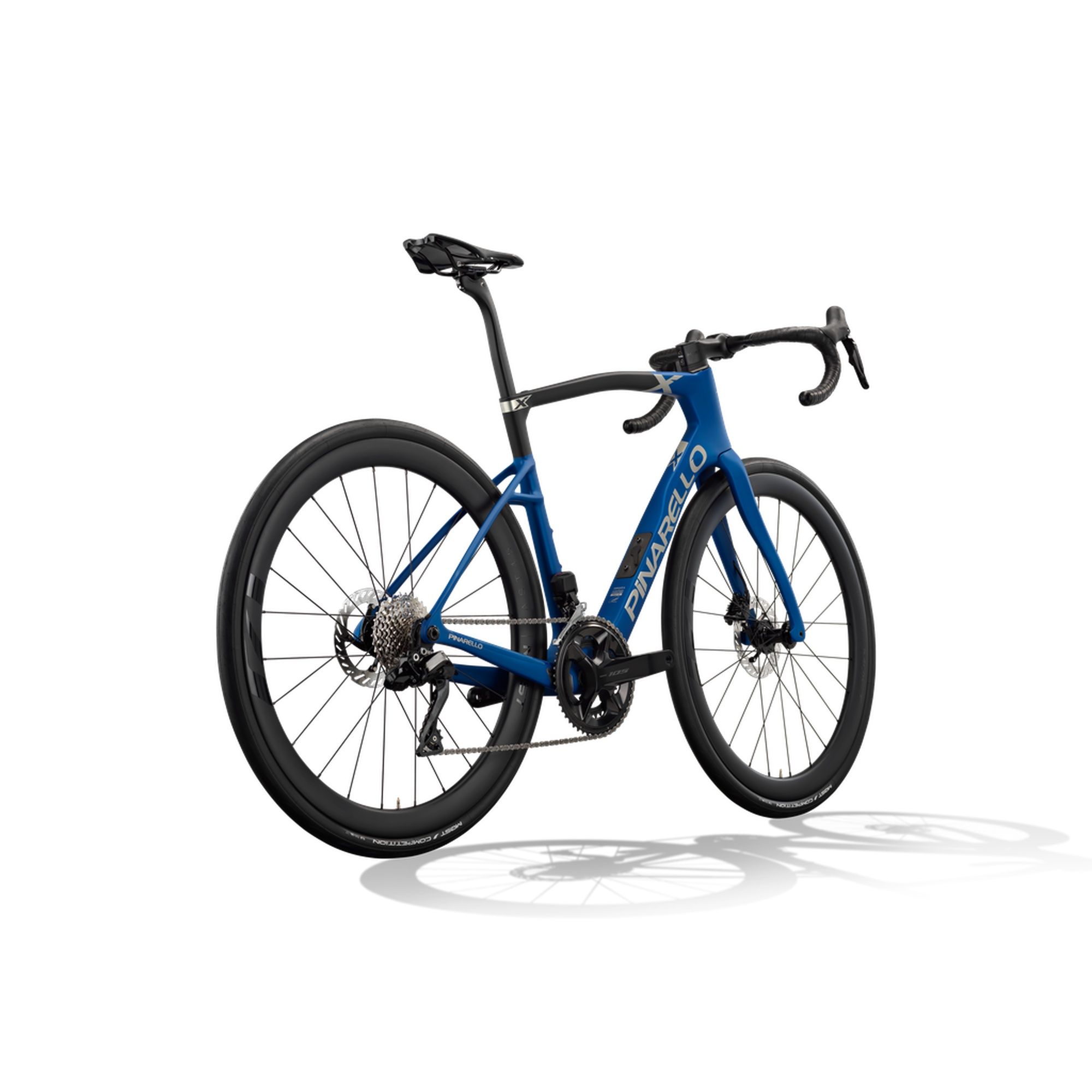

Pinarello X5 105 Di2 Road Bike 2027

The Pinarello X5 105 Di2 Road Bike 2027 combines race-bred Italian heritage with exceptional endurance engineering to deliver an unbeatable all-day riding experience. Built around a geometry that is longer, higher, and more comfortable than the Dogma X, it strikes the perfect harmony between aerodynamic speed and long-distance efficiency. The bike features Shimano's reliable 105 Di2 electronic groupset for effortless, crisp shifting alongside a fast, aerodynamic MOST Fast 45 DB Carbon wheelset. Designed to handle diverse road surfaces, the frame boasts expanded tire clearance up to 40mm, letting you ride wherever the route takes you. Everyday practicalities are neatly addressed with a new downtube integrated storage port that houses a custom compact tool bag, keeping your silhouette clean without leaving essential spares behind.

Engineered Comfort and Compliance

Rider comfort over long distances is significantly elevated through advanced structural dampening techniques. The updated X-Stays 2.0 design incorporates a bespoke double-arm, four-point top-stay system inspired by high-end development to filter out harsh road vibrations before they reach your hands and core. Working alongside the signature ONDA fork, a newly engineered adaptive seat post provides 10mm of longitudinal flex, drastically reducing rider fatigue on rough tarmac. The combination of an ergonomic Jaguar Claw Ultra Alu handlebar, plush MOST bar tape, and a supportive Most Lynx saddle ensures your touchpoints remain comfortable, letting you ride further and faster with complete confidence.

Optimized Carbon Performance

Constructed with a premium Torayca T700 carbon fiber layup, the X5 frame is specifically tuned to maximize responsiveness, reactivity, and power transfer without creating a harsh ride quality. Every watt you press into the pedals propels you forward while the frame naturally absorbs high-frequency road buzz. Paired with the aerodynamic advantages of the 45mm deep carbon wheelset and the precise control of electronic shifting, this bike delivers an incredibly engaging ride feel. It represents the ultimate choice for passionate cyclists seeking top-tier endurance performance, cutting-edge technology, and refined Italian style.

Features
  • Groupset: Shimano 105 Di2
  • Wheelset: MOST Fast 45 DB Carbon
  • Fork: ONDA
  • Bar Tape: MOST
  • Saddle: Lynx Ultra Superflow/Most Lynx MY26
  • Handlebar: Jaguar Claw Ultra Alu
Size Guide
Size4346.55051.55354555657.559.562
Rider Height (ft. in.)4'10" - 5'3"5'4' - 5'5"5'5" - 5'7"57" - 5'8"5'8 - 5'9"5'9" - 5'10"5'10" - 5'10"5'10" - 6'0"6'0" - 6'1"6'1" - 6'4"6'4" - 7'0"
Seat Tube (ctr-top)430465500515530540550560575595620
Seat Tube (ctr-ctr)425450465485500510520525540560600
Effective Top Tube500515525535545550557565575587620
Actual Top Tube -----------
Seat Angle (°)74.474.47473.773.773.473.4737372.472
Head Tube Angle (°)69.570.571.47272.572.872.873.273.773.473.4
Head Tube Length97104109114123131142149.5163199239
Fork Rake4343434343434343434343
Chainstay Length406406406406406408408408408408411
Wheelbase-----------
Stack502.4517.6525.4532.3542.6551.2561.6570.2584.8613.3651.7
Reach351.4364.8372.1378383.3385388.8390.7396.7393.3410.1
Pinarello Dogma F Road Bike Size Guide

*All measurements in mm unless otherwise stated.

Reviews
No reviews yet

No reviews yet. Be the first to review this product.

Shipping & Returns

Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.

Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.

Q & A

2 questions, 1 answered

  1. What are the sizes are the chain rings and cassette ratio. I'm 6ft 3 which size would suit me better 58 or 60? Thank you

    Asked by Steve (Tiverton) —

    No answers yet.

  2. What groupset does this come with please?

    Asked by Steve (Tiverton) —

    1. Hi Steve, A Shimano 105 Di2 12-speed electronic groupset, with wireless shifting. Thanks

      Matt B

About Pinarello

Hand-built in Treviso. Raced everywhere.

Since 1952, Pinarello has been hand-crafting some of the most coveted race bikes on the planet from its workshop in Treviso, Italy. The brand's asymmetric geometries and uncompromising pursuit of speed have carried generations of champions to victory at the Tour de France, Giro d'Italia and beyond.

Founded by Giovanni Pinarello after his own racing career, the brand has spent more than seven decades chasing one idea: build the fastest possible bike for the rider who refuses to settle. From steel through aluminium to today's carbon Dogma, that pursuit has never paused.
