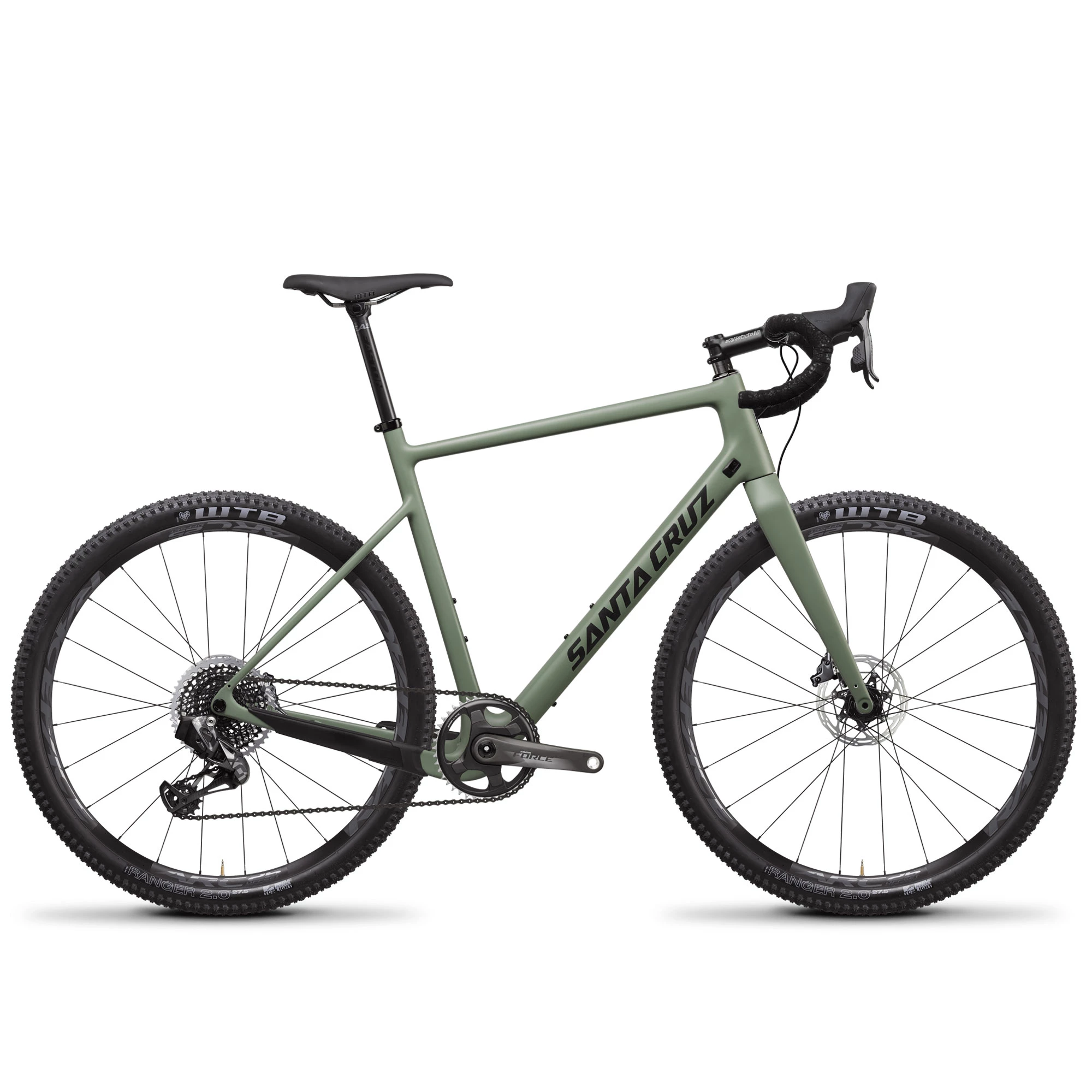

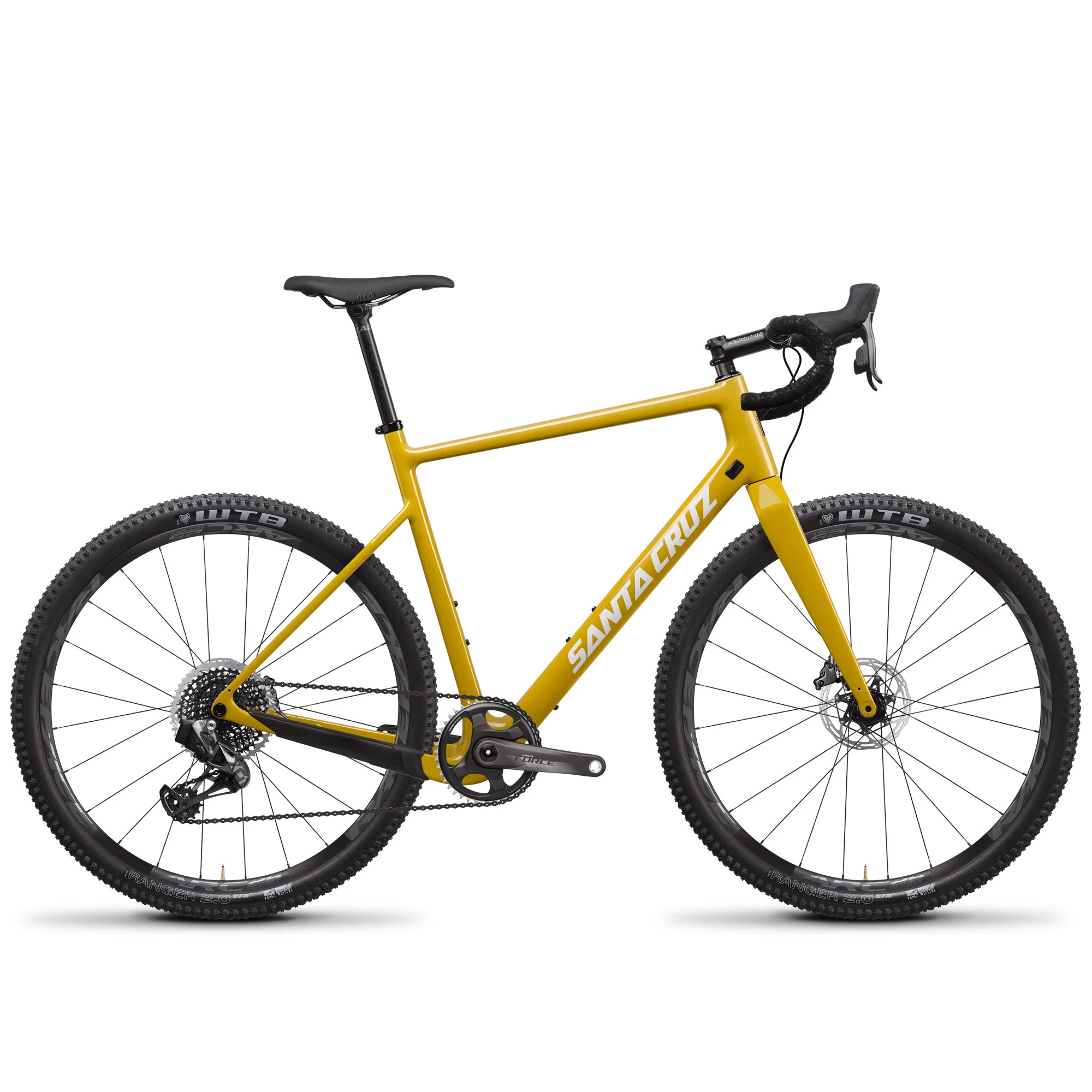

Santa Cruz Stigmata Carbon CC Force AXS 650b Gravel Bike 2020
The Santa Cruz Stigmata Carbon CC Force AXS 650b Gravel Bike blends several important traits derived from the mountain bike world to create a completely balanced ride that is set for any adventure across gravel, rough roads or forest tracks.
The full carbon frame and fork of the Stigmata have taken material lay-up cues from its off-road brethren to remove and add material according to the different loads across the chassis. This results in a ride that blends stiffness, off-road compliance and balanced handling for any terrain encountered. Compatibility with 650b or 700c wheels increases the scope of use further while large amounts of tyre clearance allow the ride to be tuned depending on the ground to be faced. A threaded bottom bracket adds convenience and low maintenance while mudguard attachments then complete a thorough frame feature list.

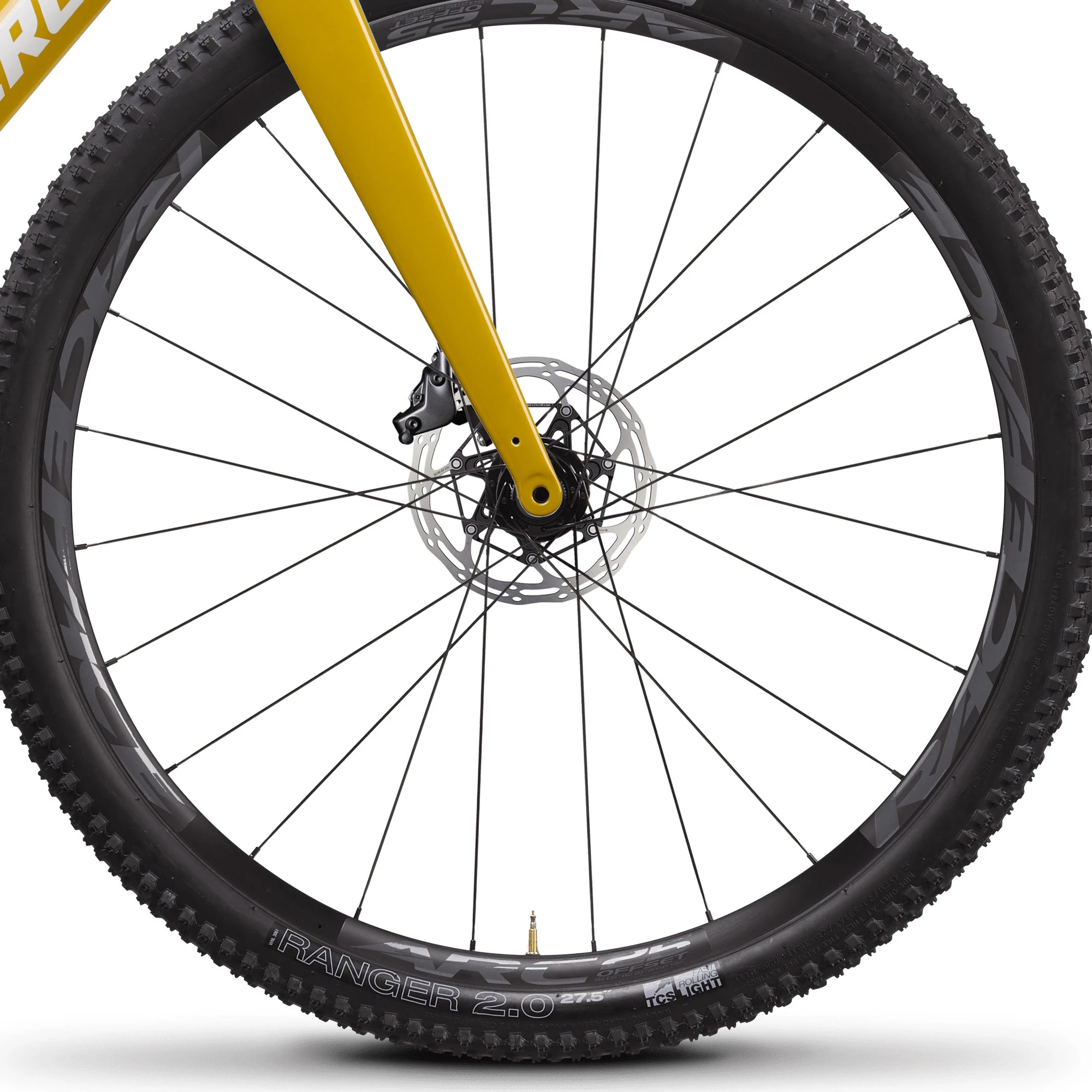

The 650b wheels are shod with wide tyres and are ready for venturing further into the wilderness where the surfaces become heavier. The Race Face ARC rims are hardy and resilient for the bigger hits while the DT Swiss hubs are smooth spinning and hassle-free. Gear changing is then charged to a blend of SRAM Force and X01 Eagle components with this configuration communicating wirelessly to facilitate crisp and accurate shifting across the wide-ranging 12-speed cassette. A single chainring is used at the front for off-road simplicity and is driven by the SRAM crankset and DUB axle in an efficient manner.
Braking is delivered within a consistent, modulated hydraulic set-up before the build is completed with an Easton carbon finishing kit.
Highlights
- A multifaceted gravel and cyclocross steed that conquers off-road and road with equal aplomb
- Santa Cruz CC Carbon frame
- Santa Cruz CC Carbon fork
- Compatible with 650b wheels or 700c wheels
- Up to 2.1-inch tyre clearance when using 650b wheels or 45mm tyre clearance when using 700c wheels
- RaceFace ARC Offset 25 27.5-inch alloy wheelset built with DT Swiss 350 thru-axle hubset and 28 x DT Competition Race spokes
- SRAM Force eTap AXS and SRAM X01 Eagle AXS, 12-speed groupset
- Single front chainring configuration with ultra-wide 10-50 cassette
- SRAM Force hydraulic disc brake configuration
- Easton finishing kit
- Attention: 650b wheels are supplied with this build
Technical Specification
| Frame | Santa Cruz CC Carbon | Threaded BB for convenience | Refined cable routing for better shifting performance, simpler installation, and no cable rub | Noise-cancelling chainstay protector | Mudguard mounts | 3 x water bottle mounts |
| Fork | Santa Cruz CC full carbon with mudguard mounts |
| Stem | Easton EA90 Stem |
| Handlebar | Easton EC70 AX flare bar |
| Front Brake | SRAM Force with SRAM CLX R Centerlock 160mm brake rotors |
| Rear Brake | SRAM Force with SRAM CLX R Centerlock 160mm brake rotors |
| Brake Levers | SRAM Force |
| Front Derailleur | NA |

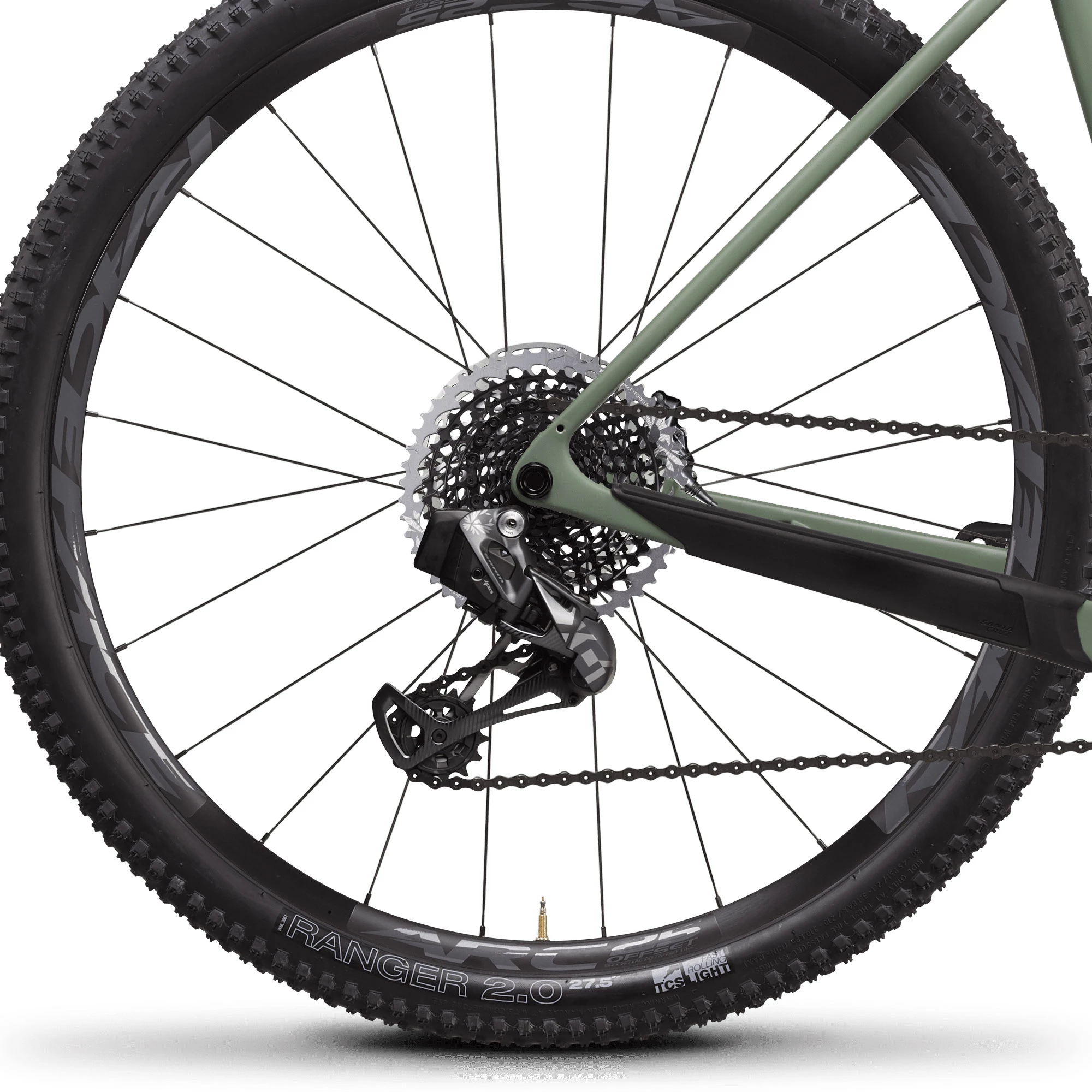

| Rear Derailleur | SRAM X01 Eagle AXS, 12-speed |
| Shift Levers | SRAM Force eTap AXS, 12-speed |
| Cassette | SRAM XG1295 Eagle 10-50, 12-speed |
| Chain | SRAM XX1 Eagle 12-speed |

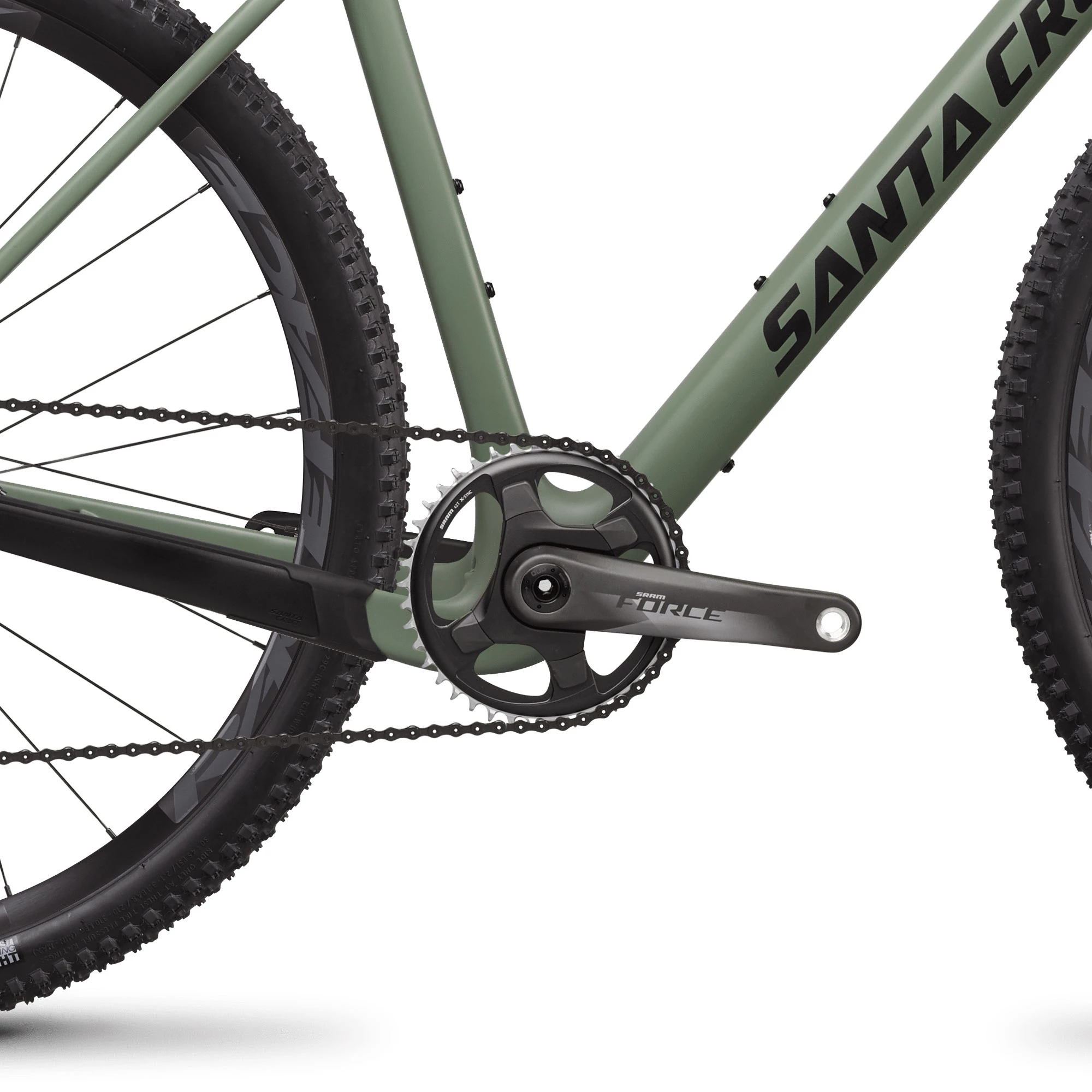

| Crankset | SRAM Force 1, 42 tooth chainring |
| Bottom Bracket | SRAM DUB |
| Front Wheel | RaceFace ARC Offset 25 27.5-inch alloy rims, DT 350 hub 100 x 12mm thru-axle, Centrelock, 28 x DT Competition Race spokes |
| Rear Wheel | RaceFace ARC Offset 25 27.5-inch alloy rims, DT 350 hub 142 x 12mm thru-axle, XD, Centrelock, 28 x DT Competition Race spokes |
| Front Tyre | WTB Ranger TCS 27.5x2.0 Tubeless Ready |
| Rear Tyre | WTB Ranger TCS 27.5x2.0 Tubeless Ready |
| Saddle | WTB SilveradoTeam |
| Seatpost | Easton EC70 27.2 Zero Offset 350mm |
| Manufacturer Claimed Weight | 8.69kg / 19.16lbs (size 54cm) |
