Description

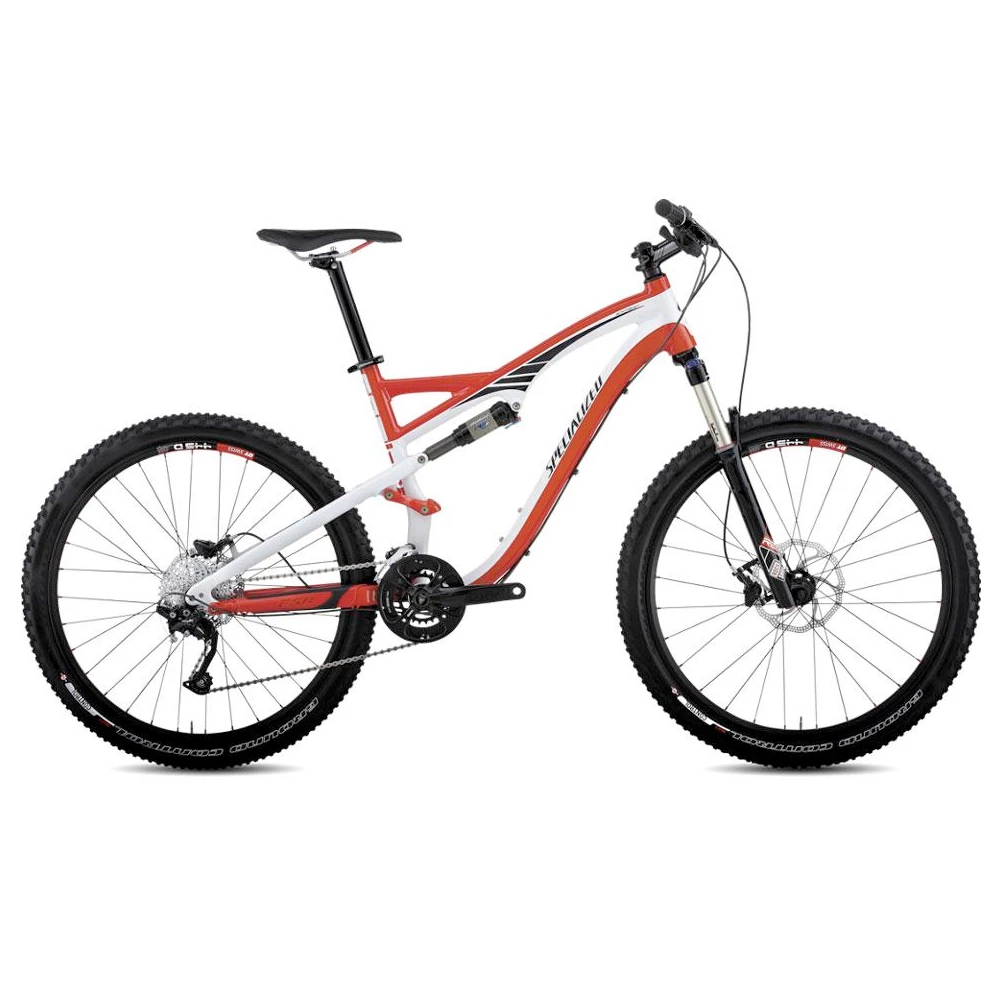

The M5 alloy 120mm-travel Camber Expert features a RockShox Reba RL fork and custom SRAM S-1250, 10-speed XC Trail double crankset for an ultra-capable and smooth-pedalling trail charger.
- M5 hydroformed alloy FSR frame with 120mm of travel, tapered HT, 142mm dropouts, and sealed cartridge bearing pivots for confident handling and smooth trail performance
- Custom Fox Triad II with on-the-fly, 3-position damping adjustment between a plush fully open, a more firm ProPedal and a lockout, for ideal performance over varying terrain
- RockShox Reba RL fork has 100mm of travel, lockout and rebound adjust, and an alloy steerer for efficient and supple trail performance
- Custom SRAM 10-speed XC Trail double-ring shifts fast while the PF30 spindle makes for an efficient and stiff crankset
- Custom Avid Elixir 5 SL hydraulic disc brakes/levers with HS-1 rotors and alloy-backed organic pads for maximum stopping power
- Body Geometry Henge Comp saddle with hollow Cr-Mo rails and foam tuned for all-day riding comfort
- Shimano Deore XT Shadow rear derailleur delivers top-of-the-line shifting performance in a low-profile design for maximum clearance
FRAME M5 hydroformed tubing, tapered HT, PF30 BB, Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 120mm travel
REAR SHOCK Custom Fox Triad II, custom on-the-fly 3-position compression switch 1) Lock out 2) Open 3) ProPedal, rebound adj., 200x51mm
FORK RockShox Reba RL, tapered alloy steerer, LO and reb adj., standard drop-outs, 120mm travel
HEADSET 1-1/8" upper and lower, Campy-style cartridge bearings for integrated alloy HT
STEM Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 60mm, M: 75, L:90, XL:105mm
HANDLEBARS Specialized All-Mountain low-rise, 6061 butted alloy, 720mm wide, 8º backsweep, 6º upsweep, 31.8mm
GRIPS Specialized lock-on, S/M: Grappler, Others: Grappler XL
FRONT BRAKE Custom Avid Elixir 5 SL, hydraulic disc, alloy backed organic pad, HS-1 rotor S/M:180mm, Others: 200mm
REAR BRAKE Custom Avid Elixir 5 SL, hydraulic disc, alloy backed organic pad, HS-1 rotor S/M:160mm, Others: 180mm
BRAKE LEVERS Avid Elixir 5 hydraulic
FRONT DERAILLEUR SRAM X7, 10-speed, S3 direct mount for DMD, top-pull
REAR DERAILLEUR Shimano Deore XT Shadow M772, 9-speed, SGS long cage
SHIFT LEVERS Shimano SLX M660, 10-speed, trigger
CASSETTE SRAM PG-1030, 10-speed, 11-36t
CHAIN KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates
CRANKSET Custom SRAM S-1250, 10-speed XC Trail double, PF30 spindle, S: 170mm, Others: 175mm
CHAINRINGS 38/24, w/ alloy guard
BOTTOM BRACKET SRAM PF30, OS press-in bearing, sealed cartridge
PEDALS Resin Test Ride Pedals with toe clips, CEN std.
RIMS Custom DT Swiss 445D, alloy disc, double-wall, pin joint, eyelets, 24mm, 28/32h
FRONT HUB Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 28h
REAR HUB Specialized Hi Lo 142 disc, laser-etched logo, double-sealed cartridge bearing, 12mm thru-axle, 32h
SPOKES Stainless, 1.8mm (15g)
FRONT TYRE S-Works Ground Control, 120 TPI, 2Bliss ready aramid bead, 26x2.3"
REAR TYRE Specialized Ground Control, 60 TPI, 2Bliss ready aramid bead, 26x2.1" INNER
TUBES Ultralight presta valve
SADDLE Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm width
SEATPOST 6061 alloy, 2-bolt micro adjust, setback head, 30.9mm, S/M:350mm, others:400mm
SEAT BINDER 34.9mm clamp ID, alloy collar w/ QR, black
Technical Specification
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
