Product Details

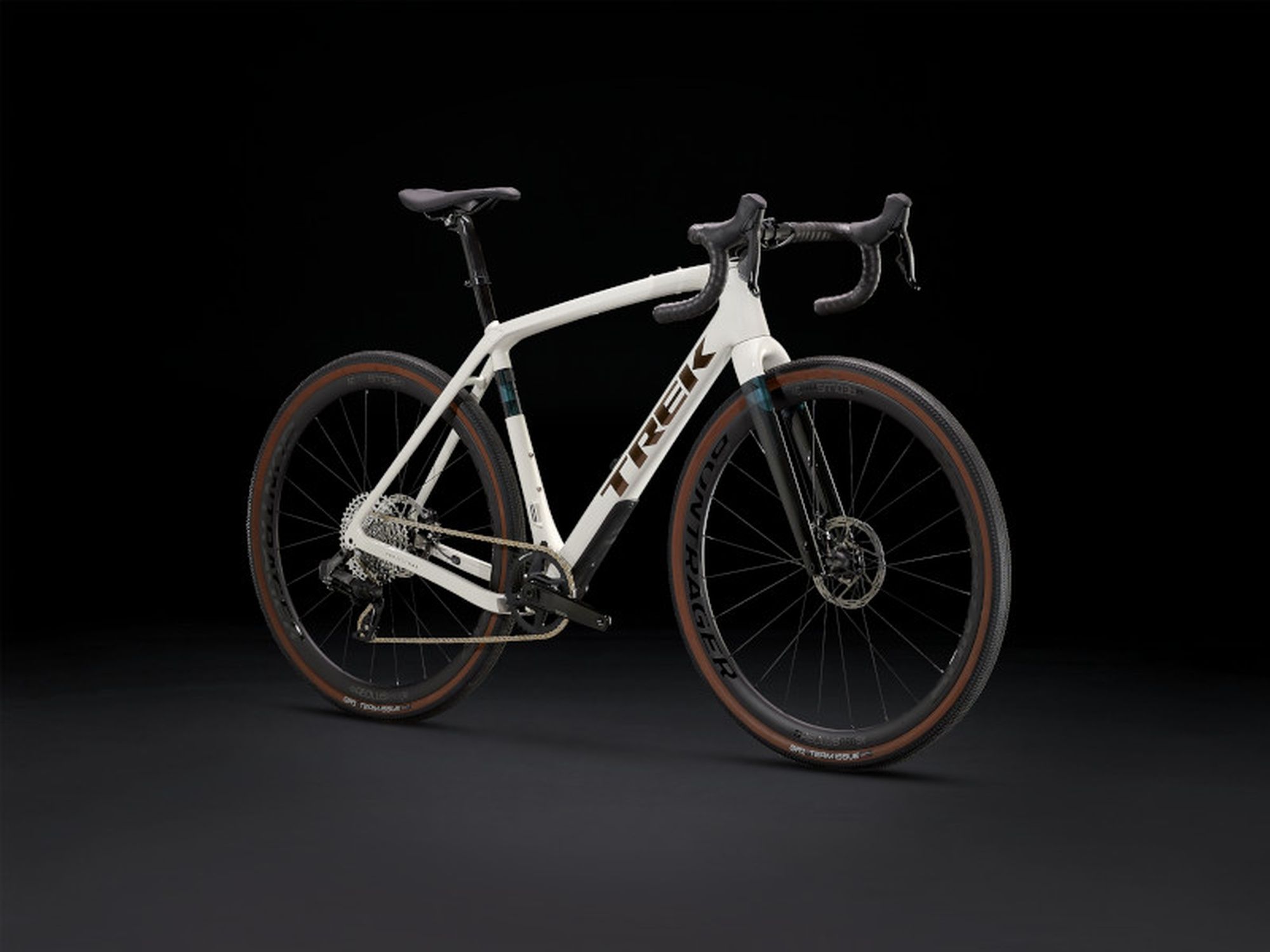

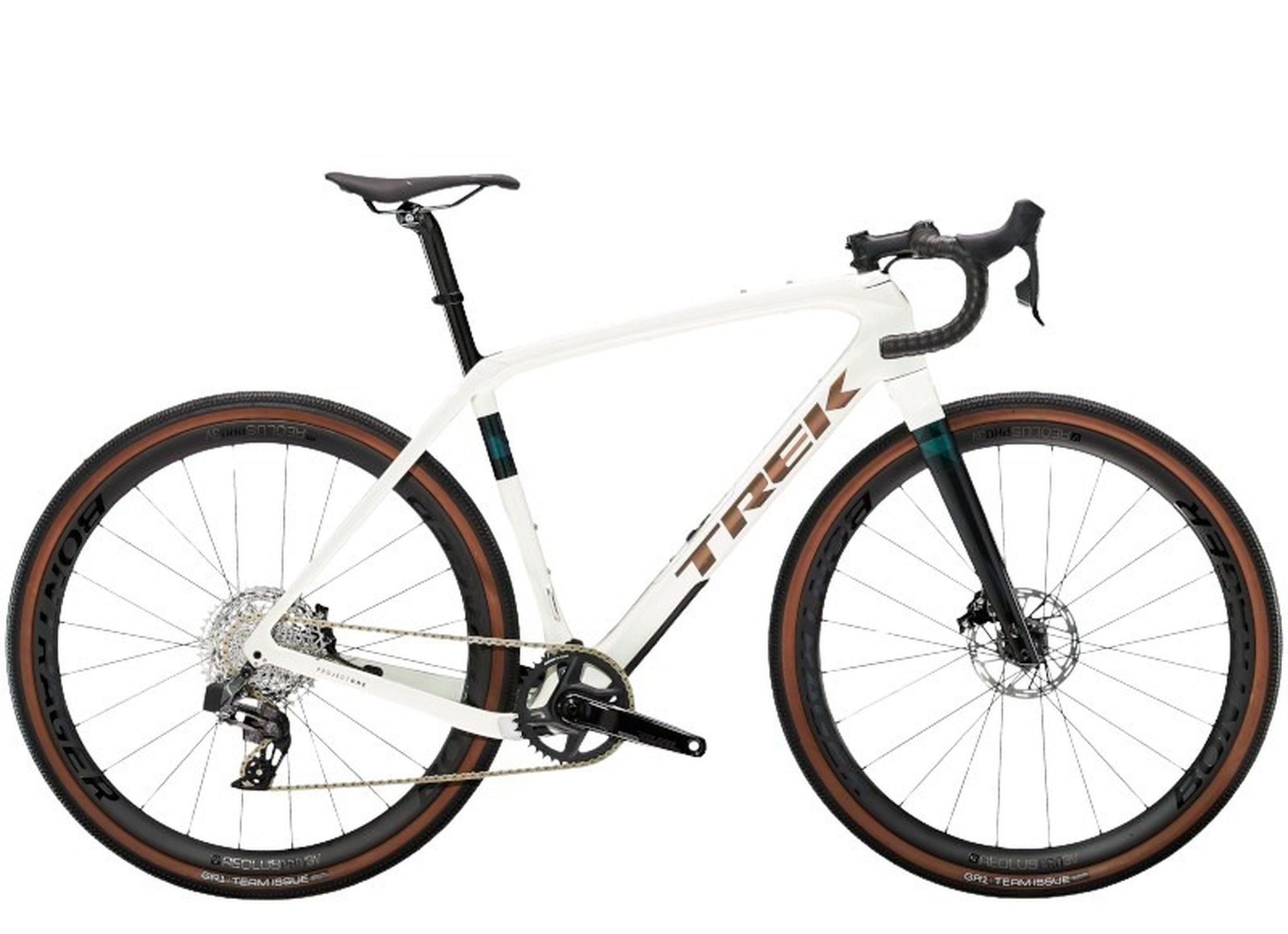

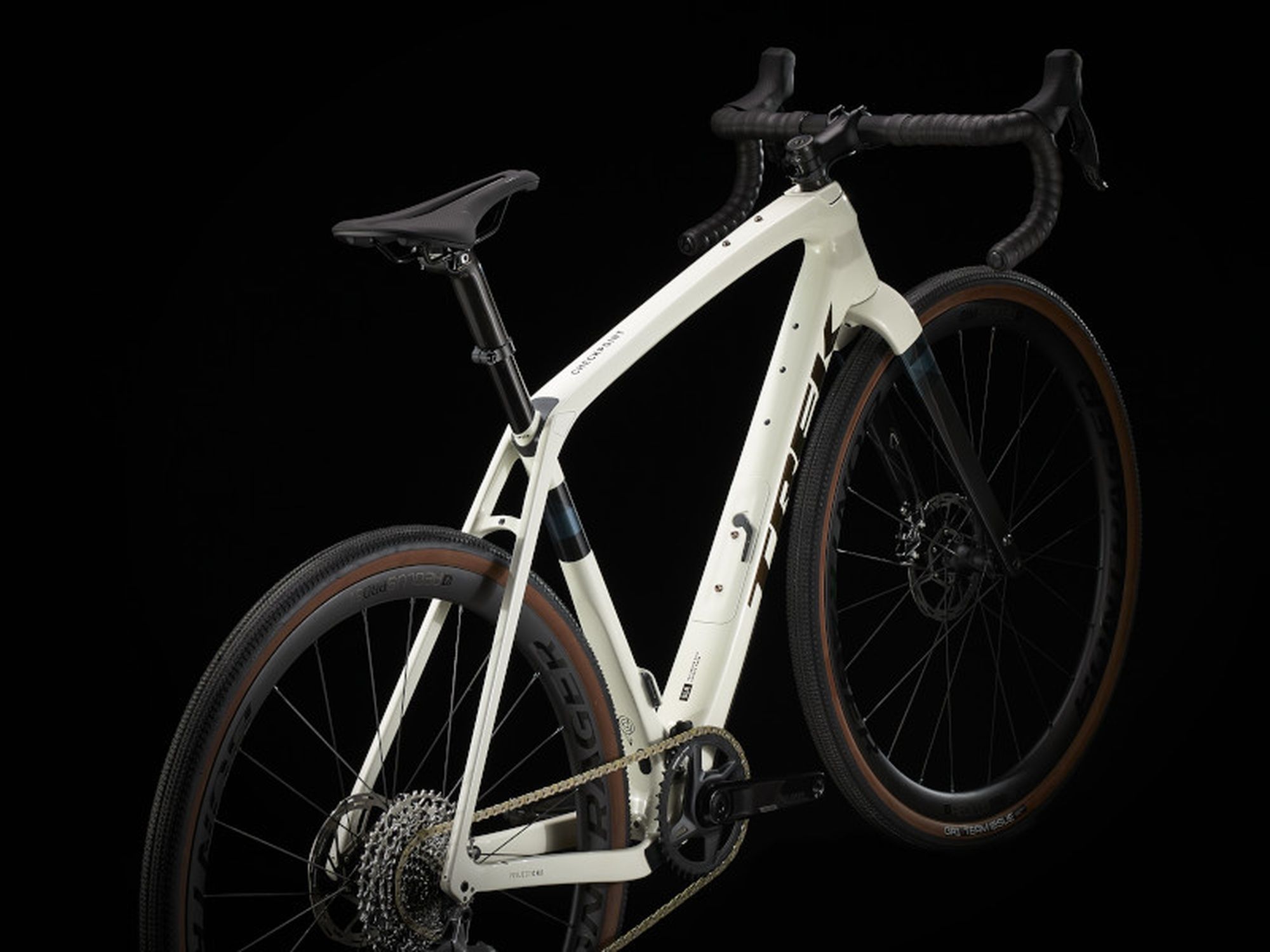

Trek Checkpoint SLR 6 AXS Gravel Bike

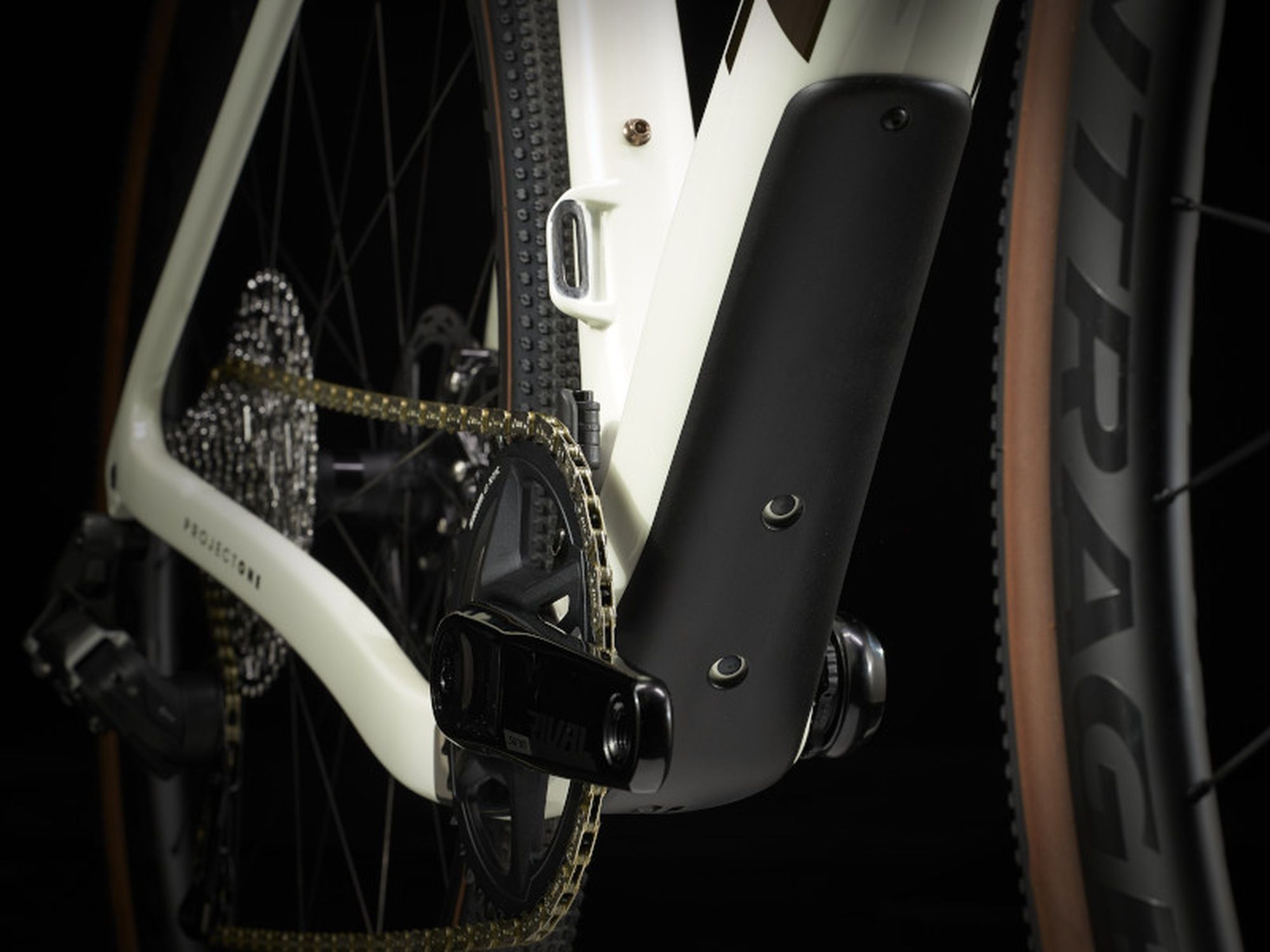

For ambitious adventures like The Mid-South, Belgian Waffle Rides, and UNBOUND Gravel, you're seeking the pinnacle of gravel biking performance, and the advanced Checkpoint frame fits the bill perfectly. Crafted from 700 Series OCLV Carbon with IsoSpeed and carbon armor, it offers stability at speed and efficiency on climbs, alongside internal storage and integrated frame bag and mudguard mounts.

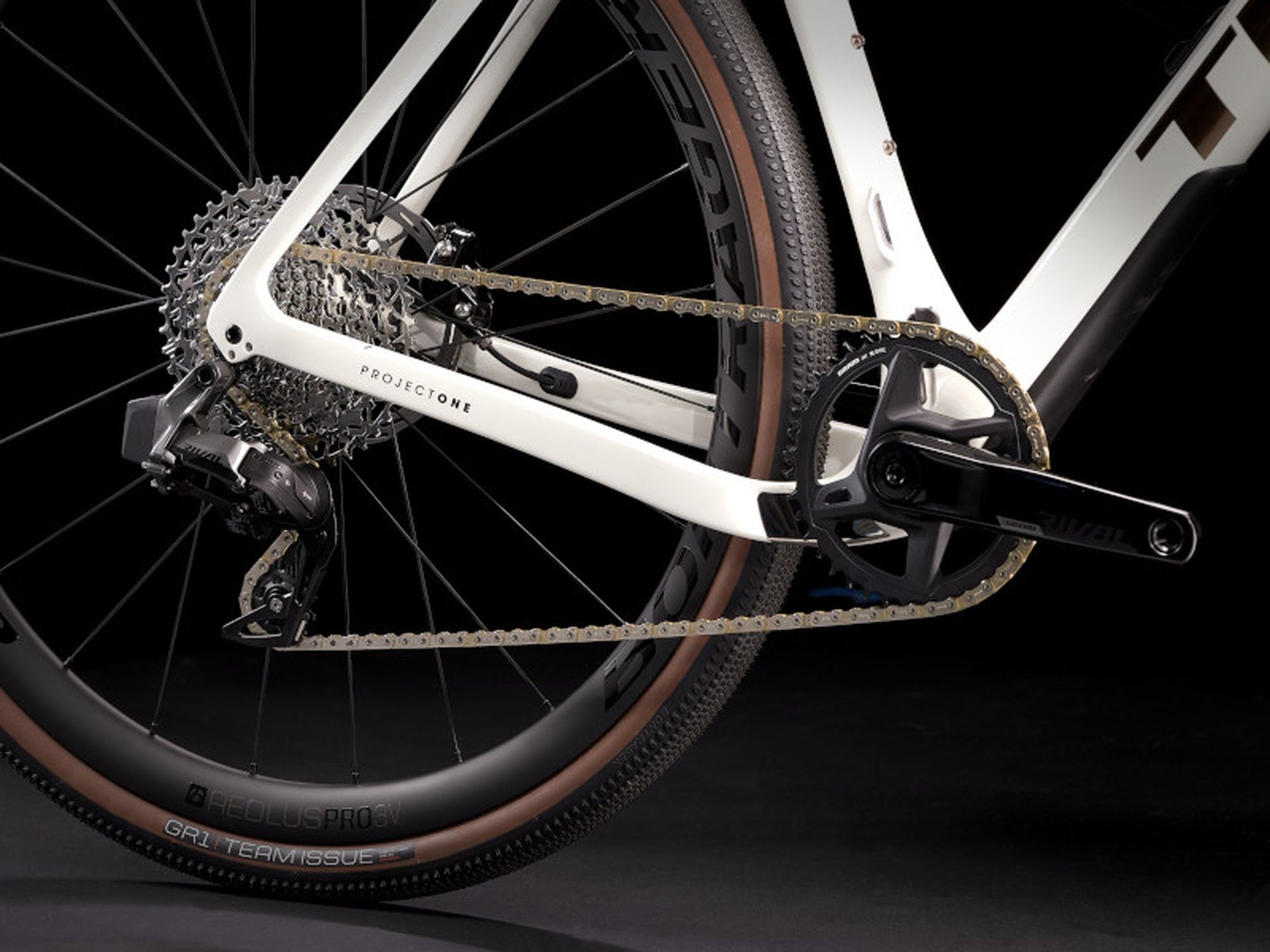

Paired with a carbon fork and 1x12 SRAM Rival AXS wireless electronic drivetrain, this setup ensures seamless shifts and wide-range gearing for varied terrain. Bontrager Aeolus Pro 3V OCLV Carbon wheels with wide 700x40c gravel tires provide superior traction and stability, accommodating tires up to 45c. Designed for grueling gravel races or fast, long rides, this ultra-light Checkpoint frame promises both performance and comfort, featuring advanced components like the wireless electronic drivetrain and carbon wheels. With highlights such as the SRAM Rival AXS drivetrain's customizable shift logic, IsoSpeed decoupler for bump absorption, ample tire clearance, and integrated storage and mounting options, this bike is engineered to elevate your gravel riding experience to new heights.

Features

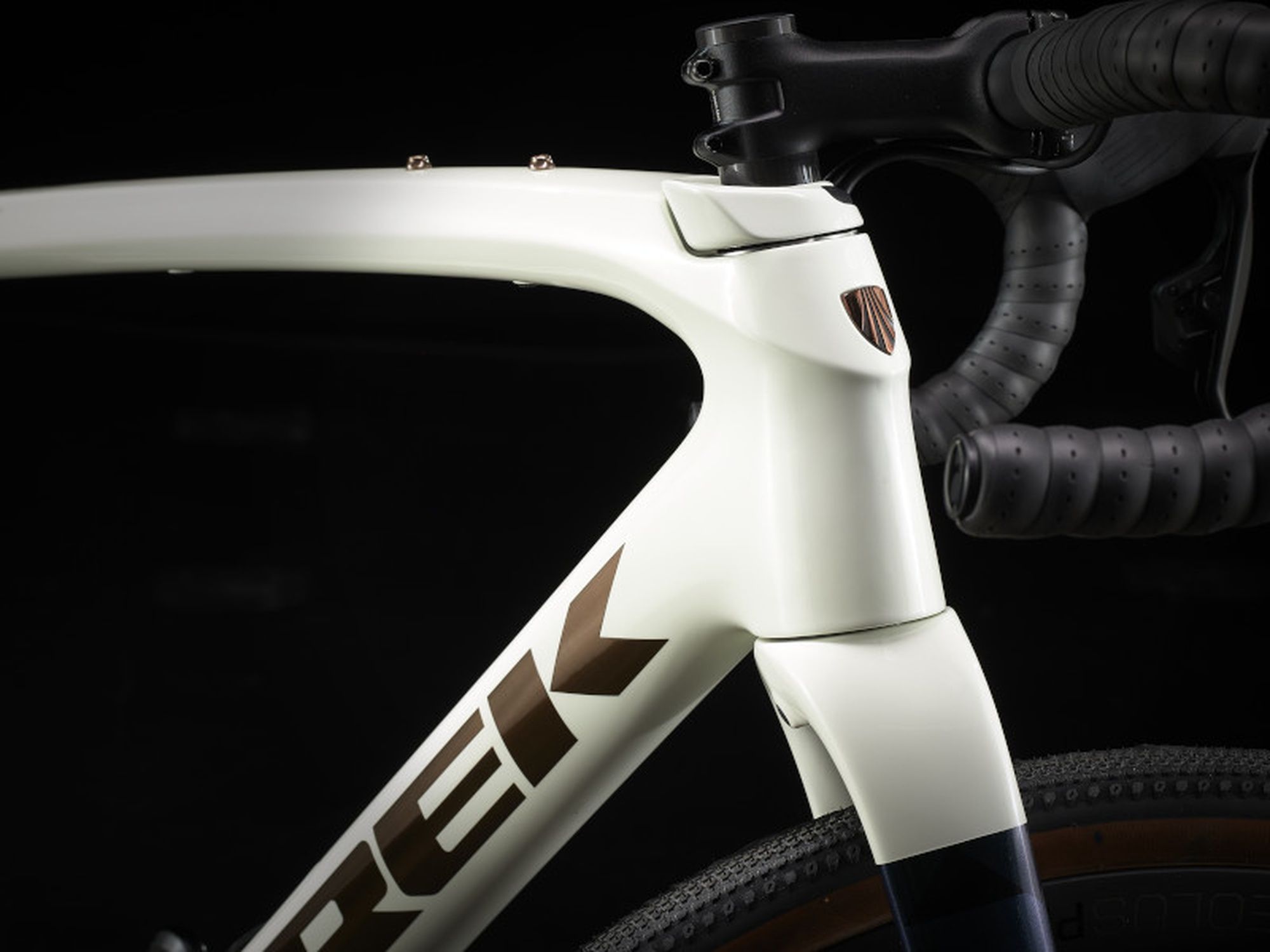

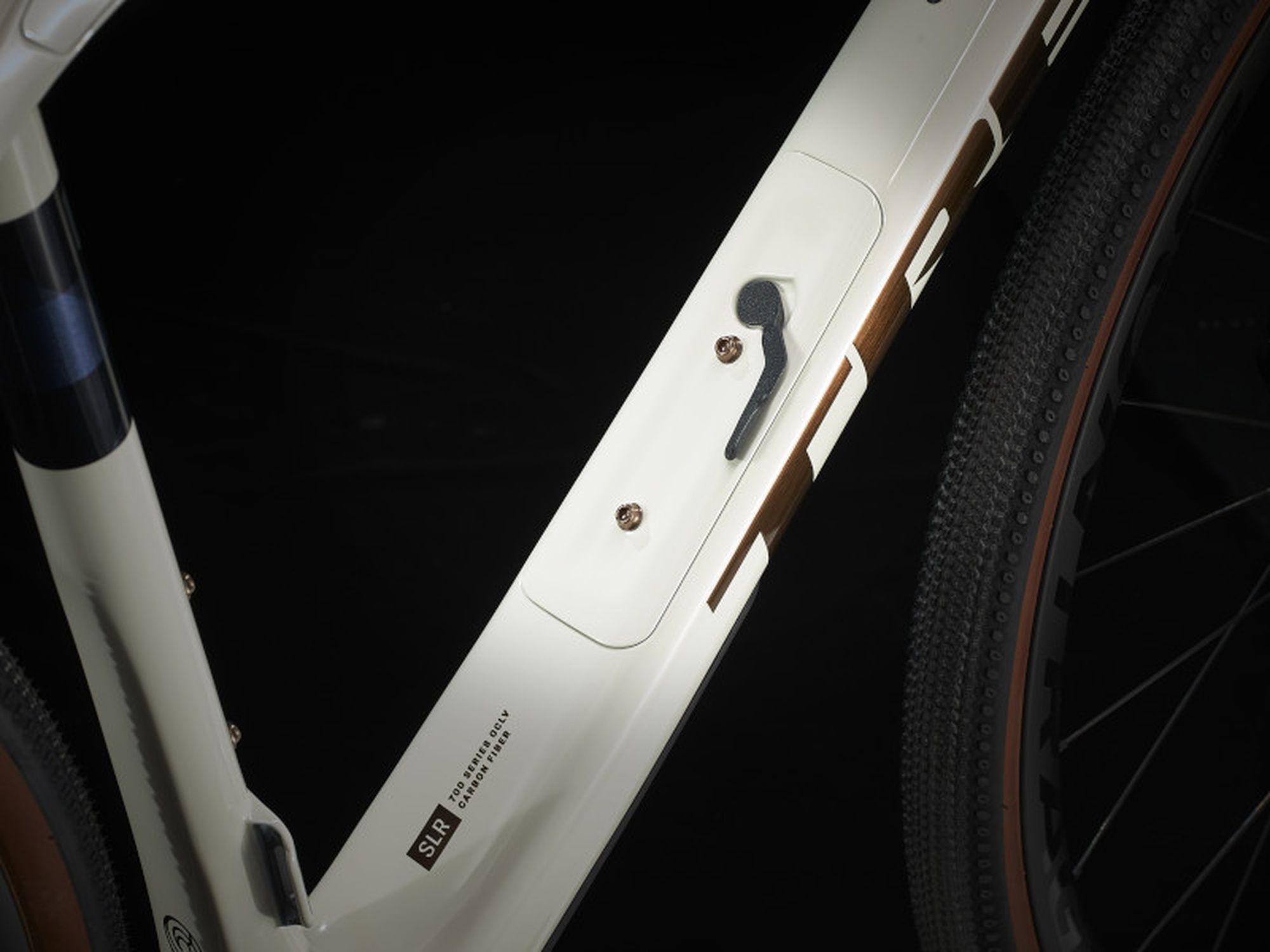

  • Frame: 700 Series OCLV Carbon, IsoSpeed, downtube storage door, internal routing, Ride Tuned seat mast, chain keeper, T47 BB, mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru axle

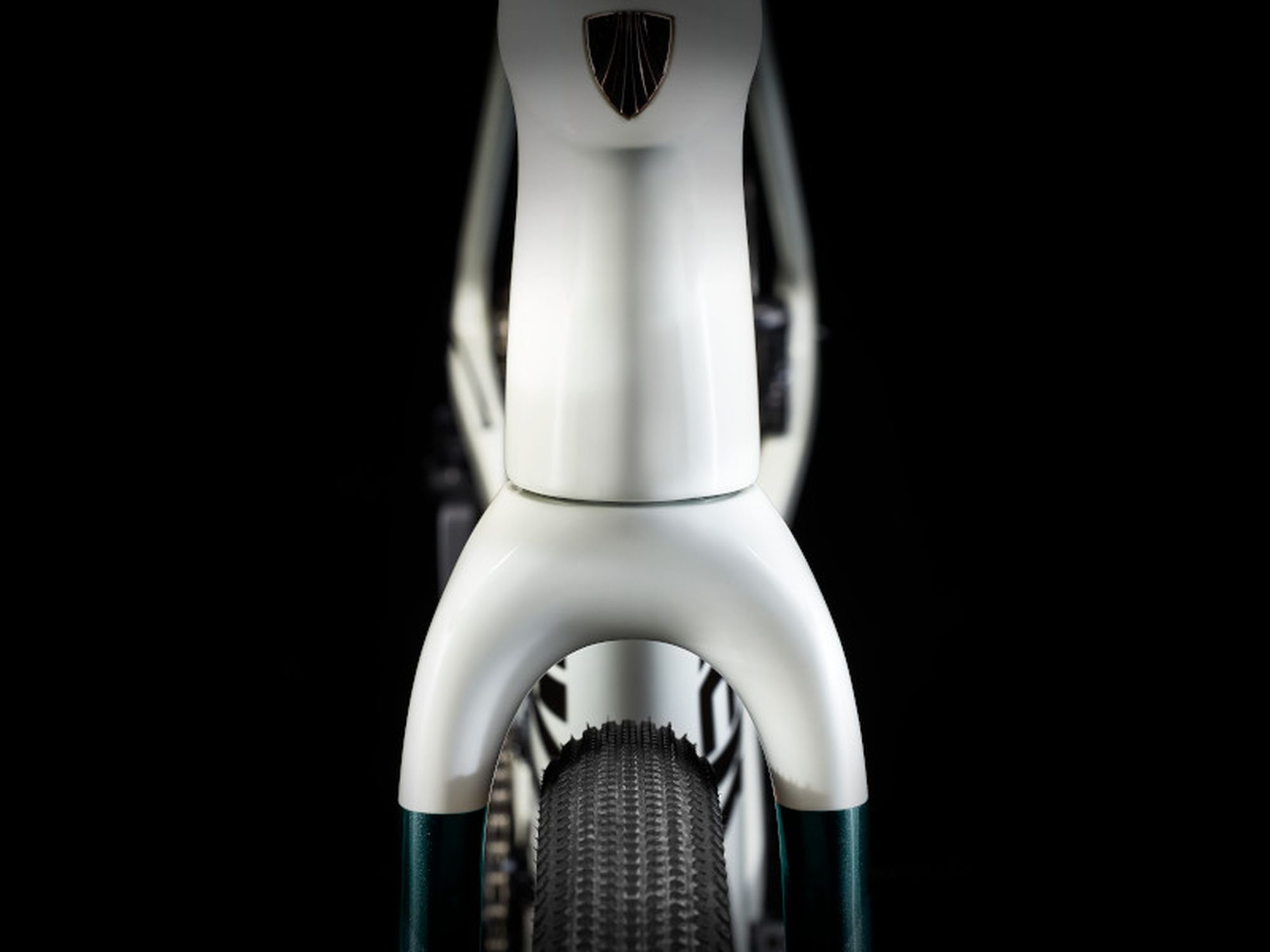

  • Fork: Checkpoint carbon, tapered carbon steerer, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Frame fit: Gravel
  • Weight: 56 - 8.90 kg / 19.63 lbs (with TLR sealant, no tubes)
  • Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Battery: SRAM eTap battery pack (with charger)
  • Shifter: SRAM Rival eTap AXS, 12-speed
  • Rear derailleur: SRAM Rival XPLR eTap AXS, 44T max cog
  • Crank: SRAM Rival AXS w/ power meter, 40T, DUB Wide
  • Bottom bracket: SRAM DUB, T47 threaded, internal bearing
  • Cassette: SRAM XG-1251, 10-44, 12-speed
  • Chain: SRAM Rival, 12-speed
  • Max. chainring size: 1x 46T, 2x 50/37
  • Wheel front: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100 x 12 mm thru axle
  • Wheel rear: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 142x12 mm thru axle
  • Tyre: Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm
  • Tyre part: Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip: Bontrager TLR
  • Saddle: Bontrager Verse Short Elite, hollow stainless steel rails
  • Seatpost: Bontrager carbon seat mast cap, 5 mm offset

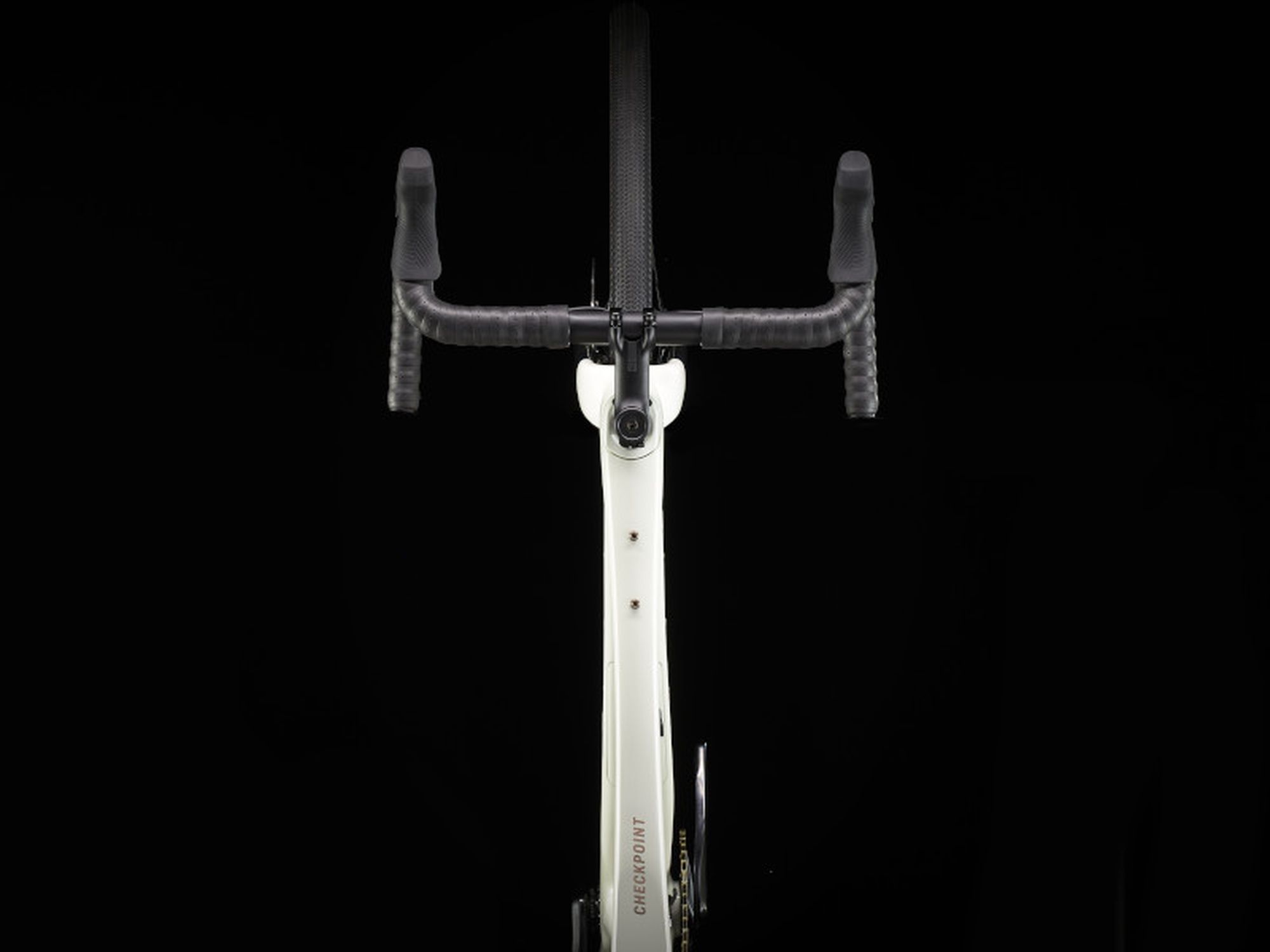

  • Handlebar: Bontrager Pro IsoCore VR-SF
  • Handlebar tape: Bontrager Supertack Perf tape
  • Stem: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree
  • Brake: SRAM Rival hydraulic disc
  • Brake rotor: SRAM Paceline, rounded, CentreLock, 160 mm
  • Rotor size: Max brake rotor sizes 160mm front & rear
Highlights
  • Lightweight 700 Series OCLV Carbon frame with IsoSpeed for a smooth ride
  • Versatile drivetrain options with SRAM Rival eTap AXS and wide-range cassette
  • Bontrager Aeolus Pro 3V OCLV Carbon wheels with Tubeless Ready tires for superior traction and stability
Specifications
Model
Checkpoint SLR 6 AXS
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Crank [Maker]
SRAM
Crank [Model]
Rival AXS
E-Bike
No
Family
Checkpoint+
Fenders Mounts
Yes
Fork [Brake Type]
Disc
Fork [Material]
Carbon
Fork [Wheel Size]
700c
Frame [Material]
Carbon
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Gender
Unisex
Rack Mounts
Yes
RD [Maker]
SRAM
RD [Model]
Rival AXS
Shifters [Maker]
SRAM
Shifters [Model]
Rival AXS
Shifting
Electronic
Suspension Configuration
Rigid
Tires [Maker]
Bontrager
Wheels [Configuration]
Front+Rear
Wheelset [Maker]
Bontrager
Wheelset [Material]
Carbon
Wheelset [Model]
Aeolus Pro 3V OCLV Carbon
Product code
1809207 / 54294574104922
Size Guide
—485154576063
Rider Height (Cm)158 - 163162 - 168167 - 174173 - 184184 - 191190 - 197
Seat Tube (ctr-top)440482512543573605
Seat Tube (ctr-ctr)------
Effective Top Tube520531543557583603
Actual Top Tube ------
Seat Angle (°)74.37473.873.57372.8
Head Tube Angle (°)69.5707171.871.872.3
Head Tube Length11512514160200320
Fork Rake525252525252
Chainstay Length450450450450450450
Wheelbase104110451048105210741086
Stack540551565587625655
Reach368373378383392400
Tail747165595956
Standover713741768794826854
Trek 520 Disc Size Guide 2020

*All measurements in mm unless otherwise stated
