Description

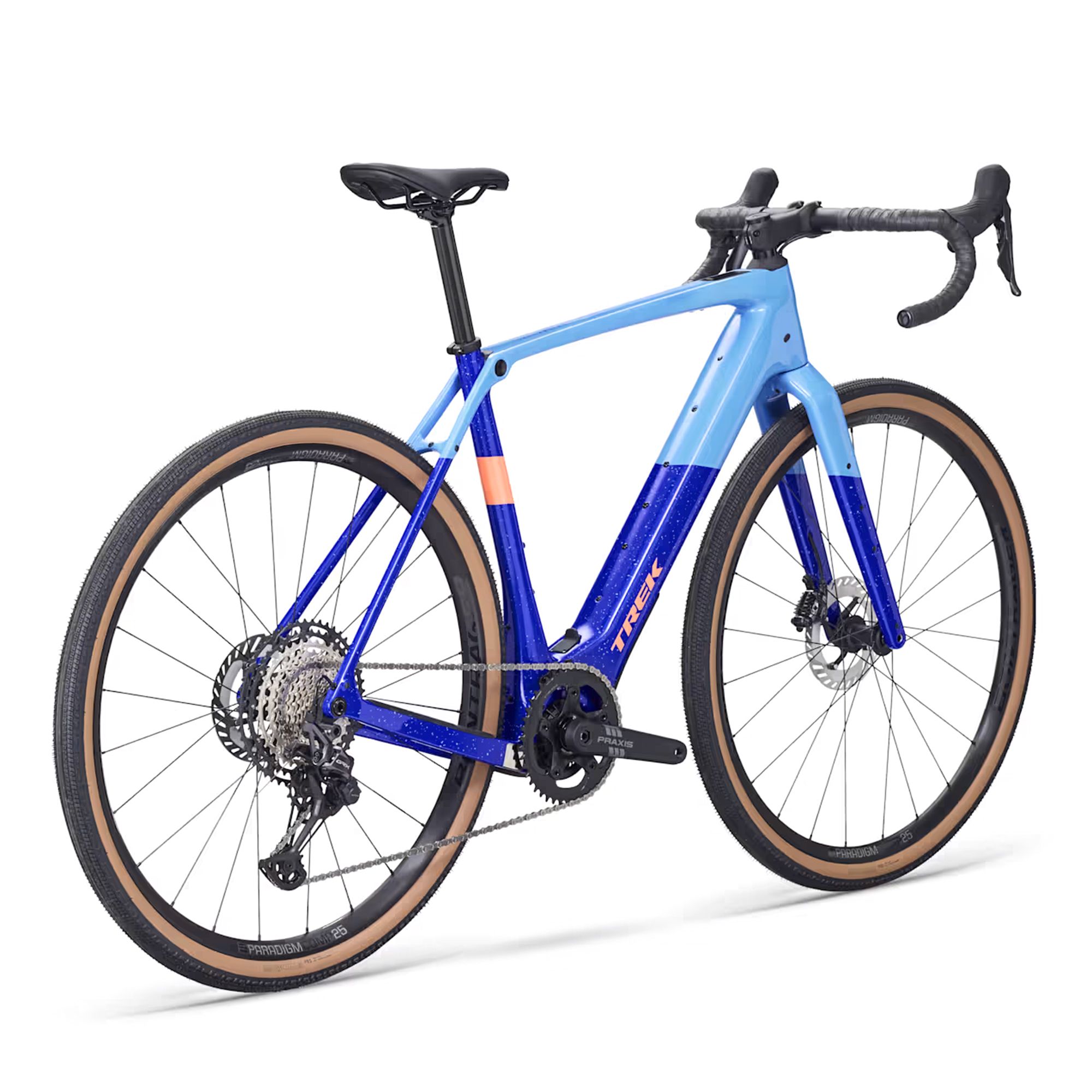

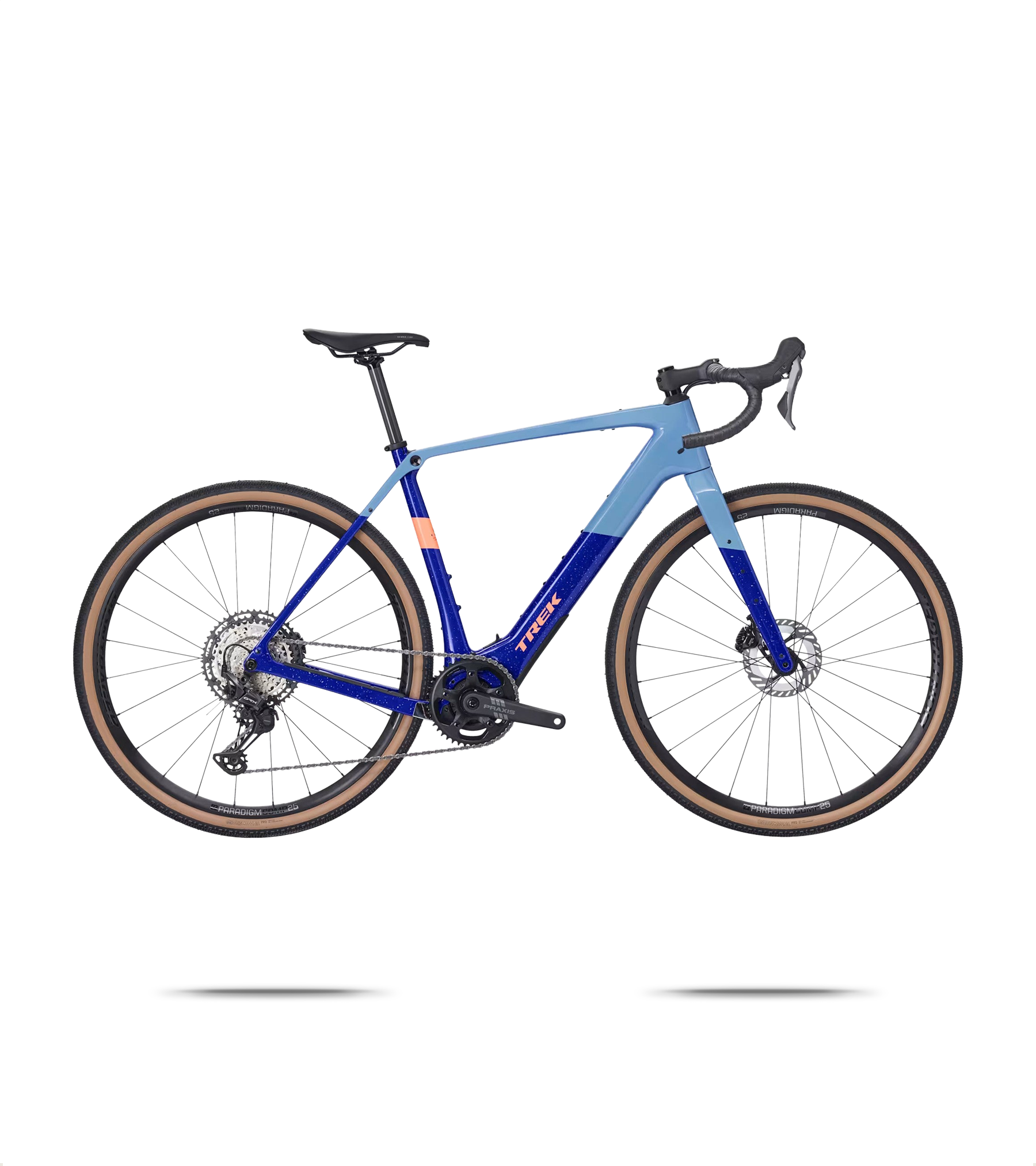

Trek Checkpoint+ SL 5 GRX Electric Gravel Bike
The Trek Checkpoint+ SL 5 GRX Electric Gravel Bike is a carbon e-gravel bike designed for big adventures and challenging terrain. Powered by the TQ HPR60 motor, it provides a smooth, natural-feeling boost to help you conquer tough climbs and cover more ground with ease. A 360 Wh battery delivers lasting support for long-distance rides.
Trek's smooth performance
Built around a lightweight OCLV Carbon frame with endurance geometry, it offers stable, comfortable handling across varied surfaces. Equipped with a 12-speed Shimano GRX 1x drivetrain, it delivers reliable shifting and confident performance on gravel, dirt and beyond. Ideal for riders looking to explore further with electric assist.
Technical Specification
| Frame | 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle |

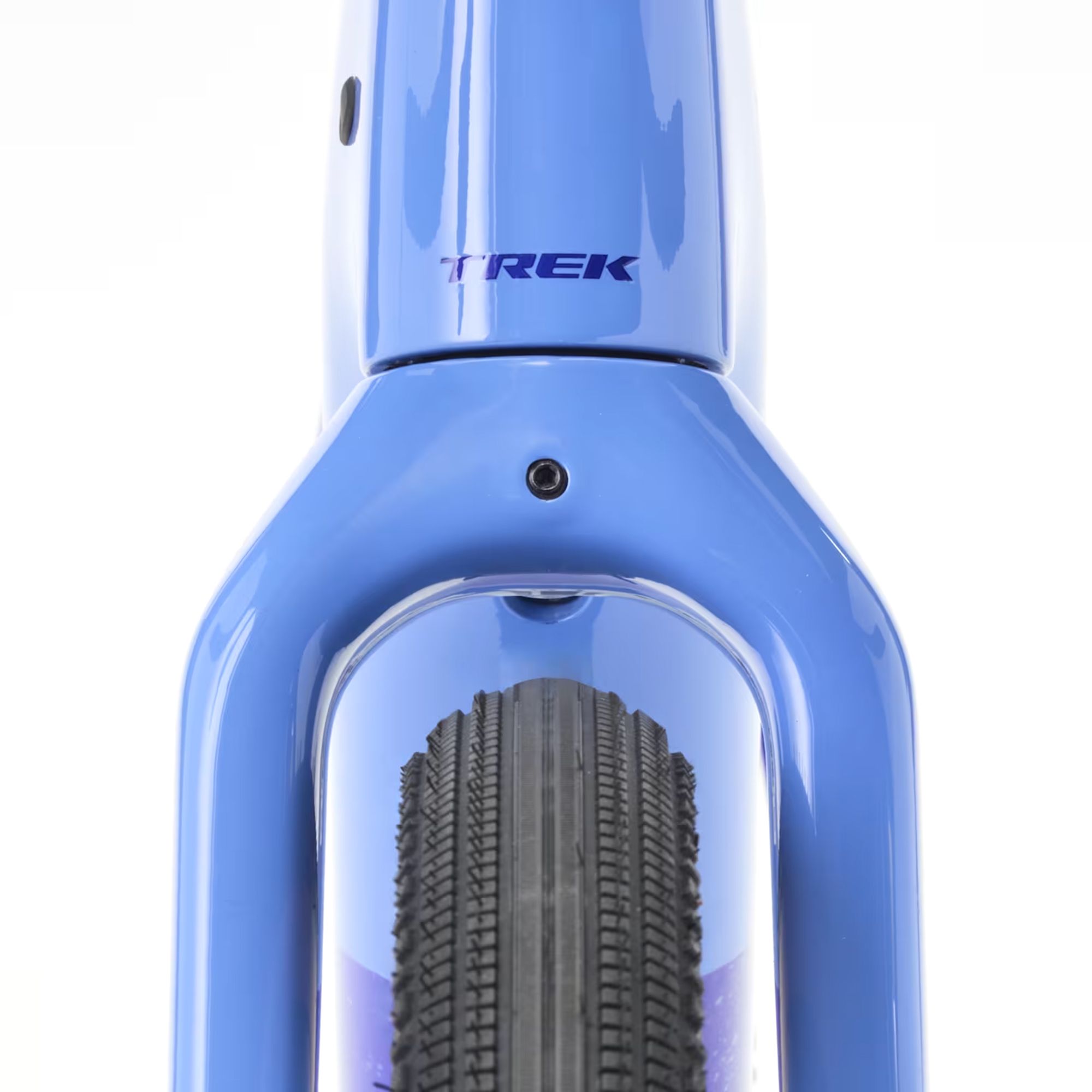

| Fork | Trek Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Max compatible fork travel | 40 mm (XS |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb) |
| Battery | TQ 360Wh |
| Charger | TQ 4A charger |
| Computer | TQ LED display with Bluetooth & ANT+ connectivity |

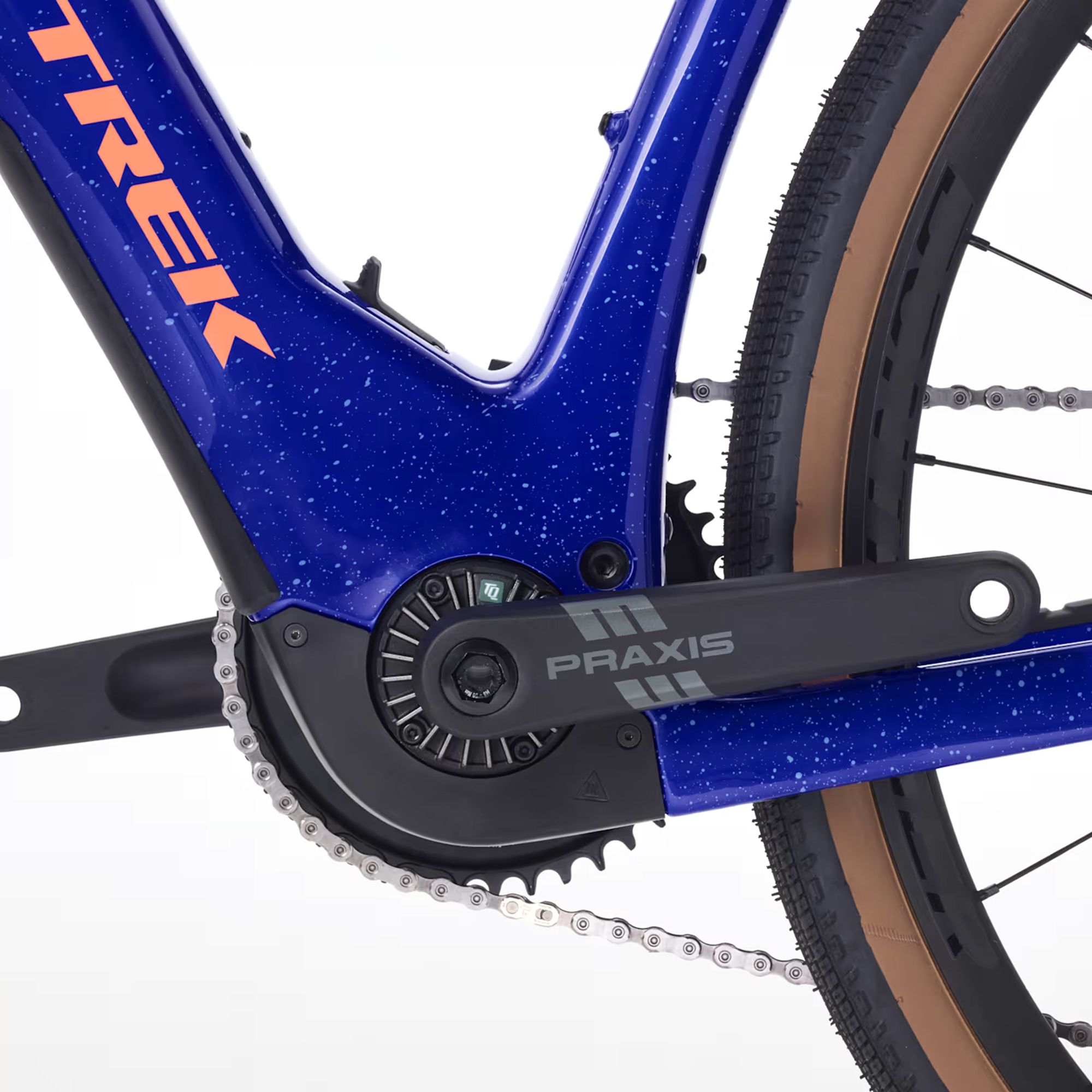

| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| Shifter | Shimano GRX RX820, 12-speed |
| Rear derailleur | Shimano GRX RX822, 36T max cog |
| Crank | |
| Size - XS, S | Praxis Alloy, 165 mm length |
| Size - M, ML | Praxis Alloy, 170 mm length |
| Size - L, XL | Praxis Alloy, 172.5 mm length |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Chain | Shimano XT M8100, 12-speed |
| Max chainring size | 1x |
| Wheel front | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tyre | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details) |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |

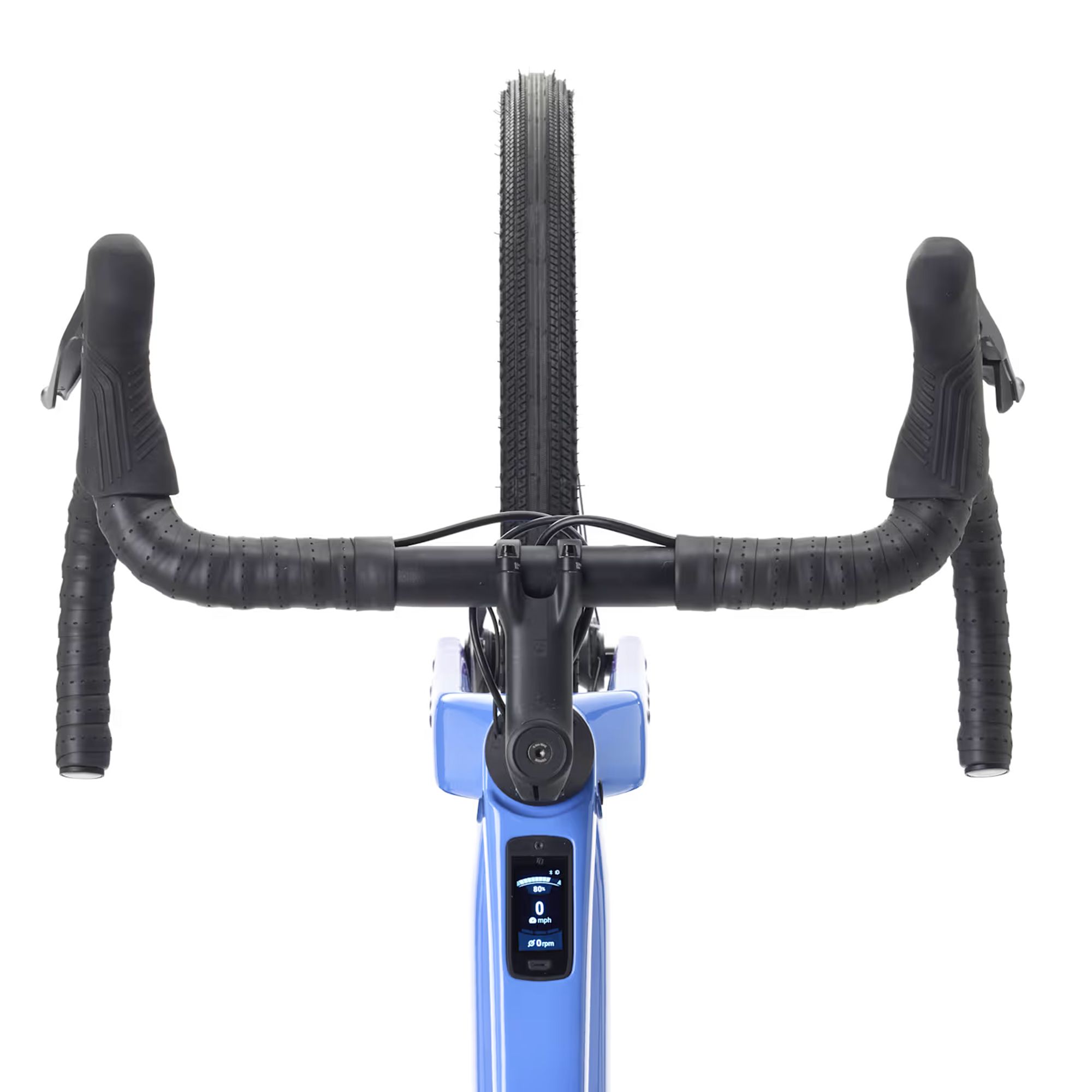

| Handlebar | |
| Size - XS, S | Bontrager Elite Gravel, alloy, 40 cm width |
| Size - M, ML | Bontrager Elite Gravel, alloy, 42 cm width |
| Size - L | Bontrager Elite Gravel, alloy, 44 cm width |
| Size - XL | Bontrager Elite Gravel, alloy, 46 cm width |
| Handlebar tape | Bontrager Supertack Perf tape |
| Stem | |
| Size - XS | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size - S, M | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Size - ML, L | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Size - XL | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
| Brake rotor | Shimano CL800, CentreLock, 160 mm |
| Brake lever | Shimano GRX RX820, 12-speed |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
