Product Details

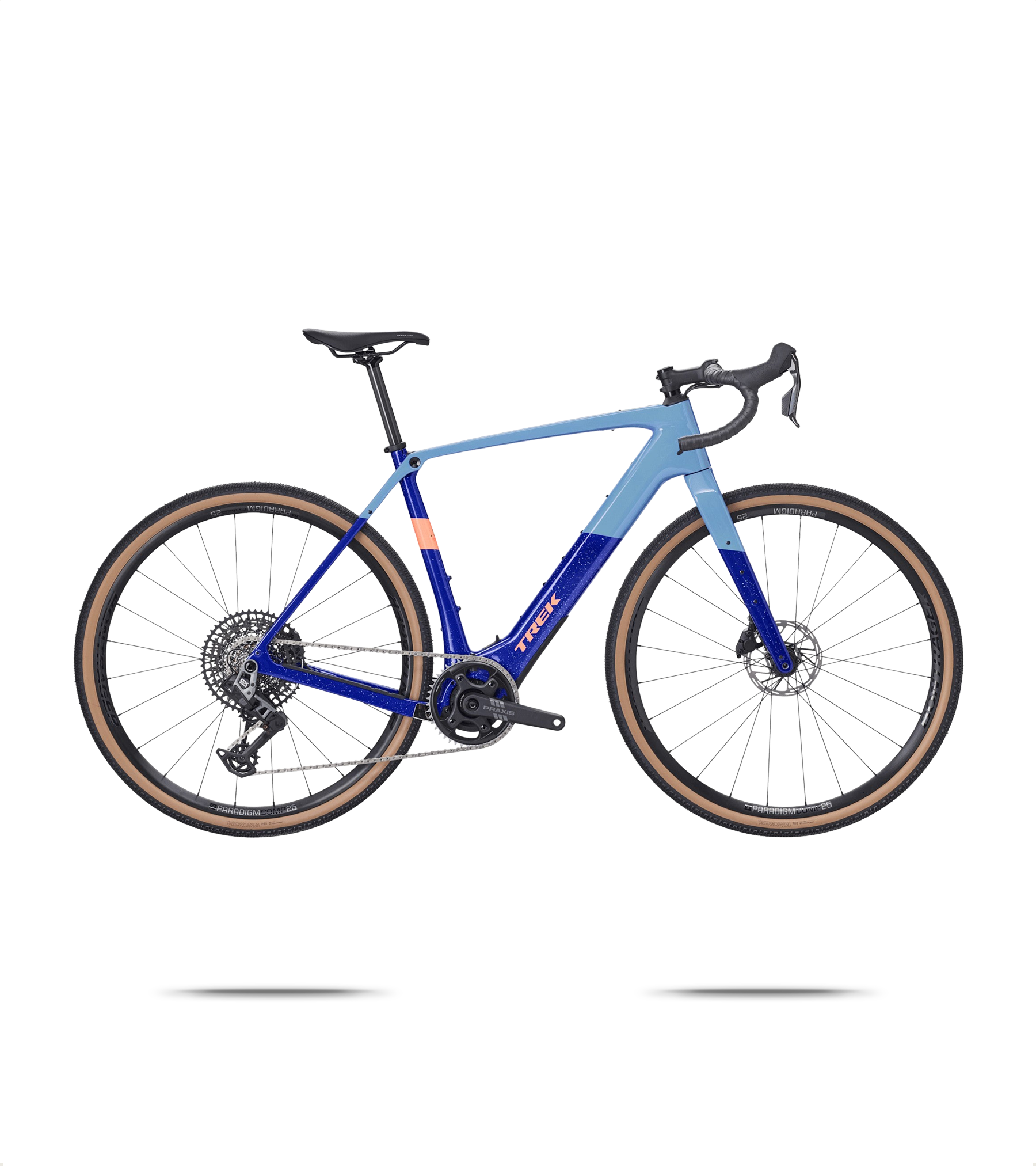

Trek Checkpoint+ SL 6 AXS Electric Gravel Bike

The Trek Checkpoint+ SL 6 AXS Electric Gravel Bike is a carbon e-gravel bike built for riders who want to go further and explore more. Powered by the compact and quiet TQ HPR60 motor, it delivers a smooth, natural-feeling boost to help tackle long distances and steep climbs with ease.

Trek's smooth performance

The lightweight OCLV Carbon frame features generous clearance for 50 mm tyres and multiple mounting points for bags, bottles and gear, making it ideal for bikepacking and extended gravel adventures. A SRAM GX AXS wireless 12-speed drivetrain ensures precise, cable-free shifting across varied terrain, combining performance with versatility in a refined, adventure-ready package.

Features
  • Frame: 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle
  • Fork: Trek Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Max compatible fork travel: 40 mm (XS: compatible with rigid fork only)
  • Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
  • Battery: TQ 360Wh
  • Charger: TQ 4A charger
  • Computer: TQ LED display with Bluetooth & ANT+ connectivity
  • Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
  • Rear derailleur: SRAM GX Eagle AXS, T-Type
  • Crank:
  • Size - XS, S: Praxis Alloy, 165 mm length
  • Size - M, ML: Praxis Alloy, 170 mm length
  • Size - L, XL: Praxis Alloy, 172.5 mm length
  • Cassette: SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
  • Chain: SRAM GX Eagle, T-Type, 12-speed
  • Max chainring size: 1x: 44T
  • Wheel front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
  • Wheel rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142x12 mm thru axle
  • Skewer front: Bontrager Switch chamfered thru axle, removable lever
  • Skewer rear: Bontrager Switch chamfered thru axle, removable lever
  • Tyre: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Tyre part: Bontrager TLR sealant, 180 ml/6 oz
  • Max tyre size: 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
  • Saddle: Verse Short Comp, steel rails, 145 mm width
  • Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar:
  • Size - XS, S: Bontrager Elite Gravel, alloy, 40 cm width
  • Size - M, ML: Bontrager Elite Gravel, alloy, 42 cm width
  • Size - L: Bontrager Elite Gravel, alloy, 44 cm width
  • Size - XL: Bontrager Elite Gravel, alloy, 46 cm width
  • Handlebar tape: Bontrager Supertack Perf tape
  • Stem:
  • Size - XS: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
  • Size - S, M: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
  • Size - ML, L: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
  • Size - XL: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Highlights
  • 500 Series OCLV Carbon Frame and Carbon Fork
  • SRAM GX AXS Groupset
Specifications
Model
Checkpoint+ SL 6 AXS
Battery [Capacity]
360 Wh
Battery [Maker]
tq
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Paceline
Cassette [Gearing]
10-52
Cassette [Maker]
SRAM
Cassette [Model]
Eagle XS-1275
Chain [Maker]
SRAM
Chain [Model]
GX Eagle
Chainring [Gearing]
44
Crank [Maker]
praxis
Discipline Compatibility
Gravel
E-Bike
Yes
F Hub [Maker]
Bontrager
F Hub [Model]
Paradigm Comp 25
Family
Checkpoint+
Fenders Mounts
Yes
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Trek
Fork [Material]
Carbon
Fork [Model]
Checkpoint
Fork [Travel]
40 mm
Fork [Wheel Size]
700c
Frame [Hanger Standard]
UDH
Frame [Material]
Carbon
Frame [Tire Clearance]
50c mm
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
Bontrager
Handlebar [Material]
Aluminium
Handlebar [Shape]
Drop bar
Motor [Kind]
Mid-Drive
Motor [Maker]
tq
Motor [Power]
300 W
Motor [Torque]
60 Nm
R Hub [Maker]
Bontrager
R Hub [Model]
Paradigm Comp 25
Rack Mounts
Yes
RD [Maker]
SRAM
RD [Model]
GX Eagle AXS
Saddle [Maker]
Bontrager
Saddle [Width]
145 mm
Seatpost [Diameter]
27.2
Seatpost [Kind]
Rigid
Seatpost [Length]
330 mm
Seatpost [Maker]
Bontrager
Seatpost [Material]
Carbon
Seatpost [Offset]
8 mm
Shifters [Maker]
SRAM
Shifters [Model]
Rival AXS E1
Shifting
Electronic
Stem [Angle]
7 degree
Stem [Clamp Diameter]
31.8
Stem [Maker]
Bontrager
Stem [Material]
Aluminium
Sub Family
Checkpoint SL
Suspension Configuration
Rigid
Tires [Maker]
Bontrager
Tires [Width]
42 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Inner Width]
25 mm
Wheelset [Maker]
Bontrager
Wheelset [Material]
Aluminium
Wheelset [Model]
Paradigm Comp 25
Product code
1940528 / 54293824274778
Size Guide
Trek Allant+ 8 2020 Size Guide

All measurements in mm unless otherwise stated.

Reviews
Rating 5 out of 5
5
Value of Product
4
Quality of Product
5
Rating 5 out of 5
Jon Proudfoot,
Verified purchaser

Health issues led me to the dark side - an e-bike! I replaced my Cube gravel bike which had SRAM AXS with this Trek. I am amazed and wish I’d gone e-bike sooner. I now look forward to getting out. The assist from the motor is very natural. I keep it in low most of the time but use medium and full on the Cornish hills. I am doing 20 - 25 miles with a range of 300m to 700m ascent. My times are good but it is still great exercise. I still have to work and, according to my Garmin which uses power and heart rate, I am still burning reasonably serious calories. It feels very strange to do 17% hills at around 10 mph with 80+ rpm cadence rather than my usual trudge at around 3 mph with less than 50 rpm. I have already done routes I have not been able to do for a few years. Range is good. With a mixture of hills using all power levels I can probably get 40 miles. It still needs riding but feels like me 25 years ago!! Sigma Sports had it at a great price and were really good to deal with. I am 5'10” and they recommended a size M even though the Trek size calculator suggested size M/L - great advice.
