Product Details

Good condition approved used bike with minor cosmetic scuffs to the drive side crank arm, drive side seatstay and non drive side chainstay



Trek Domane AL 5 Gen 4 Disc Road Bike 2026

The Domane AL 5 is a versatile road bike, ideal for newcomers to road cycling. Featuring an Alpha Aluminium frame, 12-speed Shimano 105 drivetrain, and a comfortable all-day geometry, it's perfect for casual rides, group cycling, and venturing off-road onto gravel paths. Whether you're commuting or enjoying extended rides, the Domane AL 5's affordability, smooth performance, and adaptable gearing make it a suitable choice.

Designed for those entering the world of road biking, the Domane AL 5 offers a balanced blend of comfort and speed. With its advanced Alpha Aluminium frame, Shimano 105 groupset, disc brakes, and integrated mounts for additional gear, it provides a smooth and enjoyable riding experience, whether cruising on roads or exploring gravel terrains.



  • Certified Quality & Peace of Mind
    Every bike is meticulously inspected to the highest safety standards and comes with a one-year warranty*, ensuring reliability and performance you can trust.
  • Premium Bikes, Lower Prices
    Own a high-end bike for less – get access to top-tier brands and models at a fraction of the cost, making performance cycling more affordable.
  • Sustainable & Eco-Friendly Choice
    Choosing a pre-owned bike helps reduce waste and extends the life of quality bicycles, making it a greener way to ride.
  • Hassle-Free Trade-In & Upgrade
    Easily part-exchange your old bike for an upgrade, making it simple to switch, save, and keep riding the best bike for your needs

Approved Used Warranty Information

Features
  • Frame: Trek Domane AL 5 Gen 4, 100 Series Alpha Aluminium, size 52cm, 2026

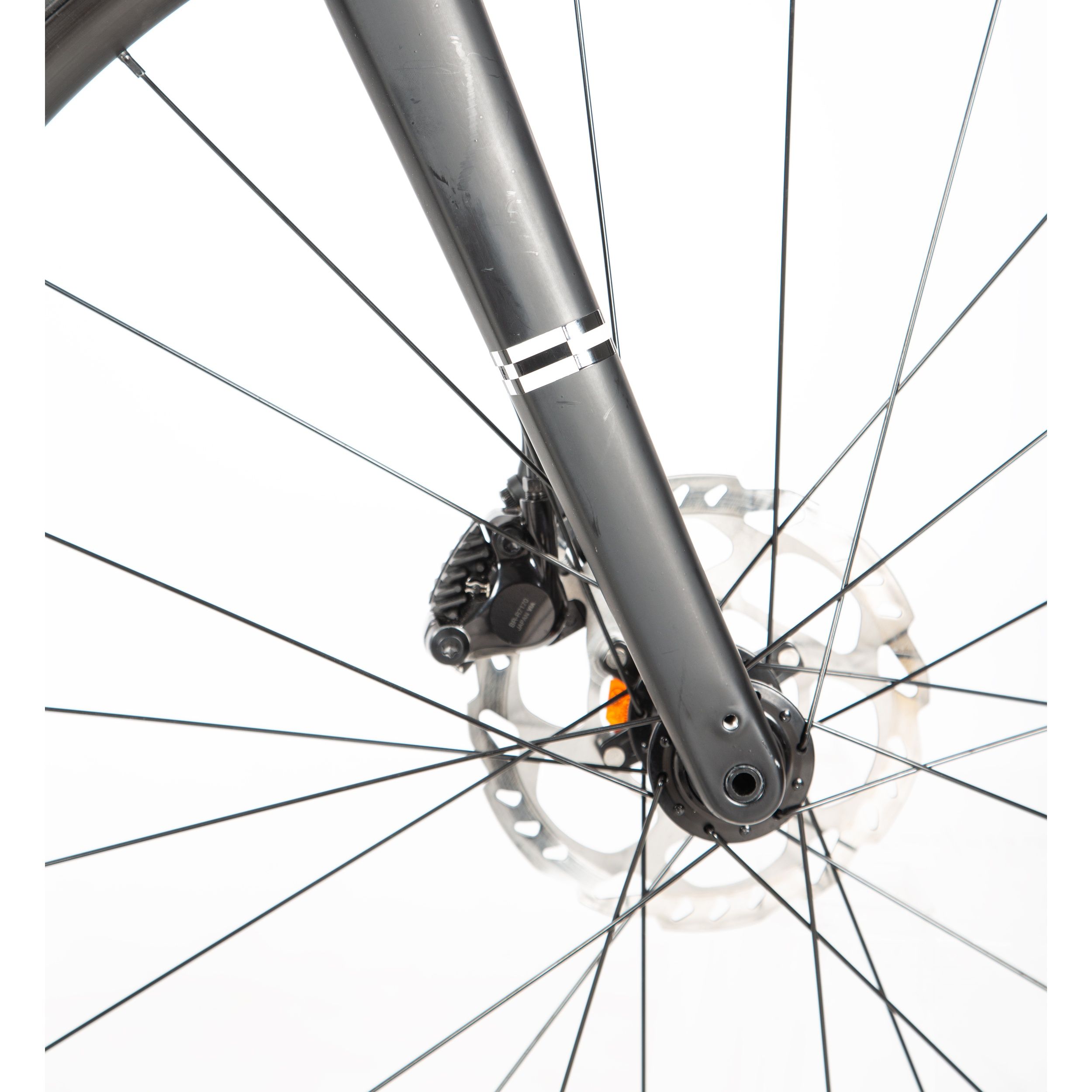

  • Fork: Domane AL carbon
  • Stem: Bontrager Elite Alloy, 31.8 mm, Blendr-compatible, 90mm 7°

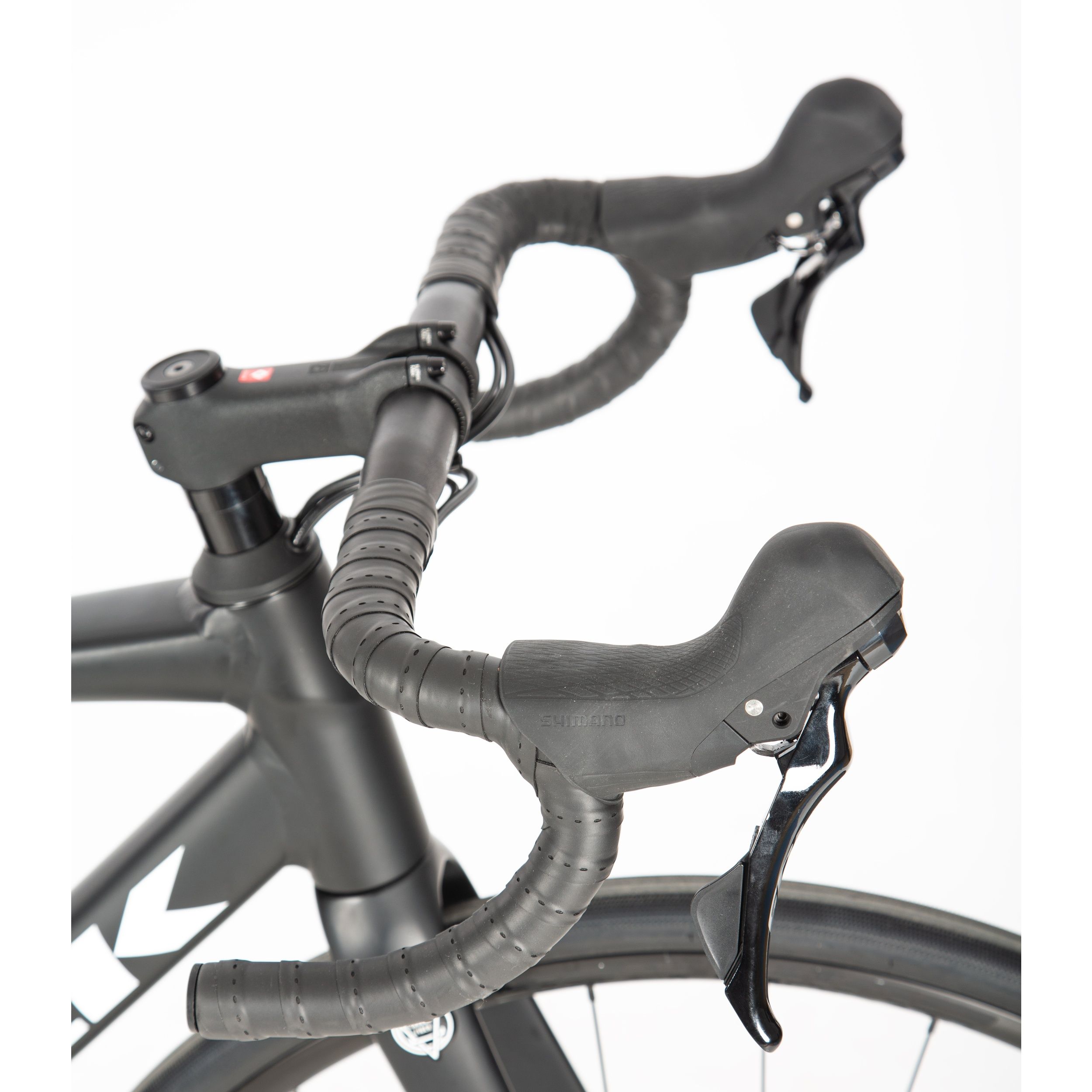

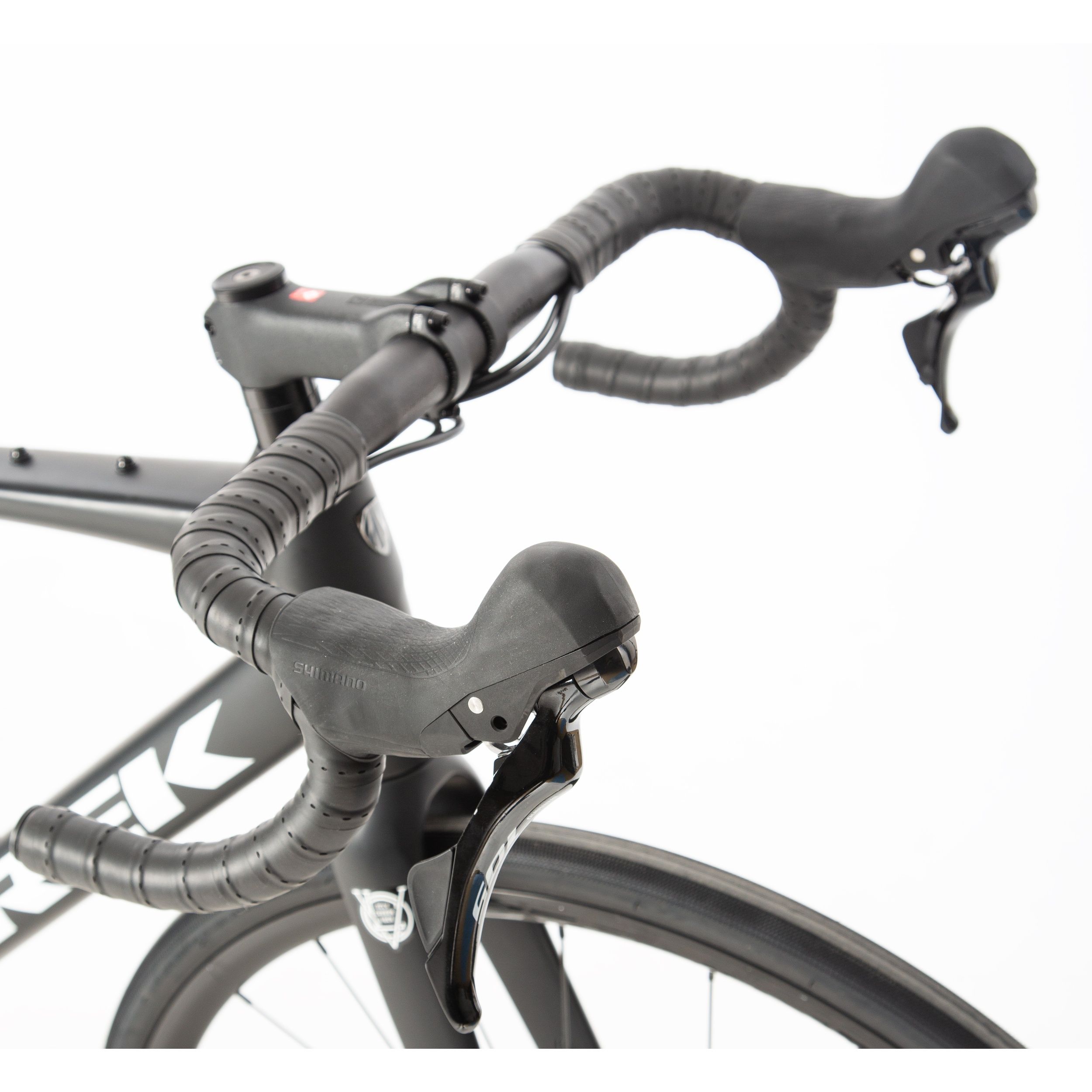

  • Handlebar: Bontrager Comp IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 440cm c-c
  • Levers/Shifters: Shimano 105 BR-R7170, hydraulic disc, 160mm rotor
  • Front Derailleur: Shimano 105 FD-R7100, 2x12 speed, band-on
  • Rear Derailleur: Shimano 105 RD-R7100, 12 speed
  • Cassette: Shimano 105 CS-R7101, 12-speed, 11-34T
  • Crankset: Shimano 105 FC-R7100, 2x12 speed 50/34T, 170mm cranks
  • Wheels: Bontrager Paradigm SL TLR
  • Tyres: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c, inner tubes

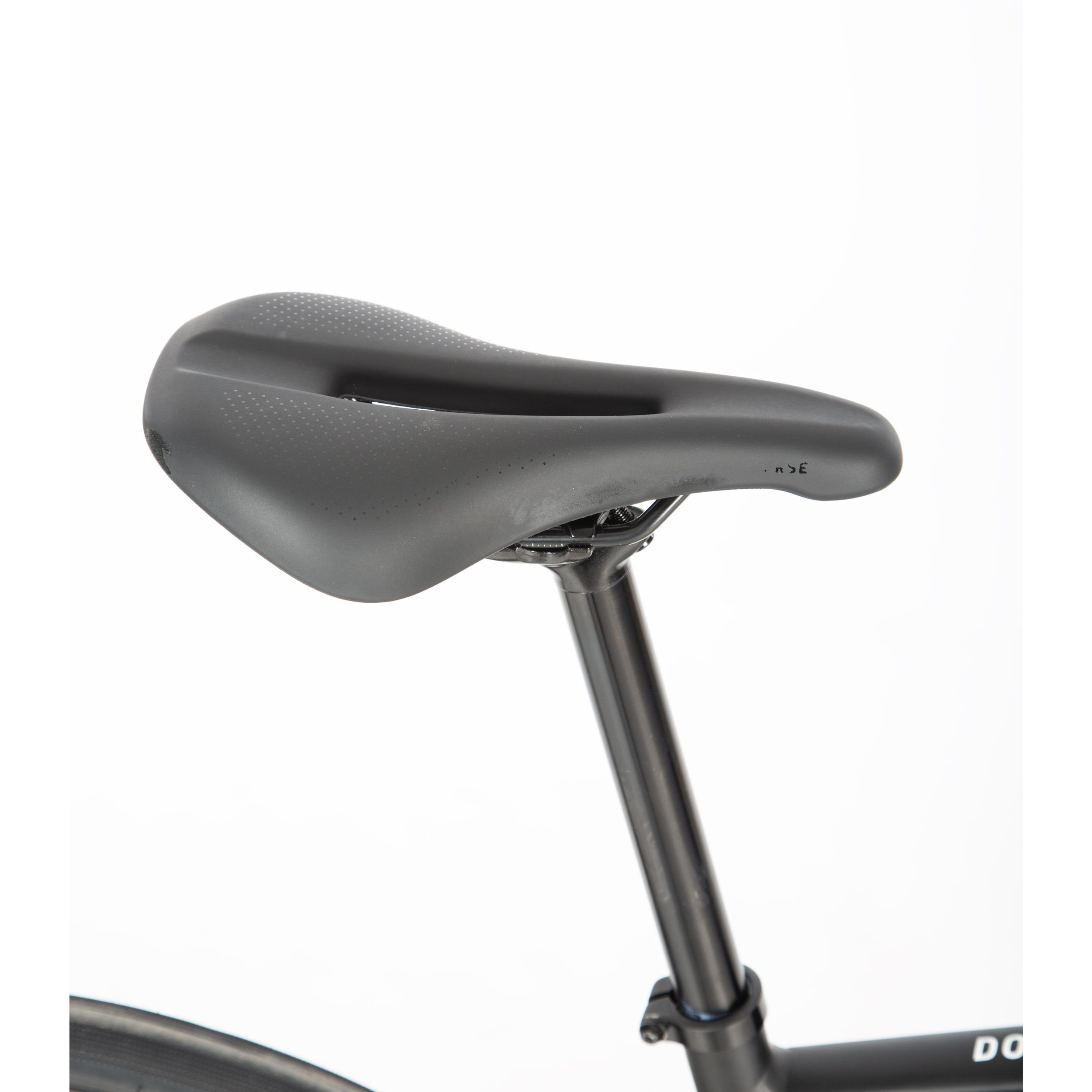

  • Saddle: Bontrager Verse Short, steel rails, 145mm
  • Seatpost: Bontrager Comp, 6061 alloy
  • Pedals: Available to be purchased separately
Specifications
Model
Domane AL 5 Gen 4
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
Shimano
Brakes [Model]
105 BR-R7170
Cassette [Gearing]
11-34
Cassette [Maker]
Shimano
Cassette [Model]
105 CS-R7101
Chainring [Gearing]
50/34
Condition Grade
Good
Crank [Maker]
Shimano
Crank [Model]
105 FC-R7100
E-Bike
No
Family
Domane+
FD [Maker]
Shimano
FD [Model]
105 FD-R7100
Fenders Mounts
No
Fork [Brake Type]
Disc
Fork [Maker]
Trek
Fork [Material]
Carbon
Fork [Model]
Domane AL carbon
Fork [Wheel Size]
700c
Frame [Material]
Aluminium
Frameset
No
Gearing [Configuration]
2x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
Bontrager
Handlebar [Material]
Aluminium
Handlebar [Shape]
Drop bar
Rack Mounts
No
RD [Maker]
Shimano
RD [Model]
105 RD-R7100
Saddle [Maker]
Bontrager
Seatpost [Maker]
Bontrager
Seatpost [Material]
Aluminium
Shifters [Maker]
Shimano
Shifters [Model]
105 BR-R7170
Shifting
Mechanical
Stem [Clamp Diameter]
31.8
Stem [Maker]
Bontrager
Stem [Material]
Aluminium
Suspension Configuration
Rigid
Tires [Maker]
Bontrager
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Maker]
Bontrager
Wheelset [Material]
Aluminium
Wheelset [Model]
Paradigm SL TLR
Product code
2007690 / 54293376598362
Size Guide
—4750525456586062
Rider Height (cm)152 - 158158 - 163163 - 168168 - 174174 - 180180 - 185185 - 190190 - 195
Rider Height (ft. in)5' - 5'2"5'2" - 5'4"5'4" - 5'6"5'6" - 5'9"5'9" - 5'11"5'11" - 6'1"6'1" - 6'3"6'3" - 6'5"
Seat Tube (ctr-top)424453483496525553573593
Seat Tube (ctr-ctr)--------
Effective Top Tube512521534543559574586598
Actual Top Tube--------
Seat Angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
Head Angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
Head Tube100111121131151171191211
Fork Rake6862585658575656
Chainstay410410410410410411411412
Wheelbase97297497798198399210011010
Stack507521533541563581601620
Reach373378383386391396399403
Trek Madone SLR Gen 6 & Gen 7 Disc & Rim Road Bikes & Framesets / SL Disc Road Bikes & Framesets 2022

All measurements in mm unless otherwise stated

The charts show Trek's recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike.

Should you have any specific questions, please contact us for information and talk to one of our experienced members of staff.
