Trek Domane SLR Disc Gen 5 Frameset

£4,400.00

Delivery

Select size to see delivery options

Collect in Store

Cycle to Work – Save up to 42%

Spread the cost of your new bike and save up to 42% through the Cycle to Work scheme. We accept all major providers including Cyclescheme, Green Commute Initiative, Bike2Work and more.
We do not accept Halfords Cycle2Work or Evans Cycles Ride-to-Work Scheme vouchers.
Check with your employer for eligibility.

Free Delivery on all bikes

Complimentary standard delivery on all bikes to UK mainland addresses. Orders typically arrive within 2–5 working days. A signature is required on delivery. When you receive your bike all you'll need to do is unpack it, attach your pedals, turn the handlebars and ride.

Premier Delivery

Upgrade to Premier Delivery at checkout for a nominated day, extended assembly and in-home handover by a trained technician. Available on eligible bikes across UK mainland.

Built, checked, tuned & tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Pedals & accessories

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team

You May Also Need

Specialized
S-Works Tarmac SL8 Frameset 2026
£3,999.00
£4,999.00
Colnago
Y1RS Limited Edition Frameset
£6,299.00
Cervelo
S5 Limited Edition Lupine Frameset
£5,500.00

Product Details

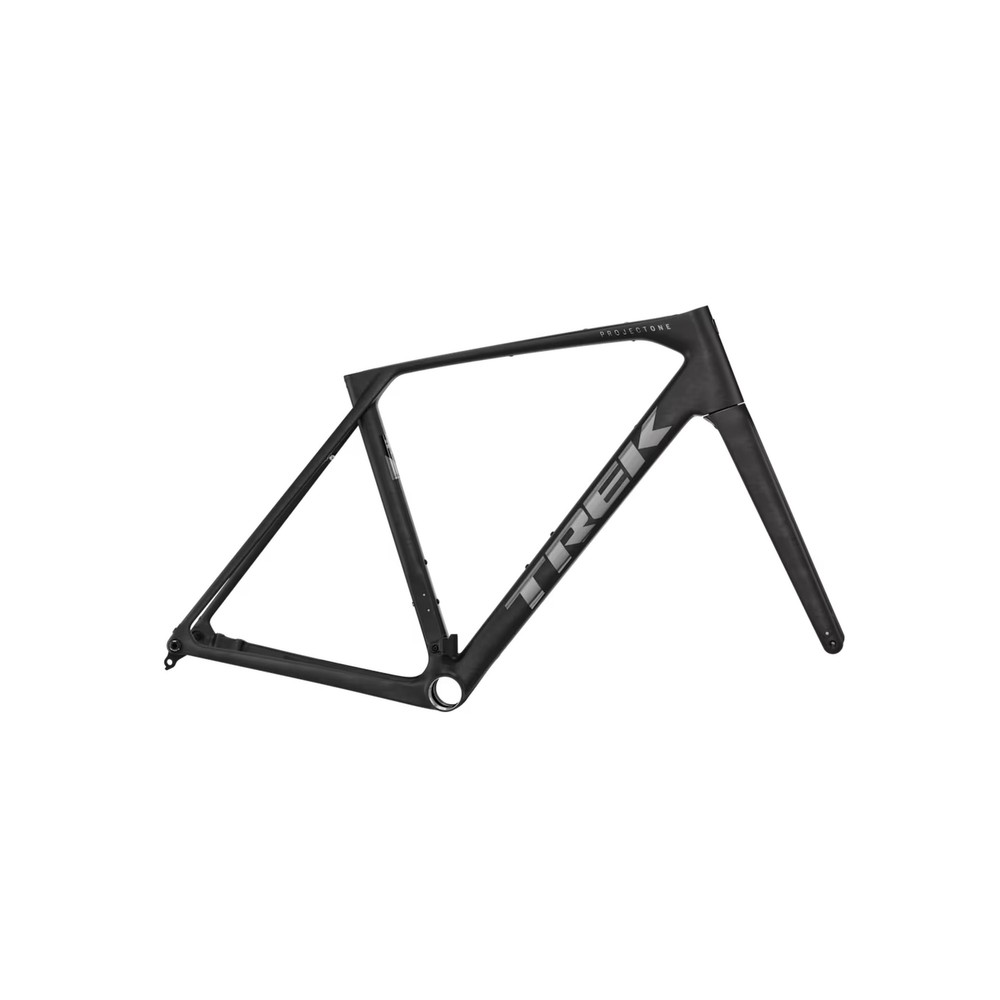

Trek Domane SLR Disc Gen 5 Frameset

Crafted from Trek's premium 900 Series OCLV Carbon, the Domane SLR Disc Gen 5 Frameset provides the ideal foundation for riders seeking an uncompromising mix of speed, compliance, and customisation. Tipping the scales at an astonishingly light 835g for the frame and 367g for the fork, this endurance platform pairs modern aerodynamics with modern versatility. Featuring clean internal cable routing, flat-mount disc brake compatibility, and an integrated chain keeper, it streamlines your setup while keeping key components protected. The inclusion of a robust T47 bottom bracket shell and a Universal Derailleur Hanger (UDH) ensures maximum power transfer, easy servicing, and seamless integration with the latest electronic groupsets.

Performance Driven Comfort

At the heart of the Domane SLR Gen 5 is an engineered carbon layup designed to smooth out road chatter and reduce rider fatigue on long days in the saddle. By pairing race-ready geometry with generous clearance for tyres up to 40 mm, this frameset empowers you to glide over coarse tarmac, rough chip-seal, and gravel connecting sectors without sacrificing velocity. Integrated frame bag and fender mounts allow you to tailor your build for everything from ultra-endurance racing to bad-weather training, ensuring that maximum comfort never compromises your speed or aesthetic appeal.

Features

Frame: 900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Fork: Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Weight: 835g - ML (frame-only, painted), 367g (fork-only, painted)
Skewer Front: Bontrager Switch chamfered thru axle
Skewer Rear: Bontrager Switch chamfered thru axle, removable lever
Max Tyre Size: 40 mm

Specifications

Gender: Unisex
Product code: 2047697 / 54384633413978

Size Guide

Frame Size	XS	S	M	ML	L	Xl
Wheel Size	700c	700c	700c	700c	700c	700c
Seat Tube	44.4	47.6	50.0	53.3	55.3	59.3
Seat tube angle	73.5°	73.7°	73.5°	73.3°	73.3°	73.3°
Head tube length	10.6	13.9	15.9	17.0	19.2	22.6
Head angle	71.3°	71.1°	71.2°	71.9°	72.0°	72.1°
Effective top tube	52.0	53.0	54.1	55.3	56.2	57.5
Bottom bracket drop	8.0	8.0	8.0	7.8	7.8	7.5
Chainstay length	42.0	42.0	42.0	42.0	42.0	42.0
Offset	5.3	5.3	5.3	4.8	4.8	4.8
Trail	6.2	6.3	6.3	6.3	6.3	6.2
Wheelbase	98.7	100.2	101.1	101.0	101.9	103.3
Standover	72.1	75.3	77.5	80.5	82.6	86.3
Frame reach	36.8	37.1	37.4	37.7	38.0	38.4
Frame stack	52.4	55.5	57.5	59.6	61.8	64.8
Front centre	58.0	59.5	60.4	60.2	61.1	62.4
