Description

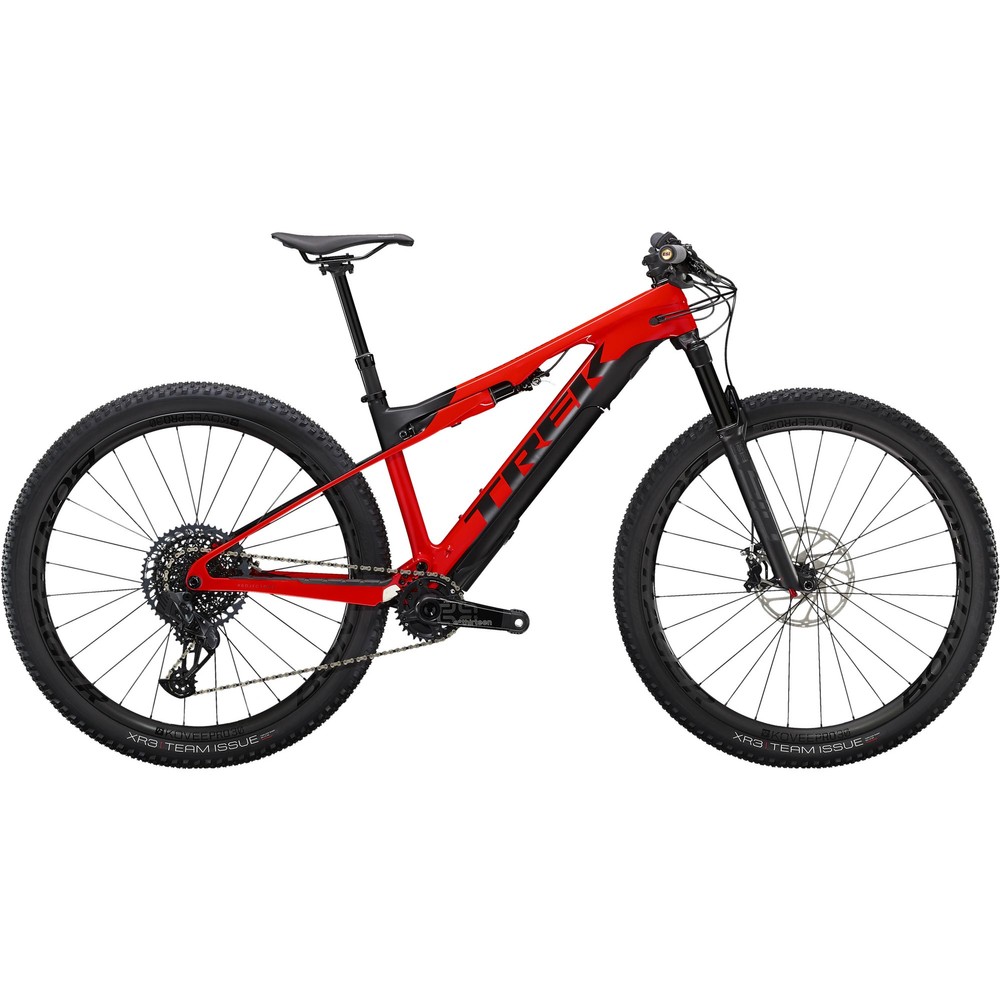

Trek E-Caliber 9.8 GX AXS Electric Mountain Bike 2021
With its lightweight carbon construction and pinpoint handling, the Trek E-Caliber 9.8 GX AXS Electric Mountain Bike looks and feels like an elite level cross country bike. It uses much of the game-changing technology seen on the Supercaliber, including the IsoStrut integrated rear shock frame design, yet couples it with a Fazua motor system for a boost of power.
Neatly integrated into the frame is the exceptional Fazua Evation Drive Pack. With a 250Wh battery and up to 55Nm of torque, this punchy motor is the perfect addition to this frame. The profile is slim to retain the aesthetic of a traditional bike, and the Drive Pack can be removed, for lightweight, non-electric riding. The sleek Fazua Remote BX controller offers easy mode switching, ensuring an assistance level for all terrains and gradients.
Furthering on this high-tech design is the parts specification, which sees this bike equipped with the fully wireless SRAM GX AXS drivetrain for state of the art shifting. E*thirteen carbon cranks offer race-ready performance, and the tubeless-ready Bontrager Kovee Pro 30 Carbon wheelset is lightweight for rapid acceleration. The Rapid Drive 108 rear hub offers near-instantaneous acceleration, while the RockShox SID Select+ and FOX IsoStrut shock work in tandem to offer bump-soaking traction and a wide degree of adjustment.
Highlights
- Fully-wireless SRAM GX 12-speed drivetrain for state of the art shifting performance
- You get a helping hand from the motor on climbs and long rides, but it is a more natural-feeling assist that gives you an overall experience that is closer to riding an analogue bike than a typical e-MTB
- The Fazua drive system, including the motor, is easily removable. Just take it out, pop on the included cover, and you will have a standard mountain bike that weighs 2.9 kg less than before
- IsoStrut gives you just enough rear suspension for cross-country traction and comfort with less weight and more efficiency
- The pivotless seat stays save on weight and actively bend to help soak up trail chatter
- BLACK PEPPER firmware update enhances the performance of the bike
- OCLV mainframe, with IsoStrut suspension, Control Freak internal routing and Knock Block
- Lightweight Bontrager Kovee carbon wheelset improves climbing and handling
- Fast-rolling 29” wheels for ultimate cross country performance
Battery Specifications
- Maximum Assist: 250W / 55Nm torque
- Motor Weight: 1.91kg
- Battery Power: 250Wh
Technical Specification
| Frame | Trek OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost 148mm spacing, 60mm travel |
| Fork | RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost 110mm spacing, 15mm Maxle Stealth, 120mm travel |
| Rear Shock | Trek IsoStrut, FOX Performance shock, air spring, DPS 2-position remote damper, 235x32.5mm |
| Headset | Trek Knock Block Integrated, 62° radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width |
| Stem | Bontrager Kovee Pro, 35mm, Knock Block, Blendr-compatible, 13° |
| Grips | ESI Chunky |
| Front Brake | SRAM G2 RSC hydraulic disc, four-piston |
| Rear Brake | SRAM G2 RSC hydraulic disc, four-piston |
| Brake Levers | SRAM G2 RSC |
| Rear Derailleur | SRAM GX AXS Eagle, 12-speed |
| Shift Levers | SRAM GX Eagle AXS, 12-speed |
| Chain | SRAM GX Eagle, 12-speed |
| Cassette | SRAM Eagle XG-1275, 10-52t, 12-speed |
| Crankset | E*thirteen E*spec Race Carbon, 32t |
| Front Wheel | Bontrager Kovee Pro 30 Carbon, tubeless-ready, 6-bolt, Boost 110mm spacing, 15mm thru-axle |
| Rear Wheel | Bontrager Kovee Pro 30 Carbon, tubeless-ready, Rapid Drive 108, 6-bolt, Boost 148mm spacing, 12mm thru-axle |
| Front Tyre | Bontrager XR3 Team Issue, tubeless-ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" |
| Rear Tyre | Bontrager XR3 Team Issue, tubeless-ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" |
| Seatpost | Bontrager Line Elite Dropper, 150mm travel (100mm size S), MaxFlow, internal routing, 31.6mm, 440mm length |
| Saddle | Bontrager P3 Verse Elite, stainless steel rails, 145mm width |
| Pedals | Available to be purchased separately |
| Motor | Fazua Evation 1.0, 250W, BLACK PEPPER firmware, Fazua Evation Drive Pack |
| Battery | Fazua 250Wh |
| Display/UI | Fazua Remote BX |
| Accessories | Downtube cover, Bontrager Drop Lock remote |
| Manufacturer claimed weight | 17.47kg (size medium) |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
