ELECTRIC

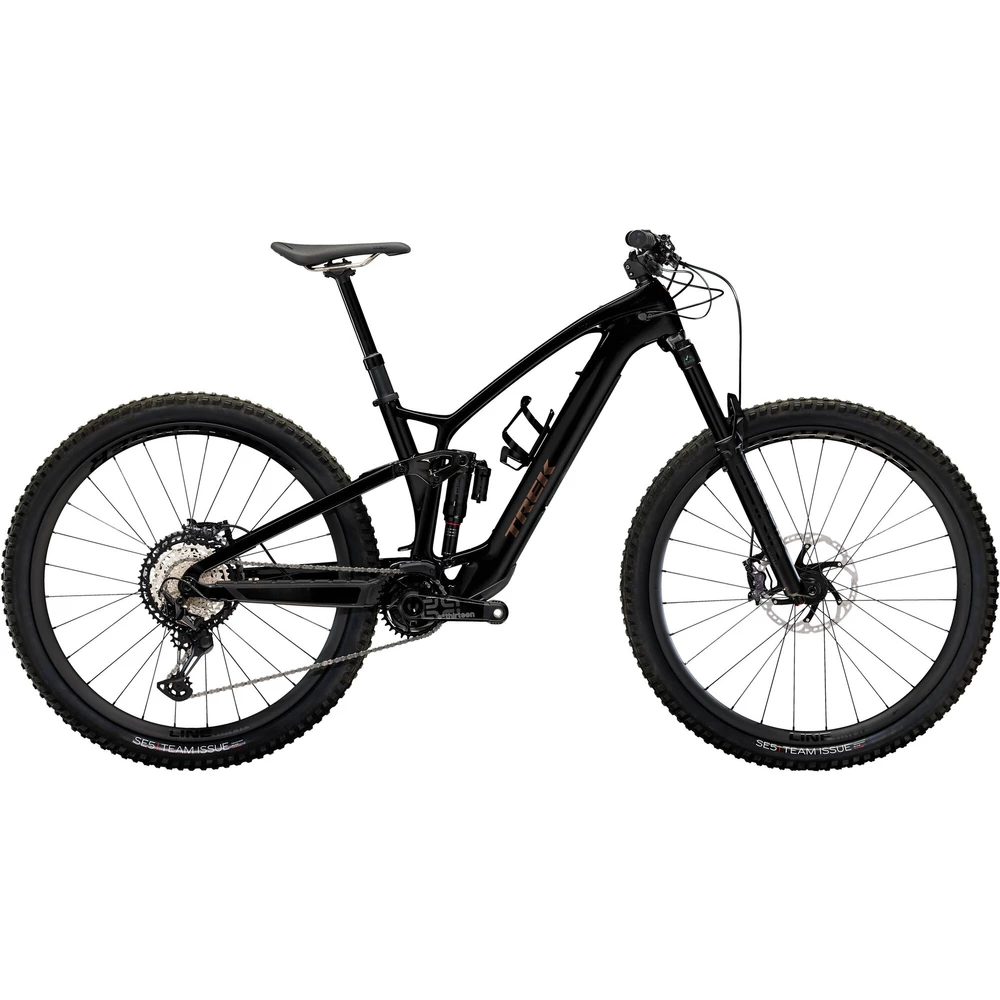

Trek Fuel EXe 9.8 XT Electric Mountain Bike 2023

£9,275.00
Find My Size

Check to see if we have it in stock - just select your colour and size.

Trek
Fuel EXe 9.8 XT Electric Mountain Bike 2023

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1625208

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports cycle schemes
Cycle to Work Schemes

Save up to 47% with any one of our 11 Cycle to Work partners, and get the health benefits of a new bike in exchange for tax free salary sacrifice. To find out more about our various partners and how to apply click here.

Bike Delivery Options

Choose between Free Bike Delivery - to your home or place of work - or our new Premier Bike Delivery Service £99.99 and have your bike delivered "ready to ride" and set up to your measurements with seatpost and pedals adjusted on arrival by a qualified bike mechanic. Either way, our Customer Care team will be in touch to arrange a delivery date to suit you.

laka insurance
Laka Insurance

We've partnered with Laka to offer you 30 days free bike Insurance on your new bike purchase over £400. Click here for more info and find out how to claim.

Trek Fuel EXe 9.8 XT Electric Mountain Bike 2023

Trek’s Fuel EXe 9.8 XT Electric Mountain Bike is a light and agile trail bike that is designed for general trail use, with plenty of capacity to hit the descents hard and then the added power to make the climb back to the top a breeze.

At the bike’s heart is the unique, 300W TQ-HPR50 motor. Its Harmonic Pin-Ring (HPR) design means that it is quieter, lighter and more compact than belt drive motors, providing natural feeling assistance up to 15.5 mph / 25 km/h. The responsive nature of the power delivery is superb when climbing technical trails or flicking through windy singletrack and underlies the trail-ready nature of the Fuel EXe. The 360Wh battery can be charged in situ in the downtube or removed if required, and the top tube display gives access to the bike’s power modes and other ride information.

The carbon frame offers 140mm of travel from the RockShox Super Deluxe Select+ shock, paired with the 150mm RockShox Lyrik Select+ fork. The switchable Mino Link allows the geometry to be altered by about 1/2° to fine-tune the handling and mechanics will love the internal channels in the frame that make cable replacement simpler.

Shimano’s XT groupset deserves all the plaudits it receives for reliability and performance. The 4-piston hydraulic disc brakes and large rotors give the bike plenty of stopping power and control whilst the 12-speed drivetrain offers instant, accurate shifts across the 10-51-tooth cassette. Shadow+ technology ensures that the chain remains in place on the 1x chainset, with the stabiliser also reducing any noise from chain slap.

The stem and handlebar are a one-piece carbon design for a pro look and there is a Bontrager Line Elite Dropper seatpost to get the saddle quickly out of the way if the trail turns technical. The fast-rolling, carbon 29” Bontrager Line Pro 30 wheels and 2.5” SE5 Team Issue tyres are both tubeless-ready for easy conversion, with the rim’s 29mm internal width providing great support to the tyre when cornering hard.

Browse our range of Trek electric mountain bikes today.

Trek Fuel EXe 9.8 XT Highlights

  • Trek OCLV Mountain Carbon frame with RockShox Super Deluxe Select+ shock and Mino Link, 140mm of travel
  • RockShox Lyrik Select+ fork, 150mm of travel
  • Shimano XT M8100, 12-speed drivetrain
  • Shimano XT M8120 4-piston hydraulic disc brakes
  • Bontrager Line Elite 30 wheels with SE5 Team Issue 29x2.50" tyres
  • Bontrager Line Elite Dropper dropper seatpost

Battery Specifications

  • Maximum Assist: 300w / 50Nm torque
  • Motor Weight: 1.85kg
  • Battery Power: 360Wh

Technical Specification

Frame Trek OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Fork RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
Rear Shock RockShox Super Deluxe Select+ RT, 205mm x 60mm
Stem / Handlebar Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820 mm width, 0° stem rise, 35mm stem length (size S), 45mm (M, L, XL)
Grips Bontrager XR Trail Elite, nylon lock-on
Front Brake Shimano XT M8120 4-piston hydraulic disc, 203mm rotor
Rear Brake Shimano XT M8120 4-piston hydraulic disc, 180mm rotor
Brake Levers Shimano XT M8120
Rear Derailleur Shimano XT M8100, long cage
Shift Levers Shimano XT M8100, 12-speed
Chain Shimano XT M8100, 12-speed
Cassette Shimano XT M8100, 10-51, 12-speed
Crankset E*thirteen E*spec Race carbon, 34T, 165mm length
Front Wheel Bontrager Line Pro 30, OCLV Mountain Carbon, tubeless-ready, 6-bolt, Boost110, 15mm thru-axle
Rear Wheel Bontrager Line Pro 30, OCLV Mountain Carbon, tubeless-ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12mm thru-axle
Front Tyre Bontrager SE5 Team Issue, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50", tubeless-ready
Rear Tyre Bontrager SE5 Team Issue, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50", tubeless-ready
Saddle Bontrager Arvada Pro, carbon rails, 138mm width
Seatpost Bontrager Line Elite Dropper, MaxFlow, internal routing, 34.9 mm, 100mm travel (Size S), 150mm (M), 170mm (L), 200mm (XL)
Pedals Available to be purchased separately
Manufacturer claimed weight 18.1kg size M
Electric Assisted Speed Limit 15.5 mph / 25 km/h
Motor TQ-HPR50, 300 watts, 50Nm
Ui/Remote TQ LED display with Bluetooth & ANT+ connectivity
Battery TQ 360Wh
Charger TQ 4A charger

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.


Trek Fuel EXe 9.8 XT Electric Mountain Bike 2023 Sizing
