Product Details

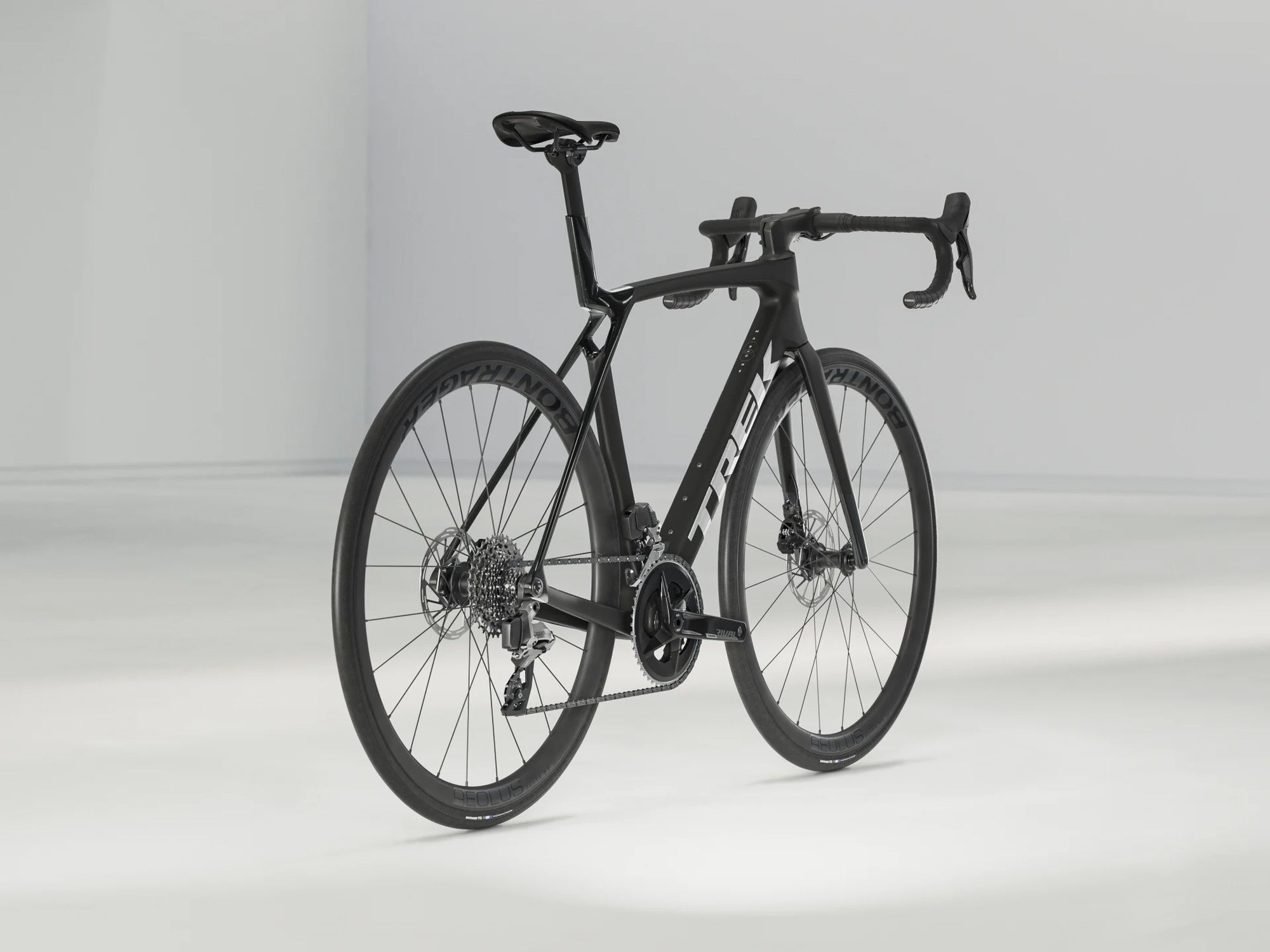

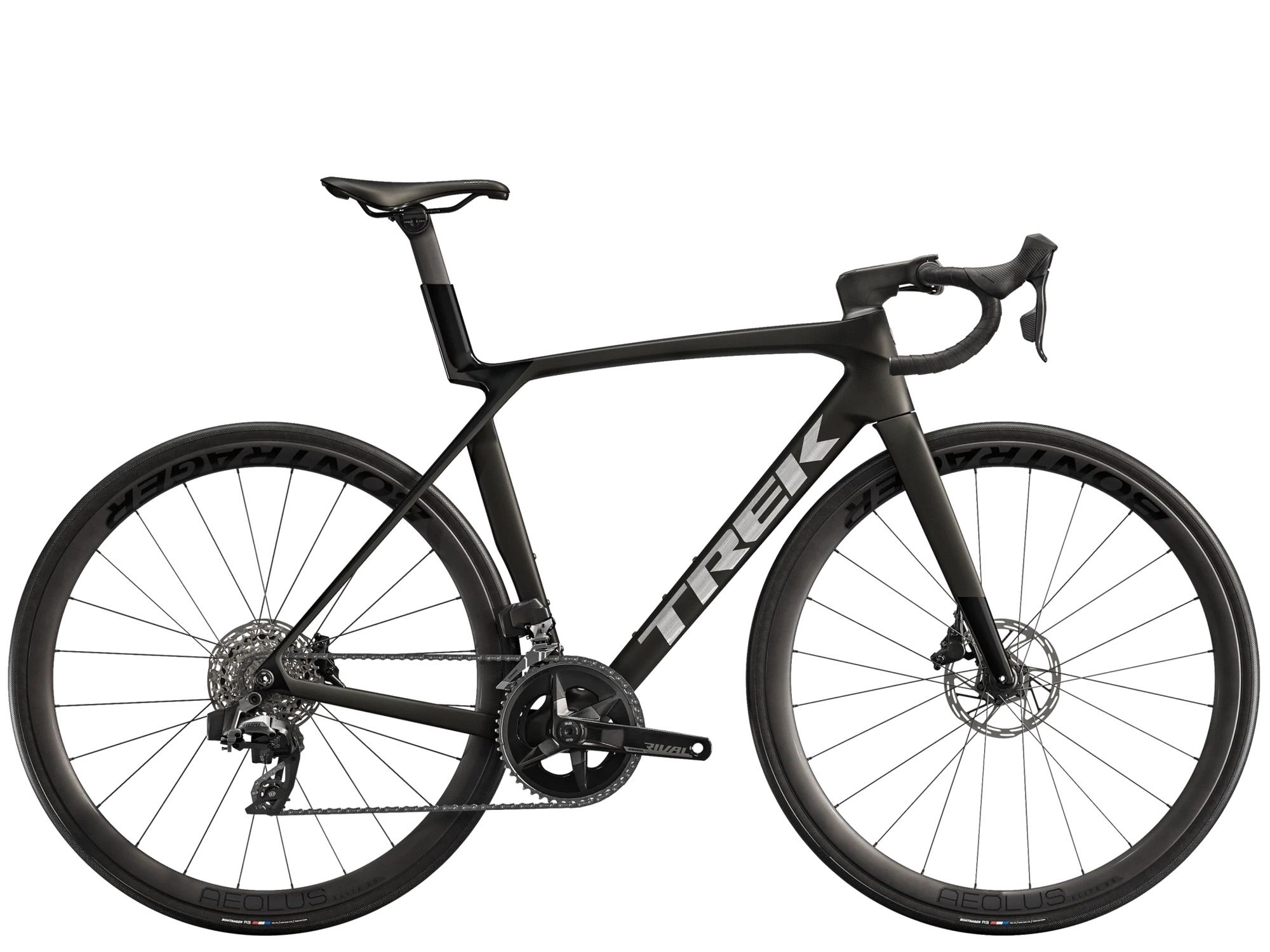

Trek Madone SL 6 AXS Gen 8 Road Bike
The Madone SL 6 AXS Gen 8 is a lightweight aero road bike that integrates elite racing technology into its design. It features an OCLV 500 Carbon lay-up and a two-piece cockpit with hidden cable routing, offering similar aerodynamic benefits as the Madone SLR Gen 8. Built for racing, its geometry ensures agility during sprints and stability on fast descents. Equipped with SRAM's Rival AXS electronic group set, renowned for customizable, precise shifts, and paired with carbon wheels for optimal lightweight performance, this bike is ideal for riders prioritizing high-performance capabilities.
Features
- Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
- Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
- Weight: ML - 8.43 kg / 18.59 lbs (with TLR sealant, no tubes)
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 125 kg (275 lb).
- Battery: SRAM eTap battery pack (with charger)
- Shifter: SRAM Rival eTap AXS, 12-speed
- Front derailleur: SRAM Rival D1 AXS, braze-on
- Rear derailleur: SRAM Rival AXS
- Crank SRAM Rival AXS w/ power meter, 48/35, DUB
- Bottom bracket: SRAM DUB, T47 threaded, internal bearing
- Cassette: SRAM XG-1250, 10-36, 12-speed
- Max. chainring size: 1x 54T, 2x 56/43
- Wheel front: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100x12 mm thru axle
- Wheel rear: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru-axle
- Hub front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
- Skewer front: Bontrager Switch chamfered thru axle, removable lever
- Hub rear: Bontrager Affinity Comp, SRAM XD-R freehub, 142x12mm thru axle
- Skewer rear: Bontrager Switch chamfered thru axle, removable lever
- Tyre: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
- Rim strip: Bontrager TLR
- Max tyre size: 32 mm (as measured, see manual for details)
- Saddle: Bontrager Aeolus Comp, steel rails
- Seatpost: Madone aero carbon seat post, 0 mm offset
- Handlebar: Bontrager Comp, alloy
- Stem: Trek RCS Pro, -7-degree
- Brake rotor: SRAM Paceline, rounded, CentreLock, 160 mm
- Rotor size: Max brake rotor sizes: 180 mm front, 160 mm rear
Highlights
- Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, flat mount disc, UDH
- Drivetrain: SRAM Rival eTap AXS, 12-speed
- Wheels: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready
Specifications
- Model
- Madone SL 6 AXS Gen 8
- Battery [Maker]
- SRAM
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- SRAM
- Cassette [Maker]
- SRAM
- Chain [Maker]
- SRAM
- Crank [Maker]
- SRAM
- Crank [Model]
- Rival AXS
- E-Bike
- No
- Family
- Madone
- FD [Maker]
- SRAM
- FD [Model]
- Rival AXS
- Fenders Mounts
- No
- Fork [Brake Type]
- Disc
- Fork [Material]
- Carbon
- Fork [Wheel Size]
- 700c
- Frame [Material]
- Carbon
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Aero
- Rack Mounts
- No
- RD [Maker]
- SRAM
- RD [Model]
- Rival AXS
- Shifters [Maker]
- SRAM
- Shifters [Model]
- Rival AXS
- Shifting
- Electronic
- Suspension Configuration
- Rigid
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Material]
- Carbon
- Product code
- 1820611 / 54294534521178
Size Guide
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Rider Height (cm) | 152 - 158 | 158 - 163 | 163 - 168 | 168 - 174 | 174 - 180 | 180 - 185 | 185 - 190 | 190 - 195 |
| Inseam (cm) | 71 - 75 | 74 - 77 | 76 - 79 | 78 - 82 | 81 - 85 | 84 - 87 | 86 - 90 | 89 - 92 |
| Rider Height (ft. in.) | 5'0" - 5'2" | 5'2" - 5'4" | 5'4" - 5'6" | 5'6" - 5'9" | 5'9" - 5'11" | 5'11" - 6'1" | 6'1" - 6'3" | 6'3" - 6'5" |
| Inseam (inches) | 28" - 30" | 29" - 30" | 30" - 31" | 31" - 32" | 32" - 33" | 33" - 34" | 34" - 35" | 35" - 36" |
| Seat Tube (ctr-top) | 424 | 453 | 483 | 496 | 525 | 553 | 573 | 593 |
| Seat Tube (ctr-ctr) | - | - | - | - | - | - | - | - |
| Effective Top Tube | 512 | 521 | 534 | 543 | 559 | 574 | 586 | 598 |
| Actual Top Tube | - | - | - | - | - | - | - | - |
| Seat Angle (°) | 74.6 | 74.6 | 74.2 | 73.7 | 73.3 | 73.0 | 72.8 | 72.5 |
| Head Tube Angle (°) | 72.1 | 72.1 | 72.8 | 73 | 73.5 | 73.8 | 73.9 | 73.9 |
| Head Tube Length | 100 | 111 | 121 | 131 | 151 | 171 | 191 | 211 |
| Fork Rake | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Chainstay Length | 410 | 410 | 410 | 410 | 410 | 411 | 411 | 412 |
| Wheelbase | 972 | 974 | 977 | 981 | 983 | 992 | 1001 | 1010 |
| Stack | 507 | 521 | 533 | 541 | 563 | 581 | 601 | 620 |
| Reach | 373 | 378 | 383 | 386 | 391 | 396 | 399 | 403 |
All measurements are in mm unless otherwise stated.
