Description

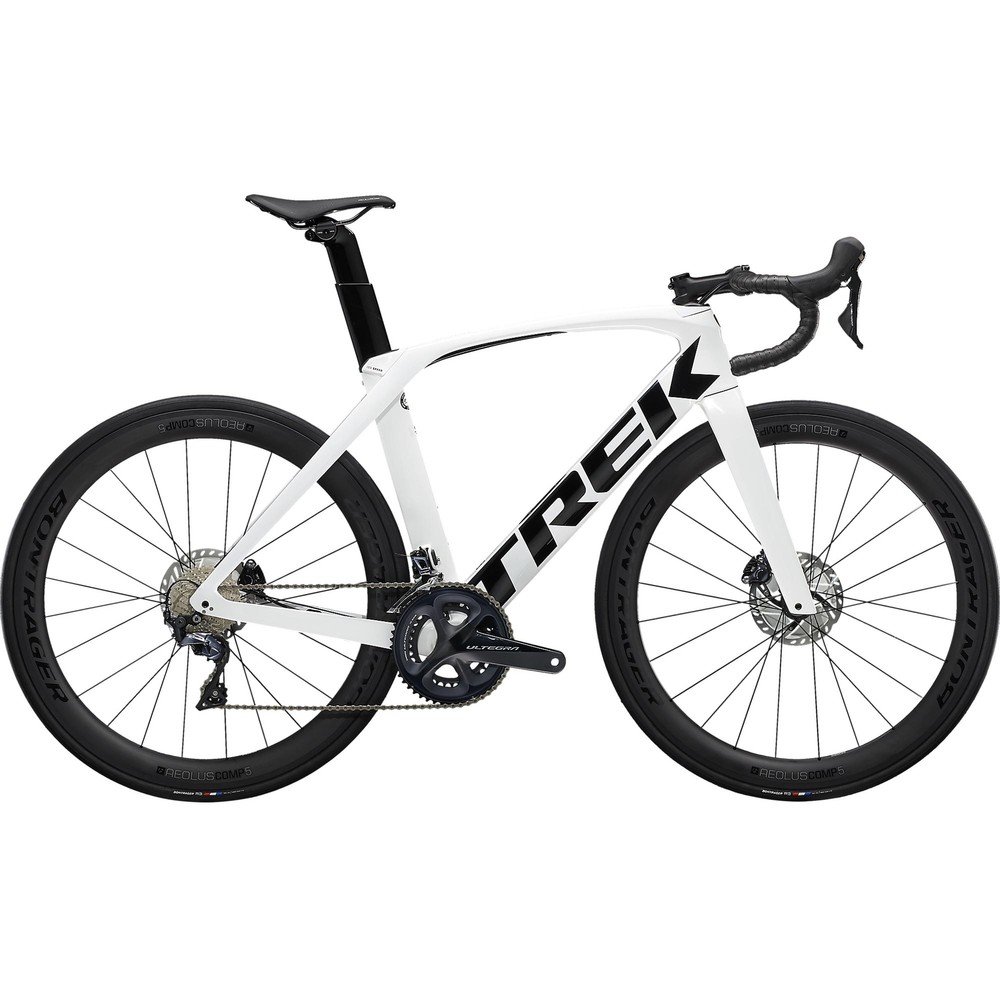

Trek Madone SL 6 Disc Road Bike 2022
With advanced aerodynamics and svelte lines, the Trek Madone SL 6 Disc Road Bike provides style and performance in a race-ready package. The 500 Series OCLV Carbon construction is lightweight and stiff for unrivalled power transfer and features Kammtail Virtual Foil tube shapes to cut drag to a minimum. Adjustable top tube IsoSpeed allows the user to customise the level of compliance on offer, making this far more versatile than its aero tubeset would have you believe.
The tubeless-ready Aeolus Comp wheels feature a modern 18mm rim width with a deep profile to improve their aerodynamic performance. Bontrager R3 Hard-Case Lite tyres roll fast and use an aramid bead, and the Bontrager cockpit offers pinpoint control on the road. A full Shimano Ultegra groupset provides proven, crisp shifting across the wide 11-speed range, and hydraulic disc brakes offer ample stopping power to boost confidence on the descents.
Highlights
- Lightweight and stiff 500 Series OCLV Carbon Fibre tubes formed into KVF shapes for unrivalled aerodynamic performance
- Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer, so it rebounds in a smooth, controlled, stable motion
- The Shimano Ultegra drivetrain offers proven shifting performance
- All the aero advantages of Madone, plus the added capability to clip-on aero bars for triathlons and time trials (available separately)
- The Madone seatpost has an integrated mount for the Bontrager Flare RT tail light (available separately)
Technical Specification
| Frame | Trek 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, flat-mount disc, DuoTrap S-compatible, 142x12mm thru-axle |
| Fork | Trek Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100mm thru-axle |
| Stem | Bontrager Pro, 31.8mm, Blendr-compatible, 7-degree, length - 80mm (50) / 90mm (52/54) / 100mm (56/58) / 110mm (60/62) |
| Handlebar | Bontrager Elite Aero VR-CF, alloy, 31.8mm, invisible cable routing, 93mm reach, 123mm drop, width - 40cm (50/52) / 42cm (54/56) / 44cm (58/60/62) |
| Bar Tape | Bontrager Supertack Perf tape |
| Front Brake | Shimano Ultegra hydraulic disc, Shimano RT800 rotor, Center Lock, 160mm |
| Rear Brake | Shimano Ultegra hydraulic disc, Shimano RT800 rotor, Center Lock, 160mm |
| Brake Levers | Shimano Ultegra R8020 |
| Front Derailleur | Shimano Ultegra R8000, braze-on |
| Rear Derailleur | Shimano Ultegra R8000, short cage, 30T max cog, 11-speed |
| Shift Levers | Shimano Ultegra R8020, 11-speed |
| Chain | Shimano Ultegra HG701, 11-speed |
| Cassette | Shimano Ultegra R8000, 11-30t, 11-speed |
| Crankset | Shimano Ultegra R8000, 50/34 (compact), length - 170mm (50/52) / 172.5mm (54/56) / 175mm (58/60/62) |
| Front Wheel | Bontrager Aeolus Comp Disc, tubeless-ready, 18mm rim width, 100x12mm thru-axle / skewer - Bontrager Switch thru-axle, removable lever |
| Rear Wheel | Bontrager Aeolus Comp Disc, tubeless-ready, 18mm rim width, 142x12mm thru-axle / skewer - Bontrager Switch thru-axle, removable lever |
| Front Tyre | Bontrager R3 Hard-Case Lite, aramid bead, 120tpi, 700x25c tubeless-ready |
| Rear Tyre | Bontrager R3 Hard-Case Lite, aramid bead, 120tpi, 700x25c tubeless-ready |
| Saddle | Bontrager Aeolus Comp, steel rails, 145mm width |
| Seatpost | Trek Madone aero carbon internal seat mast cap, integrated light mount, 25mm offset, short length (50/52/54/56), tall length (58/60/62) |
| Pedals | Available to be purchased separately |
| Manufacturer Claimed Weight | 8.74kg / 19.00lbs (56) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125kg (275lbs) |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
Highlights
Product Highlights
ULTRALIGHT 500 SERIES OCLV CARBON
Lightweight and stiff, OCLV 500 carbon soaks up road vibrations and provides a comfortable ride.
SHIMANO ULTEGRA
Reliable, precise and efficient, this 11-speed setup never misses a gear change.
MADONE KAAMTAIL AERO TUBE SHAPES
The Madone's Kaamtail frame tube shapes make it one of the world's most aerodynamic road frames.
MADONE TOP TUBE ISOSPEED
This top tube design uses an adjustable dampener to improve compliance at the rear of the bike.
